Tonzi: 2021-06-02 13:00:00 (DOY 153)
Author: Joe Verfaillie
Others:

Summary: Smoke from fire northwest of Galt, Upgraded the 7550 firmware, swapped 7500s for calibration, cows destroyed the fences but no other damage, Tried and failed reinstalling IRT, move IRT back to grass

Tonzi
2021-06-02

I arrived at about 13:00 PDT. It was clear sunny and hot with a breeze from the west. I had been smelling smoke earlier I think from a grass fire I saw northwest of Galt on my way up. But this afternoon I could see smoke drifting between the trees at one point. The grass is dry and crispy. I think the pond will go completely dry this summer.

I upgraded the LI-7550 boxes sn AIU-1869 and sn AIU-0666 firmware from v8.5.0 to v8.8.32. This was done mostly for standardization since we upgraded the Delta 7550s to try to improve time synchronization with the 7700s. The readings before and after the upgrade were nearly identical and all system settings seemed to be okay. Afterwards, I swapped the heads for calibration. At the Tower sn 75H-2150 came off and sn 0035 went on. At the Floor sn 75H-2176 came off and sn 0418 went on.
Tower 2150 8.8: 405.1ppm CO2, 515.1mmol/m3 H2O, 32.2C, 98.5kPa, 98.2SS
Tower 0035 8.8: 422.3ppm CO2, 452.1mmol/m3 H2O, 31.1C, 98.5kPa, 100.8SS
Floor 2176 8.8: 409.4ppm CO2, 480.0mmol/m3 H2O, 33.8C, 98.6kPa, 98.2SS
Floor 0418 8.8: 420.4ppm CO2, 426.4mmol/m3 H2O, 34.4C, 98.6kPa, 98.3SS
I updated the pressure coefficients and restarted the boxes. The new firmware will no longer create the summary files.

I tried to reinstall the IRT sensor I removed last time. Again I failed. Seems I soldered the resistor on wrong. I moved the existing IRT sn 7385 from the cal panel back to the grass location.

I did the well, Moisture Point, and DBH measurements. I collected the FD data, z-cams and other data loggers. Cows had broken the fence wires at soil CO2 and all around the Tower. The cows pulled weeds around the base of the tower and otherwise trampled the grass but I didn’t find any chewed wires or disturbed equipment. The fence power was left off last time because it is so dry already. I think the cows are now gone.

The grass IRT by the little tree was out of its mount but still pointed in the correct direction. I put it back in its mount.

I left at about 16:00 PDT

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2021-06-02VR_well57.15
2021-06-02VR_pond15.74
2021-06-02TZ_floor30.7
2021-06-02TZ_road38.6
2021-06-02TZ_tower35

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 )

0000
Date DOY Rep Depth
Tower_1
Floor_South_1
Soil_Transect_4_1
Soil_Transect_3_1
Soil_Transect_2_1
Soil_Transect_1_1
SoilCO2_West_A_1
SoilCO2_West_B_1
SoilCO2_West_C_1
Tower_2
Floor_South_2
Soil_Transect_4_2
Soil_Transect_3_2
Soil_Transect_2_2
Soil_Transect_1_2
SoilCO2_West_A_2
SoilCO2_West_B_2
SoilCO2_West_C_2
Tower_3
Floor_South_3
Soil_Transect_4_3
Soil_Transect_3_3
Soil_Transect_2_3
Soil_Transect_1_3
SoilCO2_West_A_3
SoilCO2_West_B_3
SoilCO2_West_C_3
Tower_4
Soil_Transect_4_4
Soil_Transect_3_4
Soil_Transect_2_4
Soil_Transect_1_4
SoilCO2_West_A_4
SoilCO2_West_B_4
SoilCO2_West_C_4
Avg
Spacial Count
Measurement Count
2021-06-02 153 0 nan 4.54.27.90.934.78.61.20.312.16.97.513.912.44.57.20.511.514.827.110.913.417.31415.616.811.720.811.920.229.914.821.31115.6
2021-06-02 153 1 nan 3.93.95.41.50.65.39.40.60.611.86.96.914.211.84.28.70.311.814.826.810.91416.213.715.61711.721.112.220.229.914.820.510.715
2021-06-02 153 Avg 0-15cm 0
2021-06-02 153 Avg 15-30cm 0
2021-06-02 153 Avg 30-45cm 0
2021-06-02 153 Avg 45-60cm 0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000
Date DOY Rep Depth
Flux_Tower_1
Biomass_Cage_1
Flux_Tower_2
Biomass_Cage_2
Flux_Tower_3
Biomass_Cage_3
Flux_Tower_4
Biomass_Cage_4
Avg
Spacial Count
Measurement Count
2021-06-02 153 0 nan 10.18.44.24.211.511.613.9
2021-06-02 153 1 nan 0.10.18.14.24.211.71114.2
2021-06-02 153 Avg 0-15cm 0
2021-06-02 153 Avg 15-30cm 0
2021-06-02 153 Avg 30-45cm 0
2021-06-02 153 Avg 45-60cm 0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2021-06-02113.0
2021-06-021028.6
2021-06-02215.2
2021-06-0224513.9
2021-06-02317.9
2021-06-02411.9
2021-06-0256.7
2021-06-02617.1
2021-06-02720.0
2021-06-027213.0
2021-06-027911.3

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

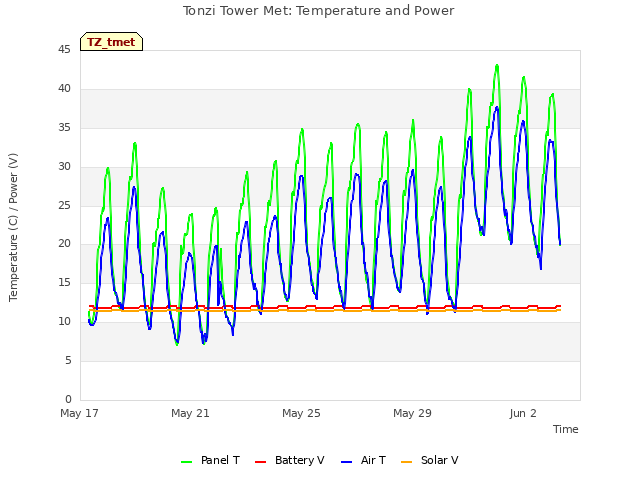

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

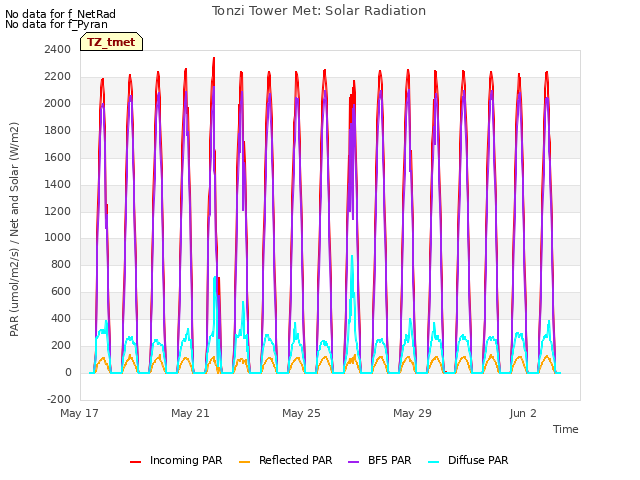

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

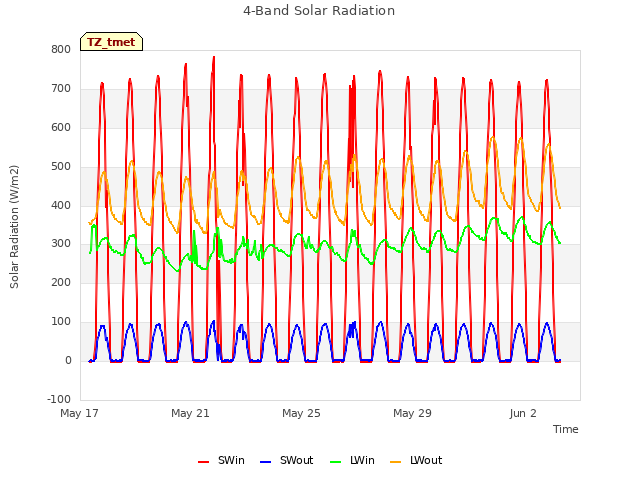

Explore the graph:4-Band Solar Radiation in a new window

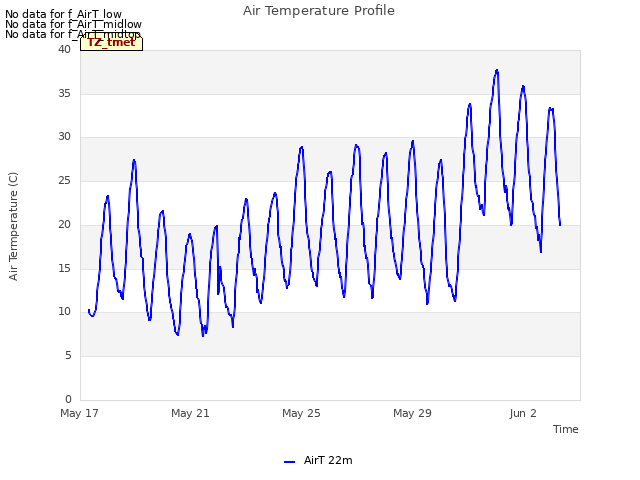

Explore the graph:Air Temperature Profile in a new window

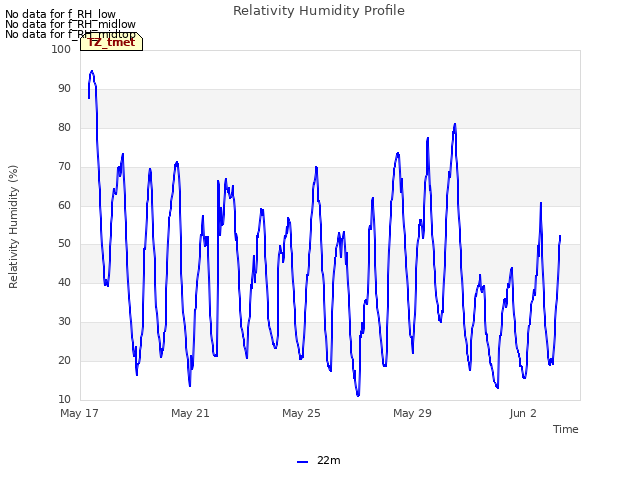

Explore the graph:Relativity Humidity Profile in a new window

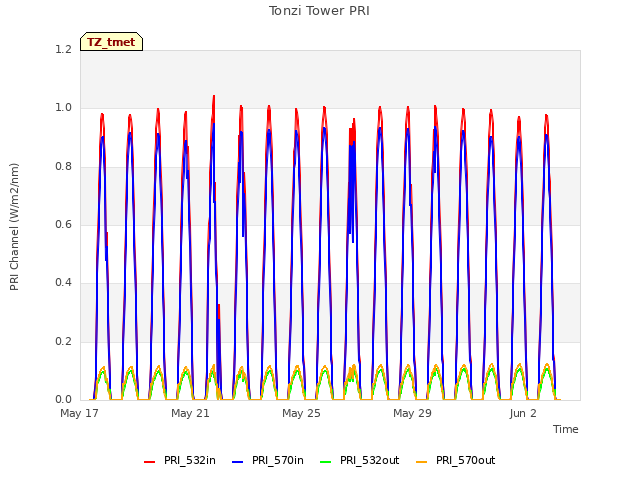

Explore the graph:Tonzi Tower PRI in a new window

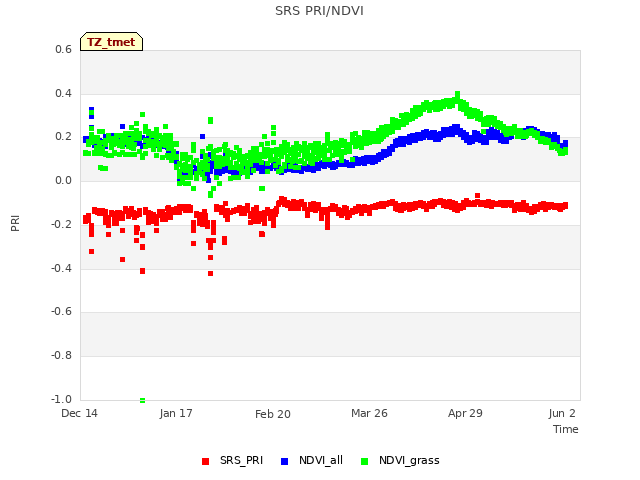

Explore the graph:SRS PRI/NDVI in a new window

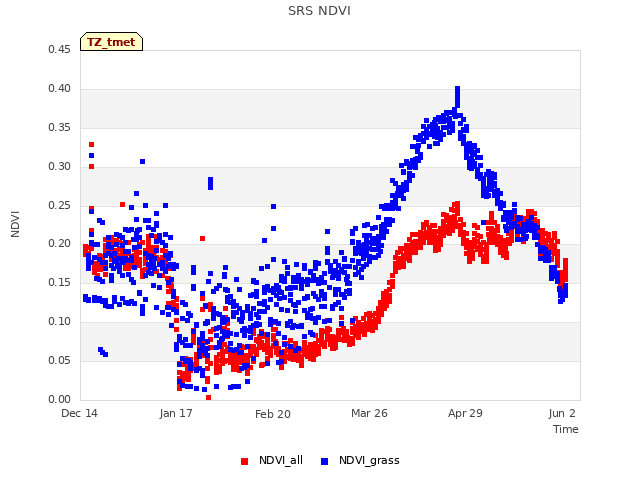

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

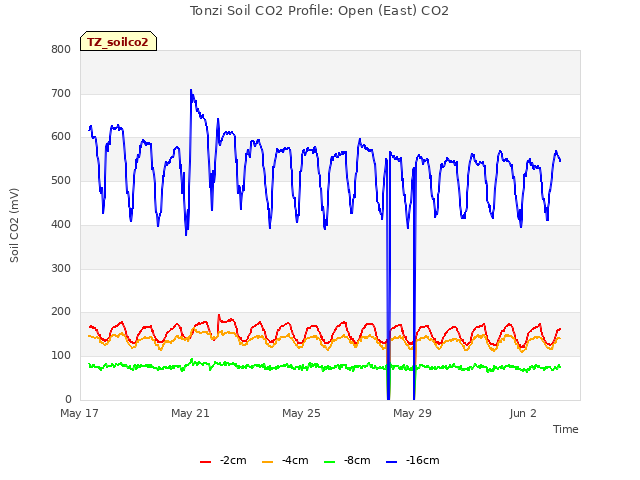

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

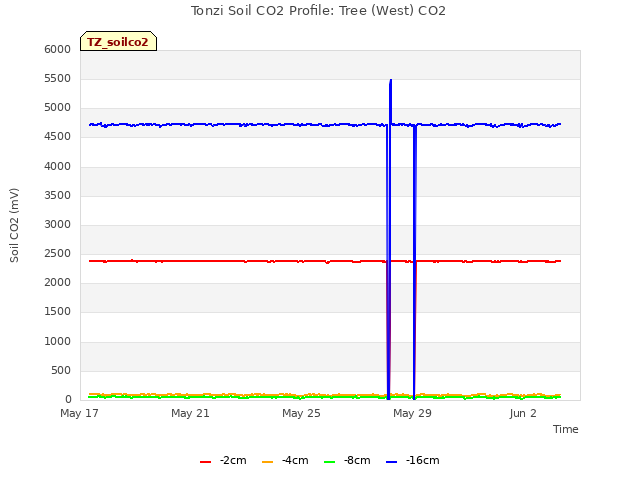

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

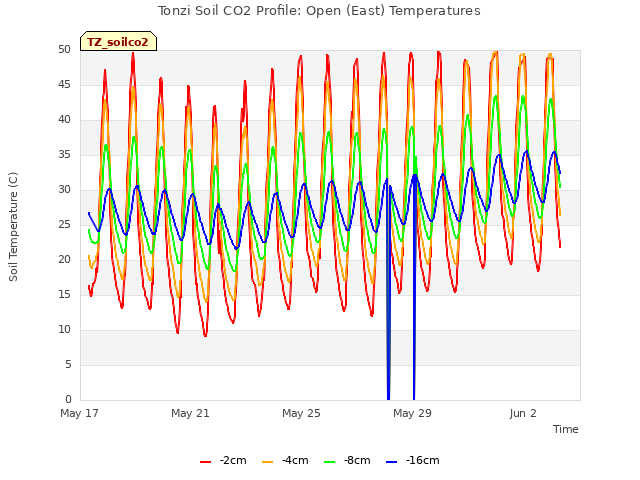

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

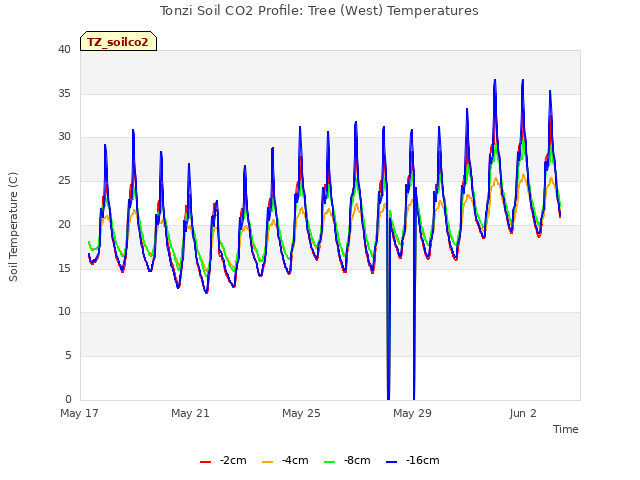

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

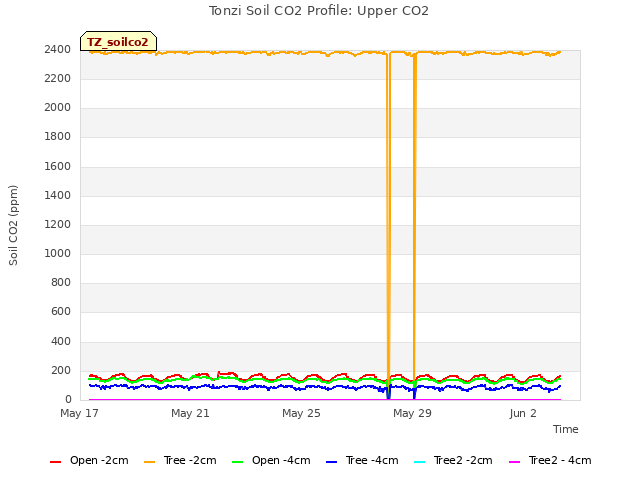

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

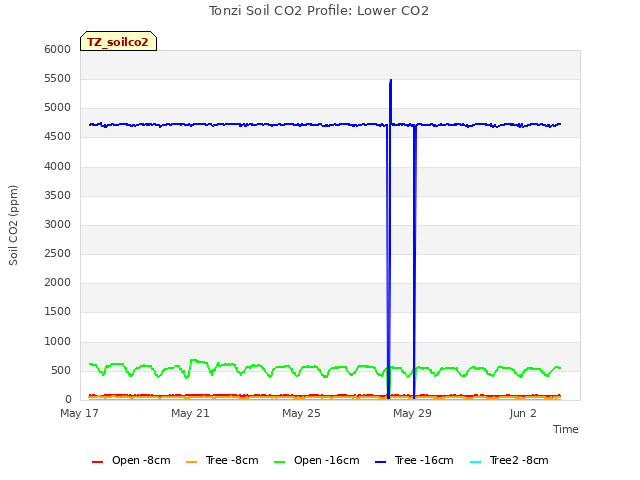

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

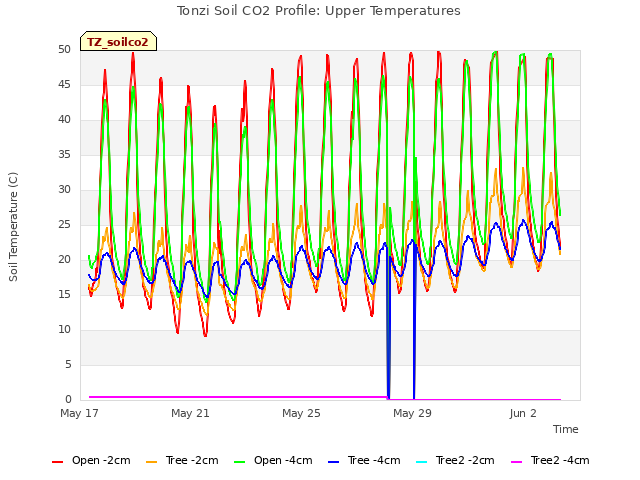

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

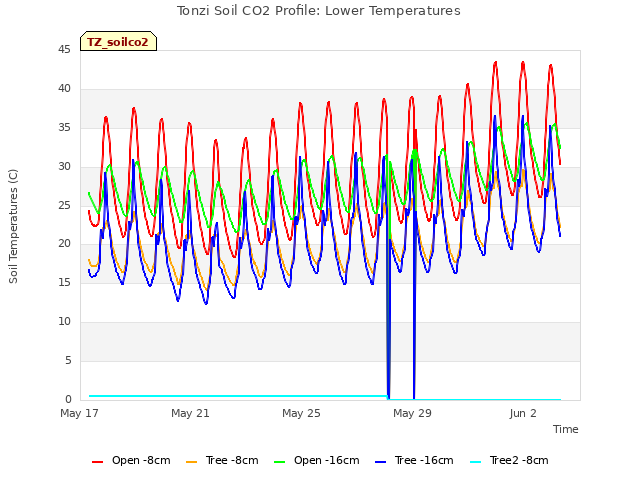

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

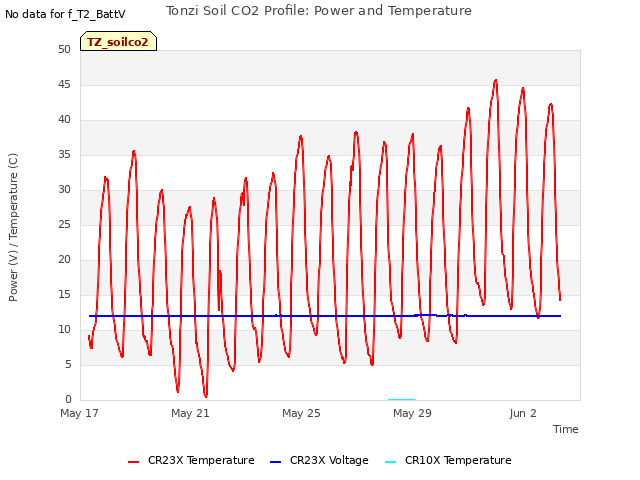

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

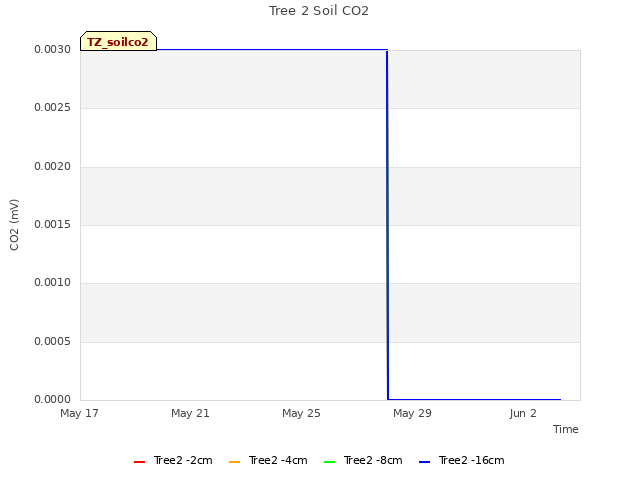

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

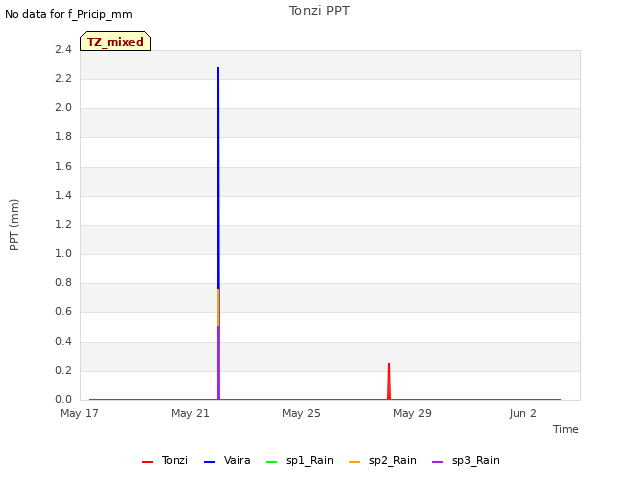

Explore the graph:Tonzi PPT in a new window

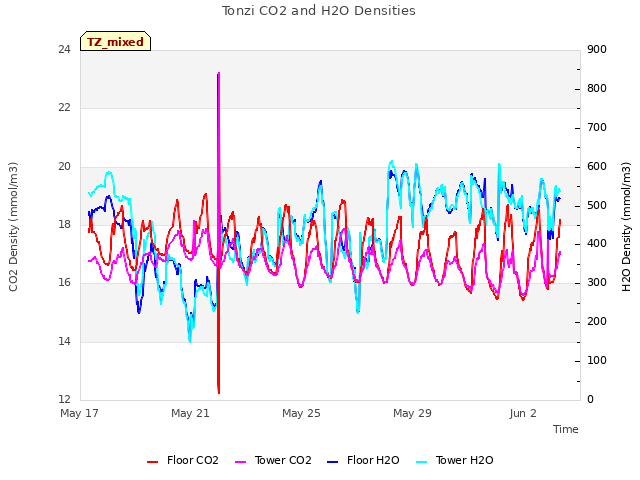

Explore the graph:Tonzi CO2 and H2O Densities in a new window

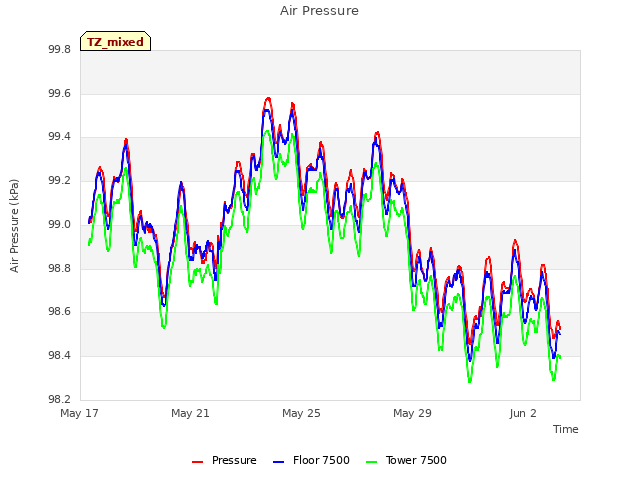

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

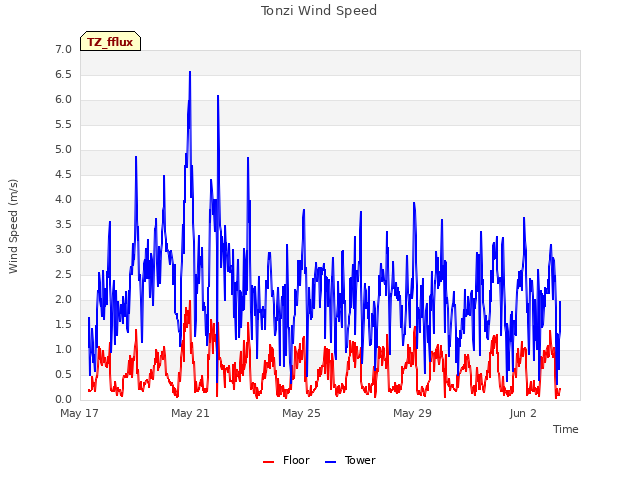

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

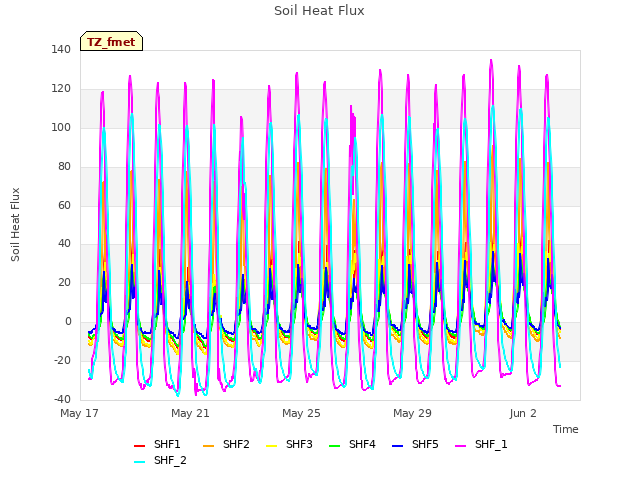

Explore the graph:Soil Heat Flux in a new window

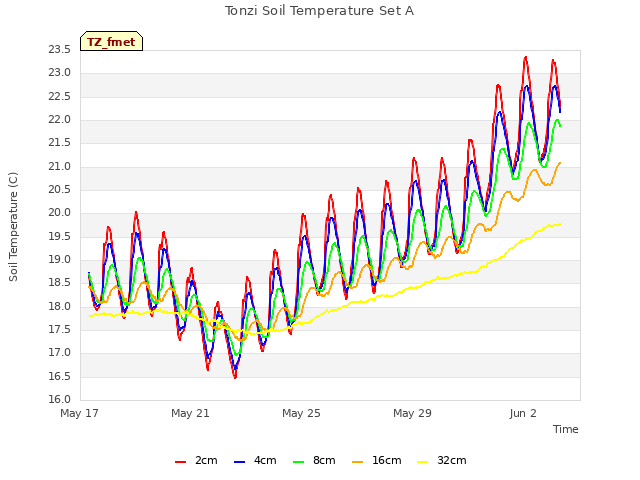

Explore the graph:Tonzi Soil Temperature Set A in a new window

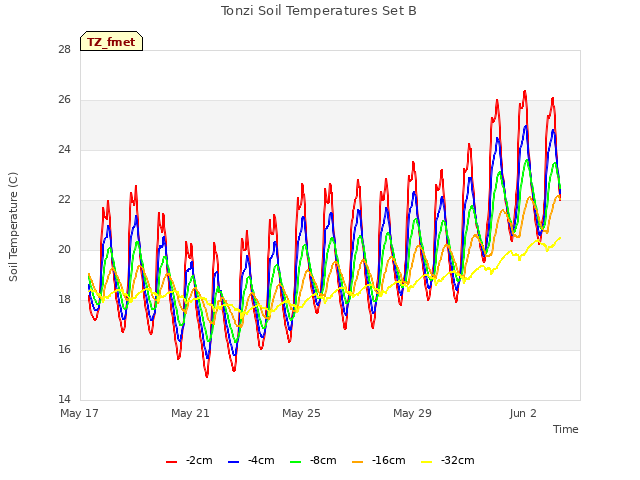

Explore the graph:Tonzi Soil Temperatures Set B in a new window

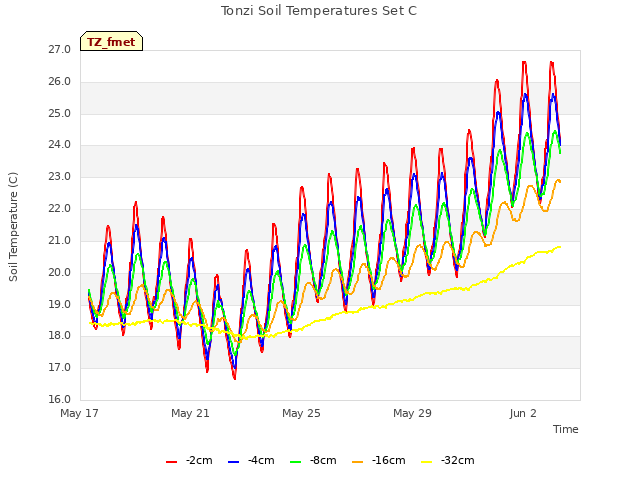

Explore the graph:Tonzi Soil Temperatures Set C in a new window

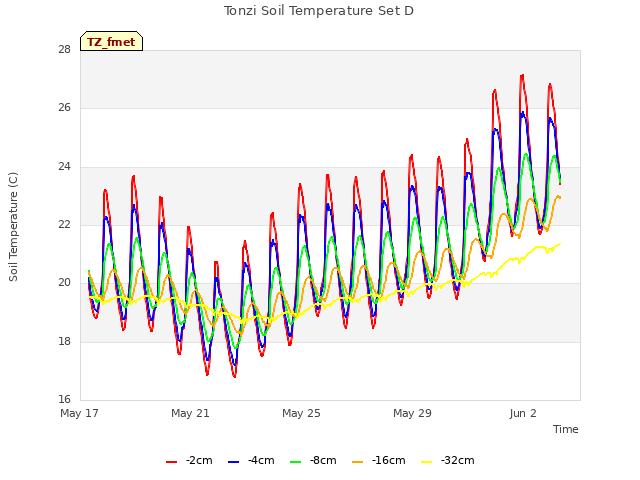

Explore the graph:Tonzi Soil Temperature Set D in a new window

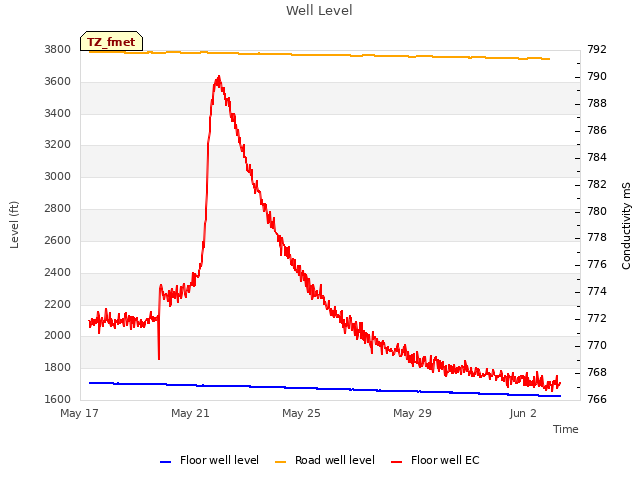

Explore the graph:Well Level in a new window

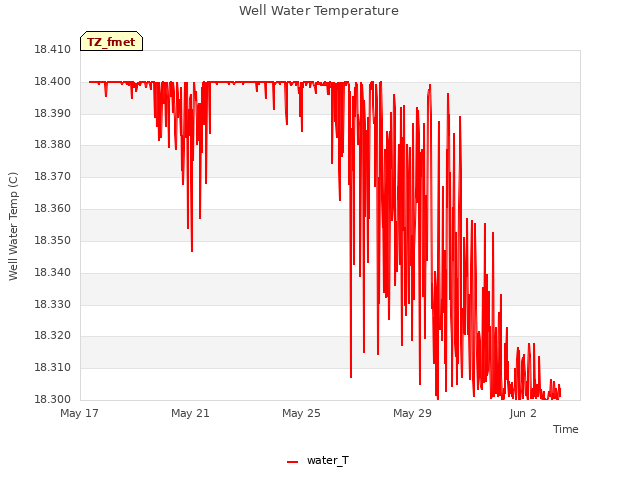

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
3 TZ_co2prof graphs found

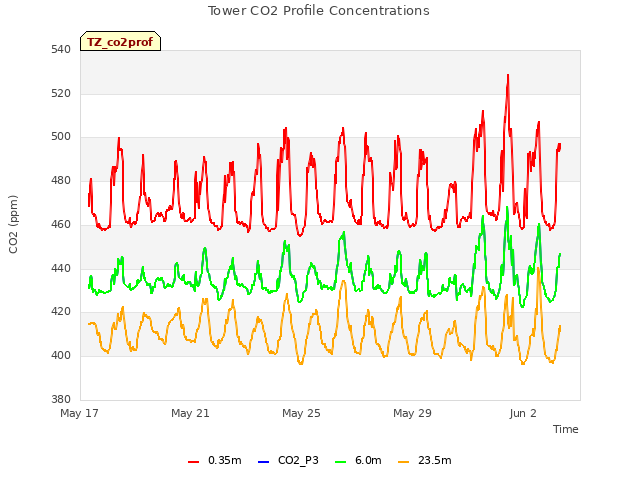

Explore the graph:Tower CO2 Profile Concentrations in a new window

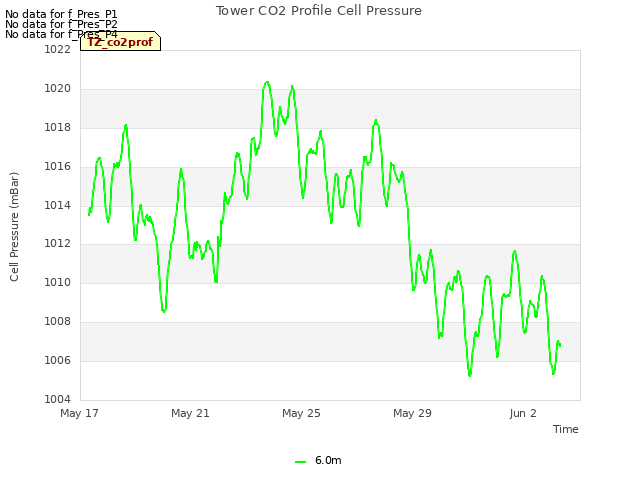

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

Explore the graph:CO2 Profile Sensor Temperature in a new window

1 TZ_irt graphs found

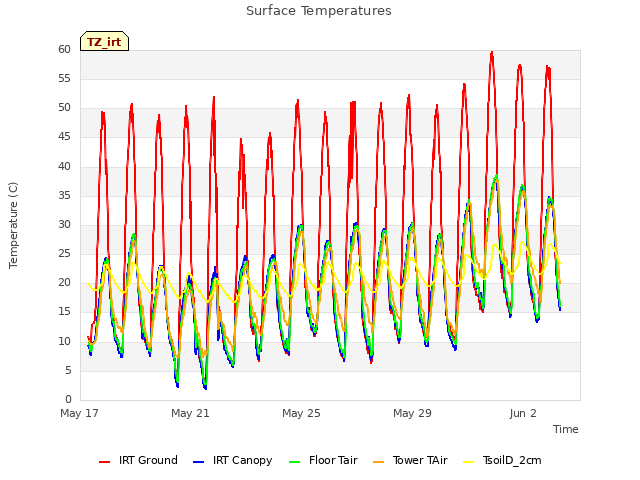

Explore the graph:Surface Temperatures in a new window

No data found for TZ_windprof.
1 TZ_tflux graphs found

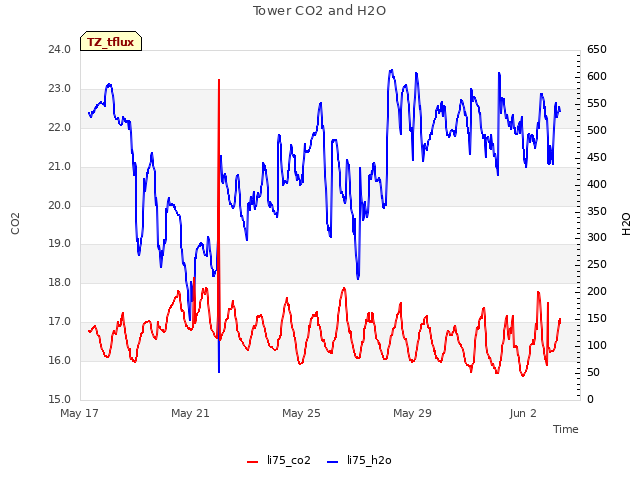

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

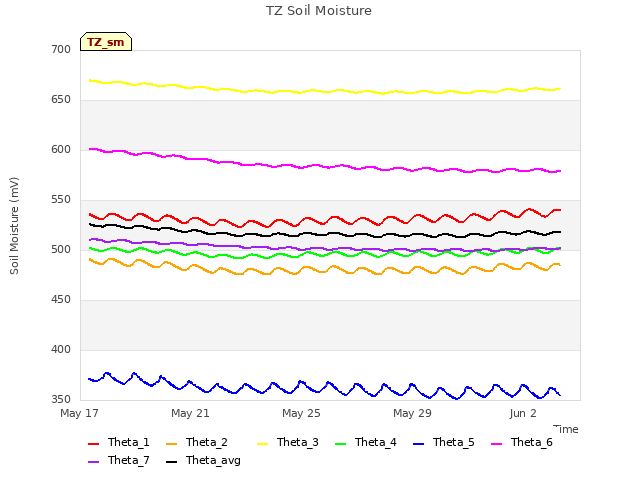

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

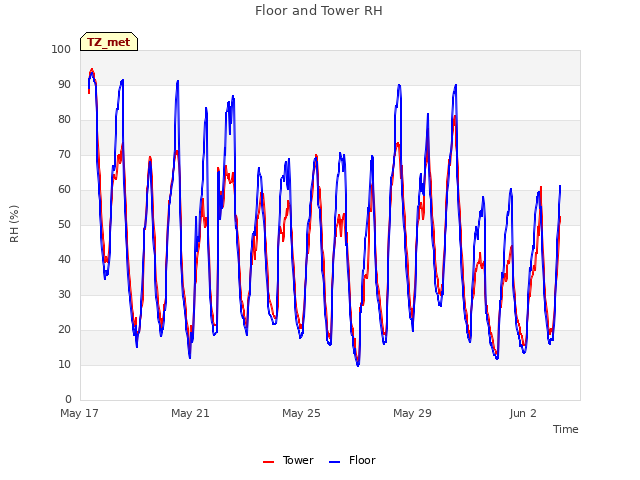

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

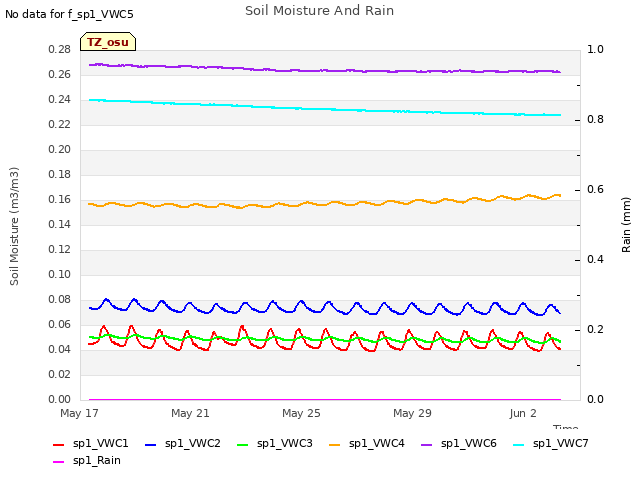

Explore the graph:Soil Moisture And Rain in a new window

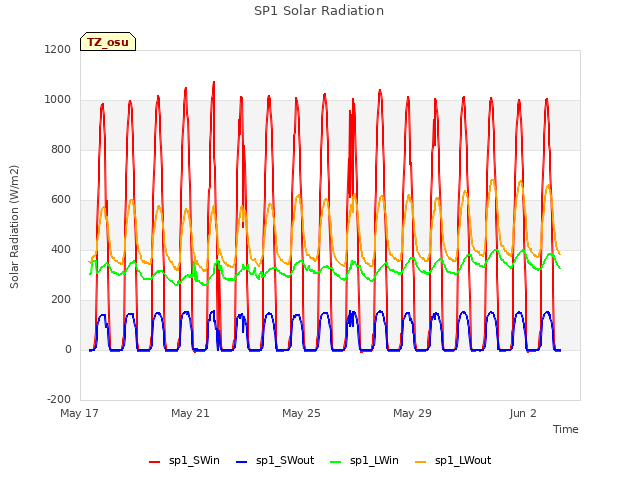

Explore the graph:SP1 Solar Radiation in a new window

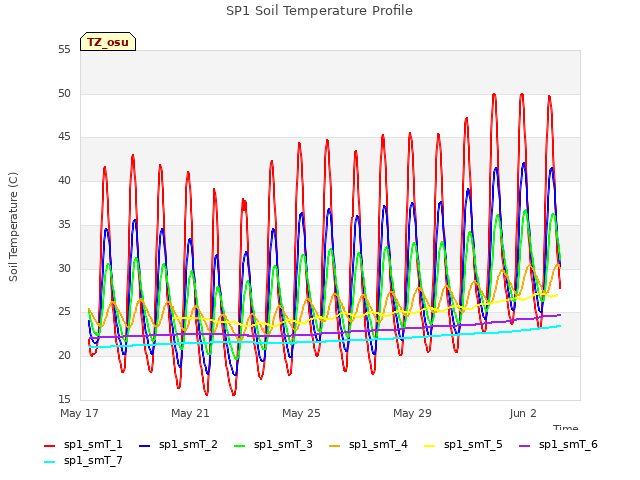

Explore the graph:SP1 Soil Temperature Profile in a new window

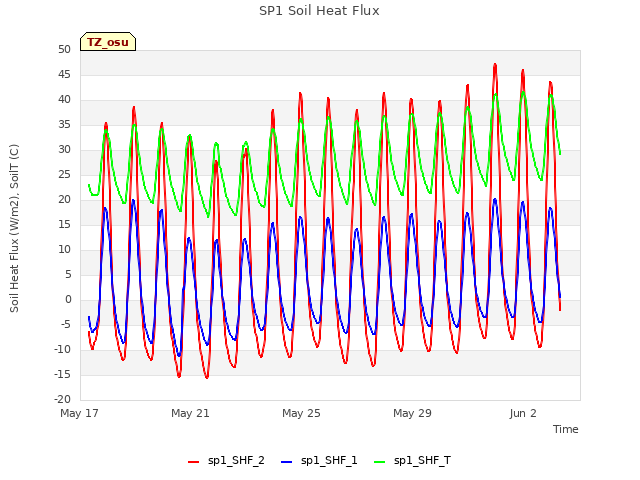

Explore the graph:SP1 Soil Heat Flux in a new window

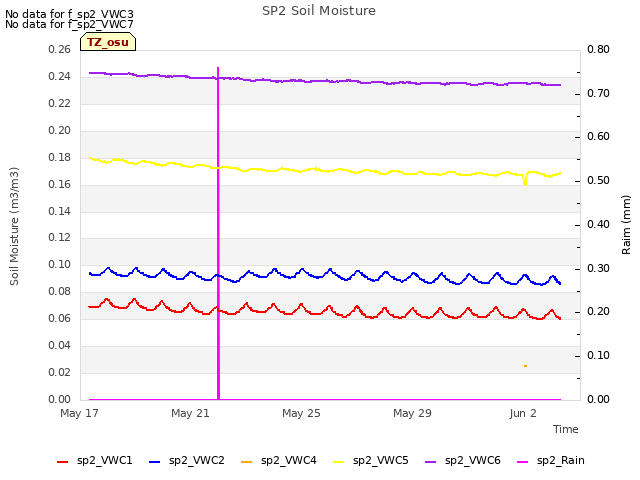

Explore the graph:SP2 Soil Moisture in a new window

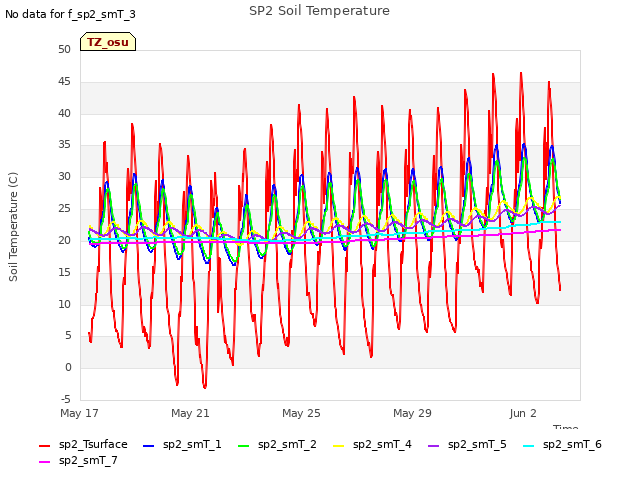

Explore the graph:SP2 Soil Temperature in a new window

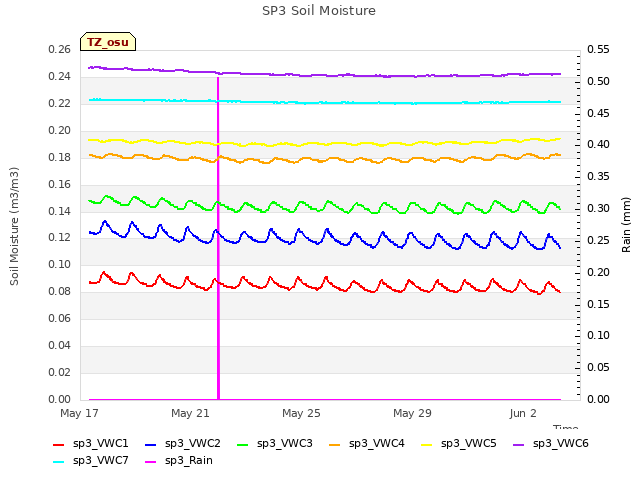

Explore the graph:SP3 Soil Moisture in a new window

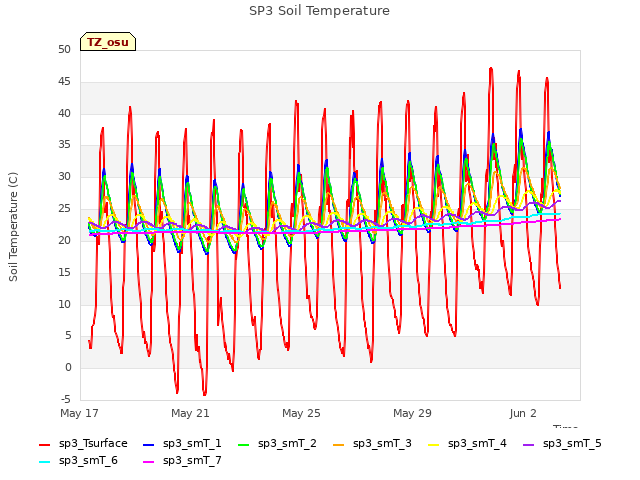

Explore the graph:SP3 Soil Temperature in a new window

3 TZ_fd graphs found

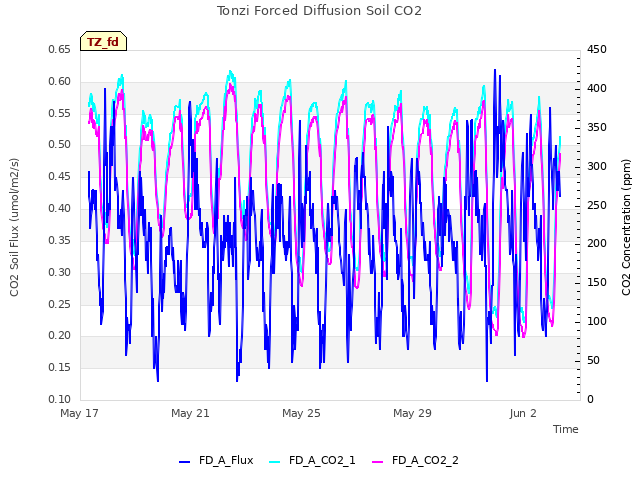

Explore the graph:Tonzi Forced Diffusion Soil CO2 in a new window

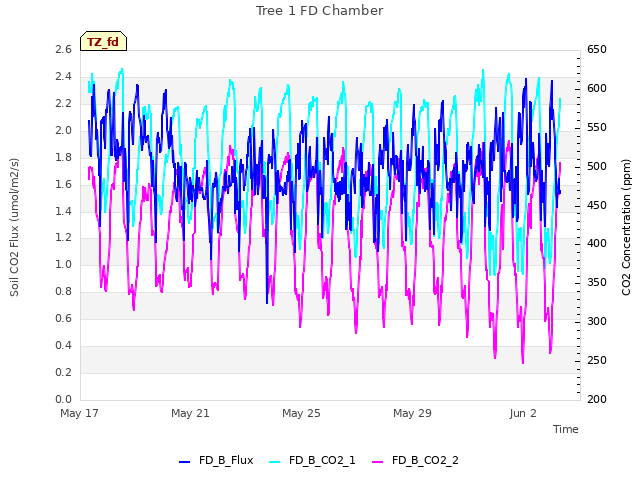

Explore the graph:Tree 1 FD Chamber in a new window

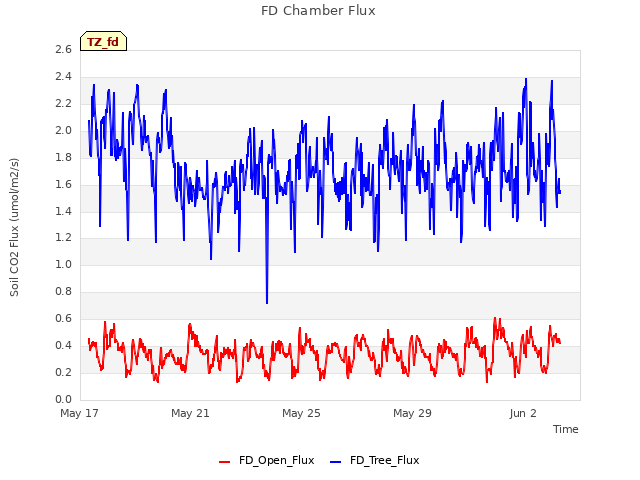

Explore the graph:FD Chamber Flux in a new window

Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
