Bouldin Corn: 2021-01-21 15:00:00 (DOY 21)
Author: Joe Verfaillie
Others:
Summary: Swapped out the old Arable Mark I for a new Mark II
| Bouldin Corn 2021-01-21 I arrived at about 15:00. It was mild and overcast – rain is coming tomorrow. The gate was closed but the lock was not latched. The number on the lock did not match the one Daphne reported previously. This was a quick stop to swap out the old Arable Mark I unit for a new Mark II: sn A001359 came off and sn C006123 went on. The Mark II’s have a different power connector than the Mark I’s and here the Mark I was soldered to a power line from the data logger box. I cut this line and attached the new power connector temporarily with a screw terminal. Maybe it’s better to use the little solar panels that Arable provides. Also the data logger box could use a new power strip with more plugs. The new Mark II had all green lights but the older Mark II had an amber light for it sensor status. I left at about 15:40. |
0 photos found
6 sets found

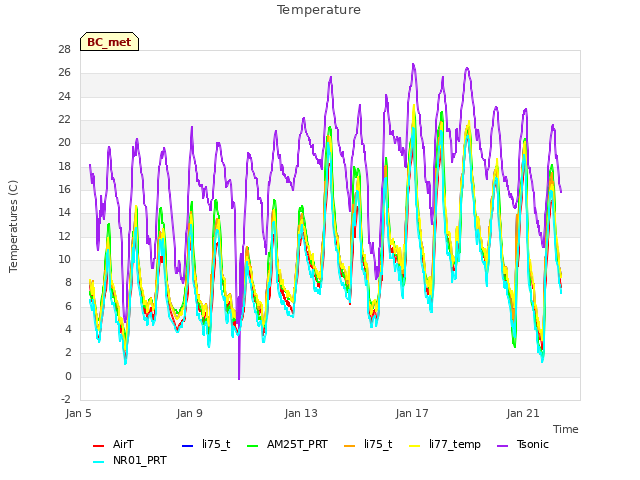

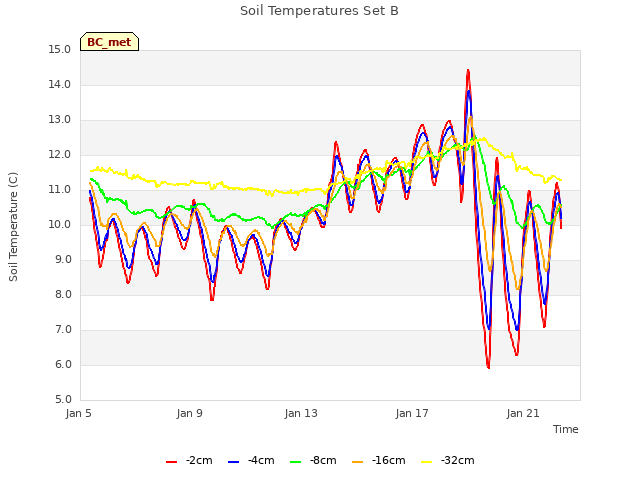

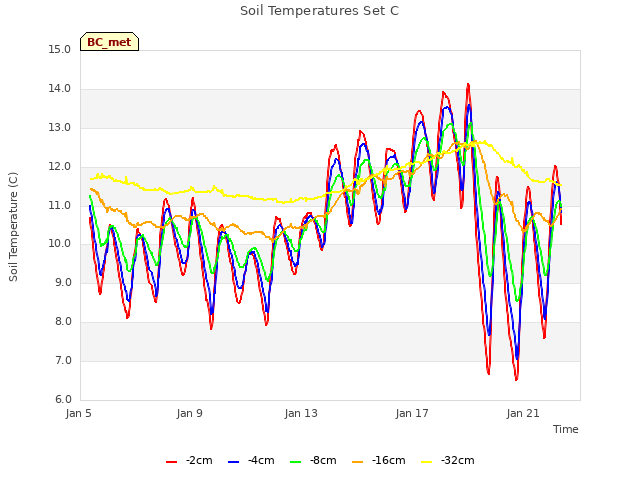

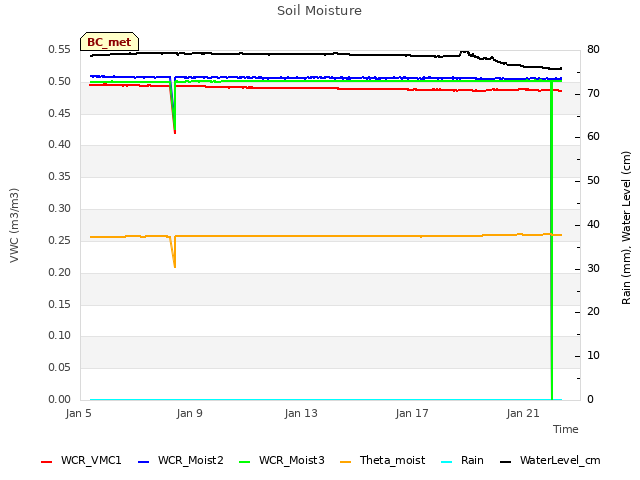

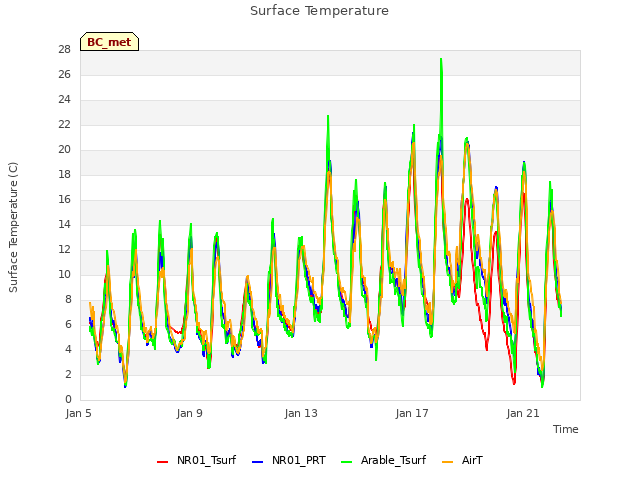

17 BC_met graphs found

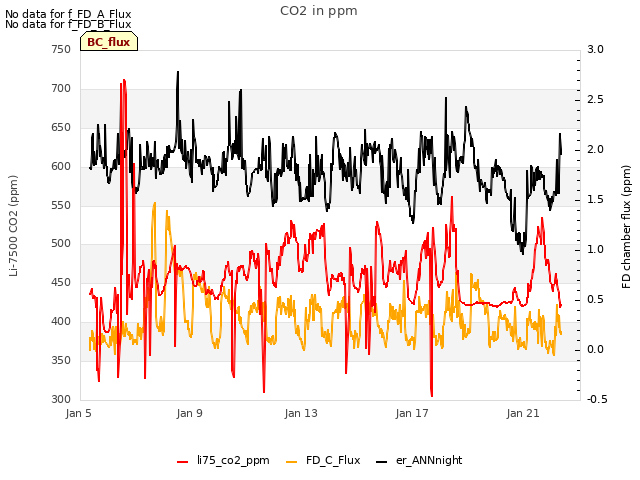

5 BC_flux graphs found
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA

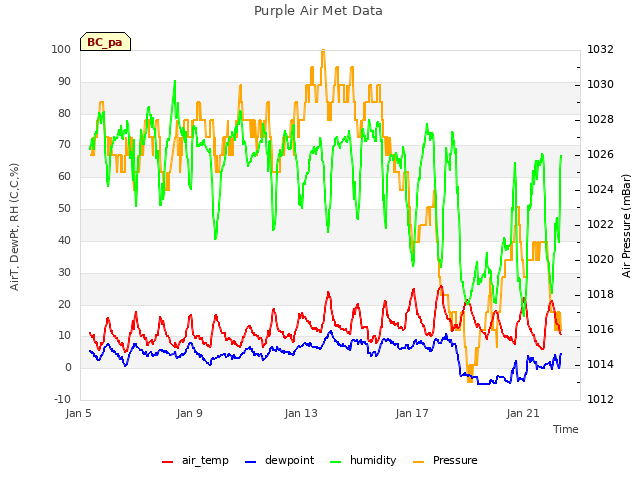

2 BC_pa graphs found
1 BC_arable graphs found
