Field Notes

<--2003-05-30 13:30:00 | 2003-06-06 12:00:00-->
Other sites visited today: Tonzi/Vaira
Phenocam link: Searching...

Tonzi: 2003-06-06 00:00:00 (DOY 157)
Author: Theresa Krebs
Others:

Summary: Marathon 6400 measurements day 1

Field Notes
June 6th-9th,2003
Theresa Krebs
Tonzi and Vaira Ranches

I went to Tonzi for the purpose of taking photosynthesis measurements with the LICOR 6400. The days were expected to be a little too cool to see the optimum in Vcmax but I wanted to try anyway. Our latest data were a little noisy and sparse, and I had a new strategy to reduce noise. I marked about 6 large leaves and sampled them repeatedly, giving each leaf a day to recover from time spent in the chamber.

Day 1

On Friday I arrived about noon, snuck in one or two A/Ci curves and set up the tent with Dennis. Took soil moisture measurements at Tonzi. I will put these into the spreadsheet:

Sensor ID 1 2 3
Level 1 402FF3 4 4 2.9
Level 2 13.1 14.9 15.8
Level 3 15.4 17.1 15.4
Level 4 21.5 22.4 21.8
574B4B 12.5 12.5 12.5
15.8 16.1 14.9
16 15.4 15.7
14.6 14.6 14.6
97A4AAA 2.9 2.6 2.9
2.8 2.8 2.8
16.8 17.9 16.8
11.3 11.3 10.7
97A3B40 7.7 8.3 8.5
(gopher hole!) 13.4 13.7 13.4
20.8 19.9 21.1
29.3 27.6 27.6
97A3C6E 9.4 9.4 9.1
12.5 14.3 14.3
14.9 14.9 14.9
7.7 7.4 6.8
97A432E 9.1 10 9.1
5.8 5.8 7.5
9.8 11.9 10
12.1 12.1 11.8
402165 6.3 4.6 5.1
15.5 12.2 16.1
11.1 10.3 11.1
12.9 12.7 12.1
7931AFE 8 8 8.3
12.8 12.8 13.1
20.6 20.6 20.8
21.8 20.7 20.7

Also took dendrometer measurements at Tonzi:

Tree Dendrometer Reading
248 15.1
250 16
252 24
255 14.8
245 10
72 16.3
79 17.8
78 22.4
77 22.3
71 14.1

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

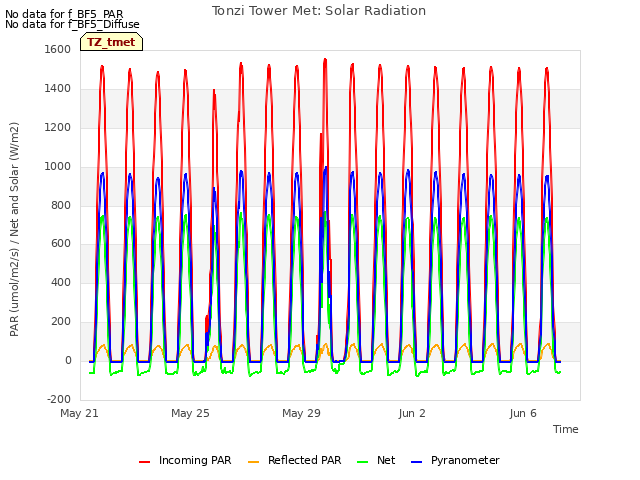

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

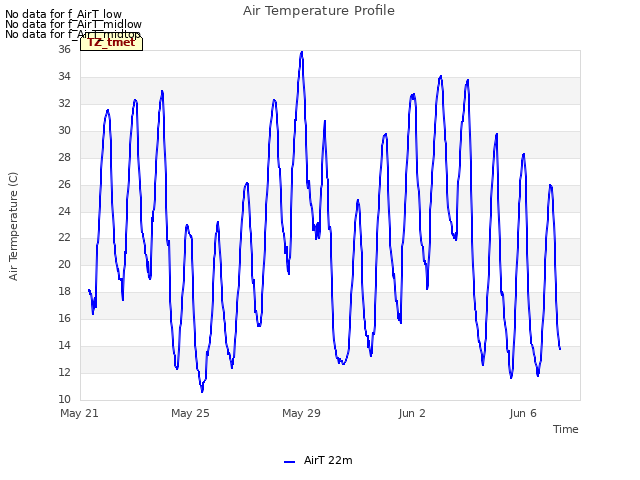

Explore the graph:Air Temperature Profile in a new window

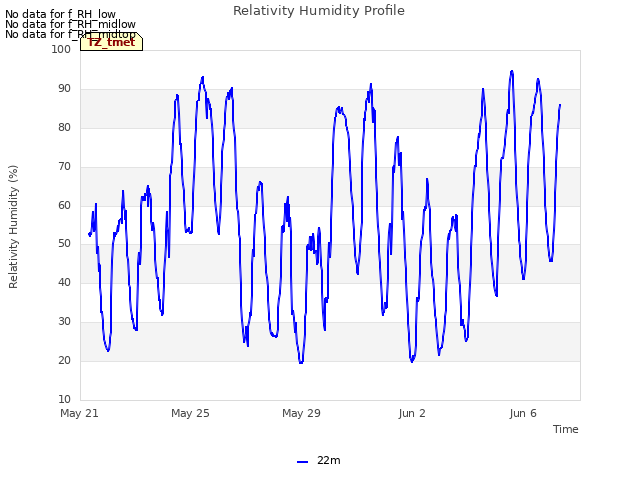

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

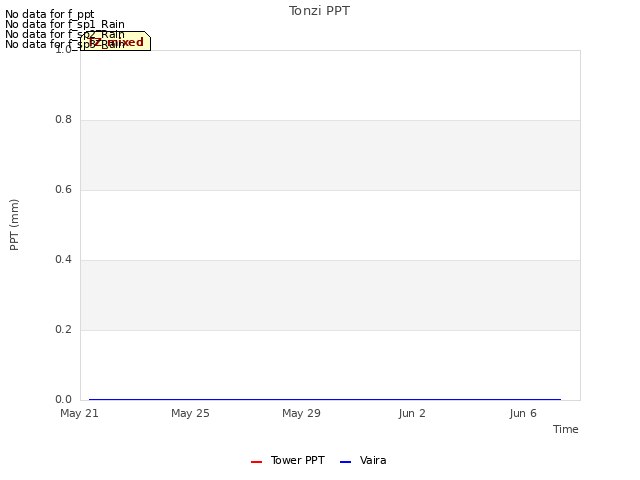

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

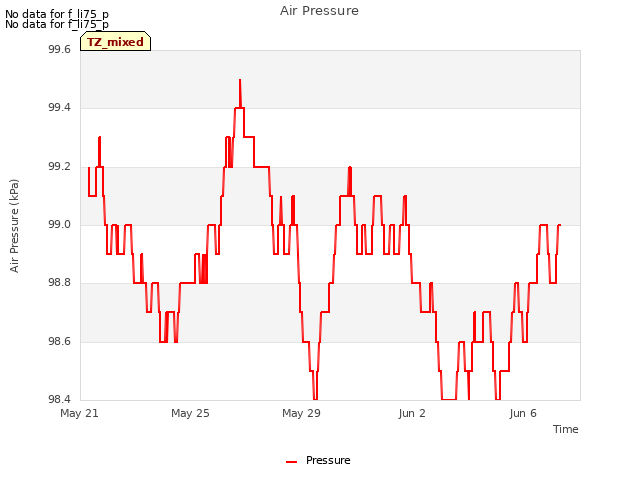

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

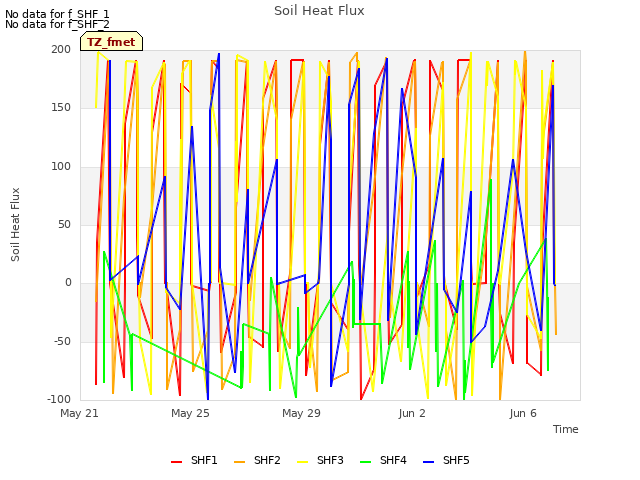

Explore the graph:Soil Heat Flux in a new window

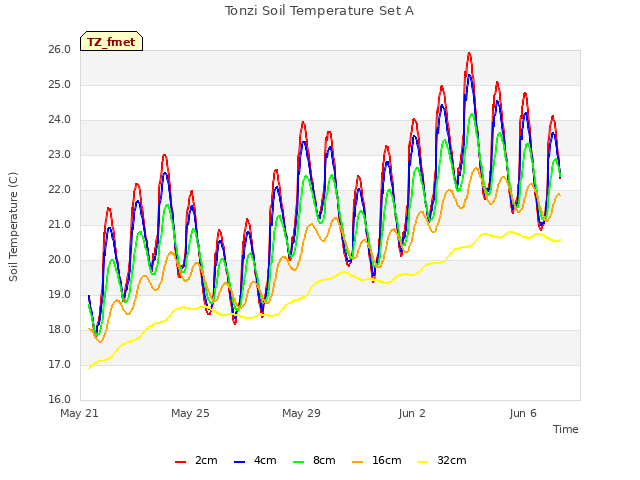

Explore the graph:Tonzi Soil Temperature Set A in a new window

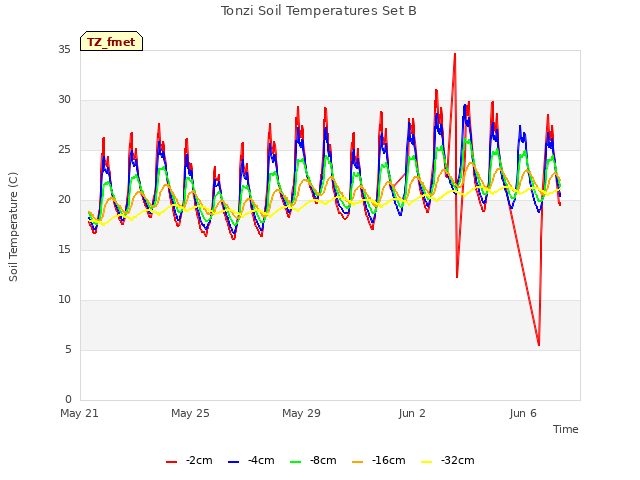

Explore the graph:Tonzi Soil Temperatures Set B in a new window

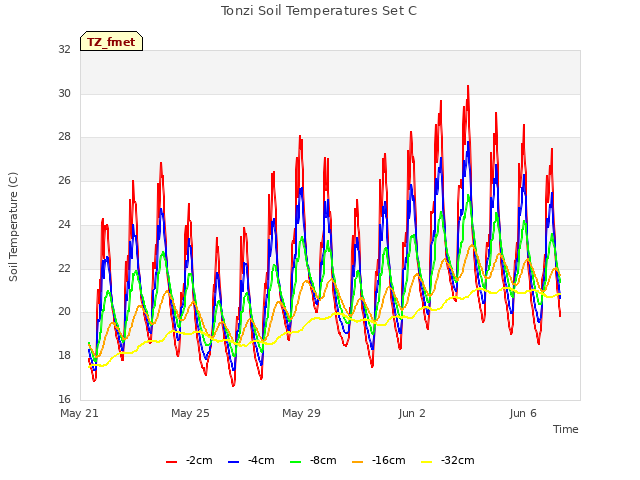

Explore the graph:Tonzi Soil Temperatures Set C in a new window

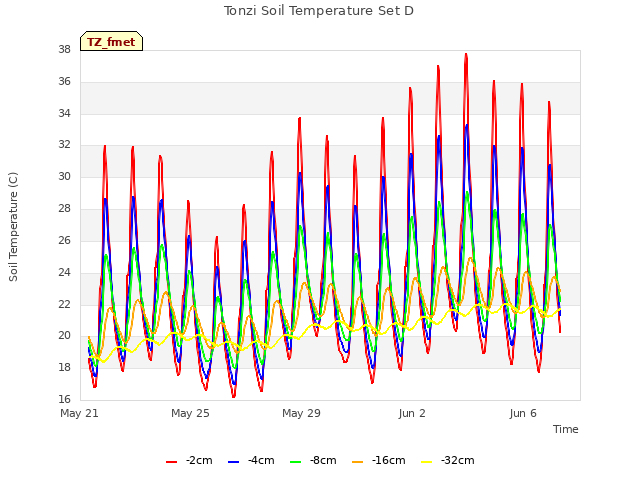

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

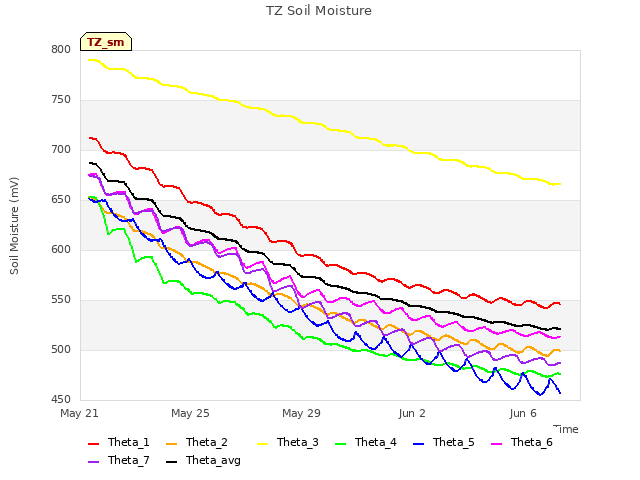

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

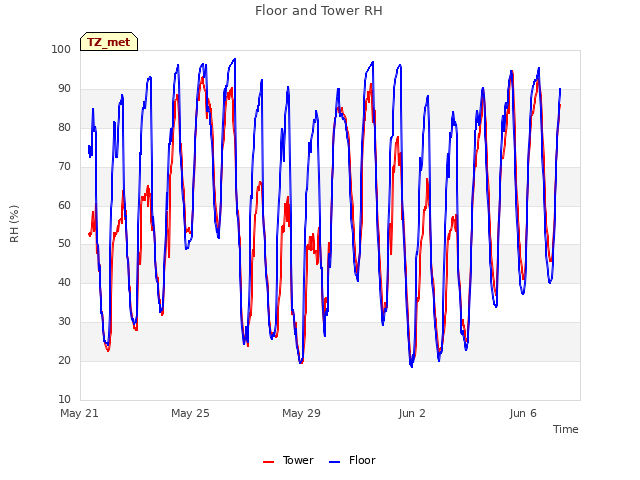

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
