West Pond: 2020-06-16 08:45:00 (DOY 168)
Author: Joe Verfaillie
Others:

Summary: New 7700 wash tubing, water level high, cleaned solar panels

West Pond,
2020-06-16

I arrived at 8:45. It was clear sunny and warm with a typical west breeze. The inlet was running and the water level was 72.5cm – above average.

This was a quick stop to swap out the 7700 wash tubing. I replaced the old tubing with new black tubing. Afterwards I tested the wash and spin – all seemed well the RSSI rose from 65 to 70.

On my way out I noticed that the tules were taking over the solar panels and that the panels were pretty dirty. I mashed down the tules and sprayed the panels with DI water but they still need a better cleaning.

I left at 9:00

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

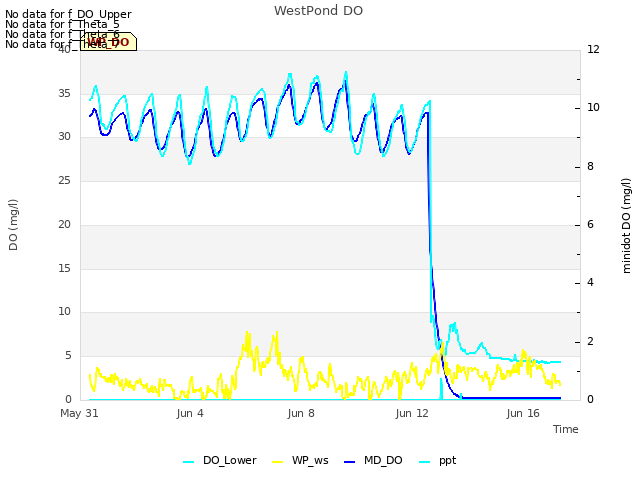

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

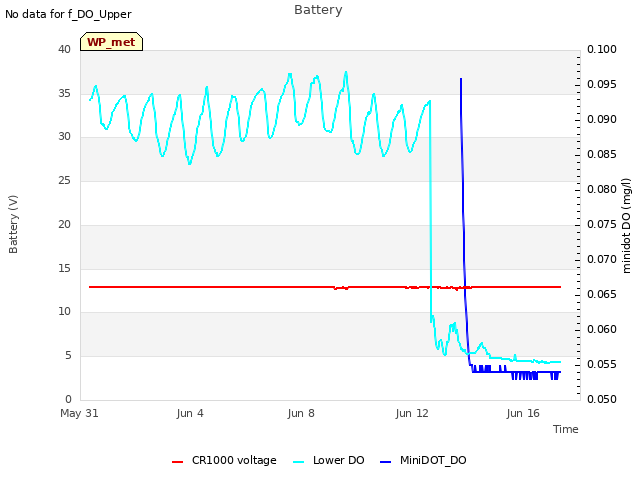

Explore the graph:Battery in a new window

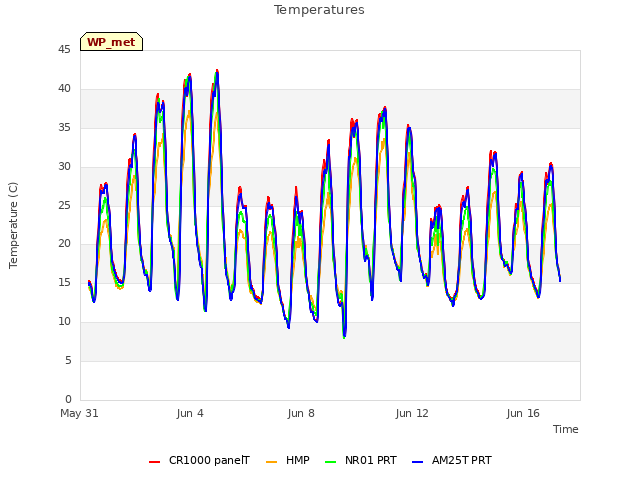

Explore the graph:Temperatures in a new window

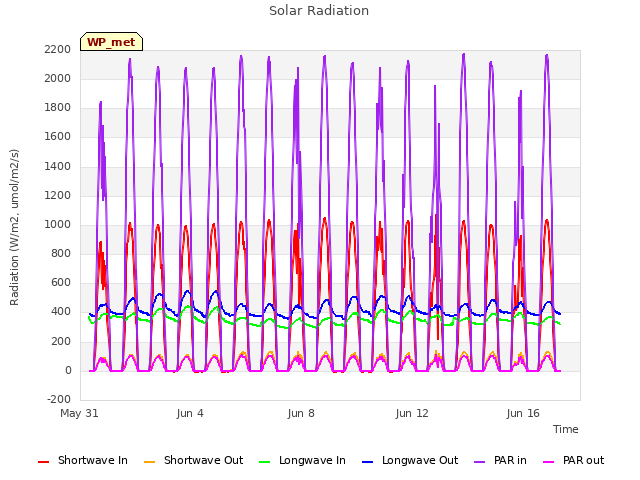

Explore the graph:Solar Radiation in a new window

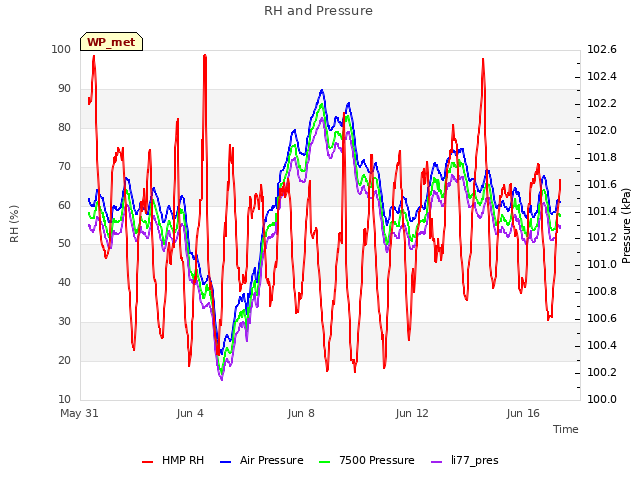

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

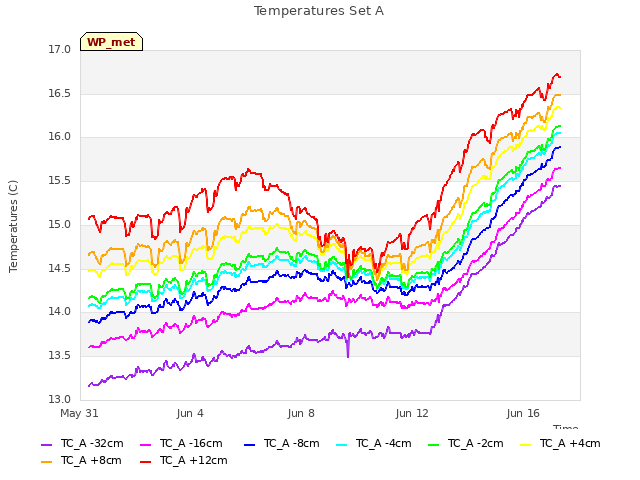

Explore the graph:Temperatures Set A in a new window

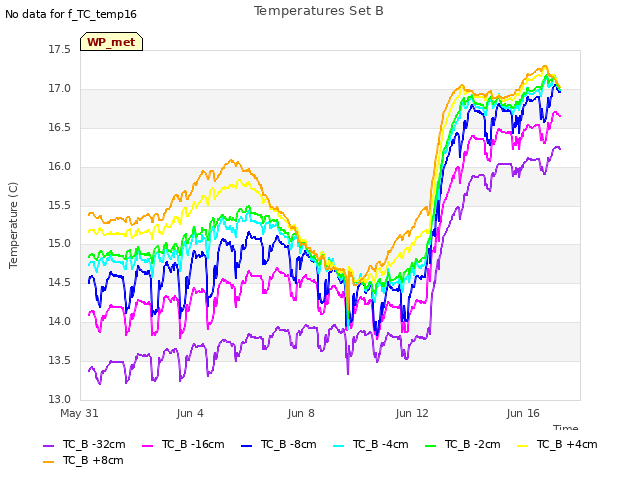

Explore the graph:Temperatures Set B in a new window

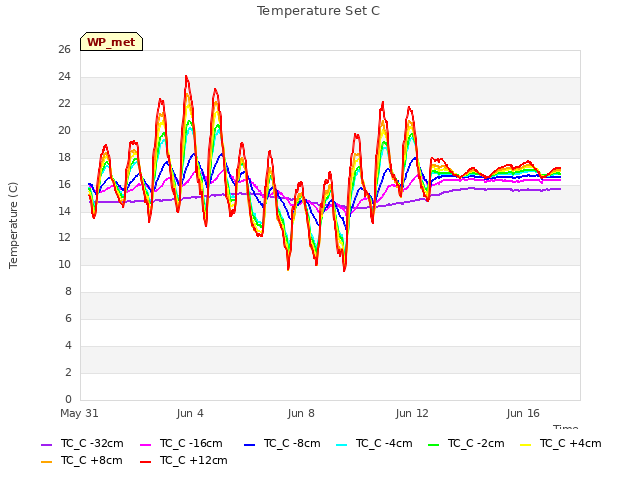

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

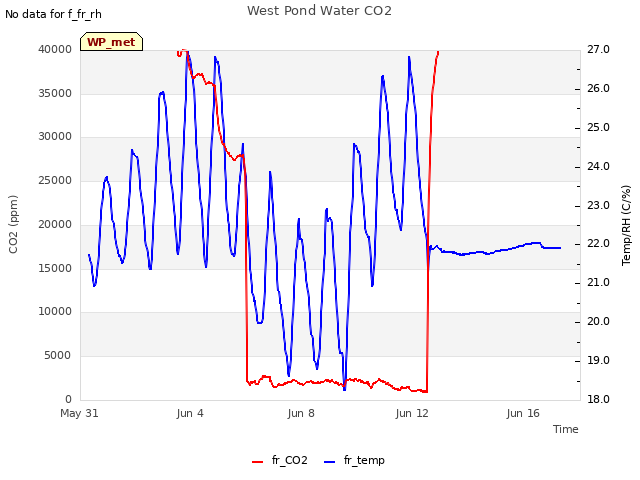

Explore the graph:West Pond Water CO2 in a new window

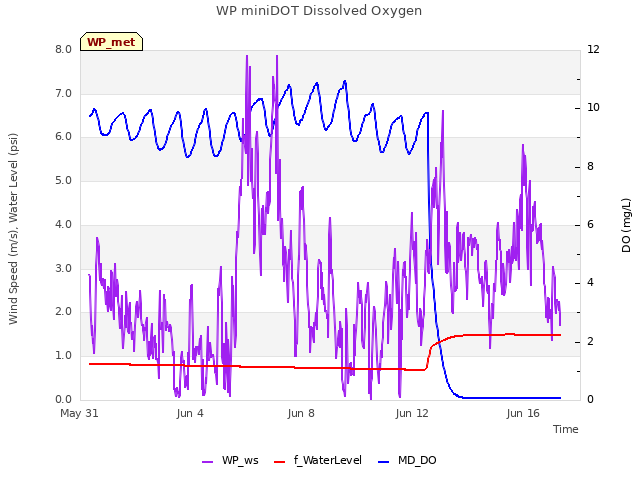

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

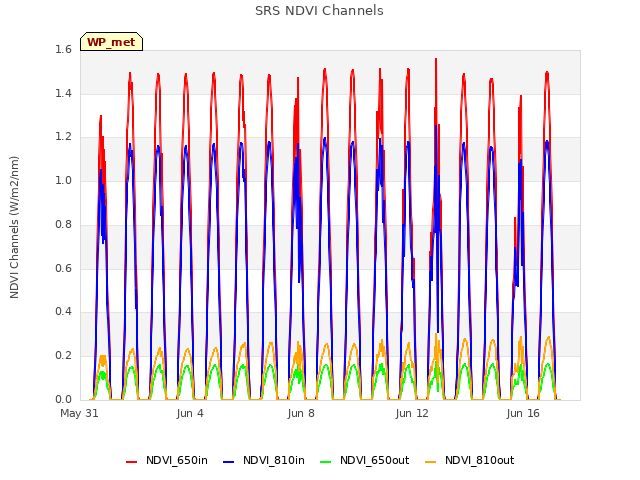

Explore the graph:SRS NDVI Channels in a new window

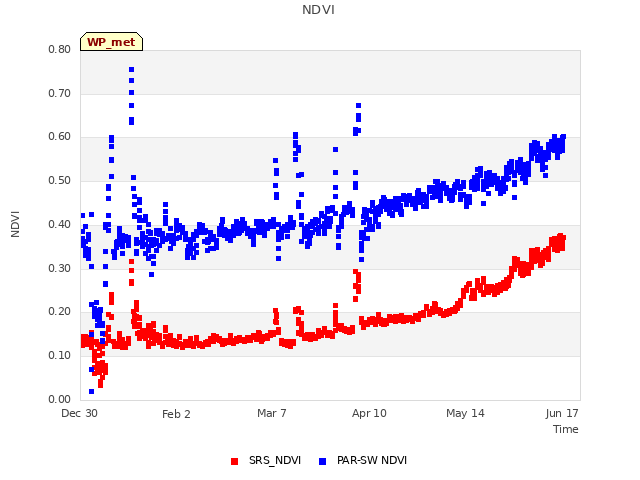

Explore the graph:NDVI in a new window

5 WP_flux graphs found

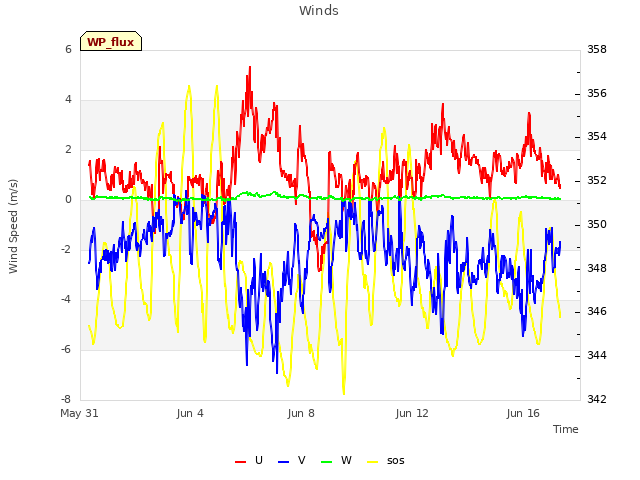

Explore the graph:Winds in a new window

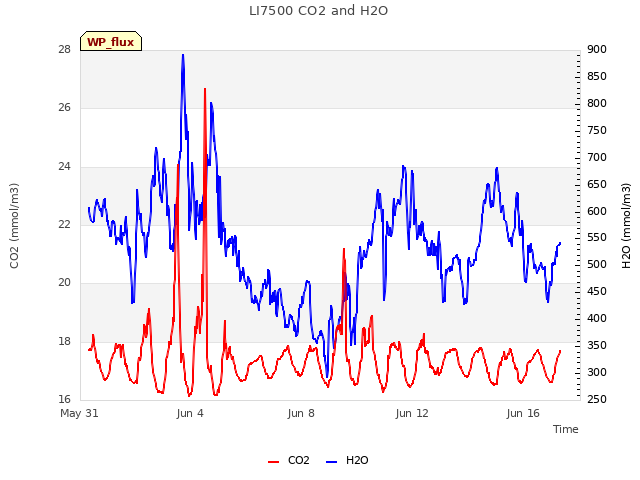

Explore the graph:LI7500 CO2 and H2O in a new window

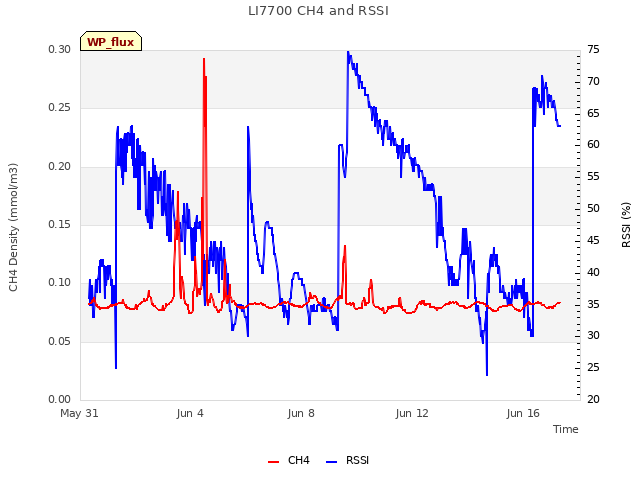

Explore the graph:LI7700 CH4 and RSSI in a new window

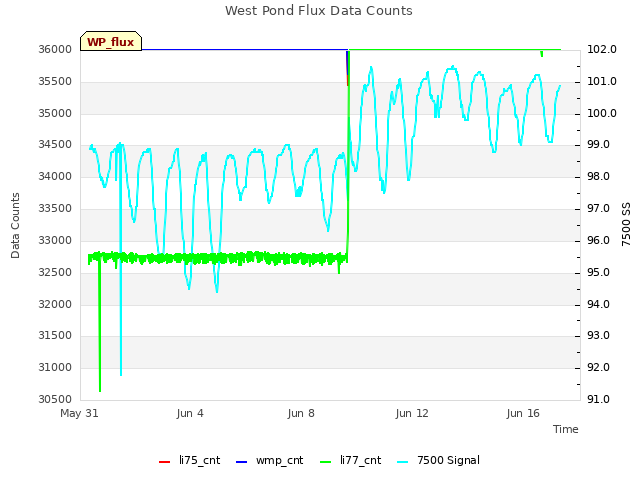

Explore the graph:West Pond Flux Data Counts in a new window

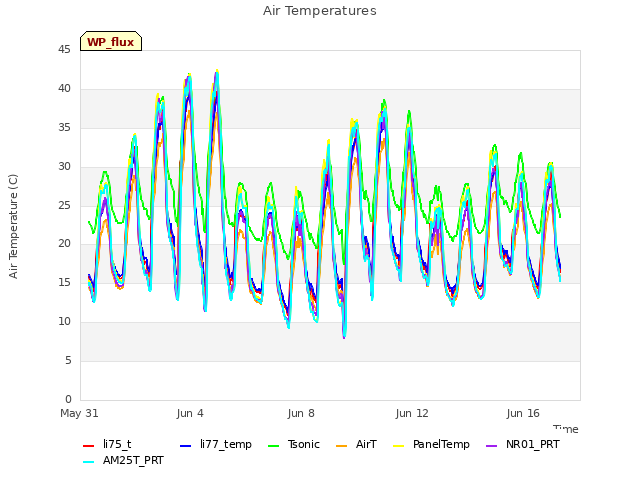

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

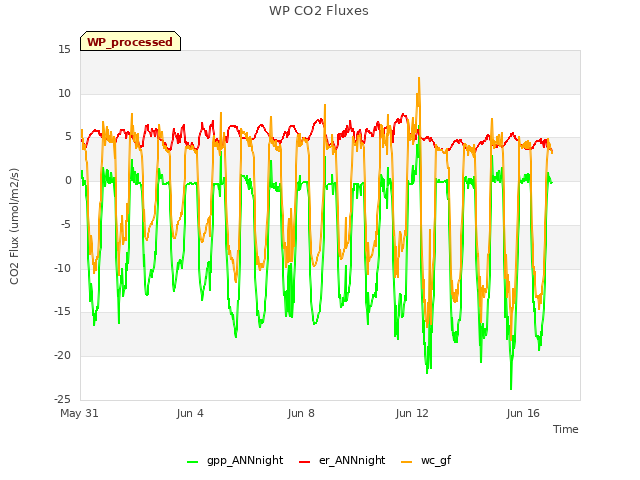

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
