Field Notes
<--2020-05-29 09:50:00 | 2020-07-01 09:35:00-->Other sites visited today: West Pond | Bouldin Alfalfa | Bouldin Corn
Phenocam link: Searching...
East End: 2020-06-09 09:37:00 (DOY 161)
Author: Joe Verfaillie
Others:
Summary: Standard data collection, water level pretty low

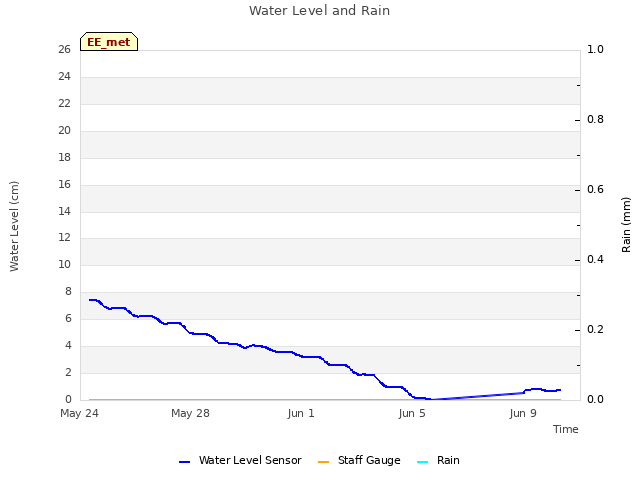

| East End 2020-06-09 I arrived at 9:37. It was hot and sunny with a light variable breeze. The water level is 25cm – low here too. The cattail and tules look good though with lots of flowers on the tules. The miniDot and conductivity sensors were out of the water. After collecting the miniDot data and adding a desiccant pack, I lowered it into a puddle. I tried to get the conductivity sensor submerged but there wasn’t quite enough water. The 7500 read: 416.6ppm CO2, 524.7mmol/m3 H2O, 23.7C, 102.0kPa, 99.2SS The 7700 read: 1.98ppm CH4, 61.5RSSI – 78.2 after cleaning I refilled the wash reservoir that was about 2/3 empty. The shadow band was spinning. I sprayed the motor hub with some WD-40. I’m not sure what the best way to protect the exposed parts of the motor is. I left at 10:10 |
0 photos found
11 sets found

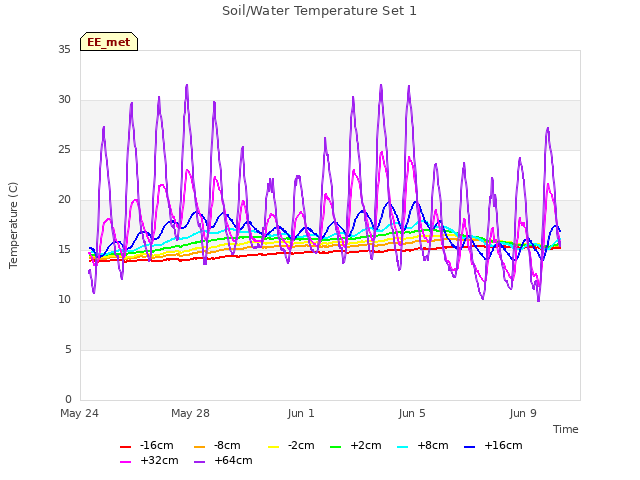

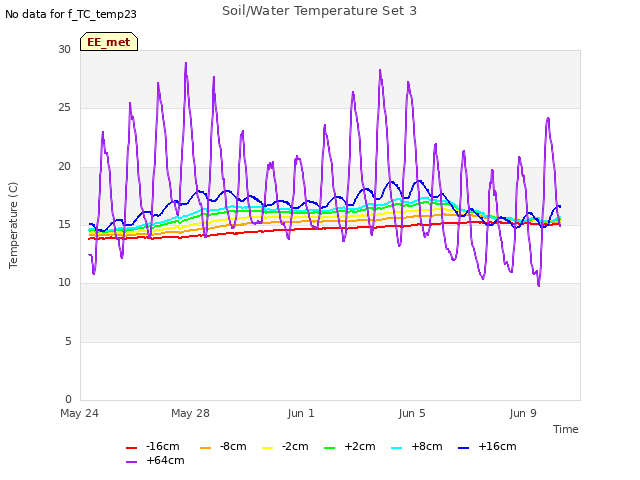

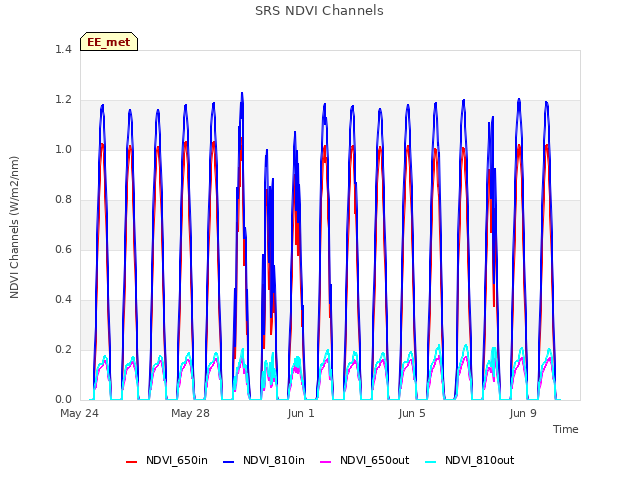

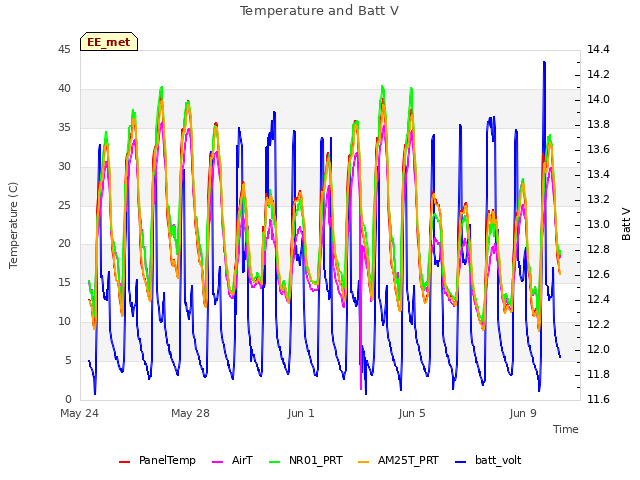

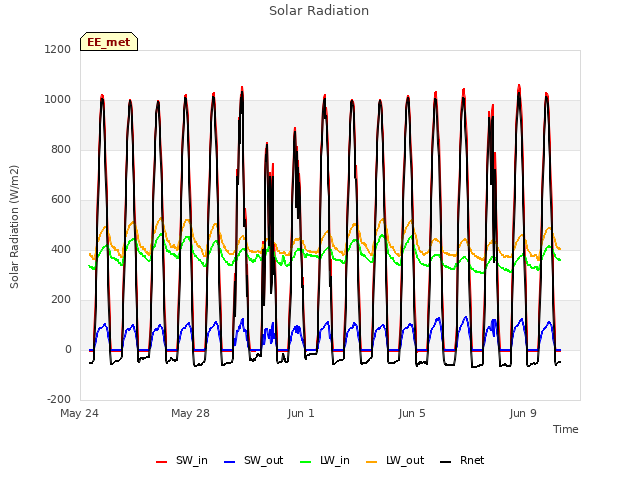

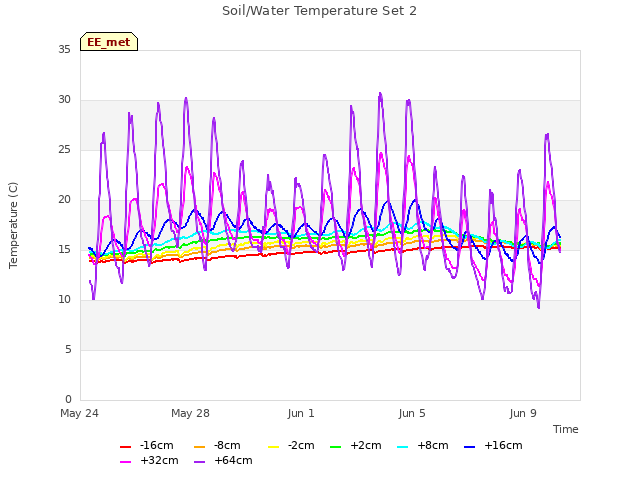

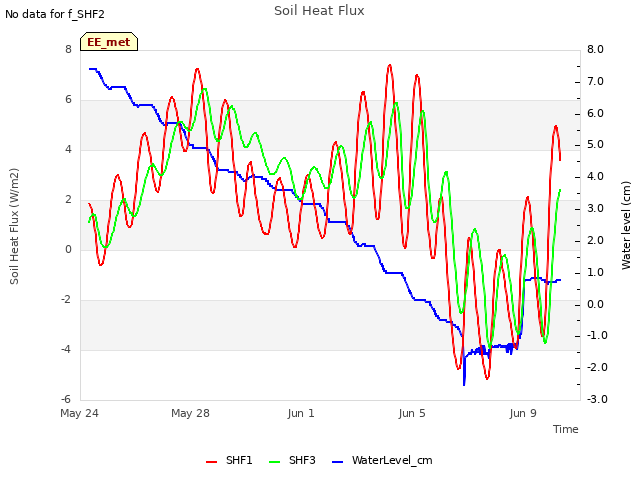

14 EE_met graphs found
Can't check EE_mixed

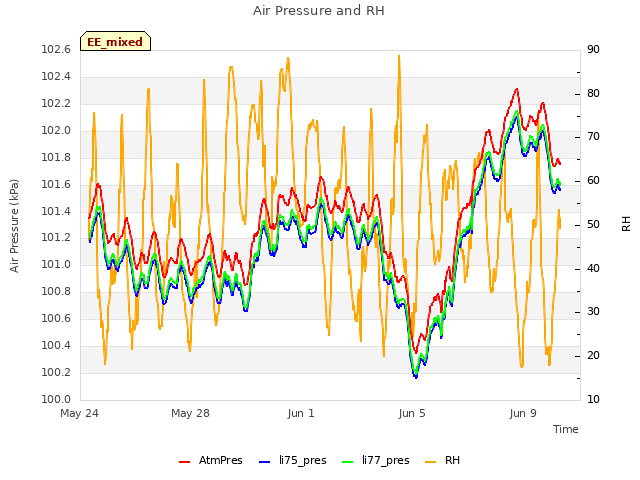

1 EE_mixed graphs found

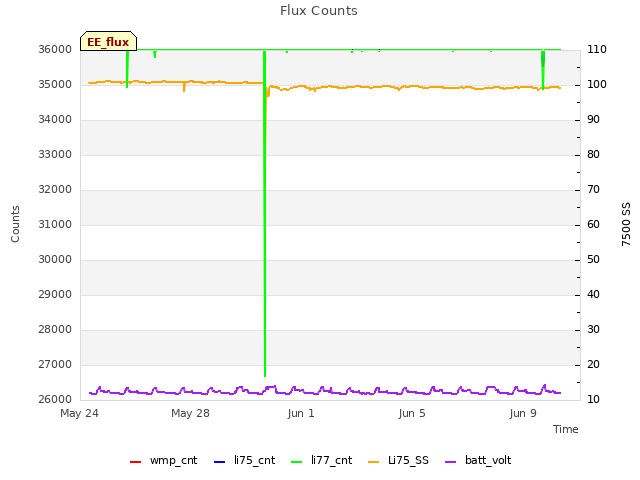

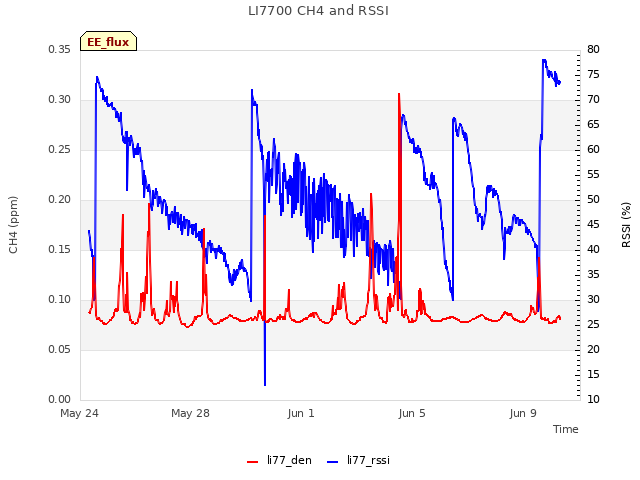

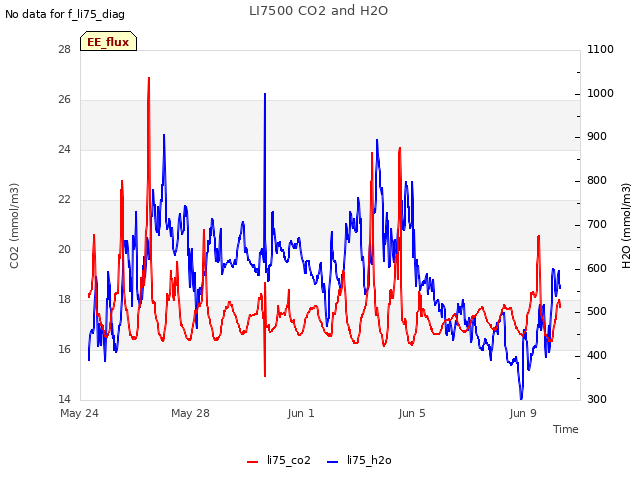

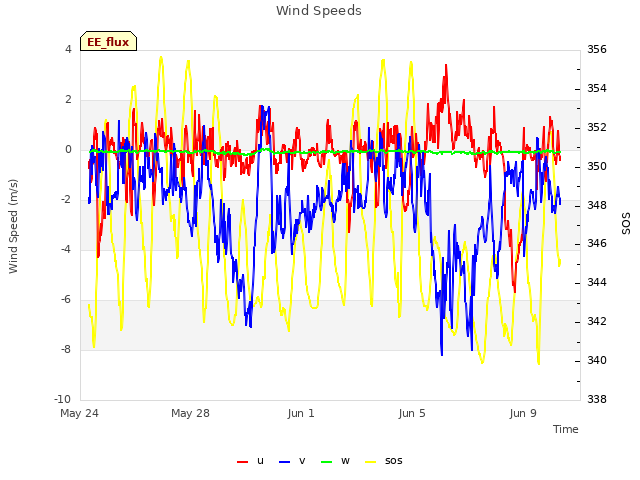

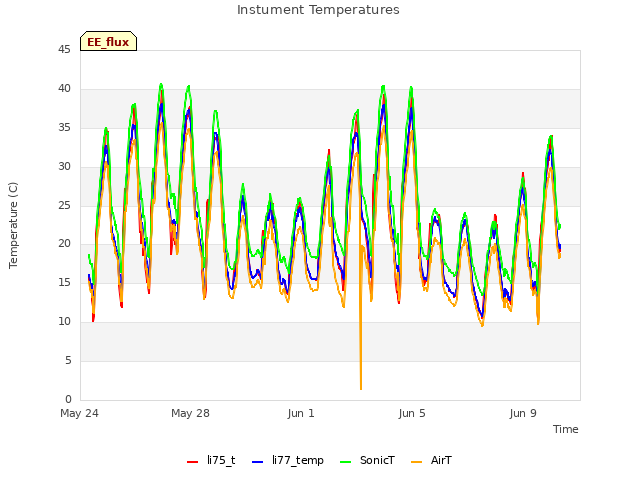

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed

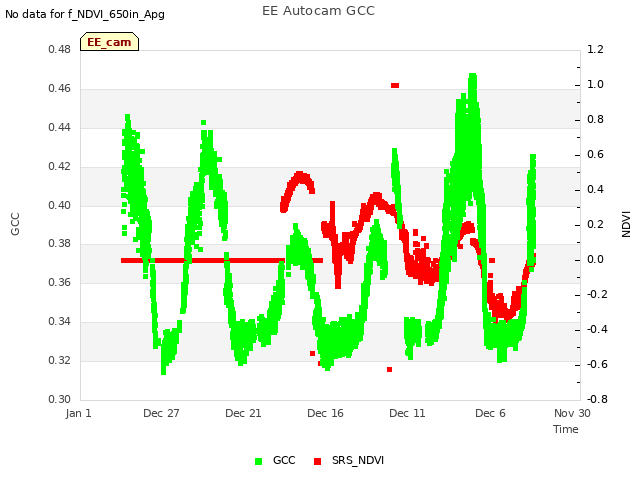

1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

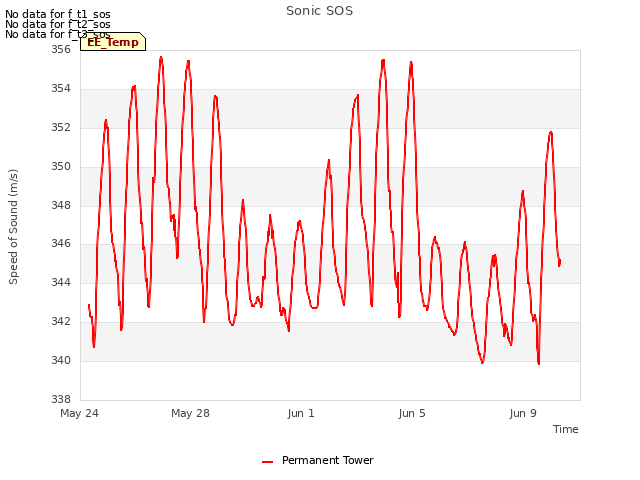

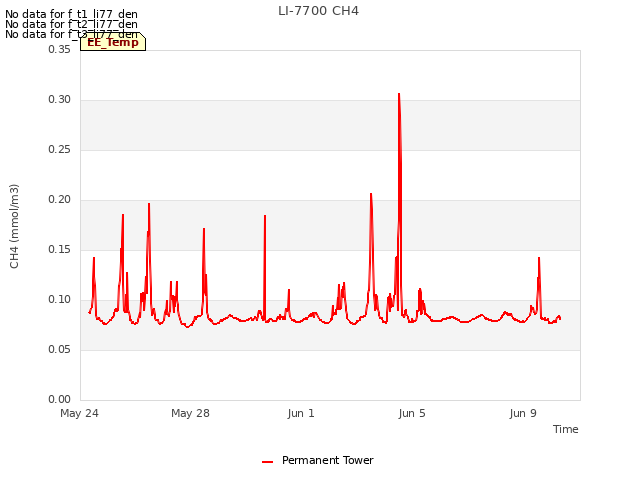

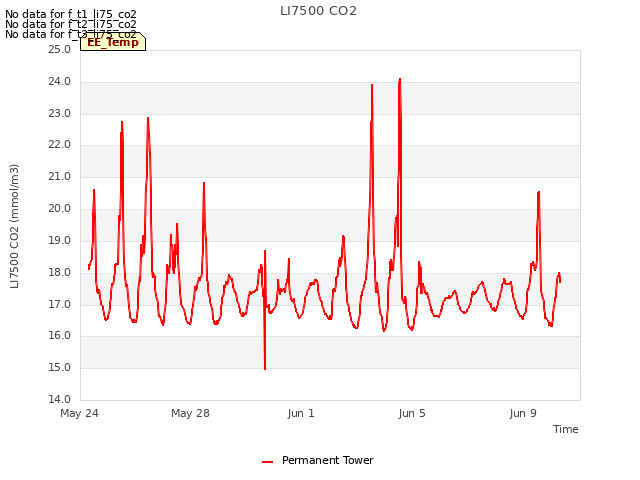

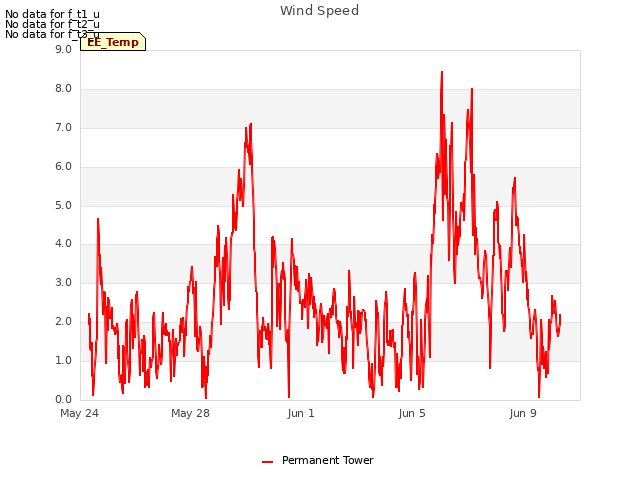

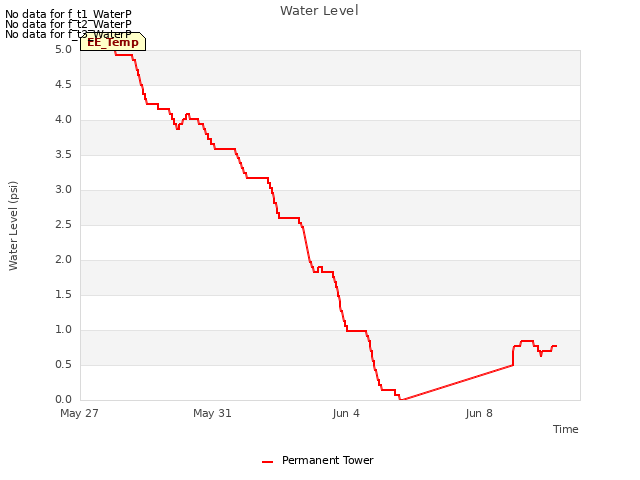

5 EE_Temp graphs found
Can't check EE_minidot

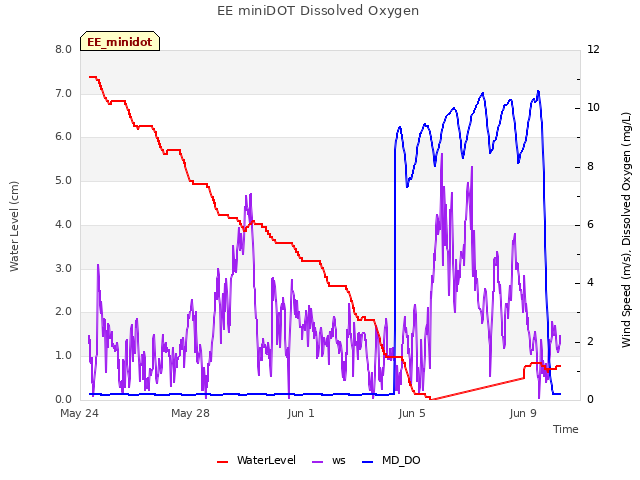

1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

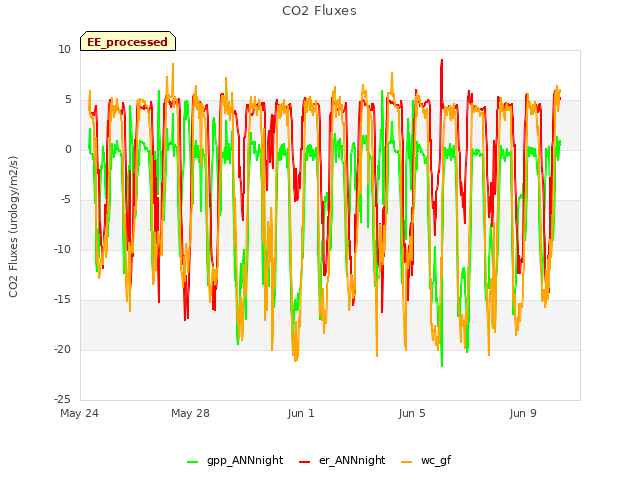

1 EE_processed graphs found
