Field Notes

<--2019-10-02 10:25:00 | 2019-10-22 11:10:00-->
Other sites visited today: West Pond | Bouldin Corn

Bouldin Alfalfa: 2019-10-17 09:50:00 (DOY 290)
Author: Daphne Szutu
Others: Camilo

Summary: Regular data collection/cleaning, 6400 measurements, alfalfa green and lush, biomass samples, veg height, LAI, spectral

2019-10-17
Bouldin Alfalfa

Camilo and I arrived at 9:50 after dropping Ari off at WP for water sampling. It was a mostly sunny, cool, and windy day with scattered clouds. The alfalfa was surprisingly green and lush, but not the tallest I’ve ever seen. Some of the alfalfa leaves had yellow splotches on them—maybe a nutrient deficiency or mildew problem.

Camilo did 6400 measurements and saw high photosynthesis values again. Five leaves were measured. 5 A/Ci curves and 4 light response curves. The light response curves were done immediately after completing the A/Ci curve. PAR was maintained at 1500 umol m-2 s-1 for the A/Ci curves. CO2 was maintained at 400 umol/mol for the light response curve. Chlorophyll content was measured and leaf was harvested.

I collected met, camera, USB GHG, and FD data. I cleaned flux/rad sensors, the Arables, precip bucket, and solar panels. I topped off the reservoir. I also took 5 clip plot samples and took vegetation height measurements. I did spectral under scattered clouds and 2-wand LAI measurements under a clear sky. The LAI measurements were taken walking N with a 270deg view cap.

I checked the sonic orientation using the lab compass: 235deg magnetic N.

LI-7500 readings:
CO2 427ppm
H2O 628ppm
T 17.1C
P 101.4kPa
SS 94--> 102 after cleaning
LI7700 readings:
CH4 1.97ppm
RSSI 39-->82 after cleaning

I left at 12:20 to service BC and returned at 13:40 to pick up Camilo. The back roads were very dusty. We left at 14:20 to pick up Ari at WP.

Next Mowing: 2019-10-18

Veg Height (cm): Tape measure from ground to top of plant - Measured by DS
40, 32, 44, 41, 46, 26, 48, 27, 48, 39, 51, 41, 41, 51, 51, 50, 27, 33, 33, 33, avg = 40.1, stdev = 8.56

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

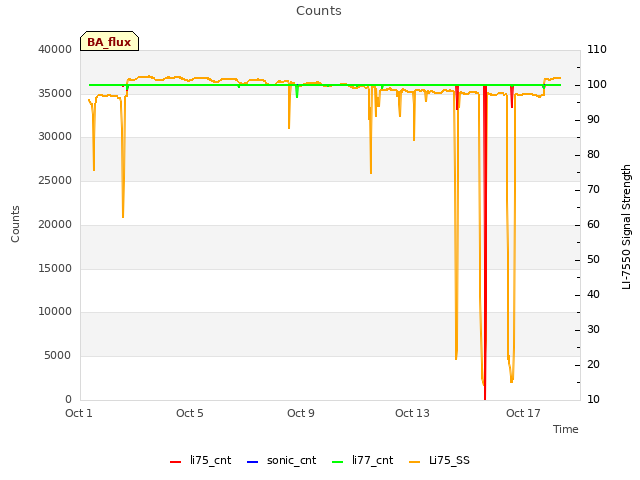

Explore the graph:Counts in a new window

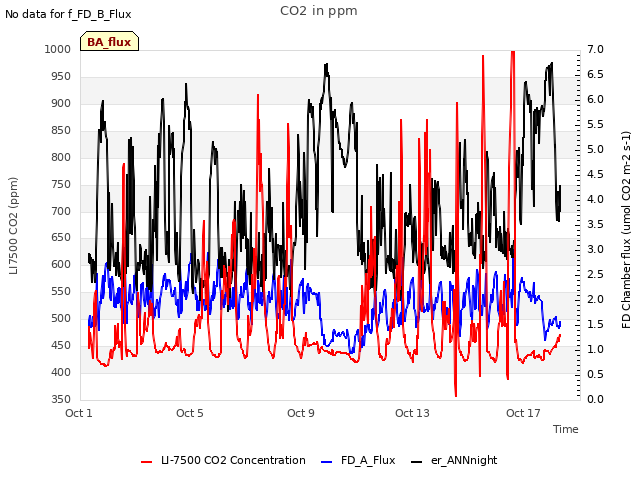

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

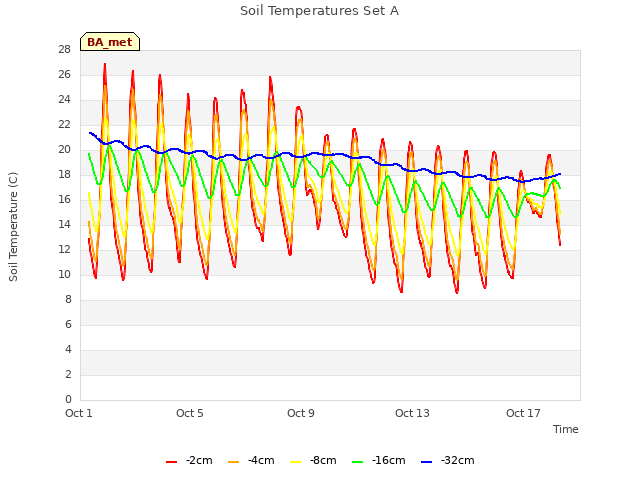

Explore the graph:Soil Temperatures Set A in a new window

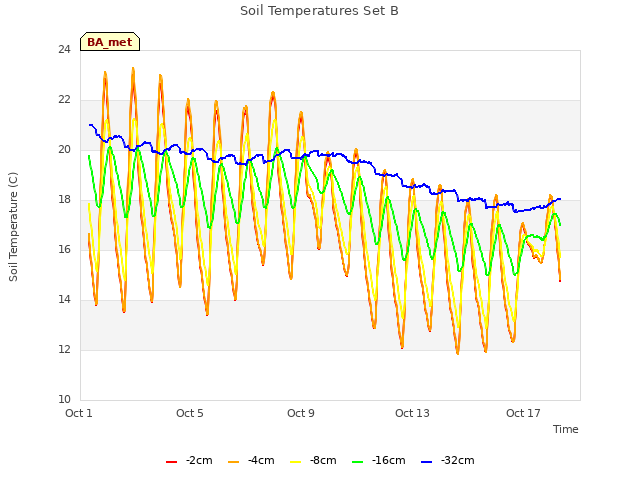

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

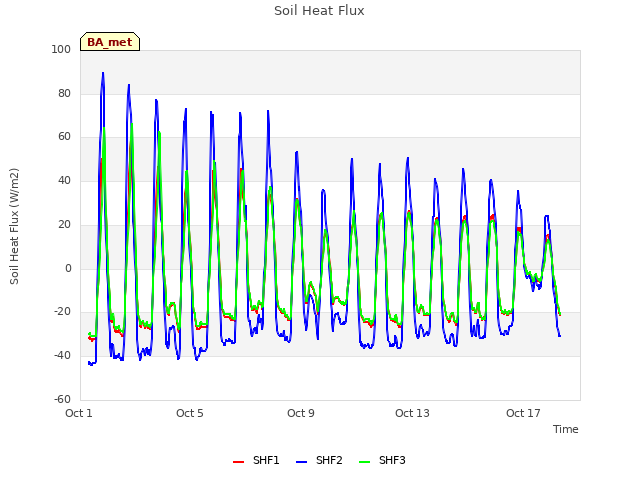

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

Explore the graph:PRI Channels in a new window

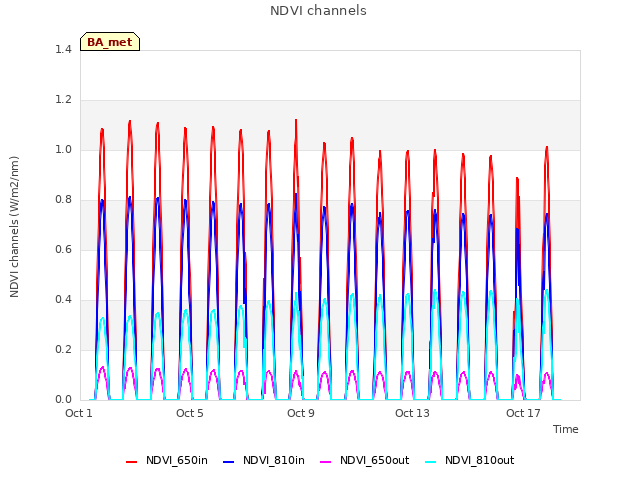

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

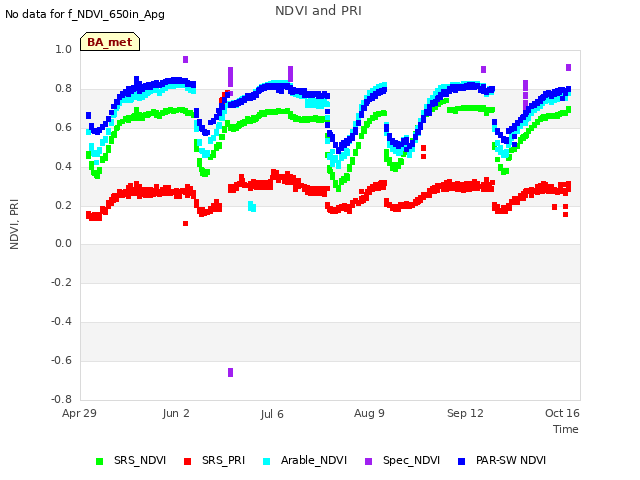

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

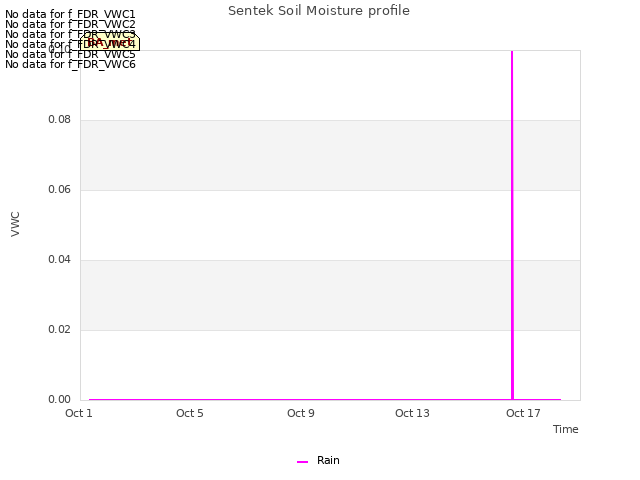

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

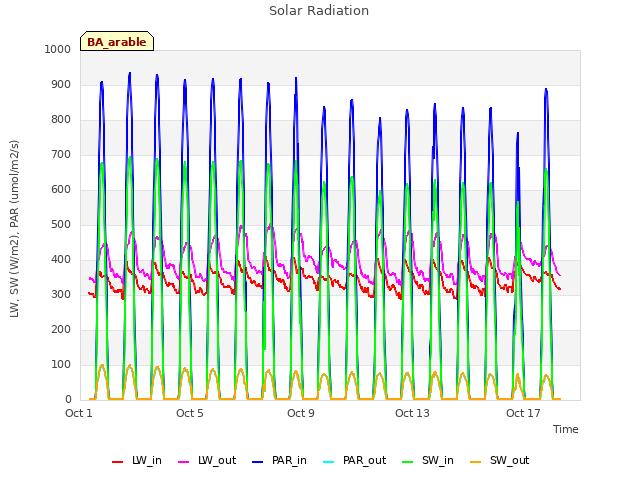

Explore the graph:Solar Radiation in a new window

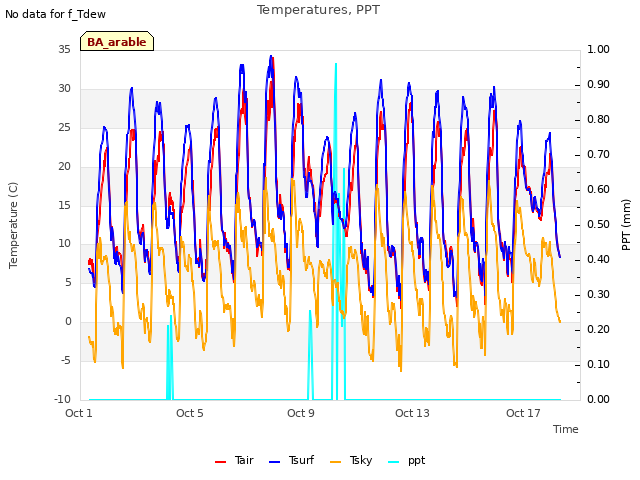

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
