Field Notes

<--2019-08-08 12:15:00 | 2019-08-19 11:23:00-->
Other sites visited today: Bouldin Alfalfa

West Pond: 2019-08-16 06:30:00 (DOY 228)
Author: Ariane Arias-Ortiz
Others: Robert

Summary: Took 3 soil cores along the EC footprint

2019-08-16
West Pond

Robert and I arrived at 6.30 am at West Pond.It was a sunny and very warm day with no clouds. This was a visit to try the coring technique with the homemade piston corer I had used previously. When we arrived there was no water flowing from the inlet.

We used the boardwalk located to the right of the EC tower to reach our coring spots. These were selected to follow a transect across the EC footprint. We took the first 2 cores at about 20 and 40 m from the tower, the length of the peat retrieved was 80 and 40 cm, respectively. The third core was taken at about 80 m from the tower and we used the boardwalk on the left to reach the site. The last core was about 1 m depth.

The differences in peat retrieved lengths could be related to compaction during coring, as the bottom edges of the tube were not sharp enough to cut through the rhizomes and embedded dead biomass. We need to improve the method for next time.

There wasn't standing water at any of the coring sites but the inlet had been turned on by someone else by the time we left.

We left at 12 pm.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

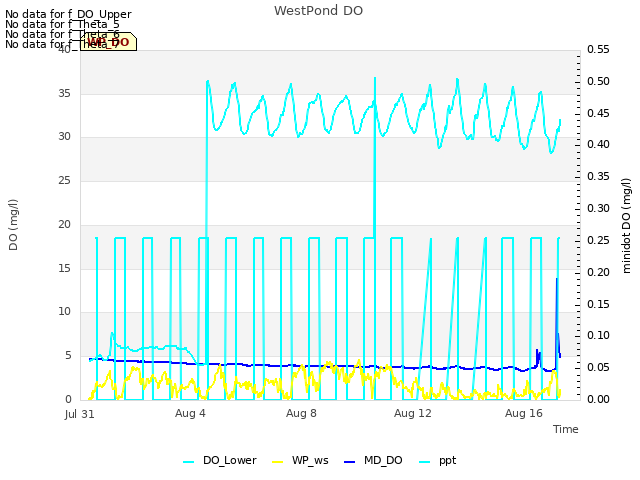

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

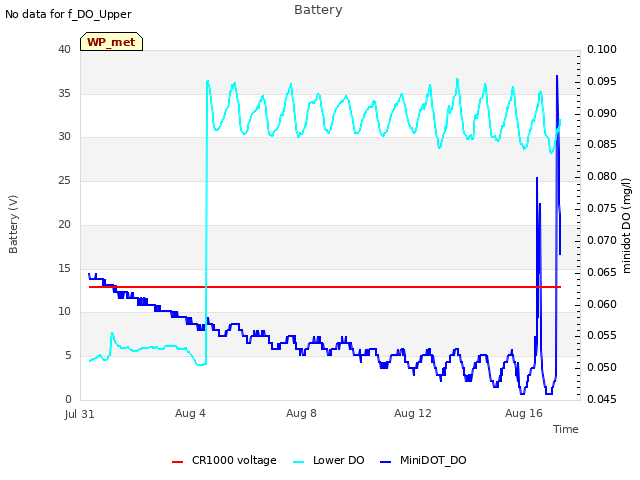

Explore the graph:Battery in a new window

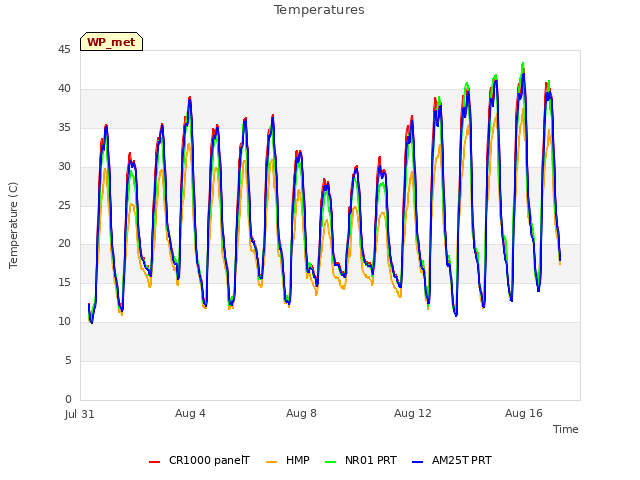

Explore the graph:Temperatures in a new window

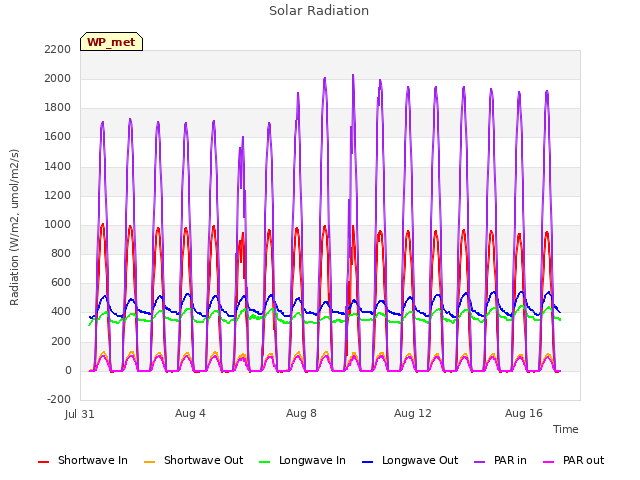

Explore the graph:Solar Radiation in a new window

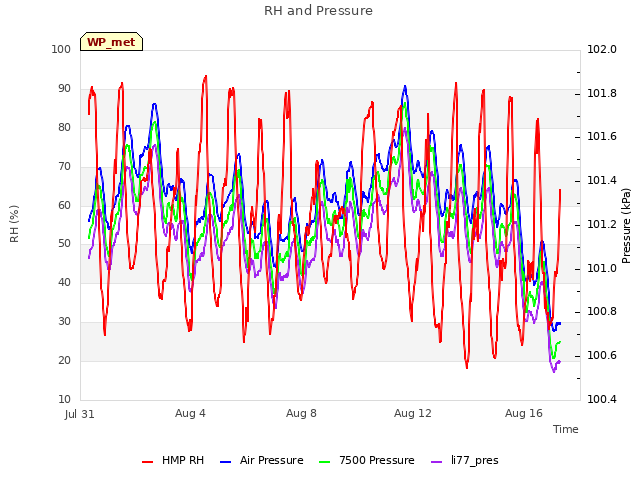

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

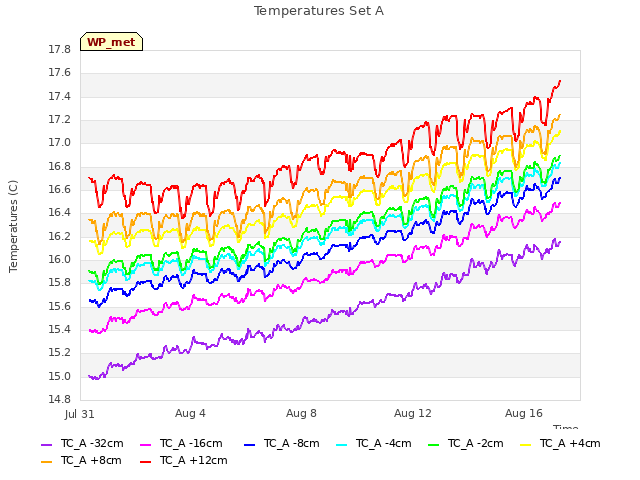

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

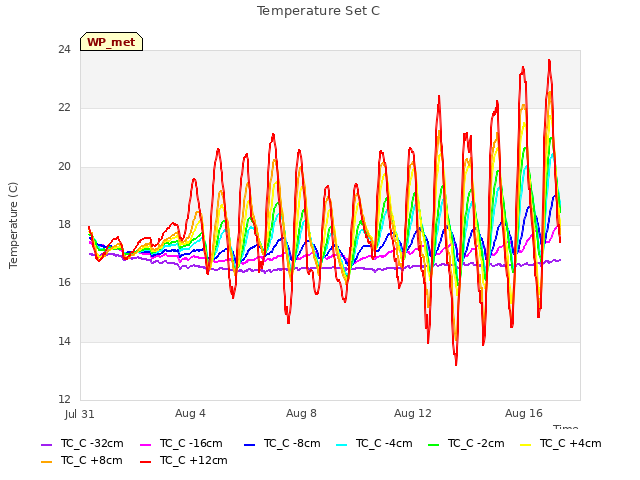

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

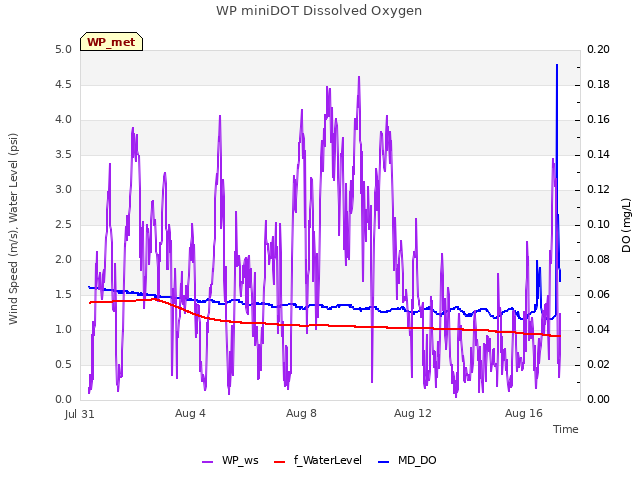

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

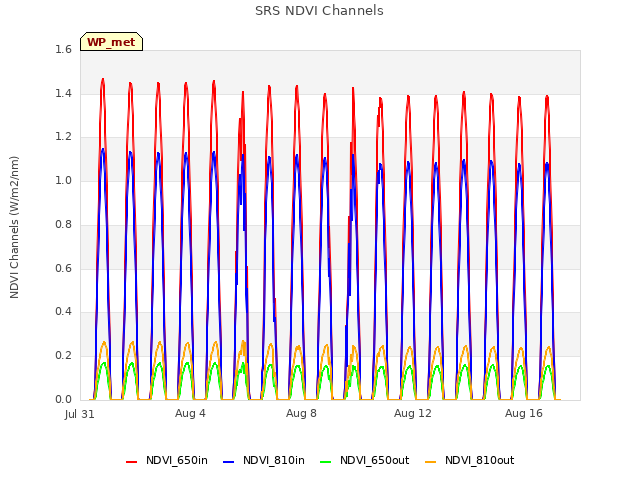

Explore the graph:SRS NDVI Channels in a new window

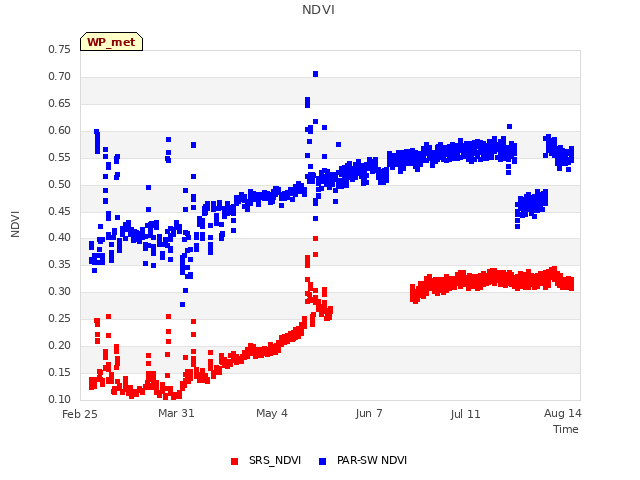

Explore the graph:NDVI in a new window

5 WP_flux graphs found

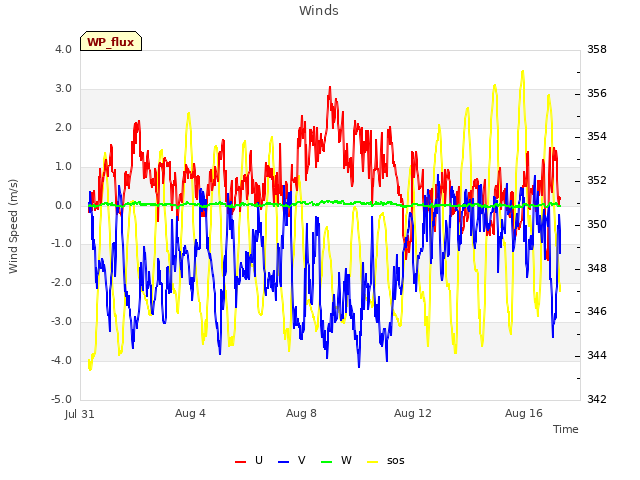

Explore the graph:Winds in a new window

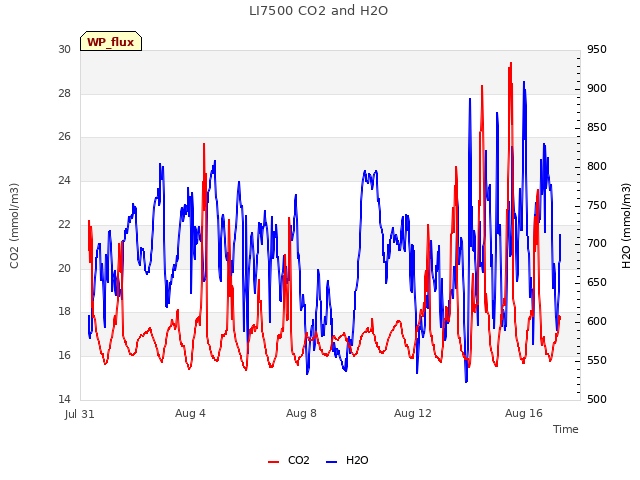

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

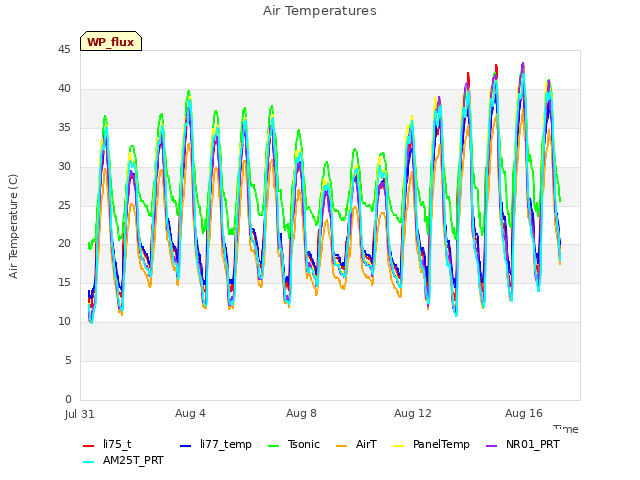

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
