Bouldin Alfalfa: 2019-07-26 13:50:00 (DOY 207)
Author: Daphne Szutu
Others: Camilo, Katrina

Summary: Regular data collection/cleaning, field mowed but not baled, lots of bird poop, knocked down wasps' nest

2019-07-26
Bouldin Alfalfa

Camilo, Katrina, and I arrived at 13:50. It was sunny and hot, with mostly clear skies. The alfalfa was mowed on 2019-07-24, but had not baled yet. The mowed piles were crispy. There were generous amounts of bird poop on the instruments and on the tower. Camilo trimmed uncut alfalfa under the tower, but left the alfalfa under the tower (trimmed at last visit) for potential LI-6400 measurements.

Katrina cleaned flux sensors and Arable sensor/solar panels. Camilo cleaned rad sensors and knocked down a palm-sized wasps nest under the radiation boom. He tried to take spectral measurements, but the reference measurement was oversaturated—I need to see if we can correct this for next time. I collected met, camera, USB, and FD data. The wash reservoir was mostly empty; I refilled it.

LI-7500 readings:
CO2 396ppm
H2O 696ppm
T 31.8C
P 101.5kPa
SS 98--> 100 after cleaning
LI7700 readings:
CH4 1.78ppm
RSSI 2-->73 after cleaning

We left at 14:30.

Next Mowing: 2019-08-14

1 photos found

Palm-sized wasp nest at the end of the square boom
Palm-sized wasp nest at the end of the square boom

Graphs display:
7 sets found

5 BA_flux graphs found

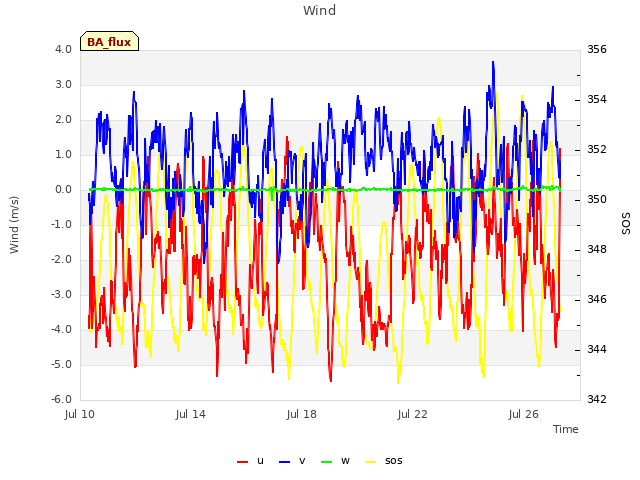

Explore the graph:Wind in a new window

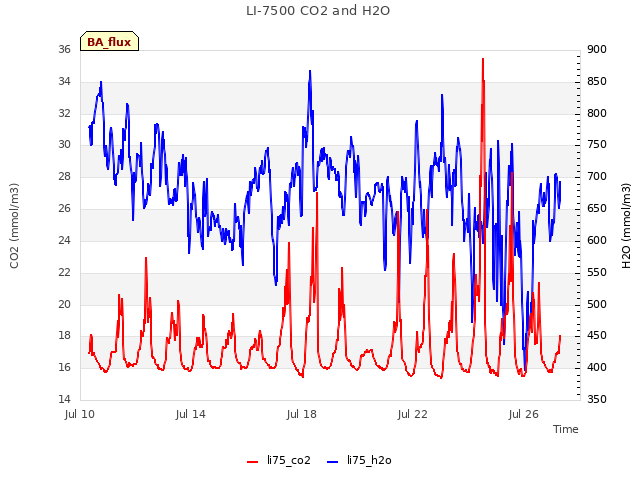

Explore the graph:LI-7500 CO2 and H2O in a new window

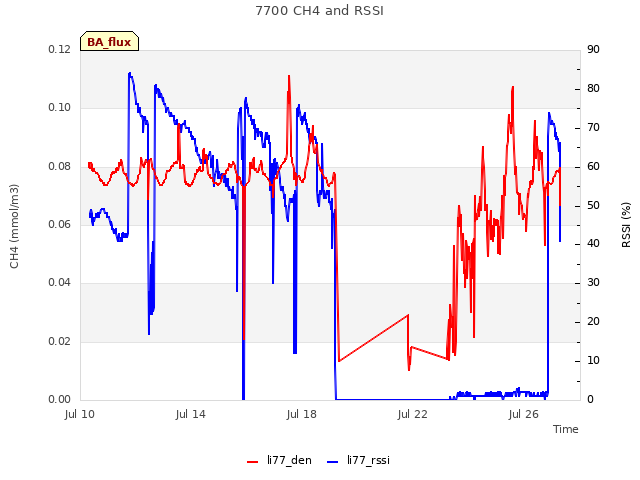

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

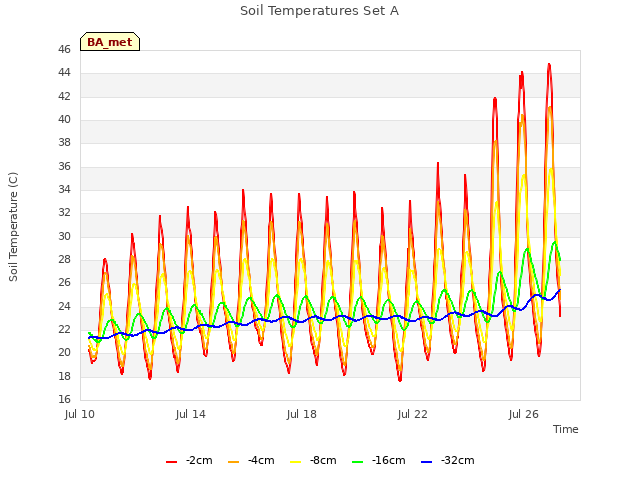

Explore the graph:Soil Temperatures Set A in a new window

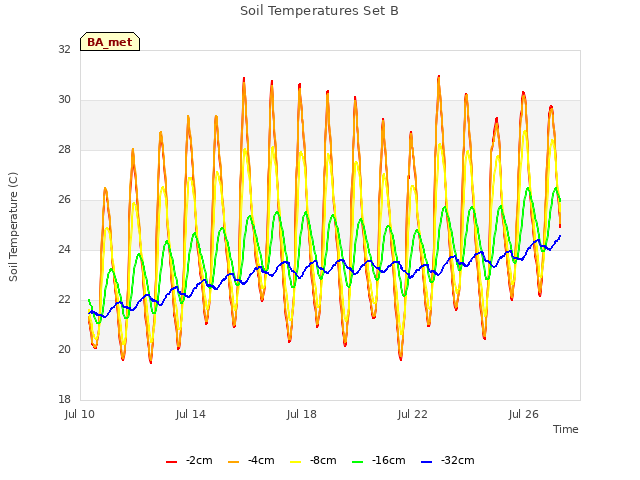

Explore the graph:Soil Temperatures Set B in a new window

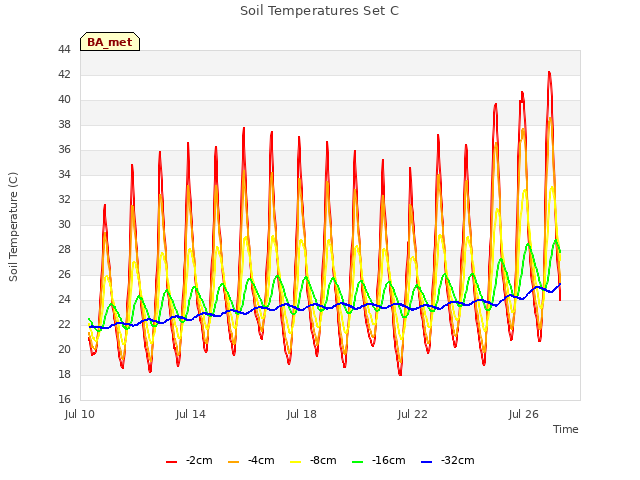

Explore the graph:Soil Temperatures Set C in a new window

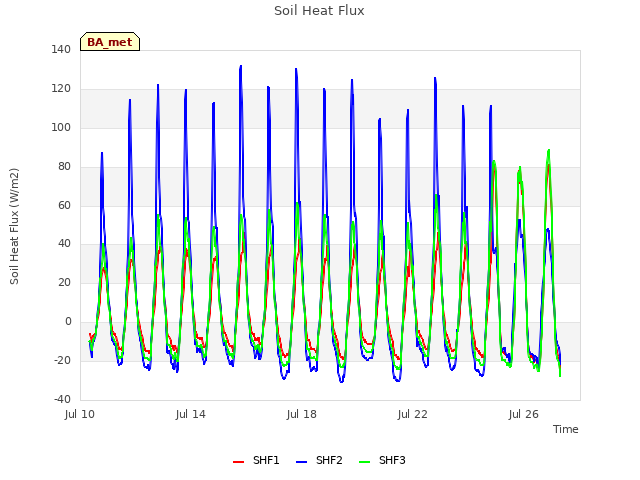

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

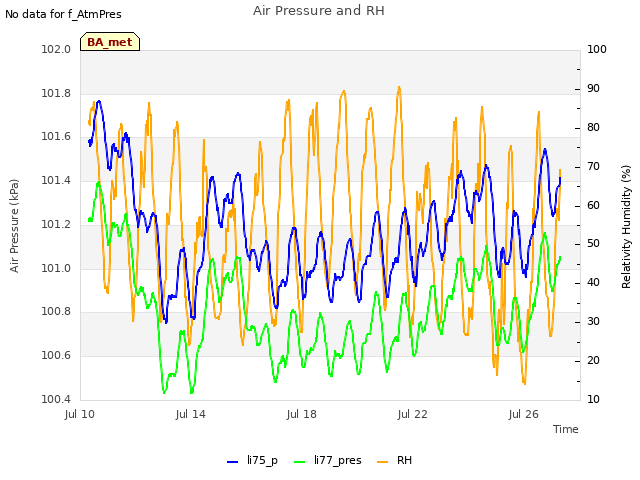

Explore the graph:Air Pressure and RH in a new window

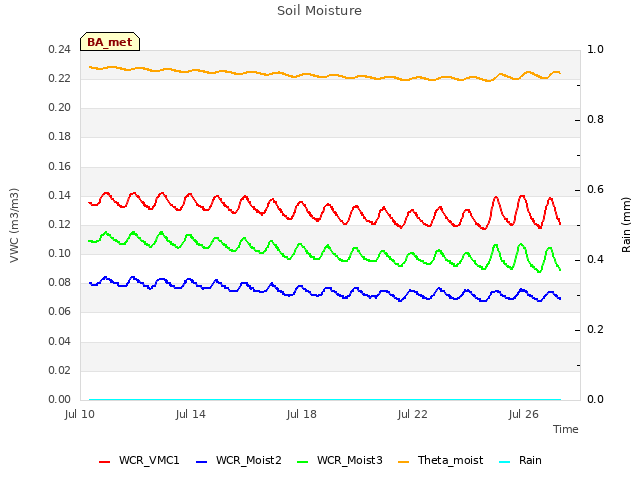

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

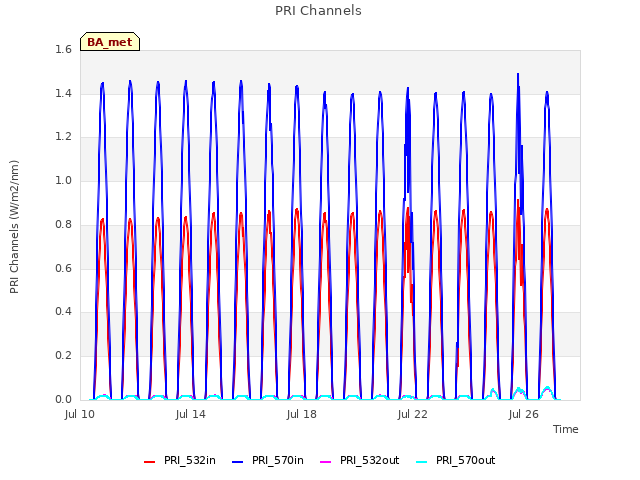

Explore the graph:PRI Channels in a new window

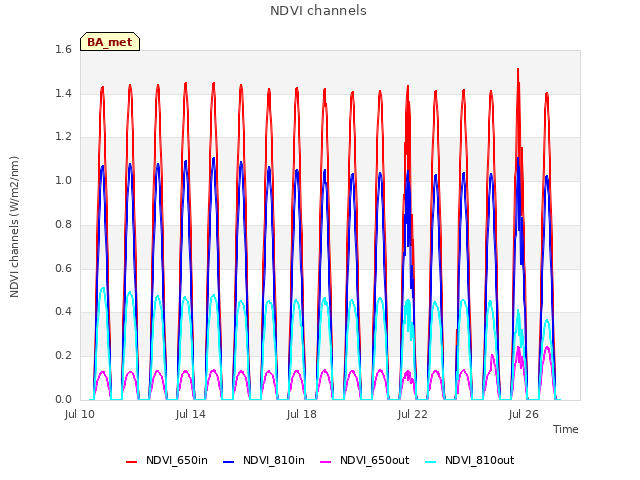

Explore the graph:NDVI channels in a new window

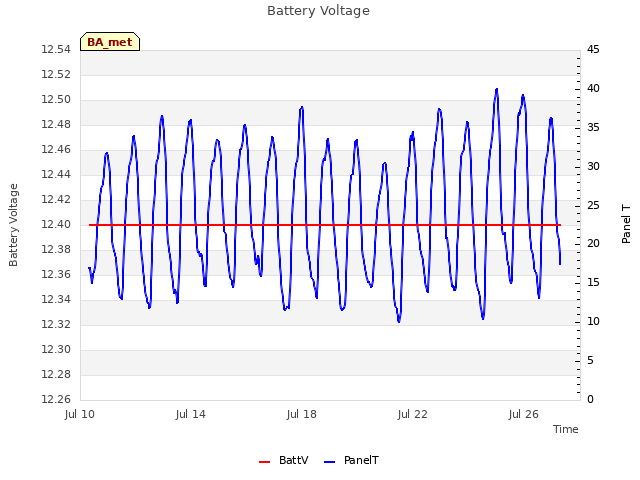

Explore the graph:Battery Voltage in a new window

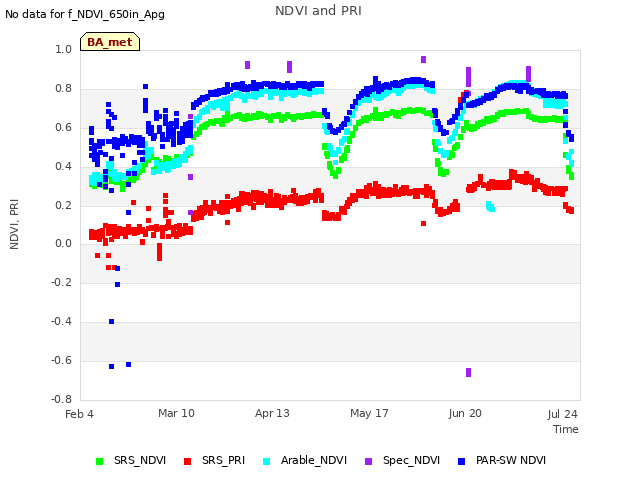

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

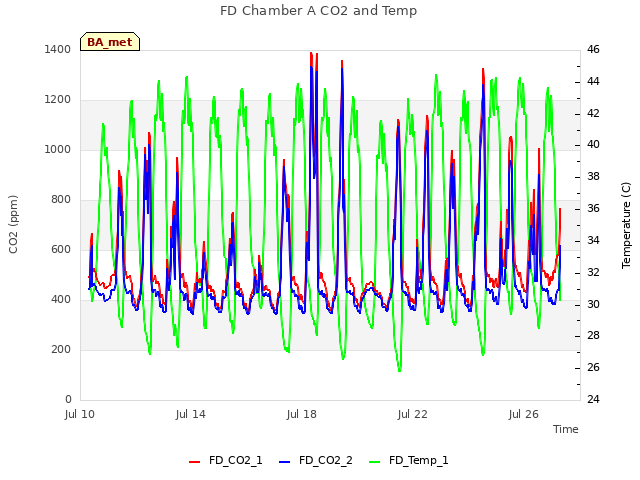

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

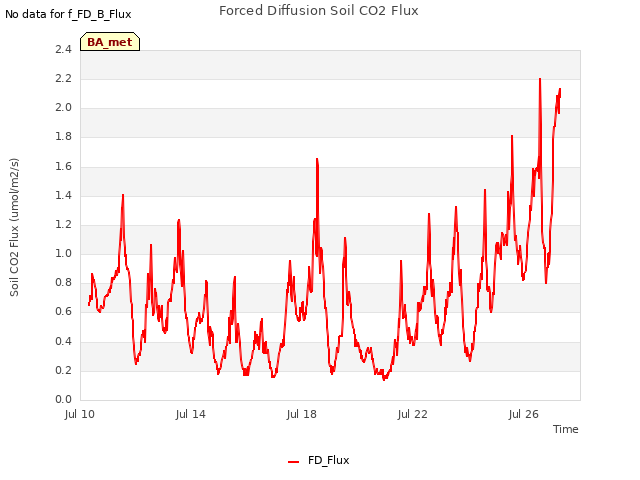

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

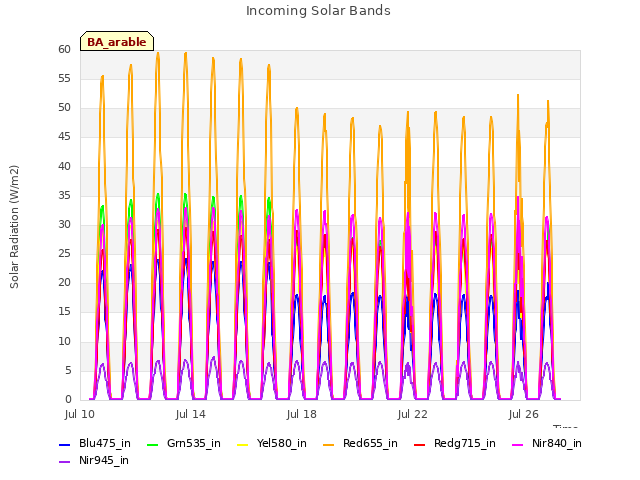

Explore the graph:Incoming Solar Bands in a new window

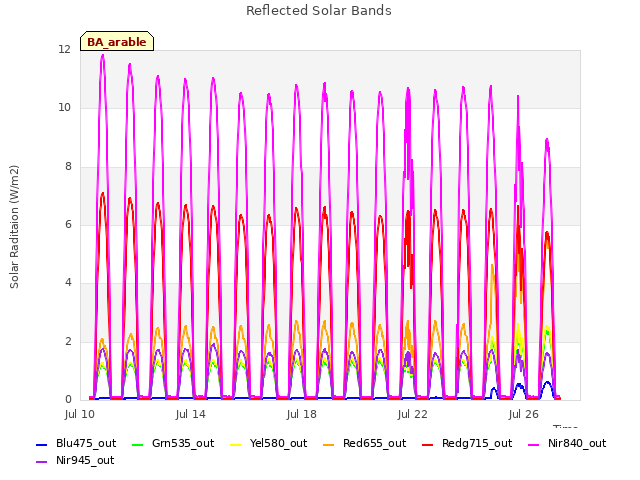

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

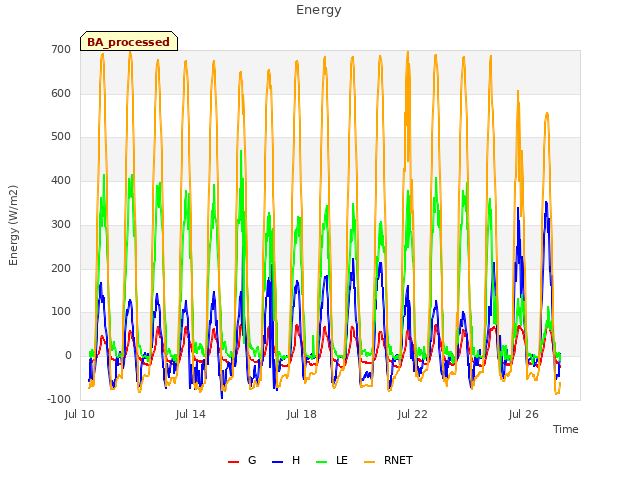

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
