Vaira: 2019-07-16 10:30:00 (DOY 197)
Author: Joe Verfaillie
Others: Siyan

Summary: Dry and crispy, forgot to bring equipment - did not download soil co2 data, powering Arables with main solar power.

Vaira
2019-07-16

Siyan and I arrived at about 10:30. It was sunny and hot with a patch of high thin clouds moving off to the northeast. The ground and grass are crispy, but I still saw three or four green weeds. We left the electric fence off. The water hole still has water. I found a dead snake in the road on the way back which I may have run over on the way in. I think it was a Western Yellow-bellied Racer.

I forgot to bring lots of things today. I forgot the silver netbook. We had the white netbook but its USB to serial adapter was missing. There was a Quatech box at Vaira and a USB serial adapter at Tonzi but the white netbook didnâ€™t have drivers for them. I also forgot to bring my USB drive that probably had the drivers. On top of that the white netbook had not gone to sleep on the way out so its battery was already half gone.

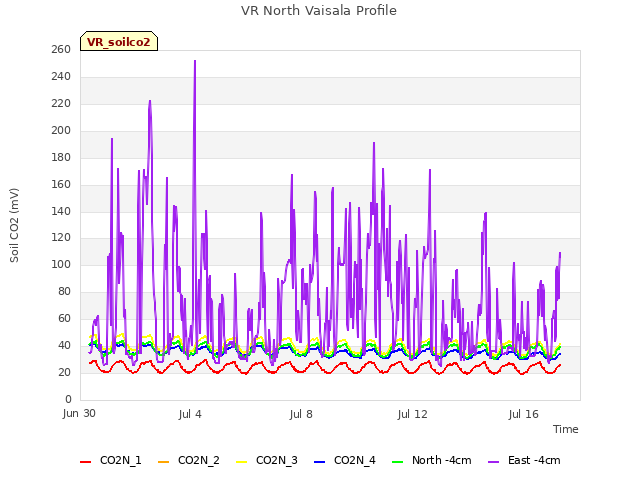

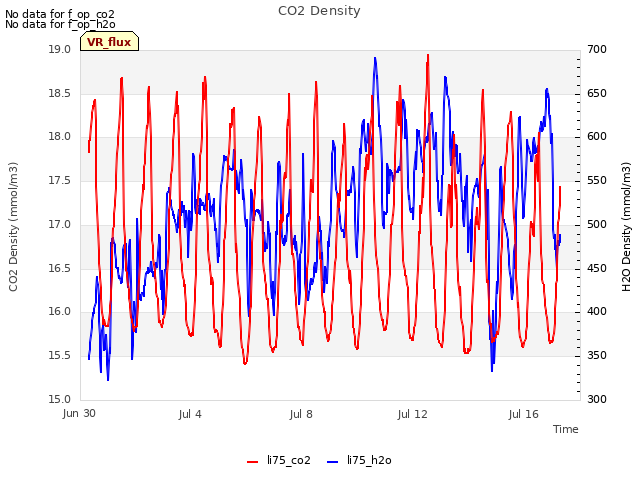

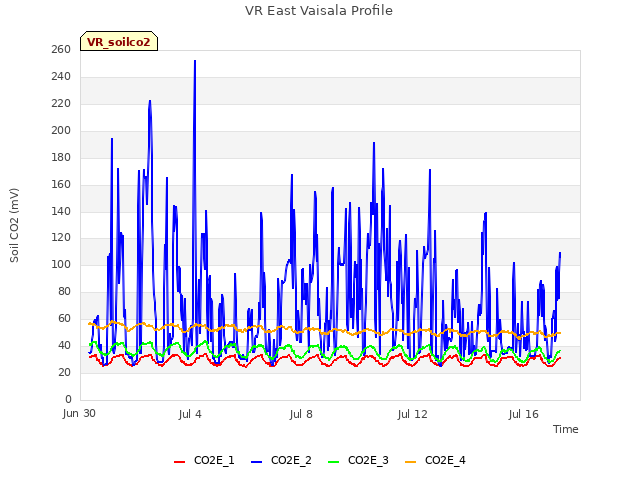

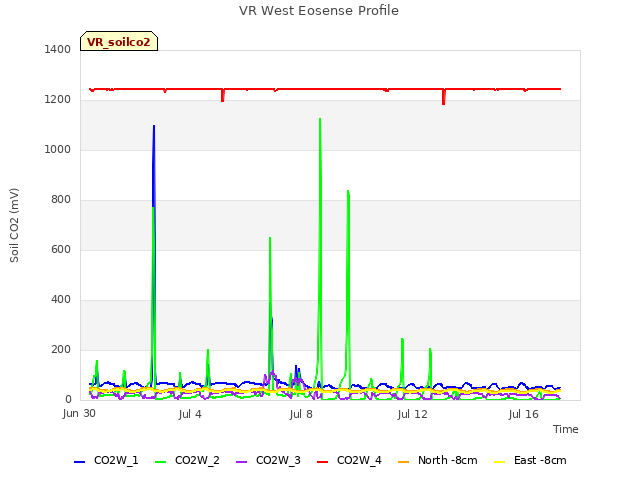

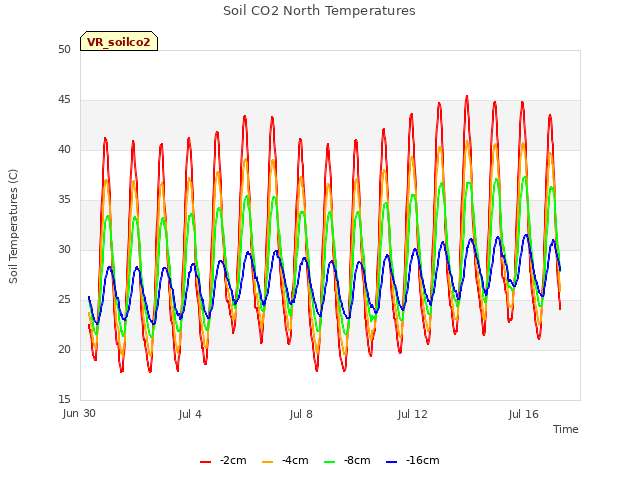

Despite those limitations I was able to get the flux data and the met data. The soil CO2 data will have to wait until next time. We will probably lose some of it as the CR10X will run out of memory and start overwriting.

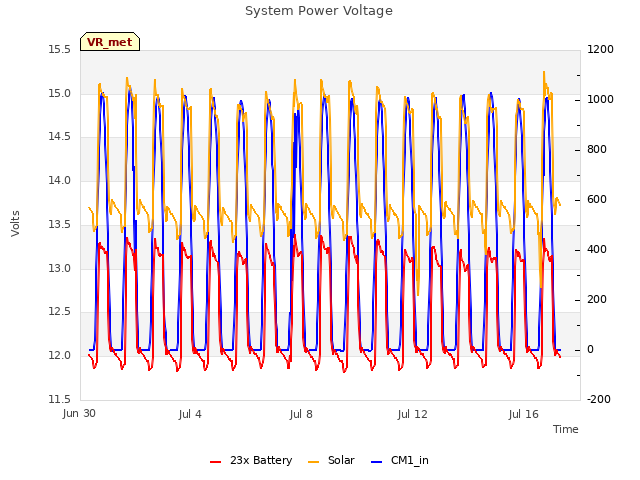

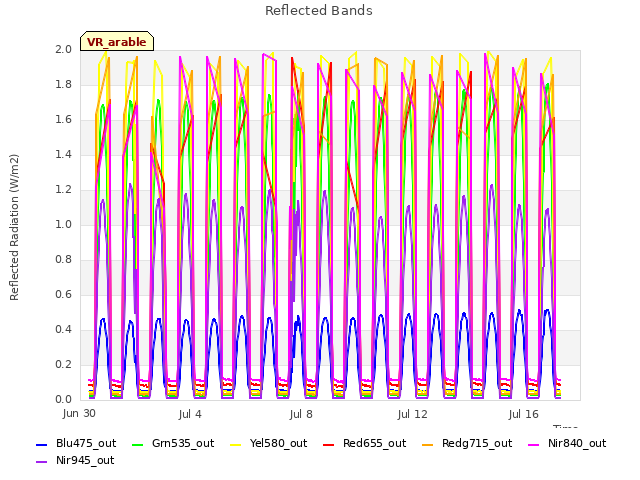

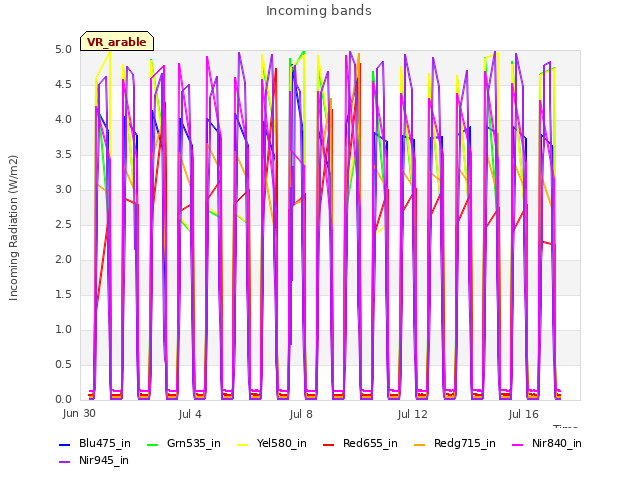

I replaced the Arable solar panel that was plugged into the prototype unit with a line to the main solar system. This line also has a plug for the older Arable unit so both units now get extra power from the main solar system.

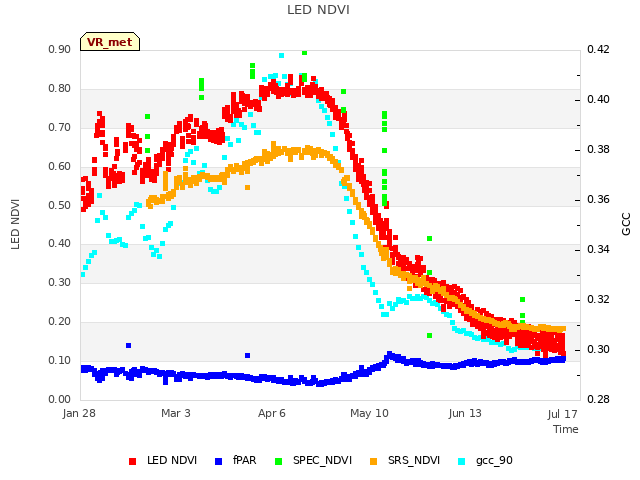

We did not do spectra to conserve the netbook battery and because not much change in the dead grass from last time.

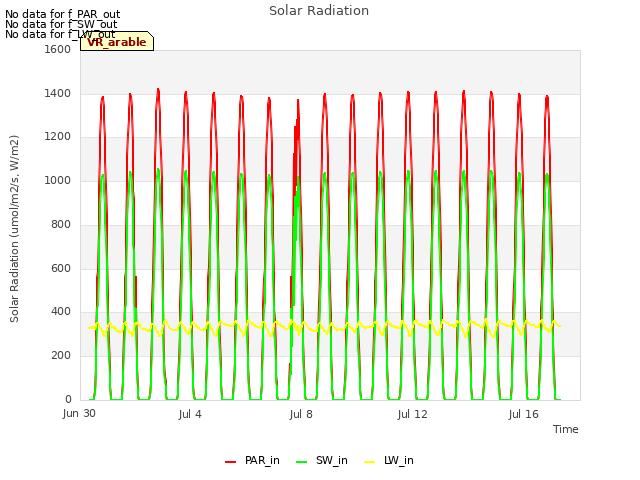

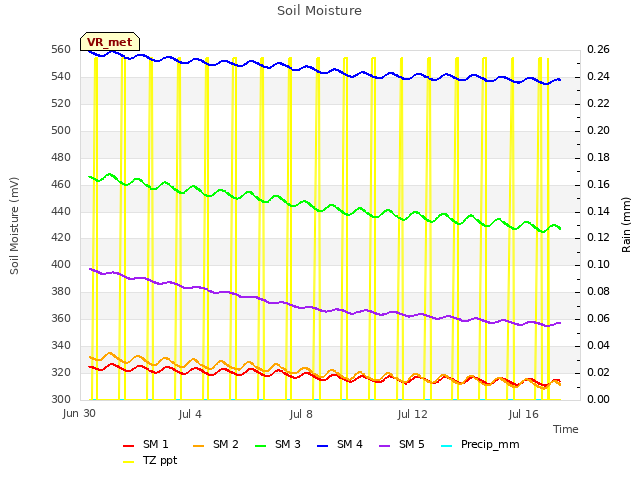

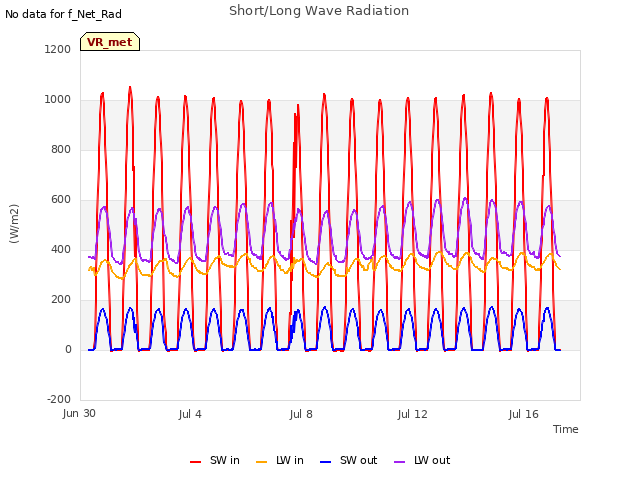

Siyan did soil moisture, measured the well and cleaned the radiometers.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-07-16	VR_well	53.35
2019-07-16	TZ_floor	18.4
2019-07-16	TZ_tower	23.4
2019-07-16	TZ_road	27.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Soil_Transect_4_4 [31] => Soil_Transect_3_4 [32] => Soil_Transect_2_4 [33] => Soil_Transect_1_4 [34] => SoilCO2_West_A_4 [35] => SoilCO2_West_B_4 [36] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-07-16	197	0	nan	5	2.1	11.1	3	5.1	1.2	1.2	10	8.6	6.3	12.4	7.8	11.2	8.1	16.4	13.3	5.1	8.7	1.1	13.3	15.9	2.9	19.6	16.8	17	14.8	16.2	25.9	12.6	20.5	12.5	20.2	25.4	13	17	19.8	4.8
2019-07-16	197	1	nan	4.5	4.5	11.1	3.3	5.6	0.9	0.9	7.4	10.3	1.8	12.7	8.1	10	8.1	16.5	23.6	4.8	9.7	0.5	13	15.4	22.6	10.9	16.9	17.3	14.5	15.6	14.8	13.4	19.3	12.5	19.9	25.1	13.3	18.8	19.6	24.8
2019-07-16	197	Avg	0-15cm																																						0
2019-07-16	197	Avg	15-30cm																																						0
2019-07-16	197	Avg	30-45cm																																						0
2019-07-16	197	Avg	45-60cm																																						0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-07-16	197	0	nan	3	0.4	2.7	11.2	11.8	6.9	16.8	6.7	27.3	30.2	18.9	20.8
2019-07-16	197	1	nan	3	0.1	2.1	11.5	12.1	6.9	16.2	7.6	7.3	29.9	18	20.5
2019-07-16	197	Avg	0-15cm													0
2019-07-16	197	Avg	15-30cm													0
2019-07-16	197	Avg	30-45cm													0
2019-07-16	197	Avg	45-60cm													0
