<--2004-10-13 10:35:00 | 2004-10-28 10:00:00-->Other sites visited today: Vaira
Phenocam link: Searching...
Tonzi: 2004-10-22 10:00:00 (DOY 296)
Author: Ted Hehn
Others:
Summary: Standard fieldwork, reconnected two solar panels to Floor system for winter, Tower losing power over night

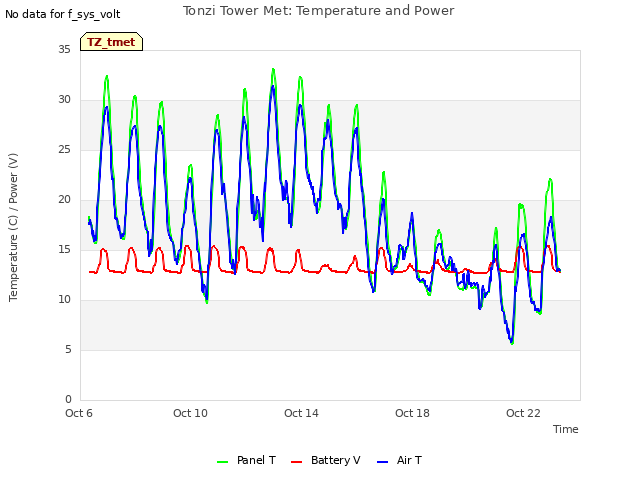

| When: Thurs, 22Oct04 JD-296 Where: Tonzi Ranch Who: Ted Hehn Weather Cool and clear after first heavy rain of the season. Vegetation is not yet sprouting from soil Trip Purpose General site visit Tonzi Ranch: Floor system – no soil co2 profile data on computer: Ted did not reconnect the ribbon cable after repairing the system last visit. Connect cable and upload data from 23x. Reconnect 2 solar panels so the system is now running on 8 panels. Tower system- all appears well. System only running during daylight hours for past week. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.
11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found
No data found for TZ_fflux.
8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.
2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
