Field Notes
<--2004-10-06 10:00:00 | 2004-10-08 10:00:00-->Phenocam link: Searching...
Tonzi: 2004-10-07 10:00:00 (DOY 281)
Author: Ted Hehn
Others:
Summary: Swap sonic and install serial line and software. Problems galore.
| When: Thurs, 7 Oct04 Where: Tonzi Ranch Who: Ted Hehn Weather Clear and warm Tonzi Ranch: 7Oct04 Install new 100’ RS232 line on sonic. Install Norhtec Multiclient PC. Remove sonic sn 000022. Install sonic sn 000023 tested to spec 11Nov03 by Gill Instruments. Sonic sn 000023 worked intermittently and then failed. Begin diagnostics on sonic- Open connector on base of sonic – no visible faults Leave connector open and connect to sonic – intermittent failure. Check power at power box – 12.1 volt Remove #23 and reinstall #22. #22 works fine. Install #23 failure. Install #22 works fine Note: tower site LI7500 IRGA water channel is at 4.0 volts and co2 is at 1.1 Multiclient has operating system error starting up: explorer32.exe error. Delete file and all seems well. Restart Multiclient and gillsonic initiates and is responding. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

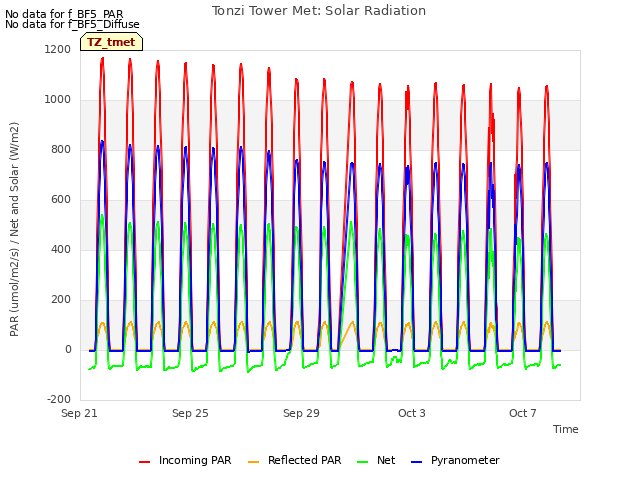

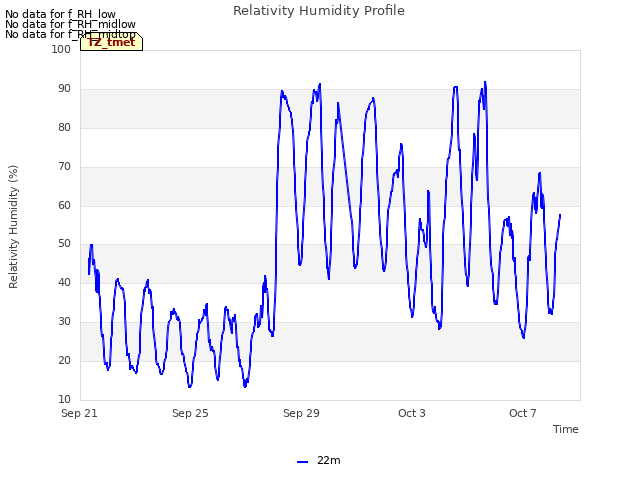

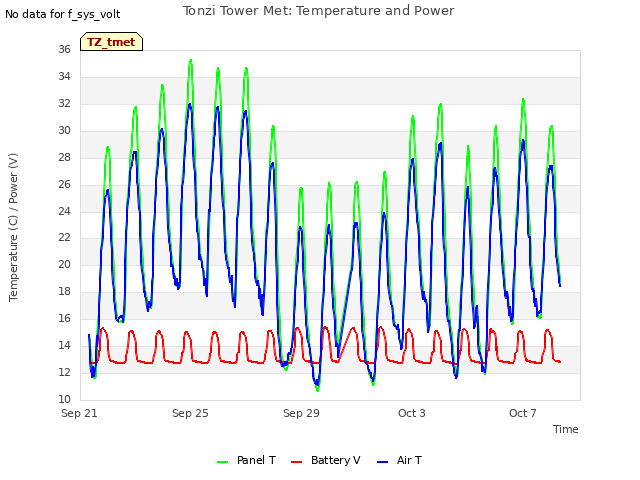

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

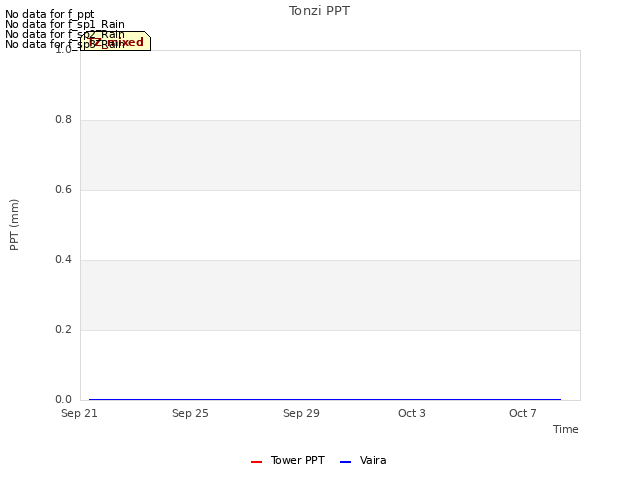

3 TZ_mixed graphs found
No data found for TZ_fflux.

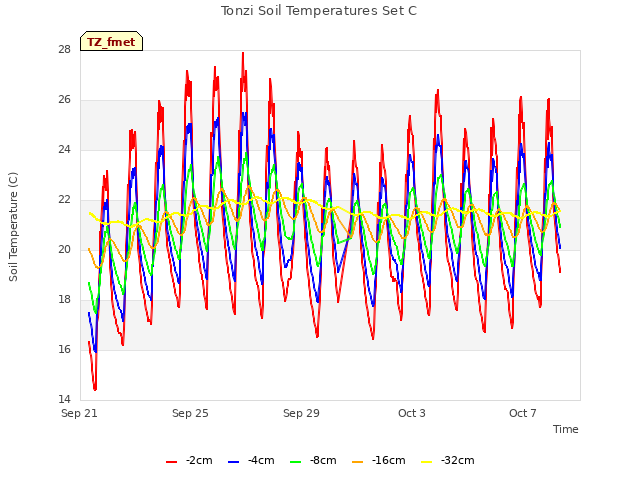

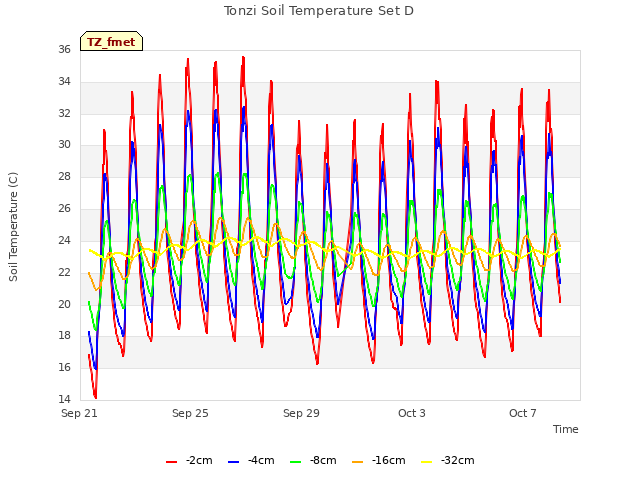

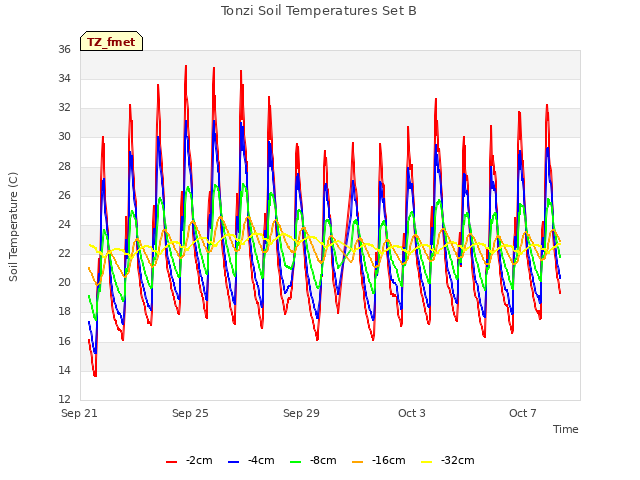

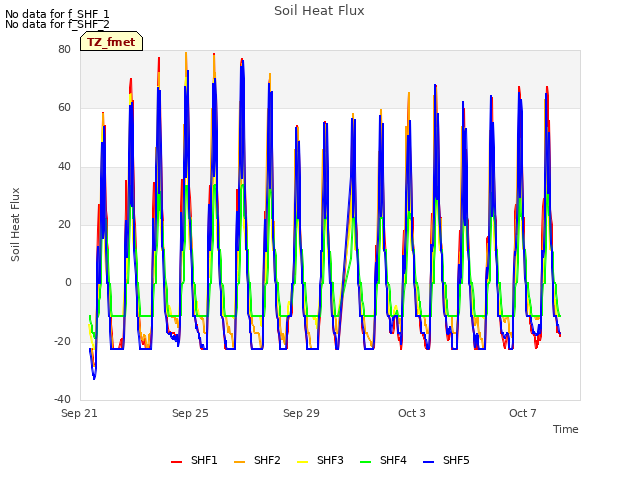

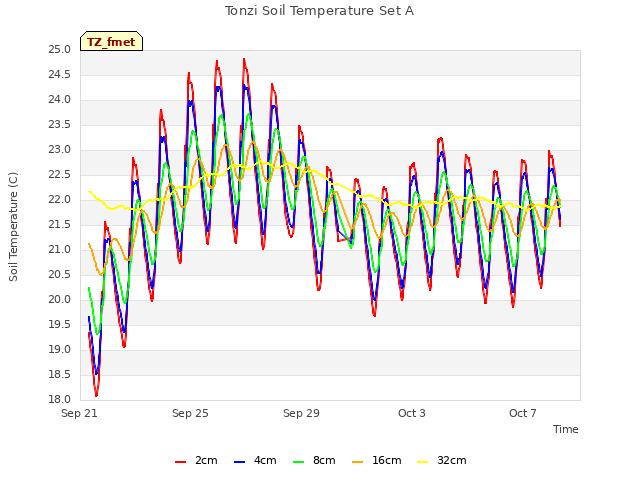

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.

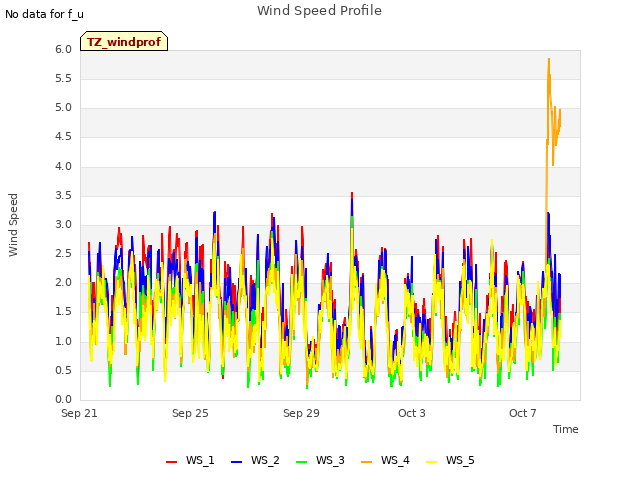

1 TZ_windprof graphs found
No data found for TZ_tflux.

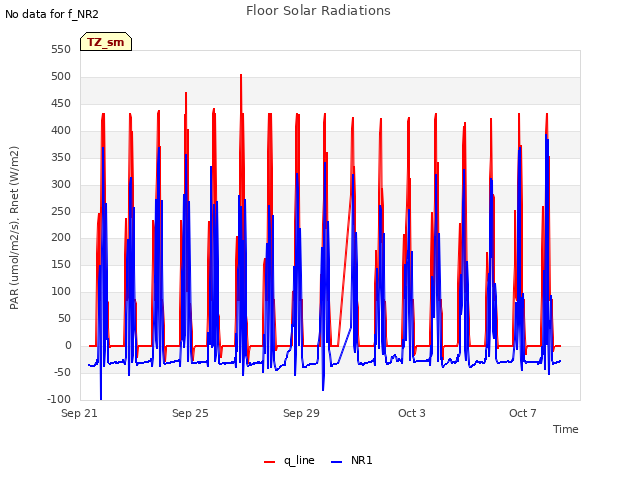

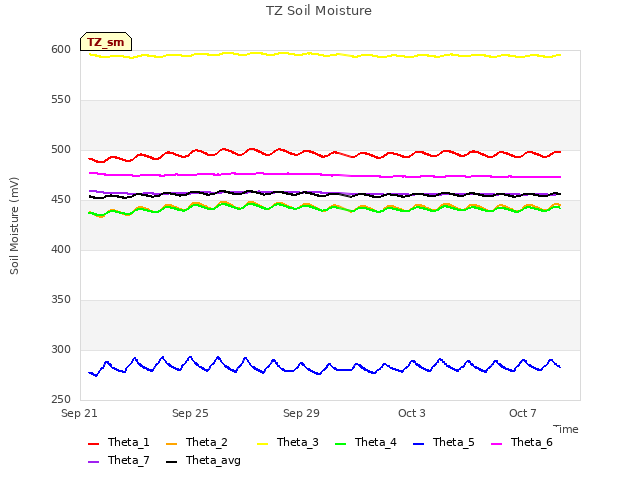

2 TZ_sm graphs found
Can't check TZ_met

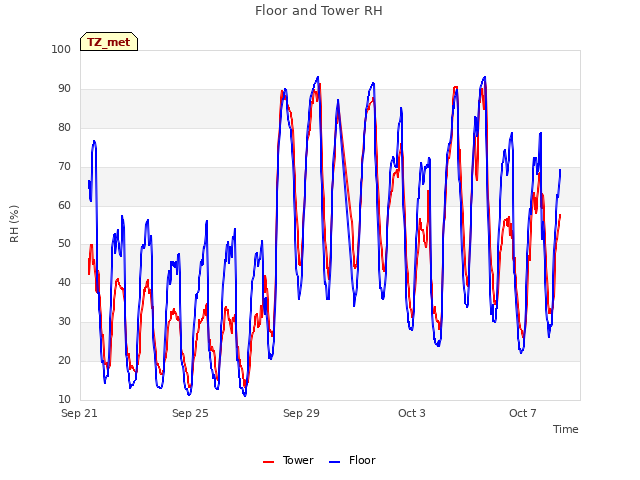

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
