Tonzi: 2004-10-06 10:00:00 (DOY 280)
Author: Ted Hehn
Others:

Summary: Check on eddy systems - Floor missing data, repair and upgrade soil co2 power, fix TCs

When: Thurs, 6 Oct04
Where: Tonzi Ranch
Who: Ted Hehn
Weather Clear and warm

Trip Purpose Standard site visit

Tonzi Ranch:
6Oct04
Tower site working but missing 1-2 days data since last visit.

Floor system failure 24-48 hours ago. PC208 screen opened and gillsonic minimized. Close PC208 window and restart PC. Gillsonic initiated.

East side Soil CO2 Profile System (SCPS) had been reconfigured such that the IRGAs and data logger were being powered by 1 battery with 12 volts. The charging system configured to charge a 24 volt battery was charging the 12 volt battery. The Vaisala IRGAs are 24 volt devices. This configuration was corrected by reconnecting the batteries in series for a 24 volt system. Formerly, the CR23x was powered by its own battery that did not have solar charge capability. It is now powered by the lower potential battery of the 24 volt bank.

The west side soil CO2 profile system was not affected by what happened to the east side.

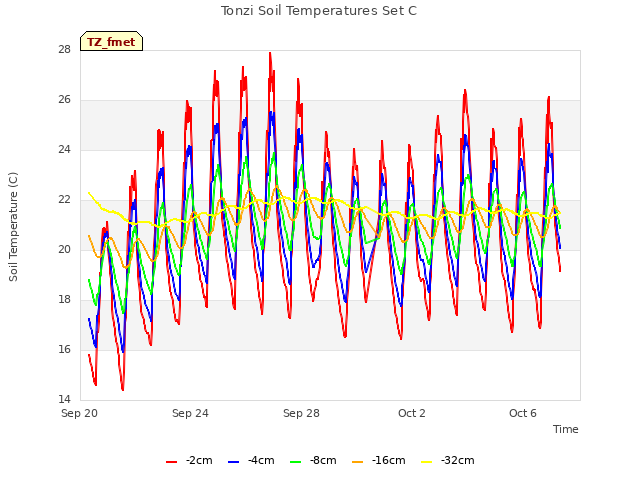

The CR23x at the East side SCPS was not functioning and removed. Another was installed and the system began to give reasonable readings. Repair soil thermocouple for east side # 2.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found
