Field Notes

When: Date: 9/21/2004 , Day: 265 , Watch Time: 11:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: Sunny, breeze, not hot
Phenology: Oak leaves looked more yellow. Dead grass.

Summary & Problems

1. Overall, three Flux towers were working well. Data were downloaded. However, the Floor-site laptop screen didn’t show anything when I got there. After I restarted the laptop twice, the screen started working for me but still flushing all the time. Thus, the Floor-site laptop needs to be replaced soon.
2. The battery in the open site of Soil CO2 profile was 10.986v, lower than normal 12.0v. I reconnected the power line to another good battery. I was not sure whether the batteries were connected to solar panels. I should bring the dead battery back, but I didn’t realize it until I was on my way to Berkeley. Ted, could you bring a fully-charged battery to there and double check the battery connections if you are planning to visit the site next week. Thank you.
3. I removed Gashound Li-800 sn AKC-0479 from the tower site according to Ted’s request and instruction.

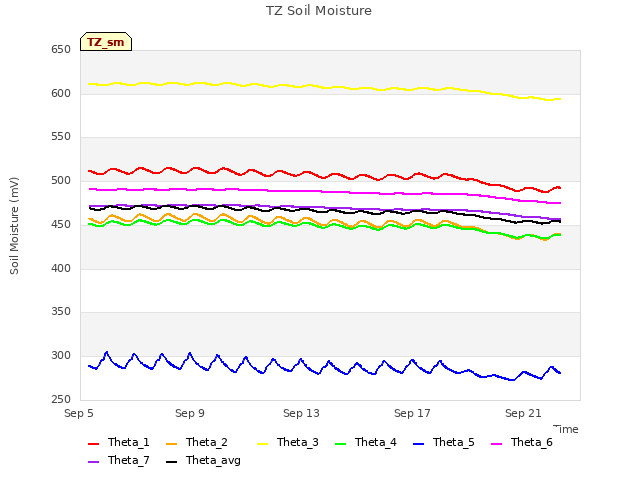

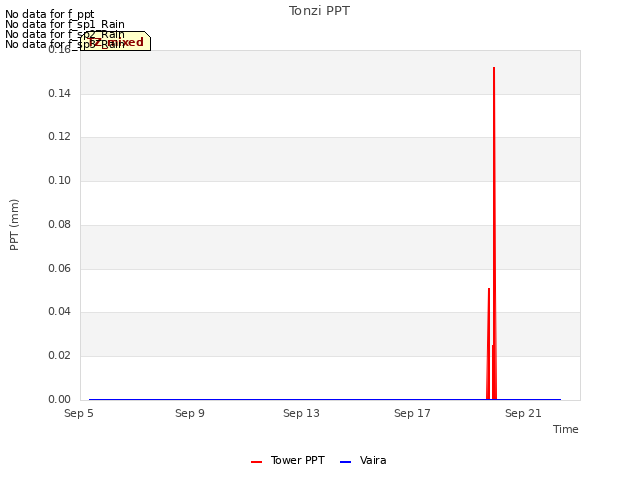

4. Soil surface was still extremely dry. I didn’t see any evident of rain in both sites. Soil moisture measurement was done.
5. Oak leaves were sampled.

Tonzi_Tower Site

1. Fence and gate power: >12.0 v.

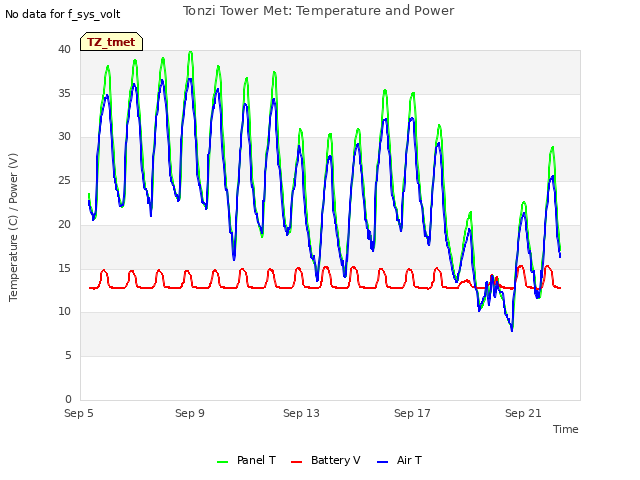

2. Panel and Batteries: 13.5 v; 0.0 amps; 3.7 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

   Time	11:16:28
   Path/File name	D:TW4_265.flx
   	mean	std		mean	std
   w	-0.13	0.576	Ts	26.364	0.175
   u	0.35	1.159	H2O	2.506	0.075
   v	-1.55	2.198	CO2	1.618	0.012

4. Download data.
5. Remove Gashound Li-800.
   • Unplug power to the pump
   • Unplug power to Li_800
   • Unplug power to the datalogger
   • Close the CO₂ and N₂ calibration tank.
6. Close gate and set up fence.

Toniz_Floor Site

1. Fence and gate power: >12.0 v.
2. Panel and Batteries: 13.8 v; 14.9 amps; 2.4 amps.
3. the Floor-site laptop screen didn’t show anything when I got there. After I restarted the laptop twice, the screen started working for me but still flushing all the time. Thus, the Floor-site laptop needs to be replaced soon.

   Time	12:03:02
   Path/File name	D:fl4_265.flx
   	mean	std		mean	std
   w	0.07		Ts	26.709
   u	0.41		H2O	1.196
   v	0.3		CO2	1.692

4. Download data, missing D258 – D259.
5. MD-9 system connections were good, except CR10X7 because the CO2 profile system was shut down today.
6. The battery in the open site of Soil CO2 profile was 10.986v, lower than normal 12.0v. I reconnected the power line to another good battery. I was not sure whether the batteries were connected to solar panels. I should bring the dead battery back, but I didn’t realize it until I was on my way to Berkeley. Ted, could you bright a fully-charged battery to there and double check the battery connections if you are planning to visit the site next week. Thank you.
7. Close gate and set up fence.
