Vaira: 2010-01-27 08:30:00 (DOY 27)
Author: Joe Verfaillie
Others:
| Vaira

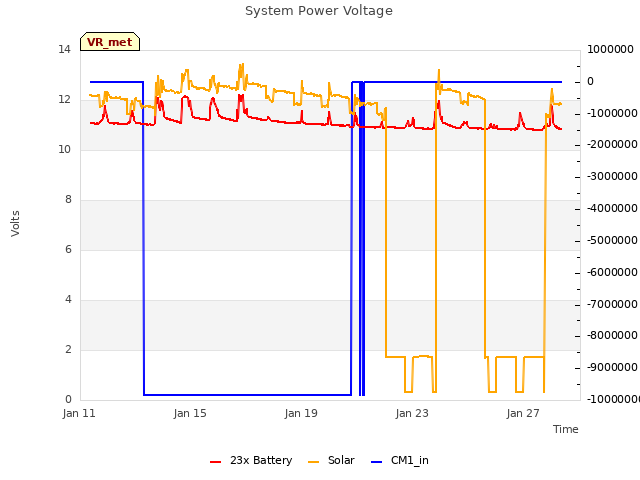

1/27/2010 Arrived about 8:30am. Cold, foggy, little to no wind. Much of the standing litter has been knocked down. System was off due to low battery voltage when I arrived ~11.9V. Started rewiring for conversion to 24V solar system. HMP45 fan was connected directly to batteries. Duplicate lines run for web cam and fan. I rerouted a single line through the main power line to the flux system and split the fan power from the web cam power box. I added a power strip in the computer box in preparation to convert to 24V solar system. Felt I needed to test the 24V equipment more in the lad before I trust it in the field. Solar panels producing 2 to 3 amps - system using about 3amps. I did not copy data, but it looked like there was data most days though most nighttime, early morning data was missing. Cleaned the radiometers. Cleaned the LI7500 lenses of dew. Cleaned and watered fence battery. Checked data logger solar battery - seemed okay. May have bumped the web cam a little in tracing power. Left for Tonzi about 11:30am |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

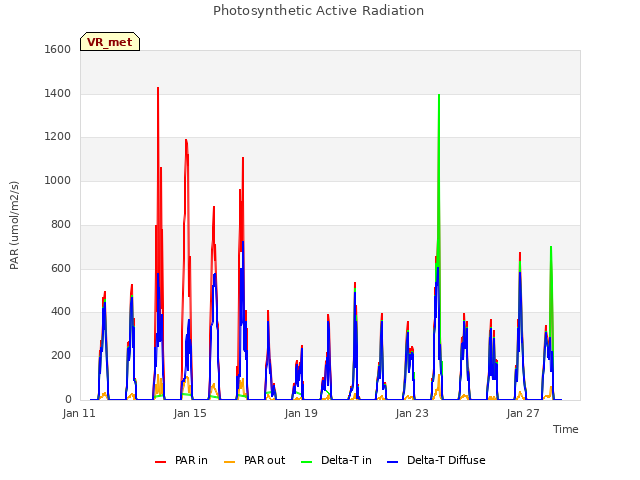

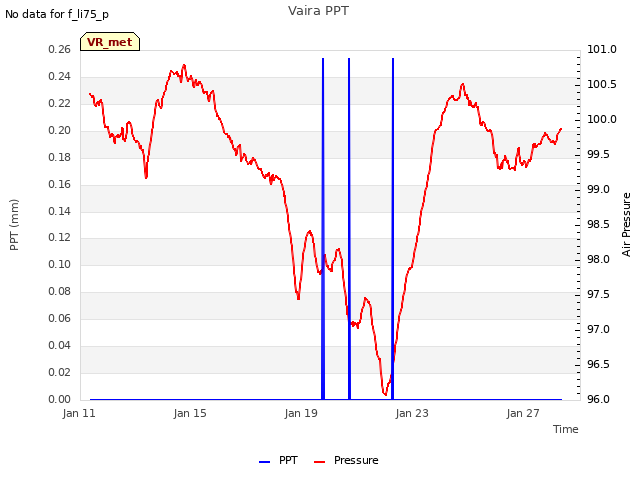

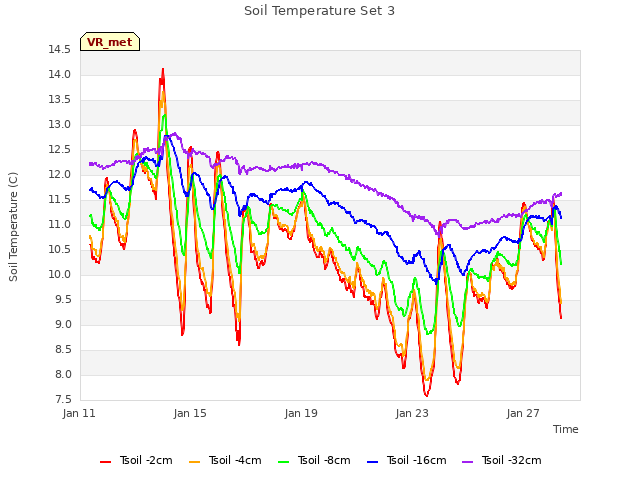

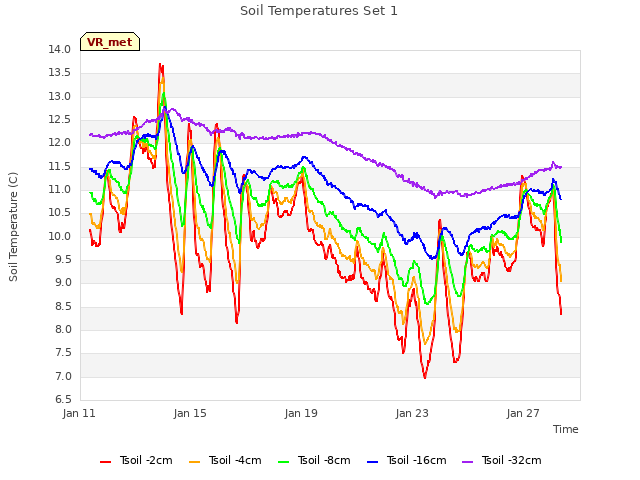

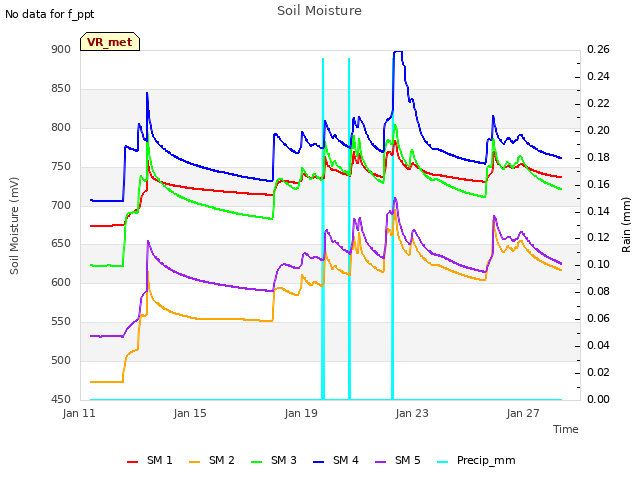

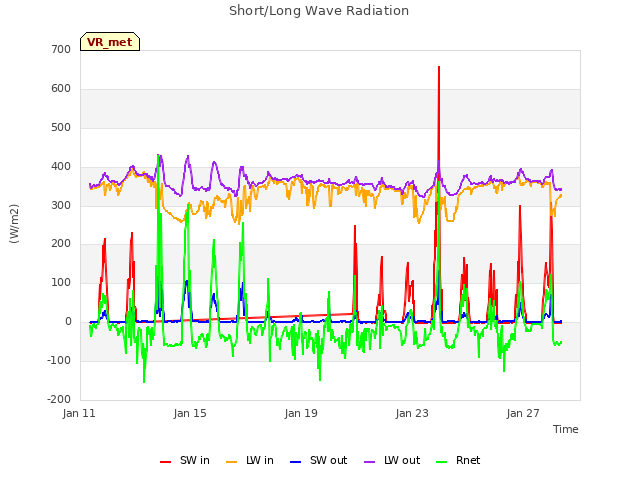

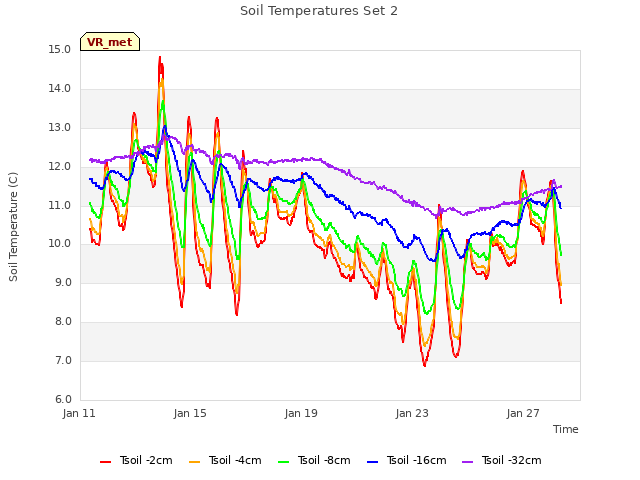

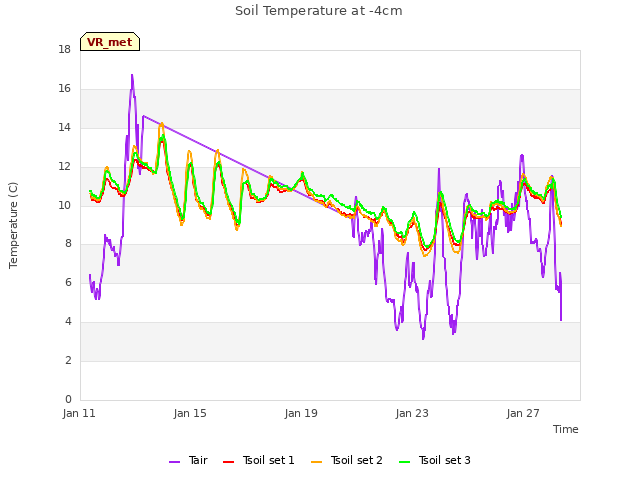

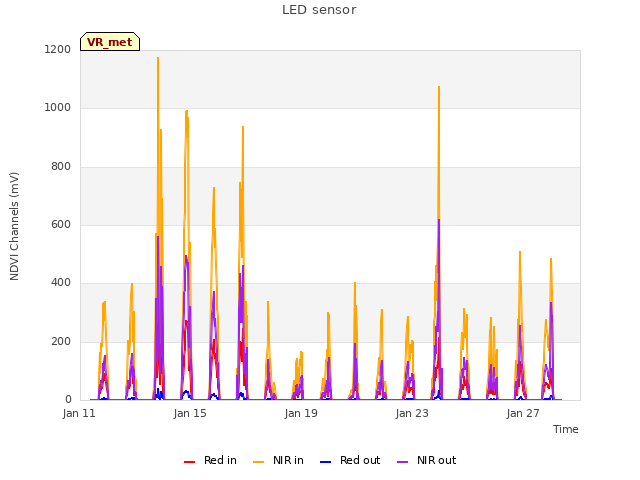

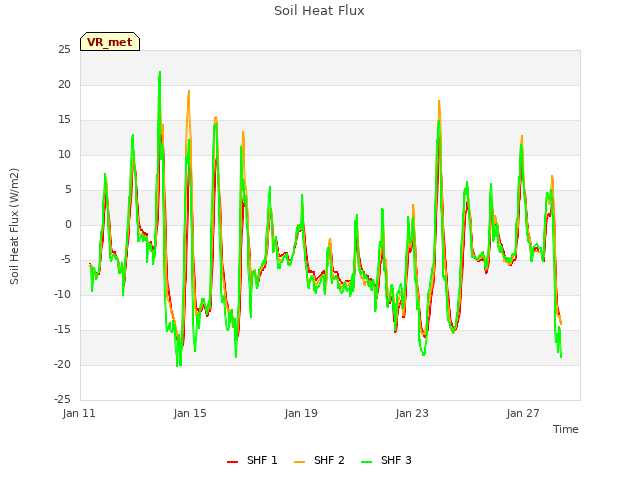

16 VR_met graphs found

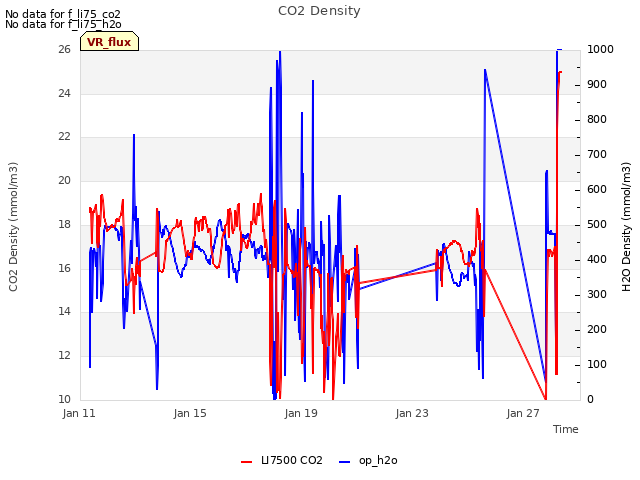

2 VR_flux graphs found
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
