Tonzi: 2019-02-07 10:00:00 (DOY 38)
Author: Joe Verfaillie
Others: Dennis, Kuno, Robert, Baptiste, George

Summary: Showing the site to Kuno, Robert, Baptiste and George. SMAP/Mariage Systems tour, very wet, Rob says wild pigs present, open soil co2 not working

Tonzi
2019-02-07

I arrived at 10:00 am with Dennis, Kuno, Robert and Baptiste Dafflon from LBL. We also met George Moussally from Mirage Systems at the Tonzi Gate. Baptiste and George were there in association with the SMAP project and are thinking that Mirage System may fly a Ground Penetrating Radar over the site to try to get at soil moisture. The GPR may have problems with the clay soil but they were also interested in the Electro Magnetic Induction data we have. Kuno and Robert had not seen the sites yet.

We also saw Rob on our way in. He was on is way out taking piles of old scrap metal away. Rob said wild pigs have been digging up the land to the north of our tower.

The ground is very wet and sloppy in the low spots. The pond looks close to completely full.

At the site I collected the data from all the data loggers. Dennis did the soil moisture and manual well depths. Kuno and Robert removed the remains of the last sap flow station just south of the tower. Kuno removed the dendrometer band on Tree C4. I can put it back next time. Robert and Kuno also swapped the z-cam cards. I read most of the Dendrometer bands.

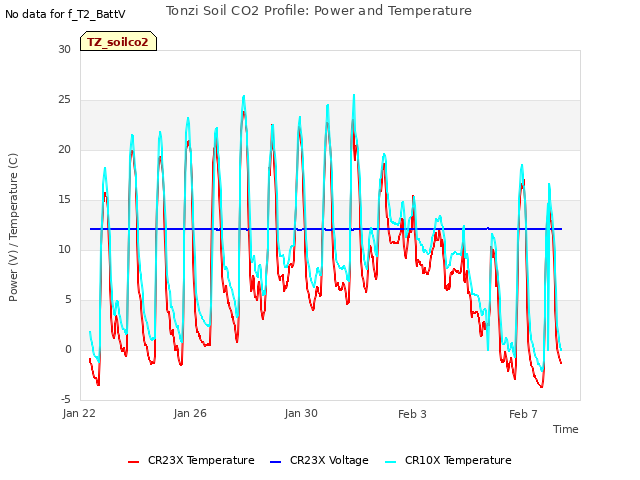

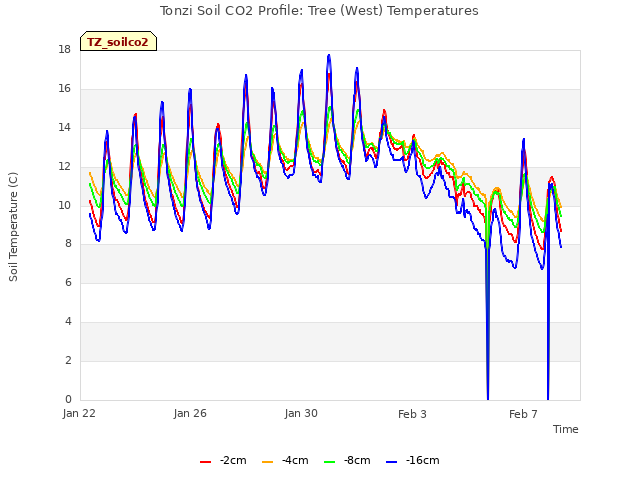

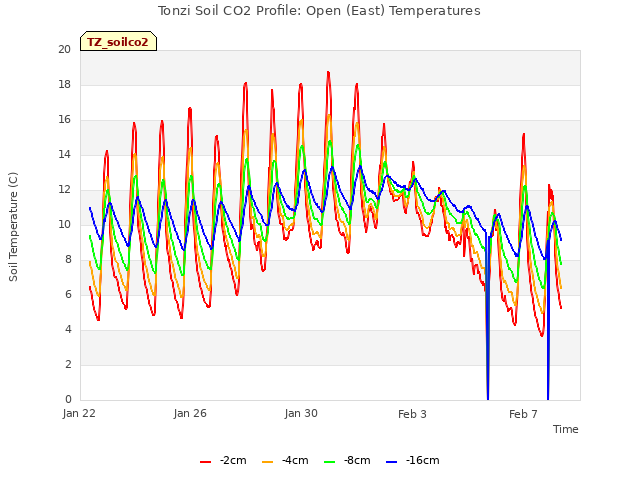

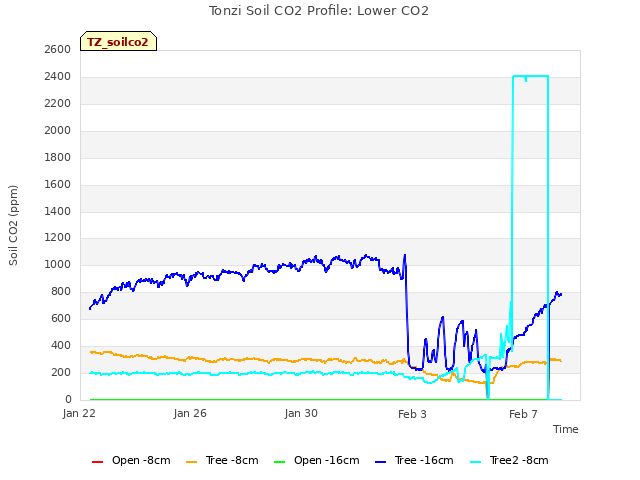

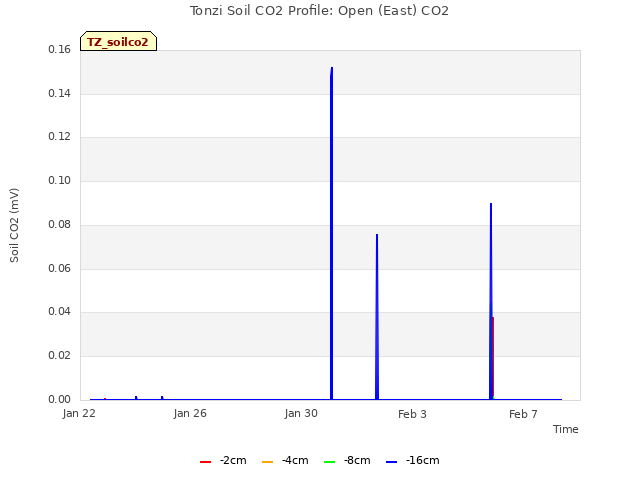

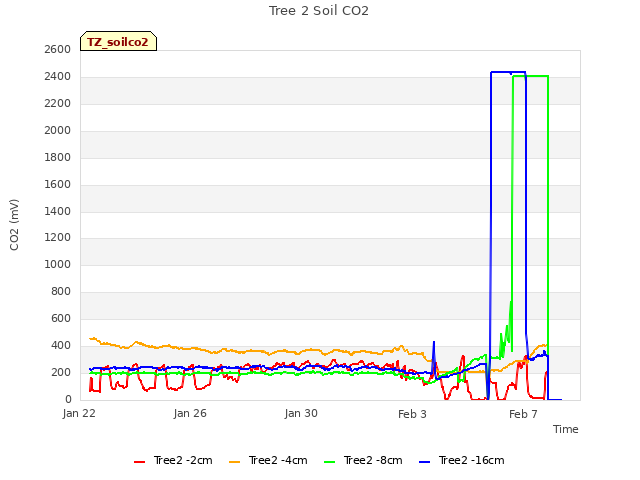

The Open soil co2 profile didnâ€™t seem to be working. I think the voltage from the control port is too low being shared between the three solid state relays. I tried to rewrite the program to use two control ports but it didnâ€™t seem to work and I reloaded the old program. Next time.

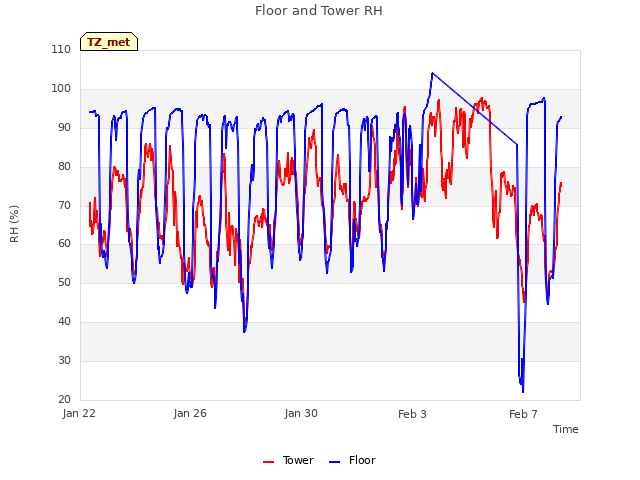

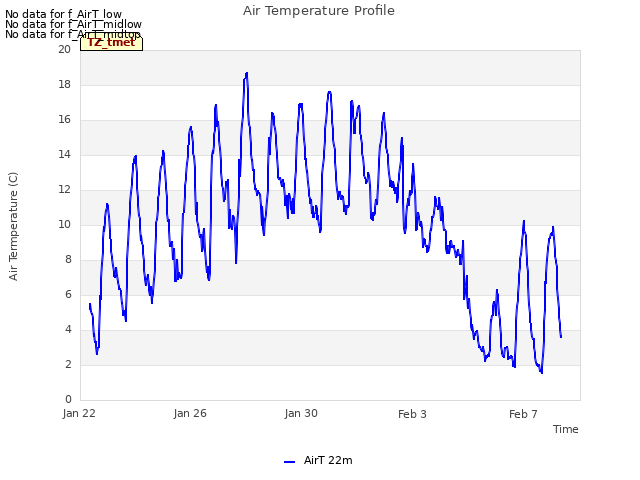

The Floor HMP45 was laying on the ground when we got there. Robert put it back into its solar shield.

Field Data

No tank data

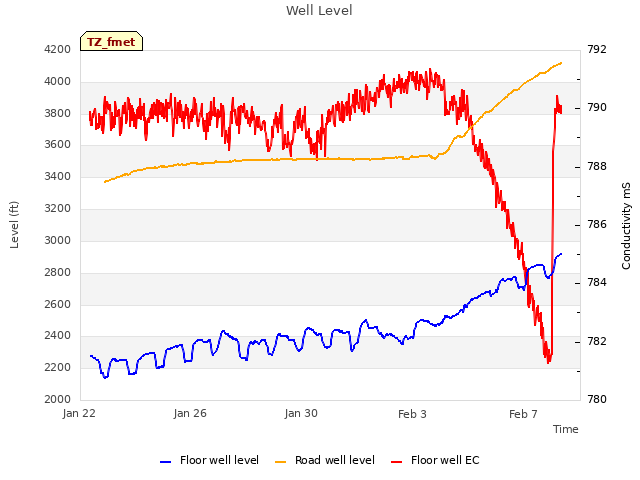

Well Depth

Date	Location	Depth (feet)
2019-02-07	TZ_floor	26.9
2019-02-07	TZ_tower	31
2019-02-07	TZ_road	34.45
2019-02-07	VR_pond	22.28
2019-02-07	VR_well	54.2

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-02-07	38	0	nan	42	31.7	38.4	22.6	31.4	29.7	28.8	39	32.3	27.6	40.8	39.3	37.4	40.5	33.4	35	40.8	34.2	43.6	35	37.4	46.3	42.1	39.9	35.2	36.3	37.4	36.6	35.7	40.5	41.7	50.6	45.4	35.4	46	47.7	41.1	45.4	50.9	47.7
2019-02-07	38	1	nan	42	31.7	39	28.8	31.4	29.7	28.2	37.3	34.1	29.4	41.4	39.3	38.1	40.6	34.1	36.3	40.8	33.6	44.2	35.6	36.8	45.2	40.5	40.5	35.2	36.7	3841.1	46	35.2	40.5	42	50.6	45.7	35.4	46.3	47.1		46	50.6	47.7
2019-02-07	38	2	nan	41.4	31.7	38.4	29.1	26.4	29.9	28.5	39	34.1	29.7	41.7	39.3	37.4	41.1	34.4	35	40.2	34.1	39.9	35.6	36	45.2	41.3	40.7	34.5	36.3	37.4	36.6	36	39.5	40.5	49.1	45.1	34.8	44.3	47.7	40.5	45.4	50.3	48
2019-02-07	38	Avg	0-15cm																																									0
2019-02-07	38	Avg	15-30cm																																									0
2019-02-07	38	Avg	30-45cm																																									0
2019-02-07	38	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-02-07	38	0	nan	30.8	22.6	23.2	28.9	31.3	23.4	31.8	19.3	42.1	42.4	30.5	33.4
2019-02-07	38	1	nan	31.4	21.7	22.4	28.3	31.6	2432.1	31.8	19.5	33.7	42.8	30.5
2019-02-07	38	2	nan	30.5	21.2	22.6	28.3	31	23.4	31.5	20.1	31.5	42.5	30.8	33.1
2019-02-07	38	Avg	0-15cm													0
2019-02-07	38	Avg	15-30cm													0
2019-02-07	38	Avg	30-45cm													0
2019-02-07	38	Avg	45-60cm													0
