Vaira: 2019-01-22 10:00:00 (DOY 22)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard fieldwork, very wet, fixed soil co2 data logging - hopefully.

Vaira
2019-01-22

I arrived at about 10am with Siyan. It was cold and sunny with some high thin clouds. The ground is wet with puddles and streams in the road. The water hole is full. Cows are around. The Sacramento River was muddy and the Cosumnes was running high flooding the nearby fields.

We measured the well. The top of the pipe is 26cm above the ground. The well level was 56.5ft.

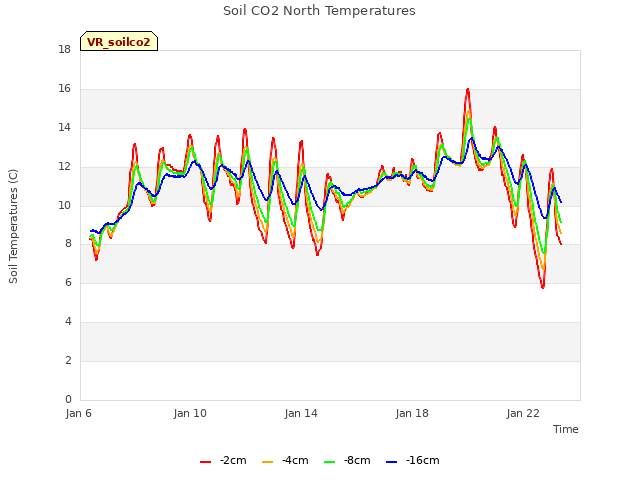

We did the standard data collection at the site. The data from the soil co2 system has been sporadic. I think I found a loose screw terminal and a line from the multiplex that would account for the problem. Hopefully this will fix it. I also replaced the 3.3V Lithium coin cell inside of the CR10X sn 20139.

We did not go to the pond.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-01-22	VR_well	56.5
2019-01-22	TZ_floor	28.9
2019-01-22	TZ_tower	33.6
2019-01-22	TZ_road	36.8

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-01-22	22	0	nan	40.6	32	39	22	29.9	25	25.3	37.9	33.5	29.1	41.4	35	38.4	42.9	33.8	34.1	29.5	33.2	40.8	34.4	36.3	44.6	46.9	39.4	35.2	35.2	37.7	37.4	35.7	38.5	40	53.1	44.3	35.4	46	48.3	42.3	44.8	50.9	47.4
2019-01-22	22	1	nan	40.8	29.9	39	27.6	26.7	25	25	39.3	33.5	28.5	40.5	48.7	38.1	43.9	33.2	35.3	28.9	33.2	41.1	34.4	36.8	44.4	39.4	40.2	36	34.1	38.2	37.1	34.9	36.2	42.5	49.7	44.5	36	45.1	47.7	41.7	45.7	50.9	46.4
2019-01-22	22	Avg	0-15cm																																									0
2019-01-22	22	Avg	15-30cm																																									0
2019-01-22	22	Avg	30-45cm																																									0
2019-01-22	22	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2019-01-22	22	0	nan	32.3	14.7	39.6	22.9	28.3	37.8	50	23.7	31.5	26.5	39.9	31.8	43.4	25.6	41.4	33.4
2019-01-22	22	1	nan	31.7	14.1		23.2	27.7	37.1		23.4	31.8	26.5		32.1	43.1	24.5		33.1
2019-01-22	22	Avg	0-15cm																	0
2019-01-22	22	Avg	15-30cm																	0
2019-01-22	22	Avg	30-45cm																	0
2019-01-22	22	Avg	45-60cm																	0
