Tonzi: 2018-12-03 11:30:00 (DOY 337)
Author: Joe Verfaillie
Others: Siyan

Summary: Things are wet and green from first rains last week, fixed cow fences, two dead trees fell, FLIR cal panel twisted.

Tonzi
2018-12-03

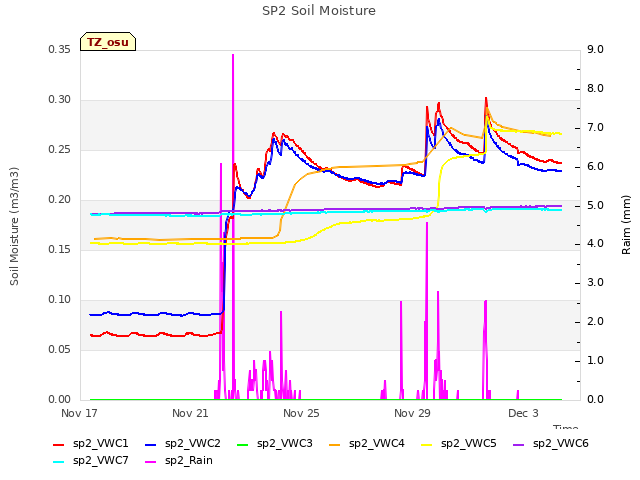

I arrive at about 11:30 with Siyan. It was mostly cloudy and cool. The ground is damp and there are small puddles on the road. The grass has begun to grow 2-3cm. The first rains on the year fell most of last week.

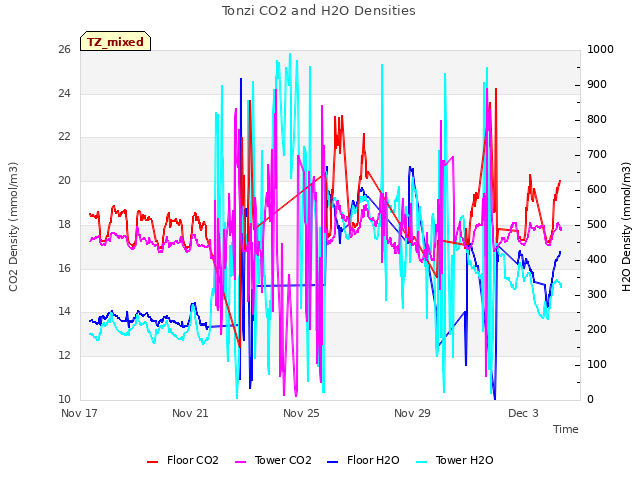

I collected data from the Tower and Floor using the new (to the field) laptop for the GHG and phenocam data. It looks the Floor has been losing a lot of data due to failing solar power.

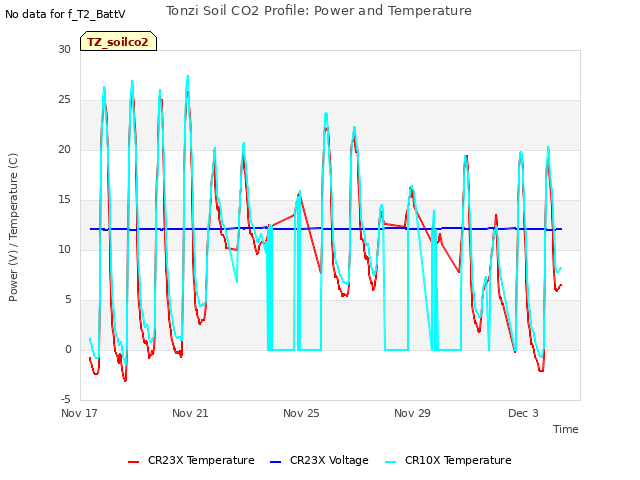

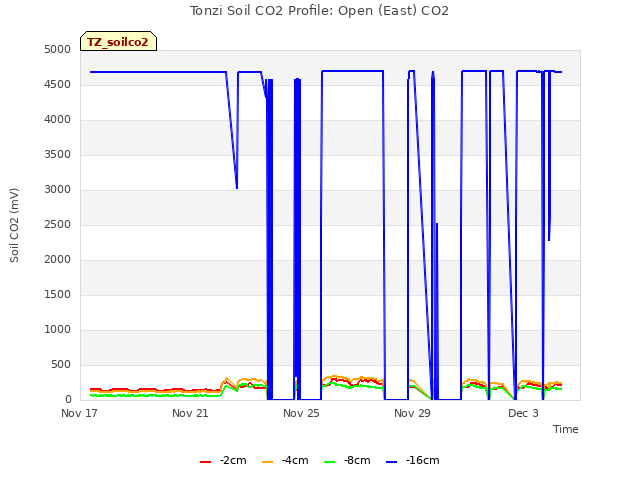

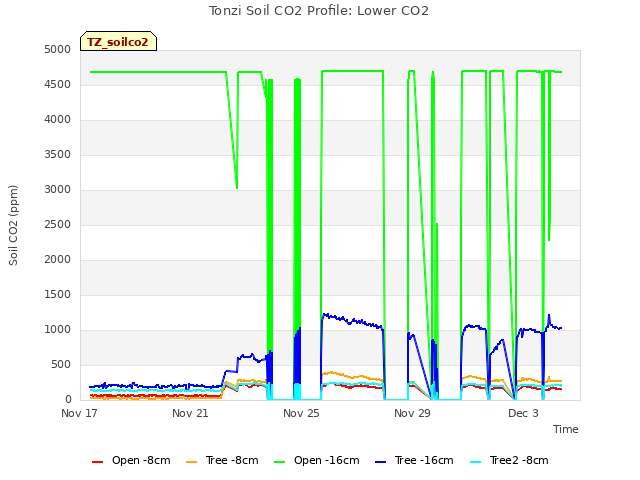

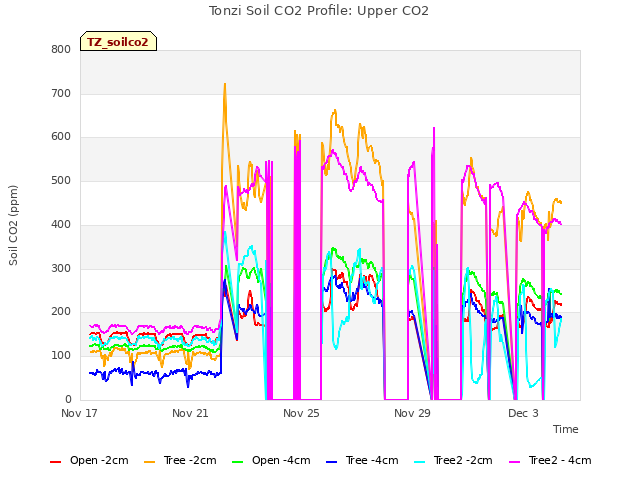

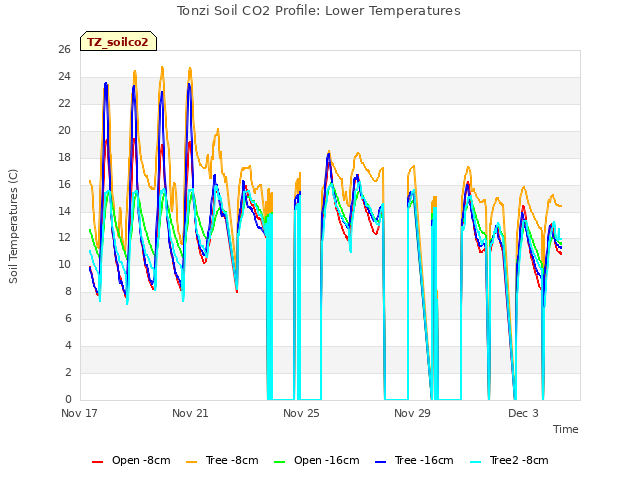

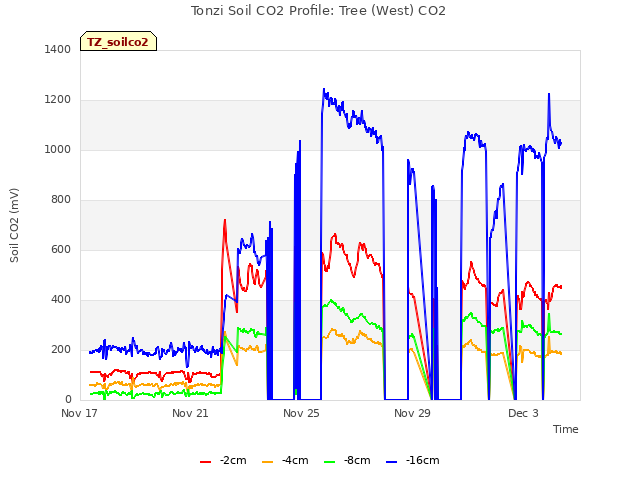

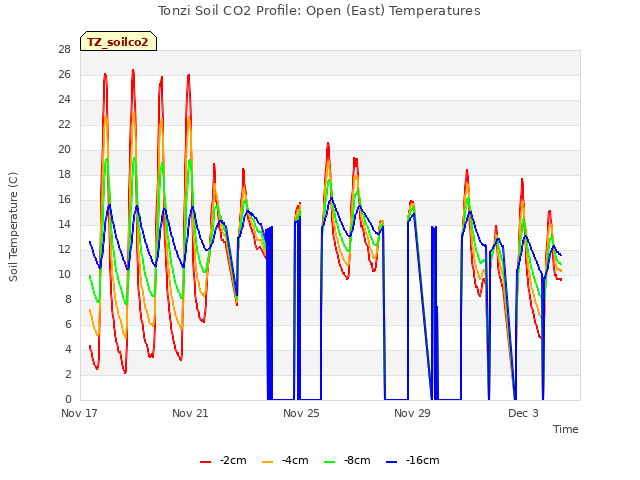

I also worked on the soil co2 system. The relay for the Tree 1 set of Vaisala has been stuck in the on position. I tried to replace it with a solid state relay, but the SSR works on the ground side of the line and it seems the signal ground is not isolated from the power ground so power was still flowing through the analog grounds on the 23x. I directly powered the Vaisala and left it for fixing next time.

We repaired the cow fences. I fixed all the wires around the soil co2 system and turned on the charger â€“ all seemed well. The Floor still has two small fences around the tower and the solar panels not electrified. At the Tower I put in three new fence post south of the tower cutting about half of the fence line off. The fence is now just around to guy line anchors of the tower.

Two dead trees near the tower fell over. One was between the OSU system and the old sap flow station and the other was near Z-Cam 1. The one near Z-Cam 1 is just visible in the upper left corner of the photos and fell between the 23rd and 24th.

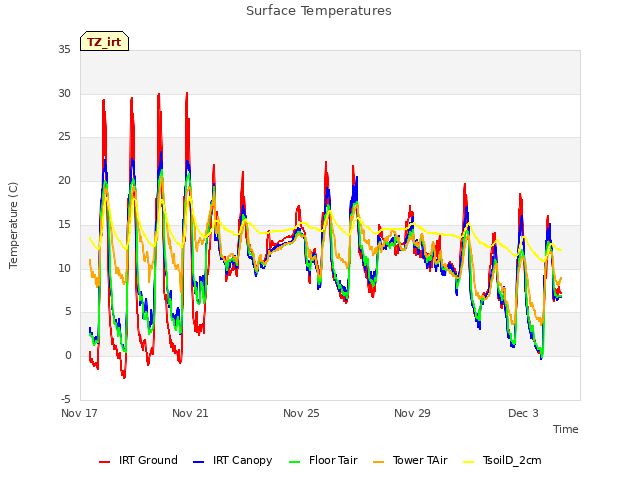

The cal panel for the FLIR had been twisted around about 90 degrees so it was almost edge on to the FLIR and IRT. I twisted it back into position.

Field Data

No tank data

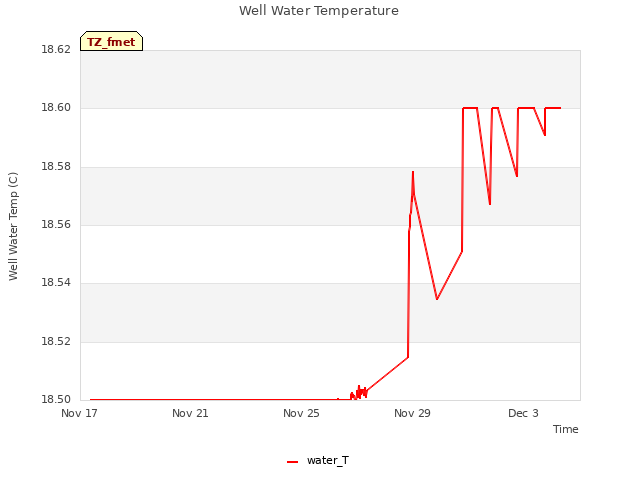

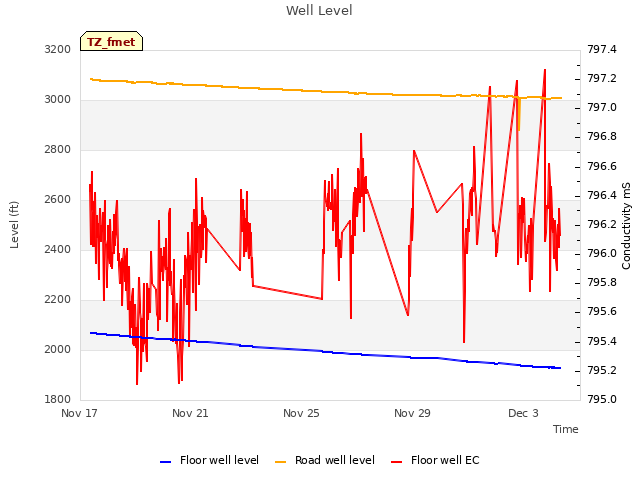

Well Depth

Date	Location	Depth (feet)
2018-12-03	TZ_floor	29.7
2018-12-03	TZ_tower	34.5
2018-12-03	TZ_road	37.9
2018-12-03	VR_pond	14.4

mode = both

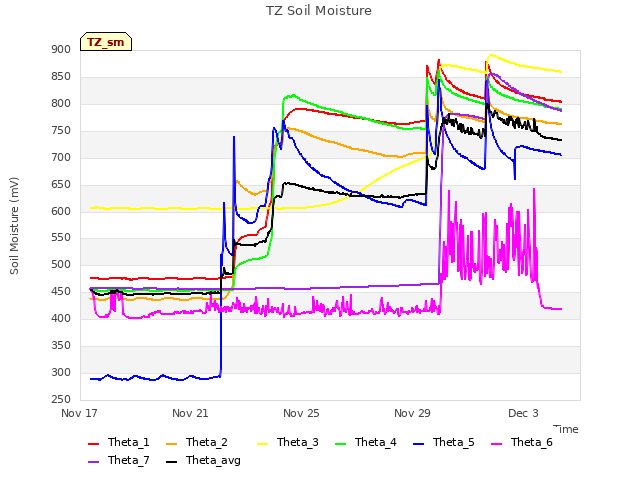

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_2_4 [34] => Soil_Transect_1_4 [35] => SoilCO2_West_A_4 [36] => SoilCO2_West_B_4 [37] => SoilCO2_West_C_4 [38] => Floor_West_3 [39] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_3	Floor_West_4	Spacial Count
2018-12-03	337	0	nan	25	15.6	29.1	15	20.3	20.9	13.2	28.8	29.1	14.7	27.7	32.9	28.6	24.3	30.7	30.7	14.8	26.5	15.8	28.6	16.9	39.4	22.9	29.6	30.4	18.4	34.3	32.1	36.6	15.5	10.2	22.2	39.4	23.1	10.2	30.5	38.8	39.1
2018-12-03	337	1	nan	25.6	17.3	27.6	11.5	20	19.7	13.5	28.2	28.8	15.9	27.1	33.5	29.2	23.7	30.7	30.7	15.2	26.8	16.4	29.2	16.5	41.9	23.2	30.1	31.8	17.9	34.9	32.4	36.6	16.5	6.7	22.2	40	23.1	10.2	31.4	38.8	41.1	33.2	28.8
2018-12-03	337	Avg	0-15cm																																									0
2018-12-03	337	Avg	15-30cm																																									0
2018-12-03	337	Avg	30-45cm																																									0
2018-12-03	337	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-12-03	337	0	nan	27.6	15	26.4	18.8	28	28.3	23.1	21.9	31	15.4	24.6	32.1	42.3	15.9	34.5	29.9
2018-12-03	337	1	nan	26.4	14.1	26.4	17.3	37.4	28.3	23.1	22.5	31.3	15.4	24	31.3	42	17	34.5	29.7
2018-12-03	337	Avg	0-15cm																	0
2018-12-03	337	Avg	15-30cm																	0
2018-12-03	337	Avg	30-45cm																	0
2018-12-03	337	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-12-03	1	12.0
2018-12-03	102	17.2
2018-12-03	2	9.6
2018-12-03	245	10.9
2018-12-03	3	8.9
2018-12-03	4	11.0
2018-12-03	5	9.5
2018-12-03	7	8.5
2018-12-03	72	18.0
2018-12-03	79	15.0
2018-12-03	8	6.5
