Field Notes

<--2018-11-14 09:30:00 | 2018-12-13 11:15:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2018-12-03 10:00:00 (DOY 337)
Author: Joe Verfaillie
Others: Siyan

Summary: Things are wet and green from the first rains last week, standard fieldwork, otter at the pond

Vaira
2018-12-03

I arrived at about 10am with Siyan. It was sunny and cool with clouds coming in from the west. The first rains on the year fell most of last week. The ground is damp, there are some small puddles in the road and some water in the water hole. Mostly the water was absorbed by the ground. Lots of cows around. The grass has begun to grow 2-3cm.

I collected data and Siyan did the fieldwork. I tried to use the new (to the field) laptop but it didnâ€™t have drivers for the USB-serial port. I was able to connect to the LI-7550 and used it to collect the GHG and phenocam data.

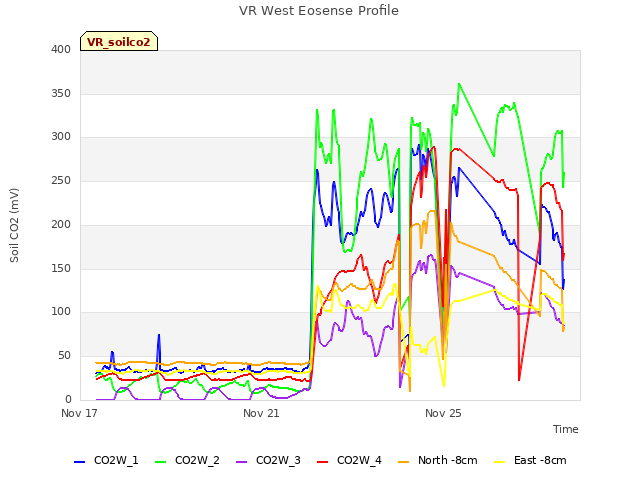

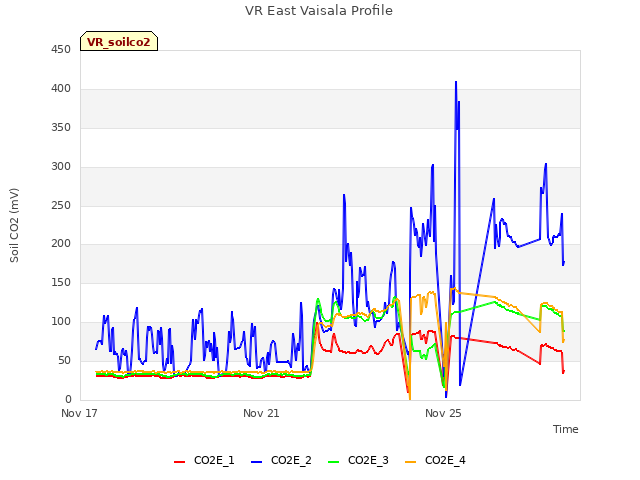

I managed to miss collecting the soilco2 data. Looks like we also lost the last of the phenocam images for unknown reasons.

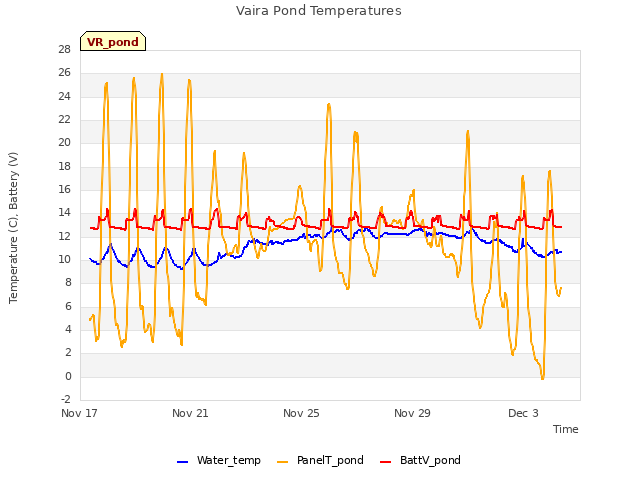

We went to the pond. The water level has come up a little but probably not much runoff yet. The water level was 14.40ft. There was an otter swimming around and hanging out at the pond.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-12-03	TZ_floor	29.7
2018-12-03	TZ_tower	34.5
2018-12-03	TZ_road	37.9
2018-12-03	VR_pond	14.4

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_2_4 [34] => Soil_Transect_1_4 [35] => SoilCO2_West_A_4 [36] => SoilCO2_West_B_4 [37] => SoilCO2_West_C_4 [38] => Floor_West_3 [39] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_3	Floor_West_4	Spacial Count
2018-12-03	337	0	nan	25	15.6	29.1	15	20.3	20.9	13.2	28.8	29.1	14.7	27.7	32.9	28.6	24.3	30.7	30.7	14.8	26.5	15.8	28.6	16.9	39.4	22.9	29.6	30.4	18.4	34.3	32.1	36.6	15.5	10.2	22.2	39.4	23.1	10.2	30.5	38.8	39.1
2018-12-03	337	1	nan	25.6	17.3	27.6	11.5	20	19.7	13.5	28.2	28.8	15.9	27.1	33.5	29.2	23.7	30.7	30.7	15.2	26.8	16.4	29.2	16.5	41.9	23.2	30.1	31.8	17.9	34.9	32.4	36.6	16.5	6.7	22.2	40	23.1	10.2	31.4	38.8	41.1	33.2	28.8
2018-12-03	337	Avg	0-15cm																																									0
2018-12-03	337	Avg	15-30cm																																									0
2018-12-03	337	Avg	30-45cm																																									0
2018-12-03	337	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-12-03	337	0	nan	27.6	15	26.4	18.8	28	28.3	23.1	21.9	31	15.4	24.6	32.1	42.3	15.9	34.5	29.9
2018-12-03	337	1	nan	26.4	14.1	26.4	17.3	37.4	28.3	23.1	22.5	31.3	15.4	24	31.3	42	17	34.5	29.7
2018-12-03	337	Avg	0-15cm																	0
2018-12-03	337	Avg	15-30cm																	0
2018-12-03	337	Avg	30-45cm																	0
2018-12-03	337	Avg	45-60cm																	0
