Field Notes

<--2018-07-12 12:08:00 | 2018-07-26 10:30:00-->
Other sites visited today: Sherman Barn | East End | West Pond
Phenocam link: Searching...

East Pond: 2018-07-17 10:30:00 (DOY 198)
Author: Joe Verfaillie
Others:

Summary: Swapped solar batteries, drilled hole for aligning pin.

East Pond
2018-07-17

I arrived at about 10:30 after dropping Elke, Katrina and Daphne off at West Pond for leaf chamber work. It was hot and sunny with a little breeze.

I turned off all the solar power and removed the four remaining size 27 batteries from the battery bank sn BB-EP. These batteries were from Mayberry and were about seven years old. I replaced them with five brand new (July 2018 tags) size 31 Duracell deep cycle batteries. These are part number SLI31MDC and have a capacity of 105Ah. Size 27 are rated at 90Ah, so about the same capacity as six size 27s. After the swap the solar panels were feeding the batteries 20A.

I checked the tower and everything was back up and running. The water level was at 51cm. At the other end of the pond I cleared tules away from the West Pond solar panels and the water level there was low enough that I could almost make it to the solar panels in hiking boots. The inlets were not running.

I also drilled a hole in the eddy post an inserted the aligning pin so that the eddy sensors can be lowered for cleaning and raised again.

I left at 11:20

0 photos found

5 sets found

Can't check MBEEWPSWEPGT_cam

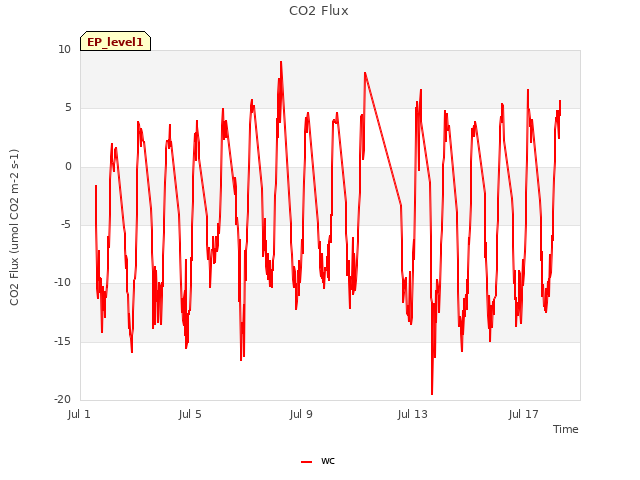

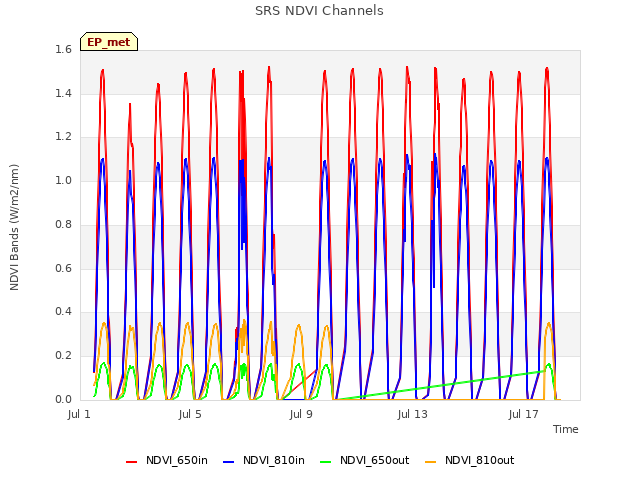

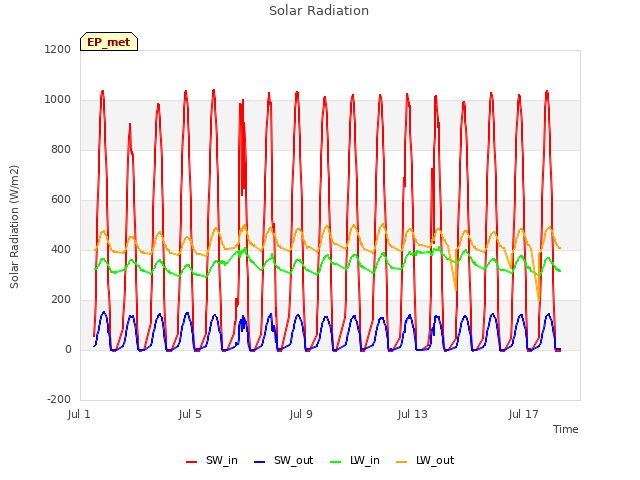

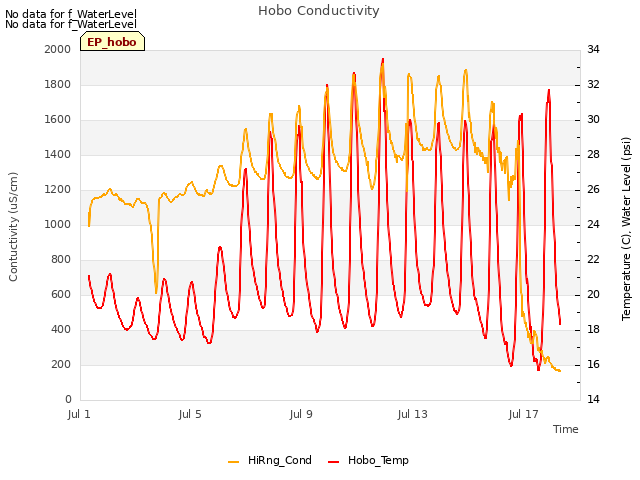

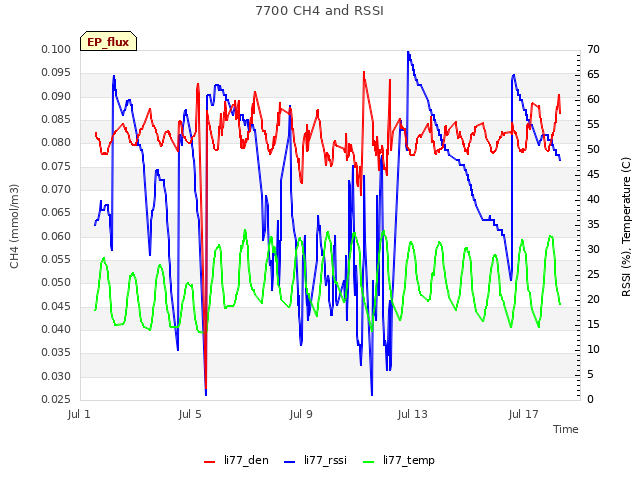

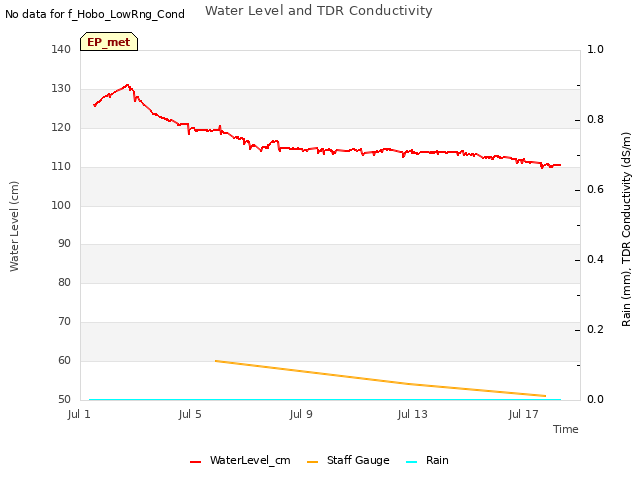

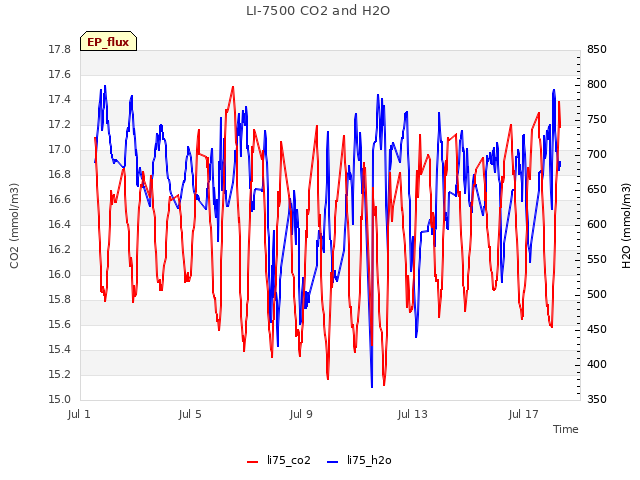

9 EP_met graphs found
