Field Notes
<--2018-06-14 12:30:00 | 2018-06-28 11:35:00-->Other sites visited today: Sherman Barn
East Pond: 2018-06-27 10:25:00 (DOY 178)
Author: Joe Verfaillie
Others: Daphne
Summary: Filled solar batteries with DI, collected met and flux data.

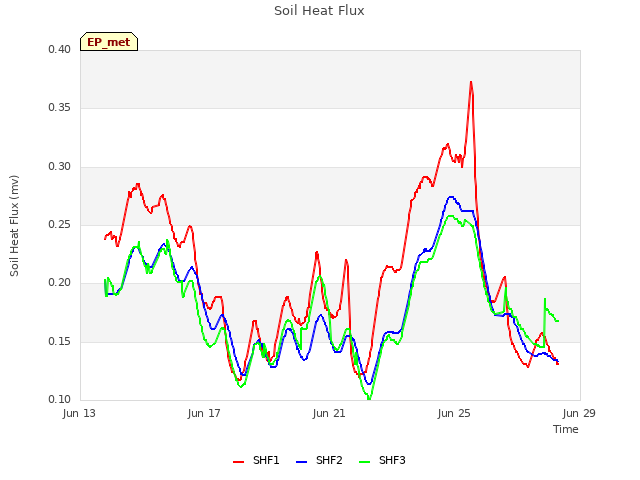

| East Pond 2018-06-27 I arrived with Daphne at 10:25. It was clear sunny and mild with a nice breeze. The inlet was running and water was spilling over the boards in the drain. The water level was 65cm. I filled all the batteries with DI water. Two had plates exposed but the rest still had water covering the plates. Daphne collected the met and flux data. The SHF plate data look better now that we decreased the voltage range. The 7500 read: 400ppm CO2, 700mmol/m2 H2O, 24C, 101.5kPa, 94SS – 96 after cleaning The 7700 read: 1.97ppm CH4, 50RSSI – 72 after cleaning The wash reservoir was nearly full – did not refill We left at 10:45 |
1 photos found
View of the footprint area
5 sets found
Can't check MBEEWPSWEPGT_cam

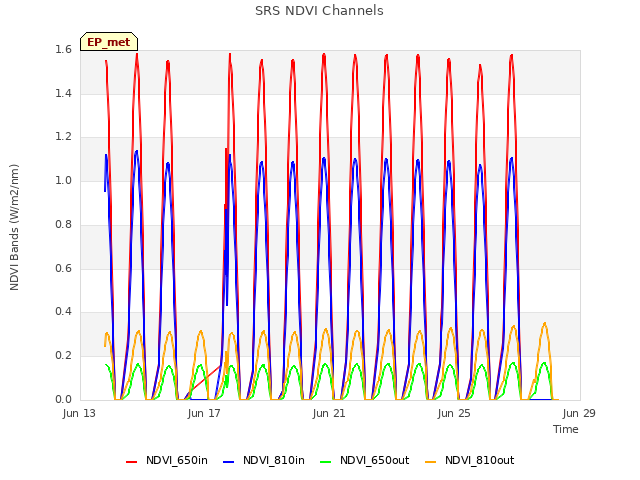

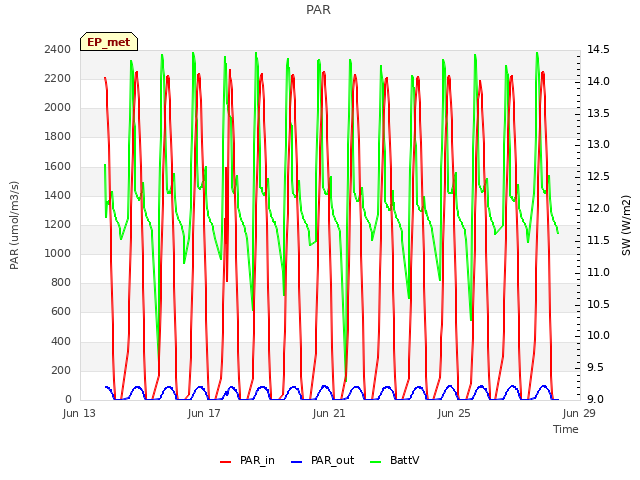

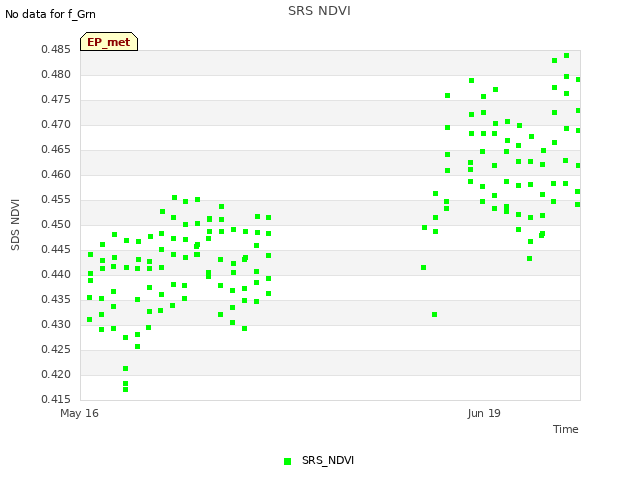

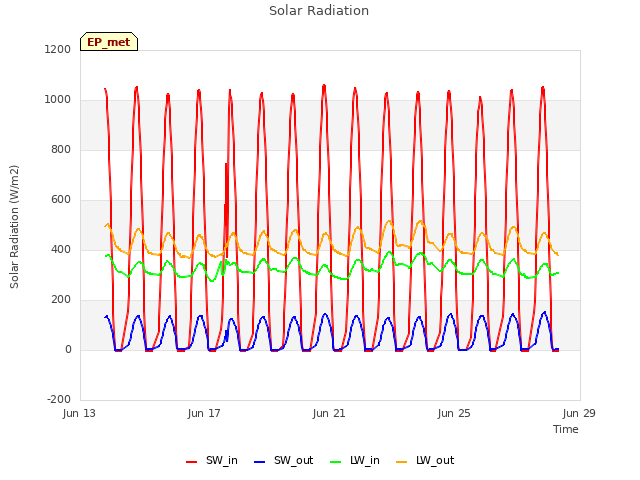

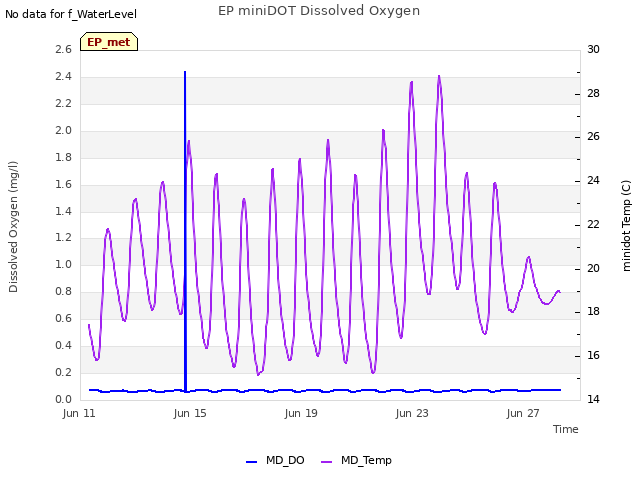

9 EP_met graphs found

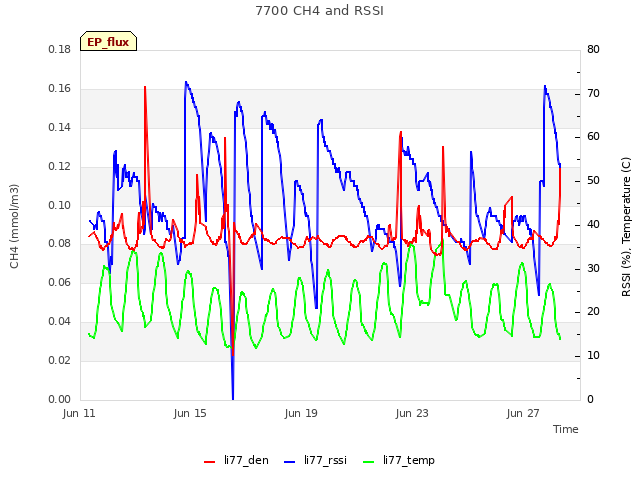

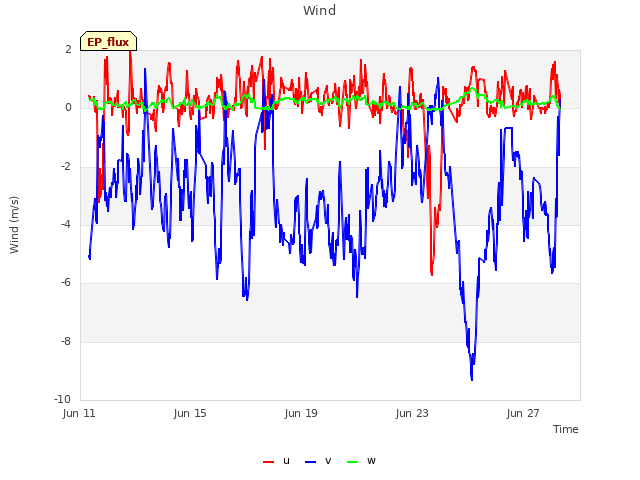

4 EP_flux graphs found
Can't check EP_hobo
1 EP_hobo graphs found
Can't check EP_level1

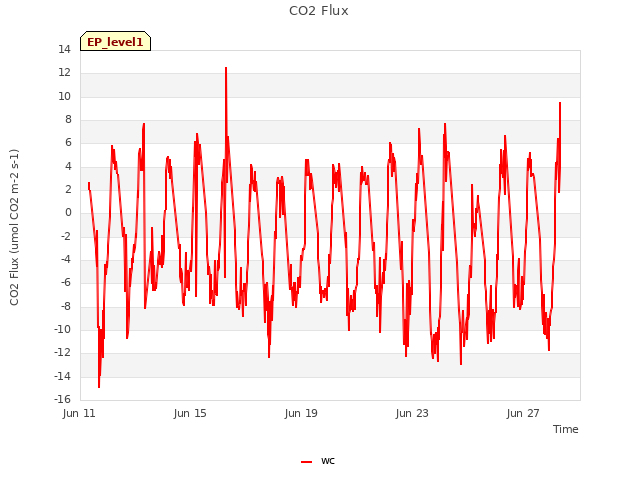

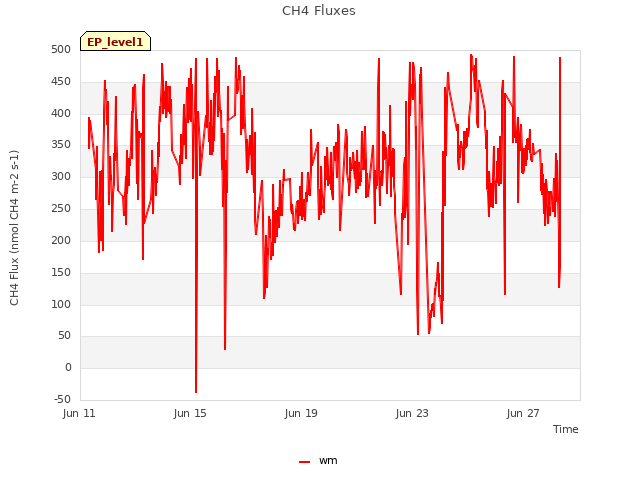

3 EP_level1 graphs found
