East End: 2018-06-13 11:55:00 (DOY 164)
Author: Joe Verfaillie
Others: Daphne

Summary: Swapped 12V power strip in the box, watered solar batteries.

East End
2018-06-13

I arrived at 11:55 with Daphne. It was clear, sunny and hot with only a light breeze. The tules are really tall.

Daphne upgraded the 12V power strip to a pluggable version. After the swap was complete the met looked fine and the Eddy system seemed okay.

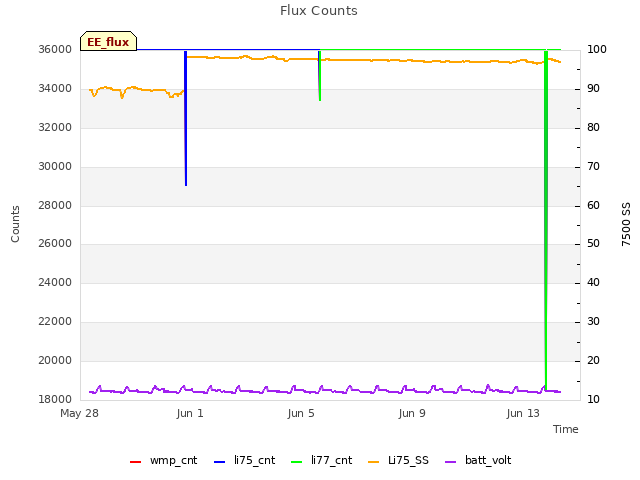

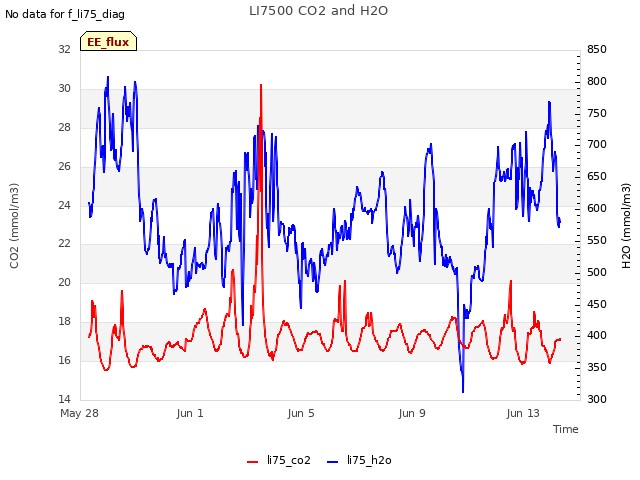

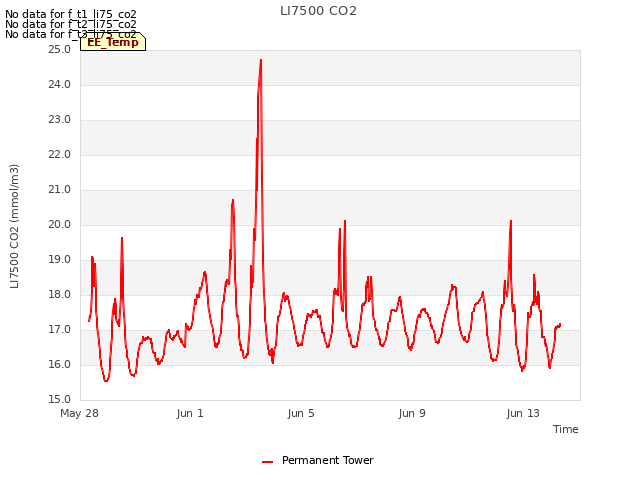

The 7500 read: 408ppm CO2, 660mmol/m3 H2O, 30.5C, 100.8kPa, 97SS

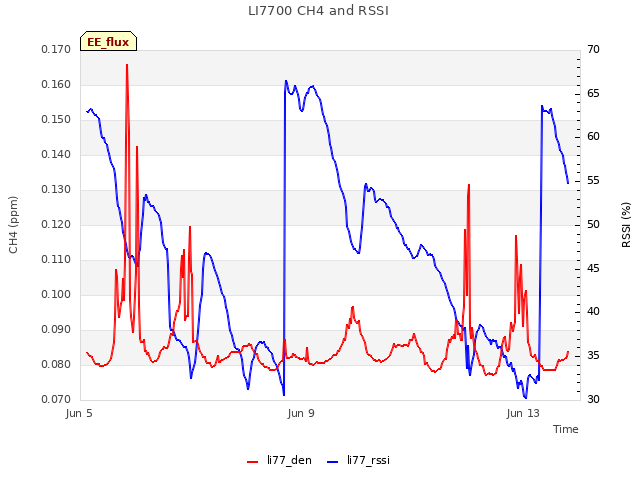

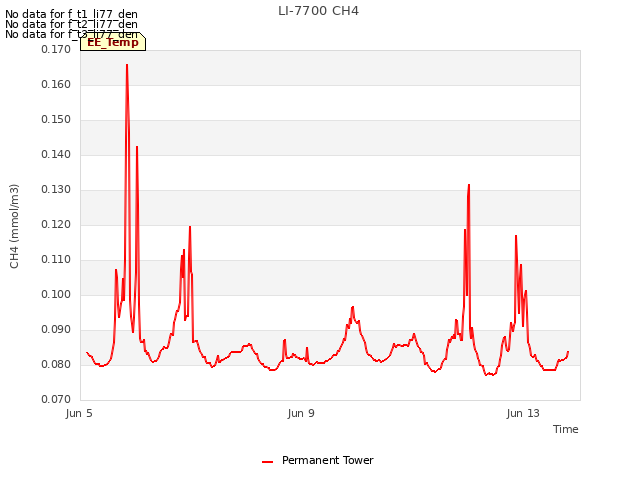

The 7700 read: 2.0ppm CH4, 30RSSI â€“ 60 after cleaning.

I checked the water levels in the solar battery bank sn BB-EE. I added water to all cells in all batteries. In total I think about 2L of DI water was added. Taking the wand off the spray bottle is a good method for filling the batteries with control. I also sprayed off the solar panels but didnâ€™t have the squeegee to really clean them well. Then I tried to cut down some of the encroaching vegetation to the south of the panels.

Left at 12:45

0 photos found

11 sets found

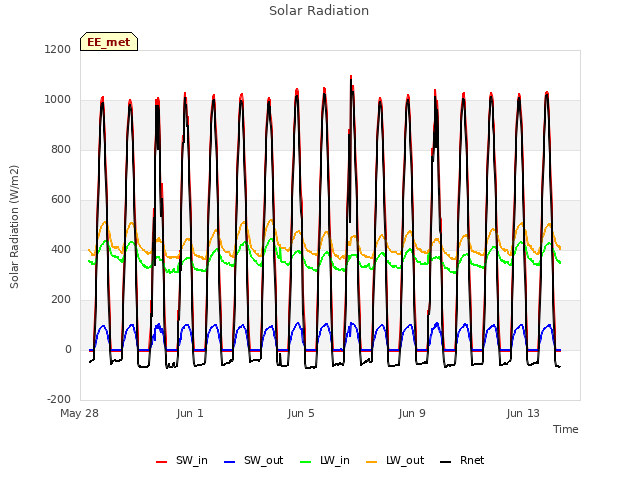

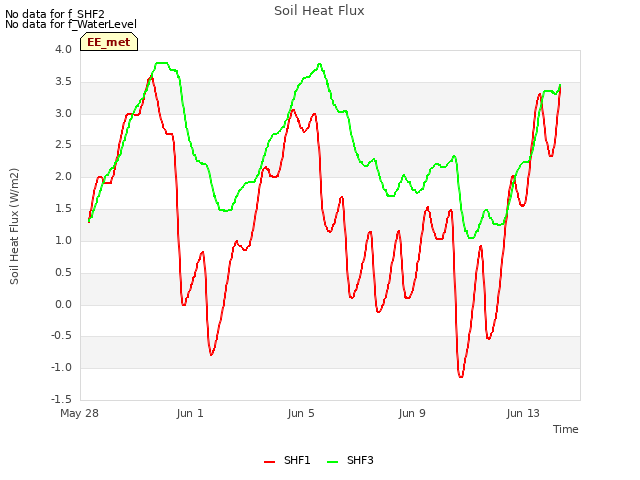

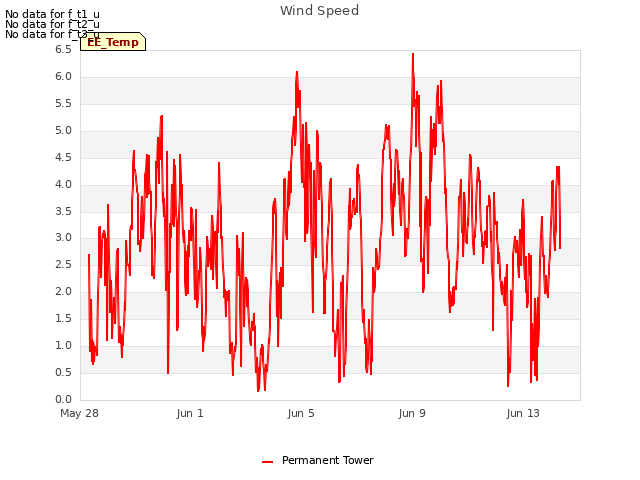

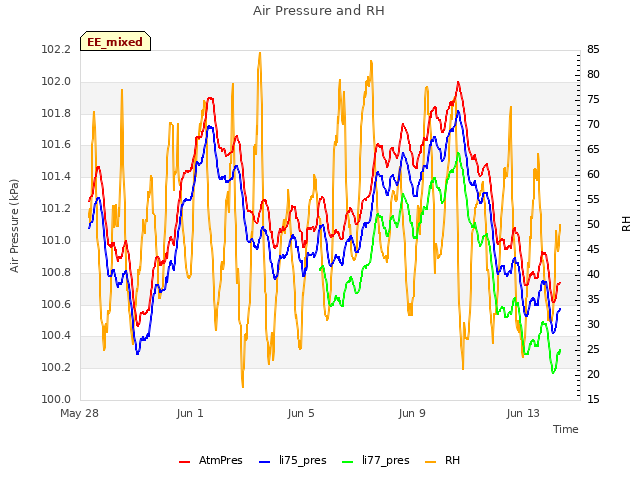

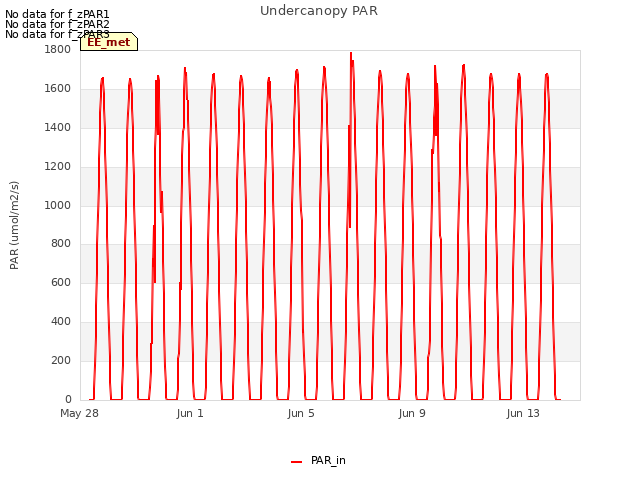

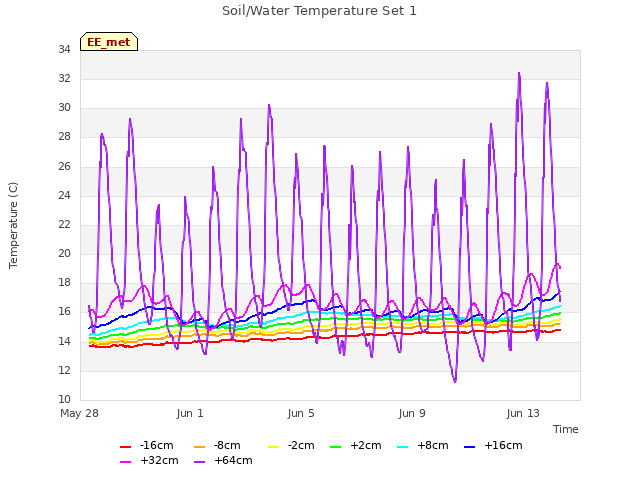

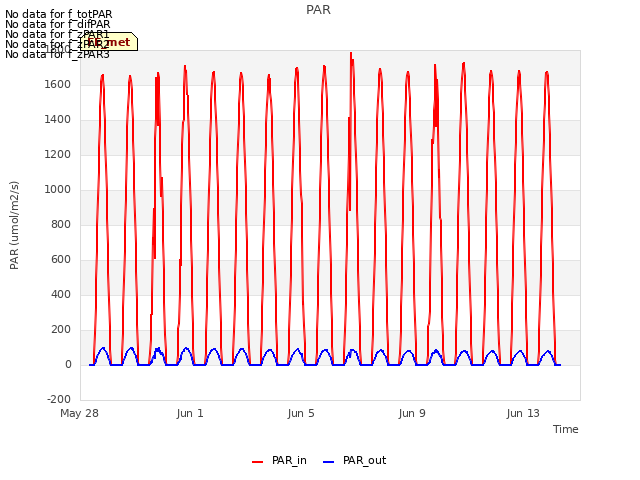

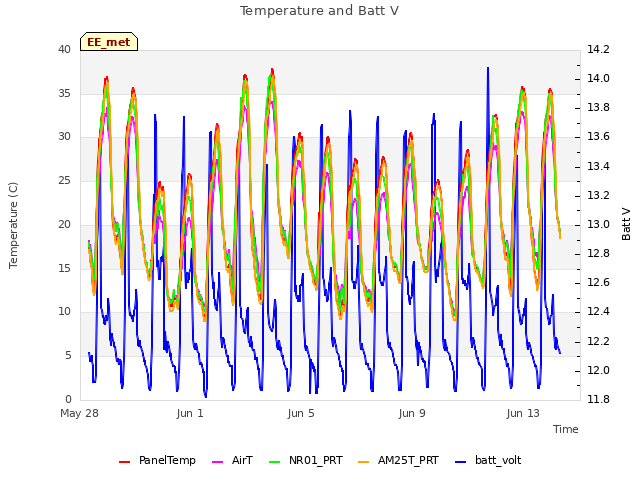

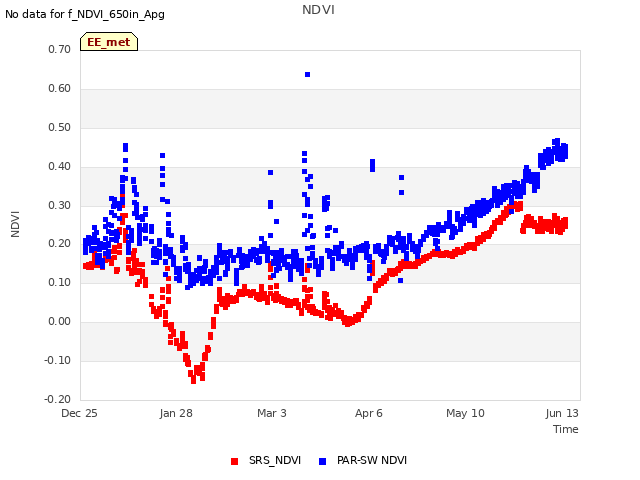

14 EE_met graphs found
