Twitchell Alfalfa: 2018-06-13 09:00:00 (DOY 164)
Author: Joe Verfaillie
Others: Daphne

Summary: Decommissioning of the site. Everything was removed from the field.

Twitchell Alfalfa
2018-06-13

I arrived at 9am with Daphne. It was clear, sunny and hot with only a light breeze. The weeds are mostly dead and the field looks more like alfalfa than pasture now. We are taking down the site today. Itâ€™s been without power since last week. The infrastructure we will leave at the new Sherman Barn site. The sensors and data loggers will be brought in to be cleaned up and reconfigured to be deployed at the Sherman Barn site.

Daphne collected data from both the met and soil co2 CR1000s and the FD-chamber using a SLA battery to power them.

We left the field empty at 11:30.

List of equipment removed

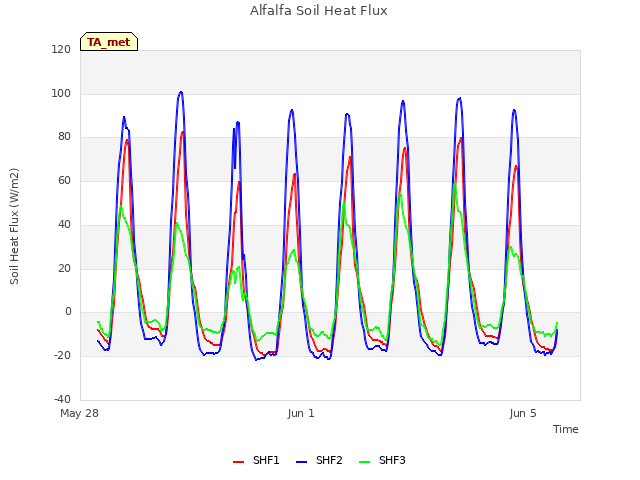

SHF plate sn 6342 #1
Theta probe sn 377/008 #2 from 30cm deep under the solar panels
Soil TC profile: -2, -4, -8, -16, -32cm

SHF plate sn 6498 #2
Theta probe sn 377/010 #1
Soil TC profile: -2, -4, -8, -16, -32cm

Vaisala CO2 sn L2058001 set B -16cm
Vaisala CO2 sn L2058007 set B -8cm
Vaisala CO2 sn L2058005 set B -2cm

SHF plate sn 6491 #3
Soil TC profile: -2, -4, -8, -16, -32cm

Theta probe sn 54/007 4cm
Theta probe sn ?? 8cm
Theta probe sn 54/016 12cm

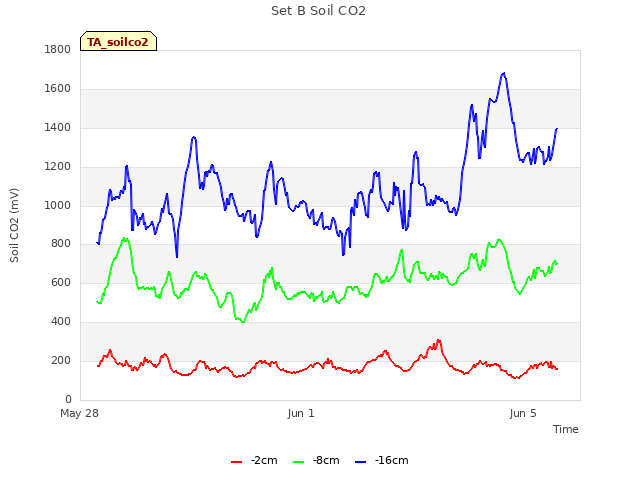

Vaisala CO2 sn L2058006 set A -16cm
Vaisala CO2 sn K1340005 -8cm
Vaisala CO2 sn L2058002 set A -2cm

Soil TC profile: -2, -8, -16cm

AM16/32 sn 1164 soil CO2 moved to East Pond
CR1000 sn 47108 met
CR1000 sn 4190 soil co2
AM16/32 sn 11662 radiation
AM25T sn 6767
NL115 sn 6763

CR10X sn 48042 diffuse PAR

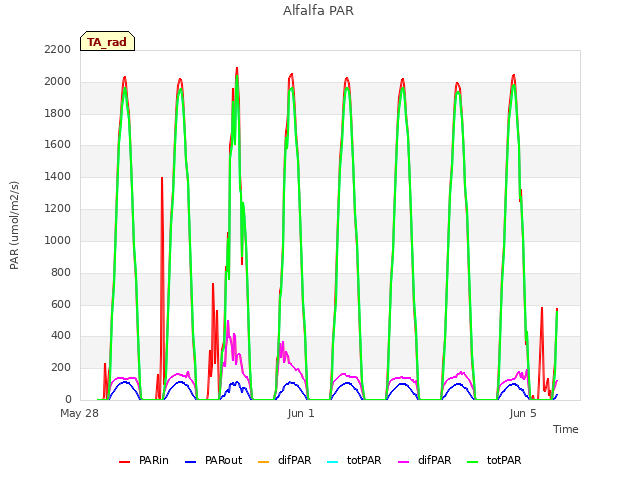

PAR sn 040411 diffuse PAR
PAR sn 110338 In
PAR sn 110339 Out
NR01 4-way sn 1570

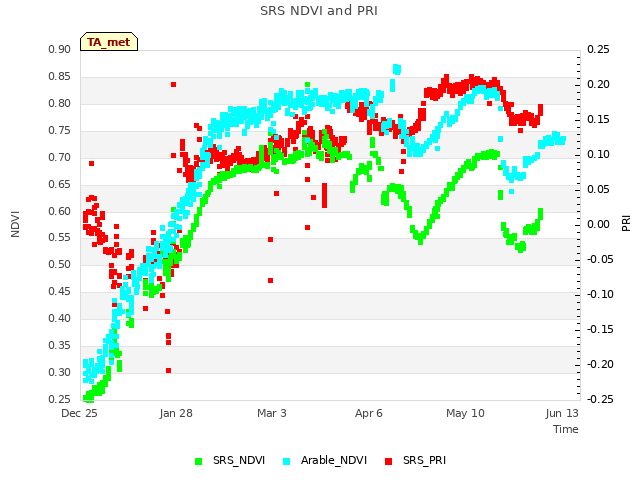

SRS PRI sn 913003007 id F reflected
SRS PRI sn 913003006 id A incoming

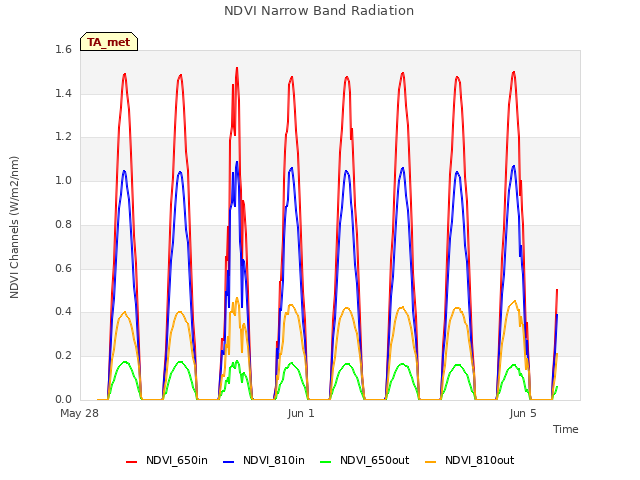

SRS NDVI sn 882103061 id E reflected
SRS NDVI sn 882103036 id C incoming

Rain bucket sn 49187-109 metric
HMP60 sn L1740420
FD-Chamber sn FD20160001
Phenocam sn 0030F4D2148D
Arable sn A000251

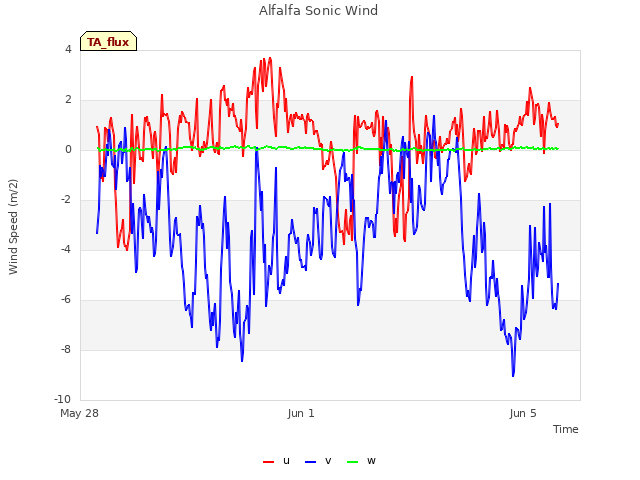

WM sonic sn 153802

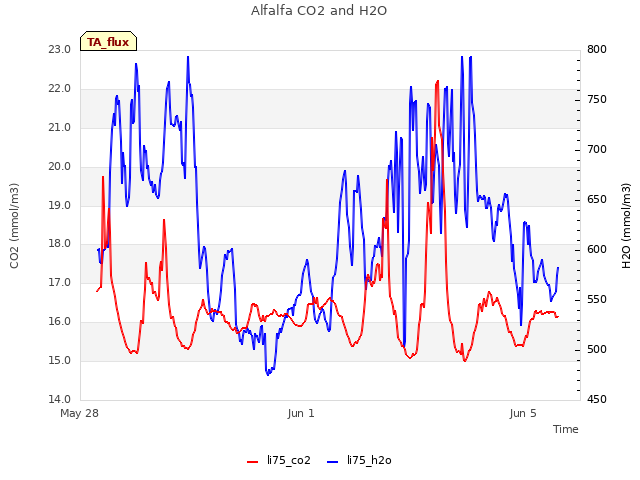

LI-7500 sn 1594
LI-7550 sn AIU-1557

Charge controller sn 12501584
Solar panel sn 11ZV0M0860
Solar panel sn 11ZV0M0861

1 photos found

Twitchell Alfalfa tower site decommissioning. Ironically, with all the grass/weeds dead, it looks like an alfalfa field again.
