Field Notes

<--2018-06-01 10:30:00 | 2018-06-05 11:15:00-->
Other sites visited today: Twitchell Alfalfa | East End | Vaira | Tonzi

Tonzi: 2018-06-05 10:00:00 (DOY 156)
Author: Siyan Ma
Others: Joe, Ana, Miriam

Summary: Replaced VR soil co2 batteries, thermal camera work at TZ, standard fieldwork, grass samples, midday water potential.

When: Date: 6/5/2018 , Day: 155 , Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe, Ana, Miriam

Weather: clear, sunny

Phenology: grasses died out



Summary

  1. Thermal camera installed (Miriam, Ana, Joe)
  2. Swapped memory sticks of Licor-7500A. (Joe)
  3. Checked and downloaded phenocam images and met data from PC at three towers. (Joe)
  4. Read dendrometers
  5. Measured soil moisture
  6. Measure groundwater well
  7. Download GlobalWater data (Joe)
  8. Measure midday water potential of oak leaves
  9. Collect grass samples for ANPP
  10. Spectrum of Vaira grassland
  11. Download IRT data (Joe)

Vaira_Grass Site

  1. Fence worked.
  2. Downloaded Phenocam images. (Joe)
  3. Swapped the memory stick of Licor-7500A. (Joe)
  4. Checked the fans of air temp and relative humidity sensors at Vaira. (Joe)
  5. Downloaded met data (Joe)




  1. Checked levels of Radiation sensors, clear up surfaces.YES! (Joe)
  2. Checked rain gage, make sure not clogged. YES! (Joe)
  3. Closed gate and set up fence. YES! (Joe)

Tonzi_Tower Site

  1. Fence worked.
  2. swapped the memory stick of Licor-7500A. (Joe)


  1. download Phenocam images. Yes! (Joe)
  2. Joe swapped a new fans of air temp. and relative humidity sensor on the tower.
  3. Checked rain gage, make sure not clogged. YES! (Joe)
  4. Screens of met dataloggers:

CR23X3 floor-Met & soil moisture

CR1000 tower-Met

Soil CO2 profile: CR23X5 soil CO2 profile




7. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence worked.
  2. Swapped the memory stick of Licor-7500A. (Joe)


  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2018-06-05TZ_floor19.3
2018-06-05TZ_road28
2018-06-05TZ_tower23.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => Soil_Transect_4 [5] => Soil_Transect_3 [6] => Soil_Transect_2 [7] => Soil_Transect_1 [8] => SoilCO2_West_A [9] => SoilCO2_West_B [10] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2018-06-05 156 0 0-15cm 6.2 0.1 12.7 11.1 1 0.6 5.1 0.3 13.2 8 4.7
2018-06-05 156 0 15-30cm 13 10.3 11.2 10.8 9.7 15.5 13 5.1 9.2 12.7
2018-06-05 156 0 30-45cm 15.9 14.3 13.7 14.3 10.1 15.6 18.7 15.8 18.4 15.9 14.3
2018-06-05 156 0 45-60cm 20.5 17.9 17 21.8 13.9 17.3 31.4 13.6 19.3 20.8 25.4
2018-06-05 156 1 0-15cm 6.5 1.9 13.2 9.7 1.2 0.4 5 0.6 13.2 7.4 5
2018-06-05 156 1 15-30cm 13 10.3 12.1 10.3 10 15.8 13.2 5.1 9.2 12.7
2018-06-05 156 1 30-45cm 16.5 14.3 14.3 13.4 10.1 16.2 18.7 15.4 17.3 15.9 13.7
2018-06-05 156 1 45-60cm 20.2 17.9 17 21.9 13.9 17.9 31.2 14.2 19.4 18.5 24.8
2018-06-05 156 Avg 0-15cm 6.35 1 12.95 10.4 1.1 0.5 5.05 0.45 13.2 7.7 4.85 5.78 11 22
2018-06-05 156 Avg 15-30cm 13 10.3 11.65 10.55 9.85 15.65 13.1 5.1 9.2 12.7 11.11 10 20
2018-06-05 156 Avg 30-45cm 16.2 14.3 14 13.85 10.1 15.9 18.7 15.6 17.85 15.9 14 15.13 11 22
2018-06-05 156 Avg 45-60cm 20.35 17.9 17 21.85 13.9 17.6 31.3 13.9 19.35 19.65 25.1 19.81 11 22

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower [1] => Gate [2] => Biomass_Cage [3] => Solar_Panels )

Date DOY Rep Depth
Flux_Tower
Gate
Biomass_Cage
Solar_Panels
 Avg
Spacial Count
Measurement Count
2018-06-05 156 0 0-15cm 1.2 10 2.4
2018-06-05 156 0 15-30cm 9.3 5.7 7.5 9.3
2018-06-05 156 0 30-45cm 5.3 7 16.5 14
2018-06-05 156 0 45-60cm 15.9 20.6 19.9 29.4
2018-06-05 156 1 0-15cm 0.9 9.7 3.3 6.8
2018-06-05 156 1 15-30cm 9.3 5.7 7.5 9
2018-06-05 156 1 30-45cm 4.2 7.6 17 14.5
2018-06-05 156 1 45-60cm 15.8 21.3 19.3 37.4
2018-06-05 156 Avg 0-15cm 1.05 9.85 2.85 6.8 5.14 4 7
2018-06-05 156 Avg 15-30cm 9.3 5.7 7.5 9.15 7.91 4 8
2018-06-05 156 Avg 30-45cm 4.75 7.3 16.75 14.25 10.76 4 8
2018-06-05 156 Avg 45-60cm 15.85 20.95 19.6 33.4 22.45 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2018-06-05122.0
2018-06-0510210.8
2018-06-05222.3
2018-06-052459.1
2018-06-05318.9
2018-06-0549.1
2018-06-0558.0
2018-06-05721.2
2018-06-057215.2
2018-06-057912.5
2018-06-05819.0

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2018-06-05 13:00:00 OAK 102 -7 -12 -18
2018-06-05 13:00:00 OAK 35 -25 -31 -30
2018-06-05 13:00:00 OAK 92 -10 -30 -18
2018-06-05 13:21:00 PINE OLD -15 -20 -19
2018-06-05 13:21:00 PINE YNG -3 -3 -4

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

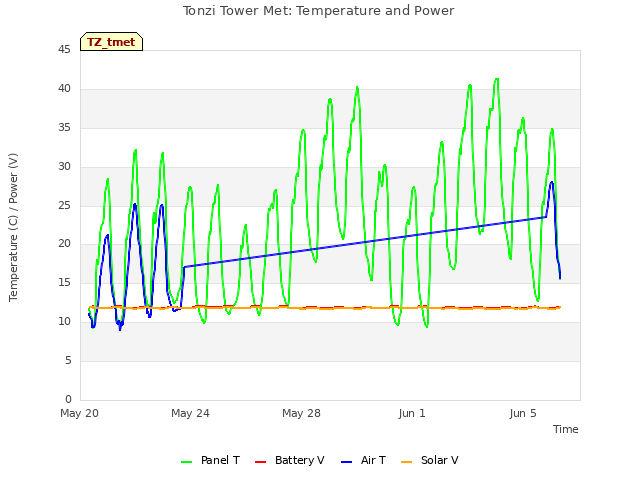

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

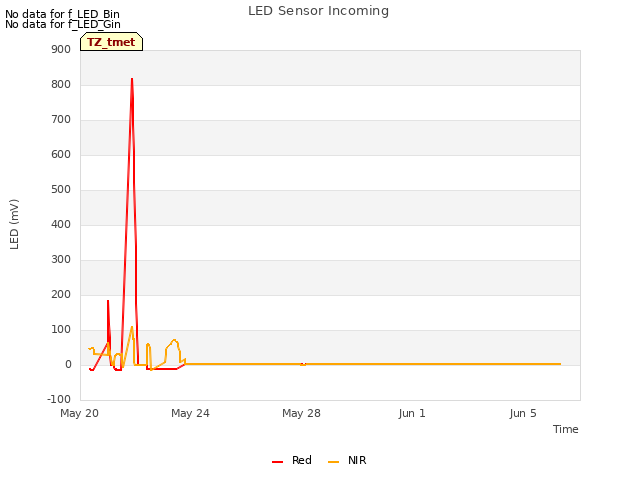

Explore the graph:LED Sensor Incoming in a new window

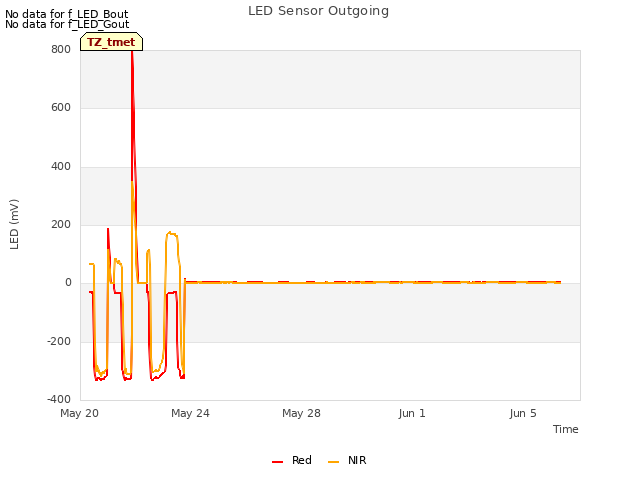

Explore the graph:LED Sensor Outgoing in a new window

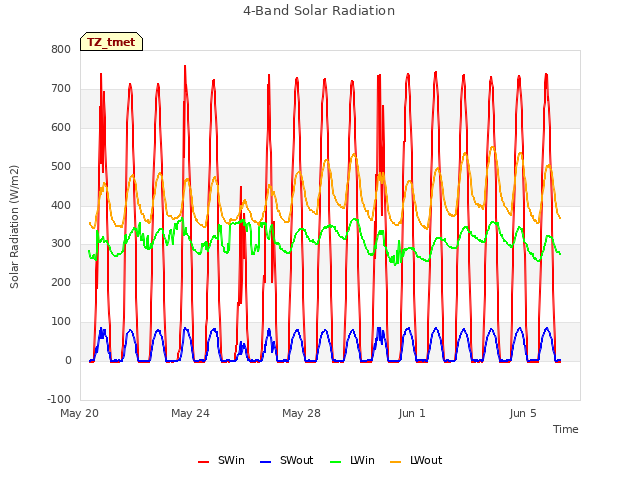

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

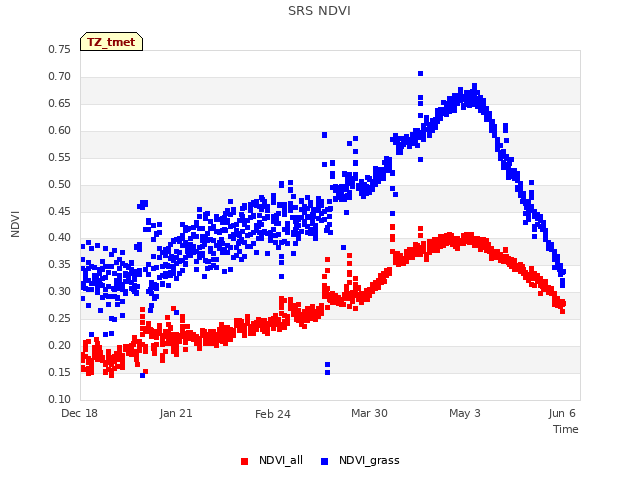

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

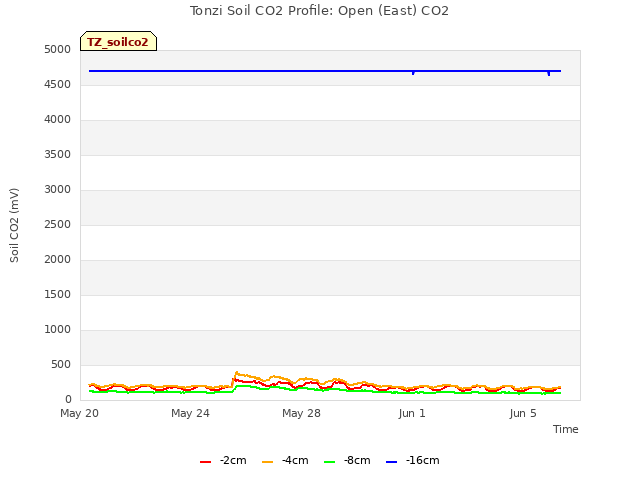

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

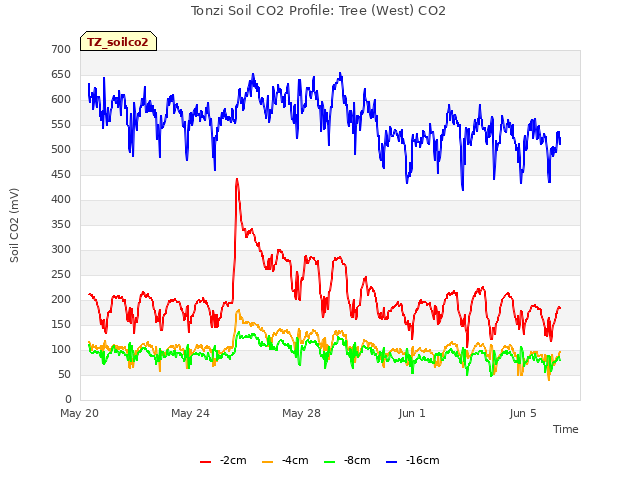

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

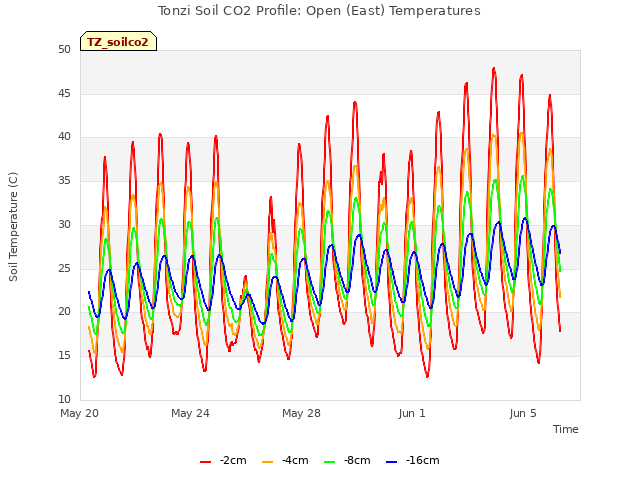

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

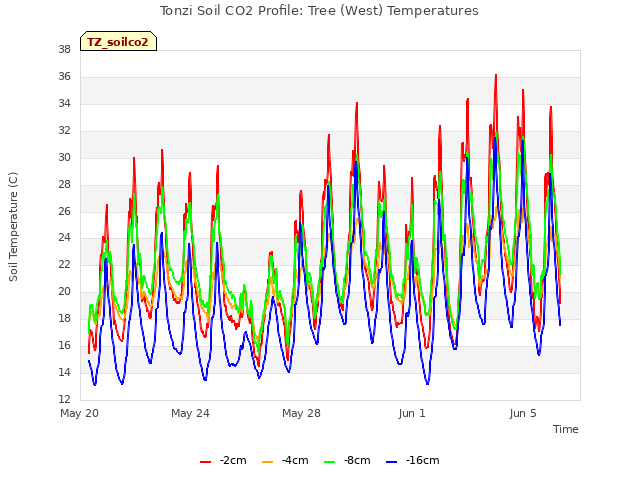

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

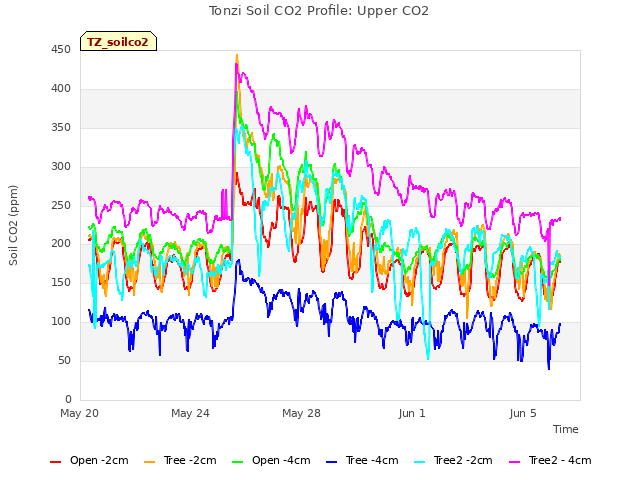

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

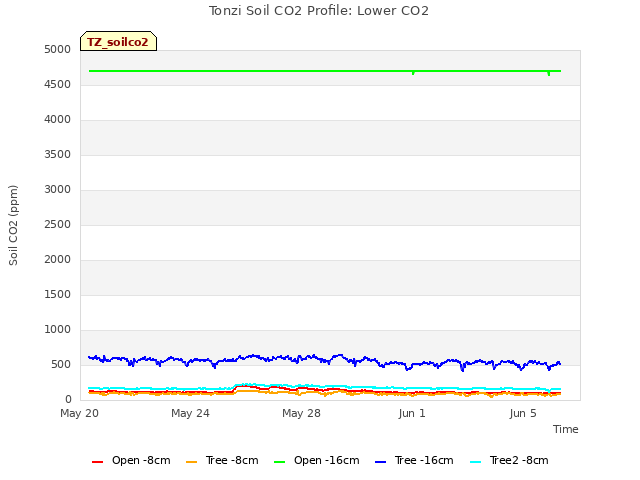

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

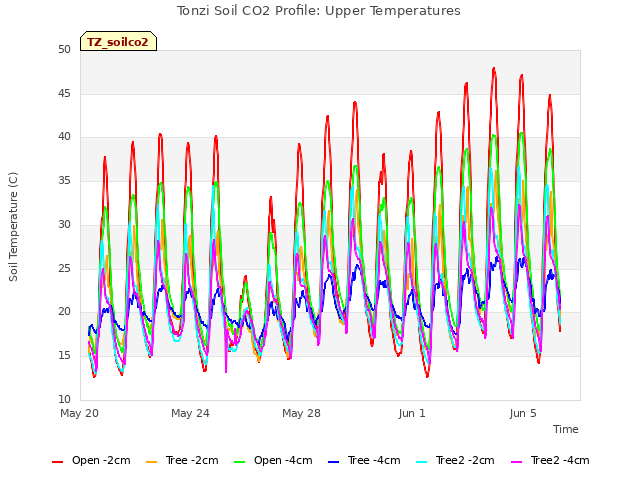

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

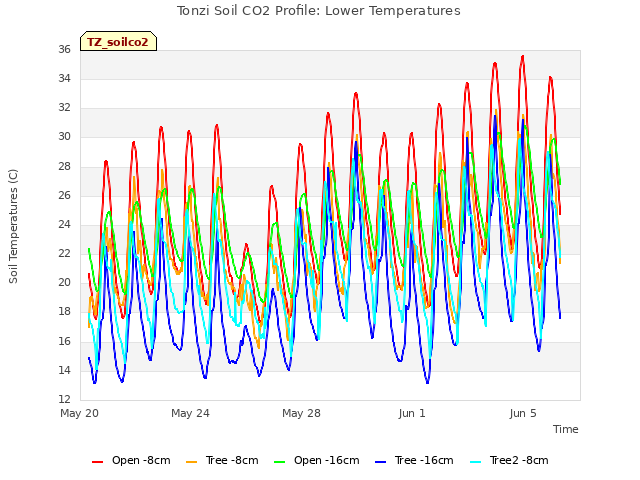

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

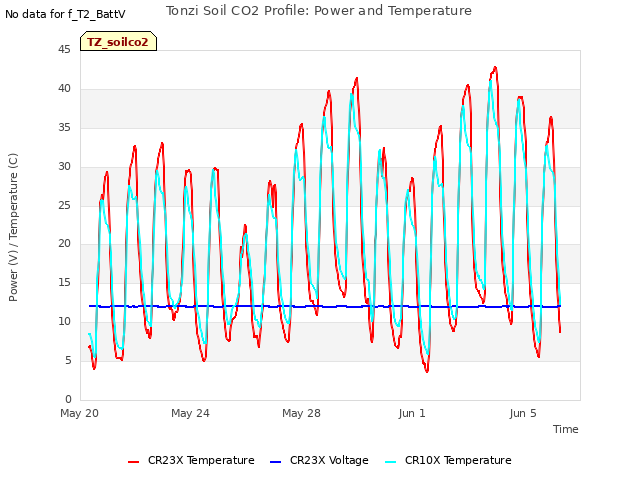

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

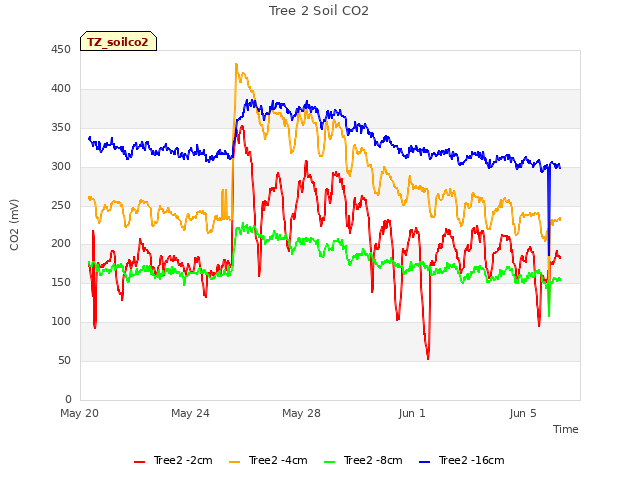

Explore the graph:Tree 2 Soil CO2 in a new window

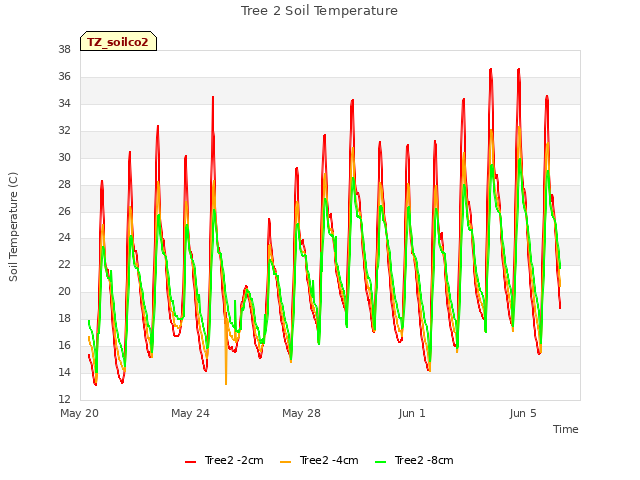

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

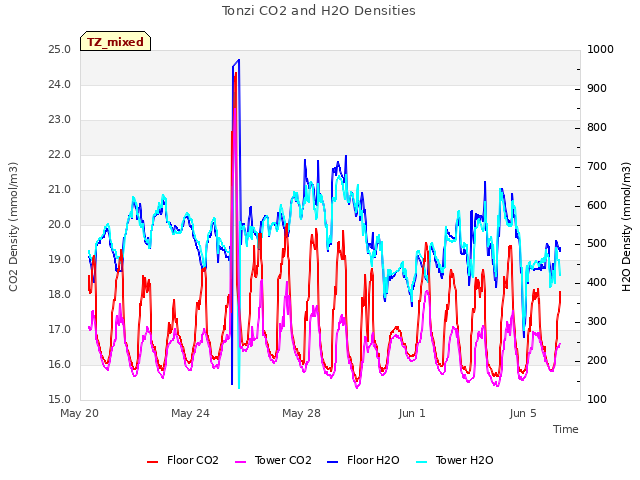

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

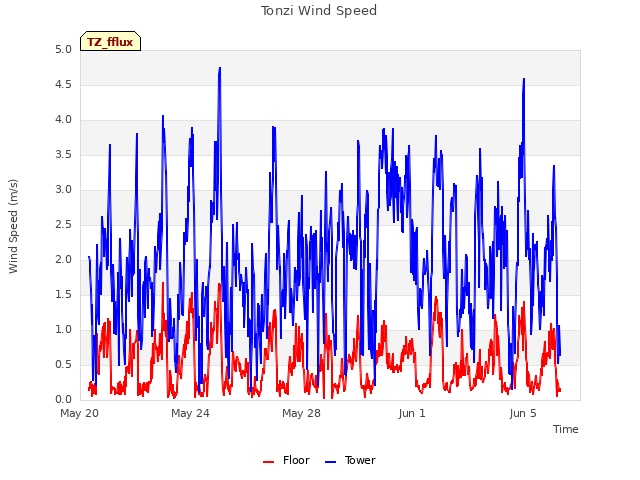

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

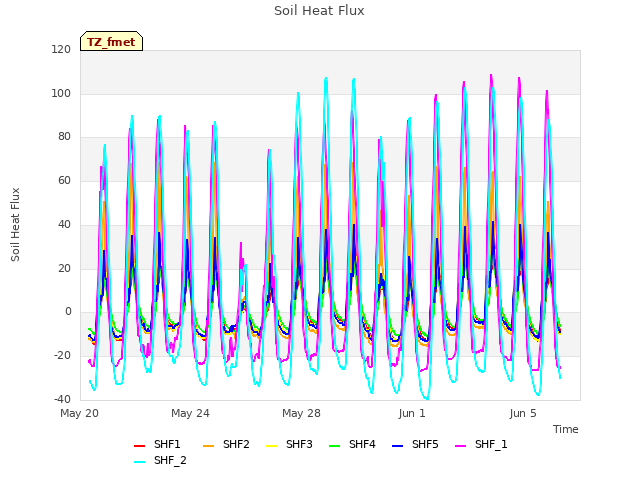

Explore the graph:Soil Heat Flux in a new window

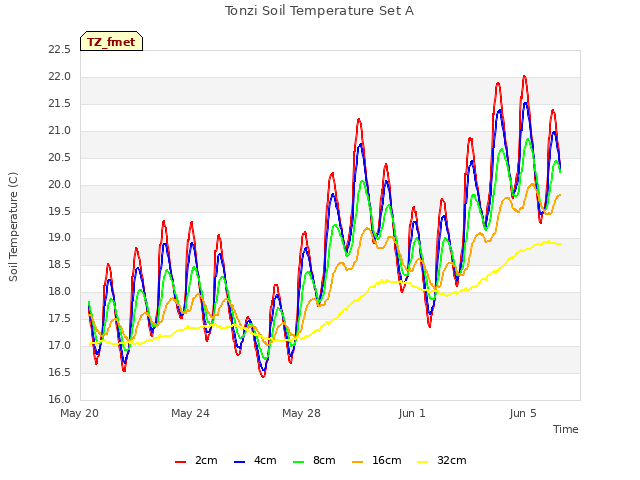

Explore the graph:Tonzi Soil Temperature Set A in a new window

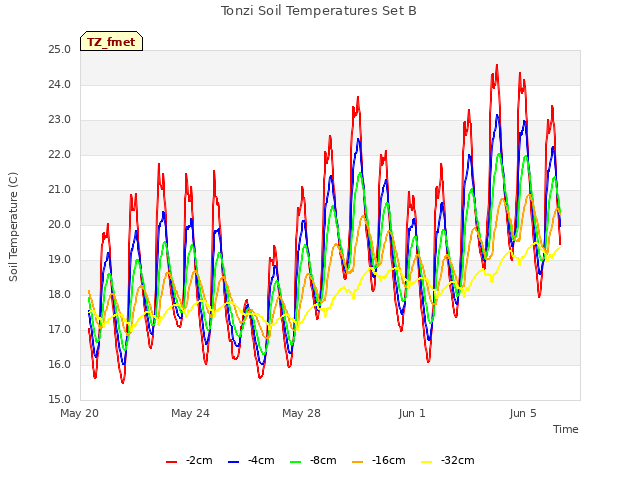

Explore the graph:Tonzi Soil Temperatures Set B in a new window

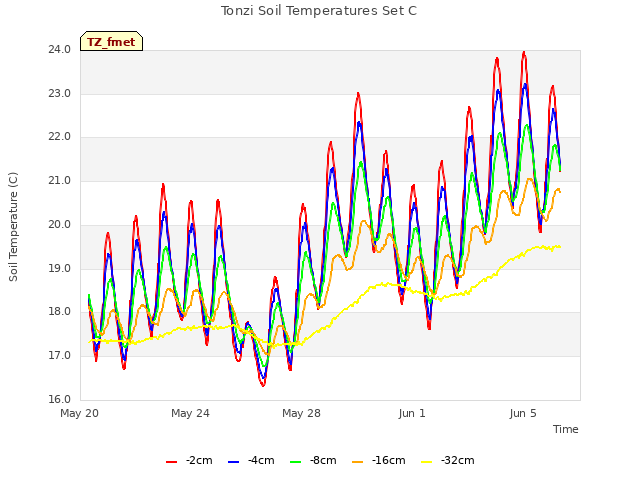

Explore the graph:Tonzi Soil Temperatures Set C in a new window

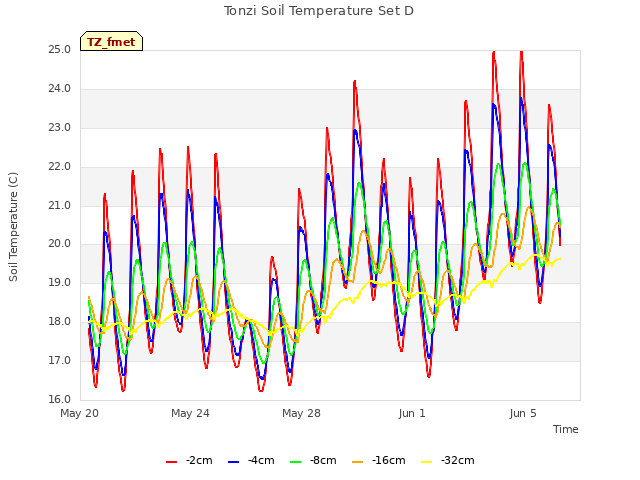

Explore the graph:Tonzi Soil Temperature Set D in a new window

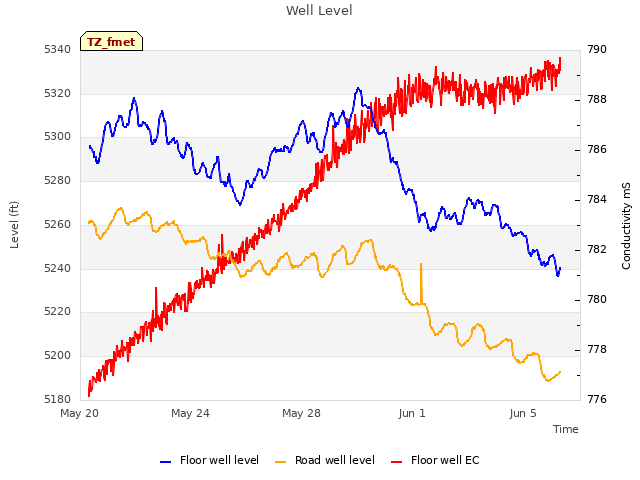

Explore the graph:Well Level in a new window

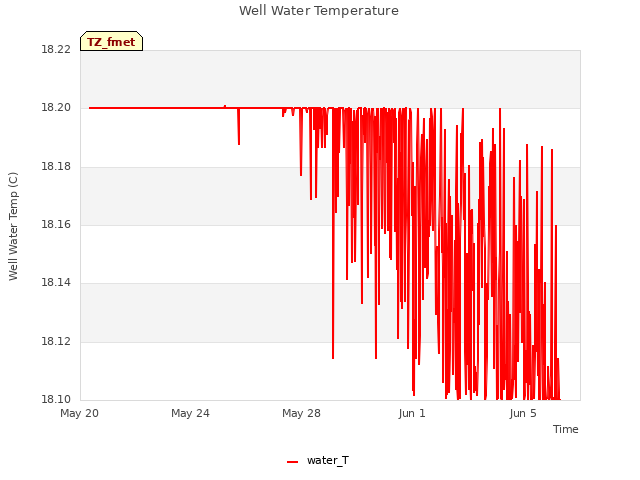

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
3 TZ_co2prof graphs found

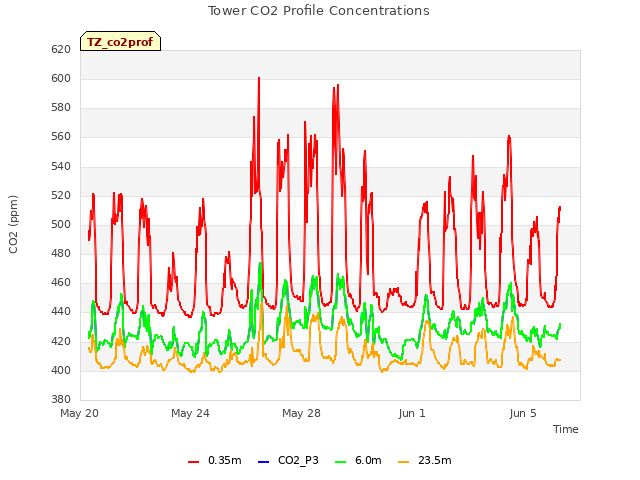

Explore the graph:Tower CO2 Profile Concentrations in a new window

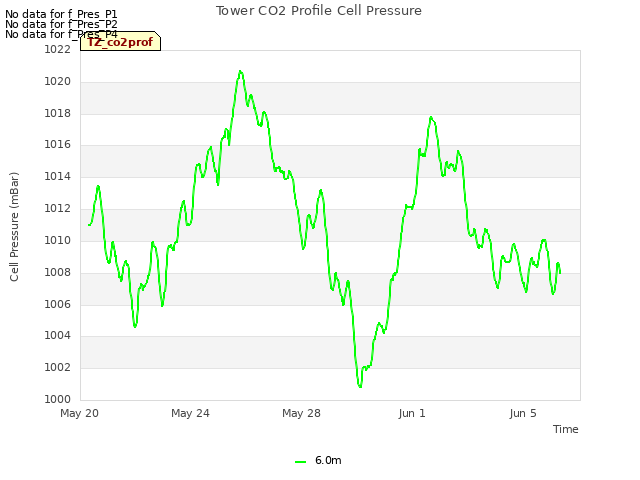

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

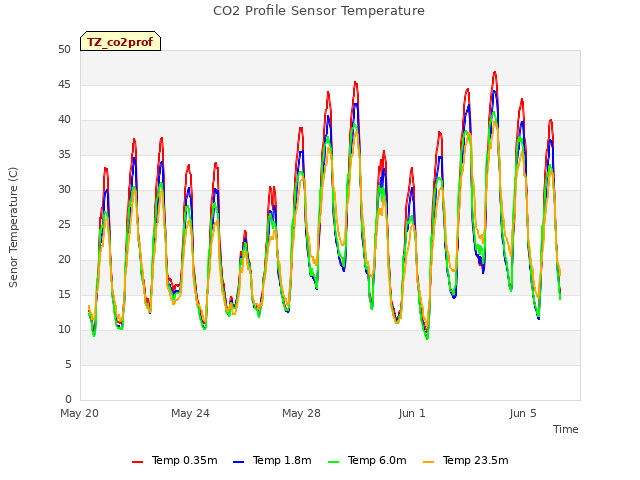

Explore the graph:CO2 Profile Sensor Temperature in a new window

1 TZ_irt graphs found

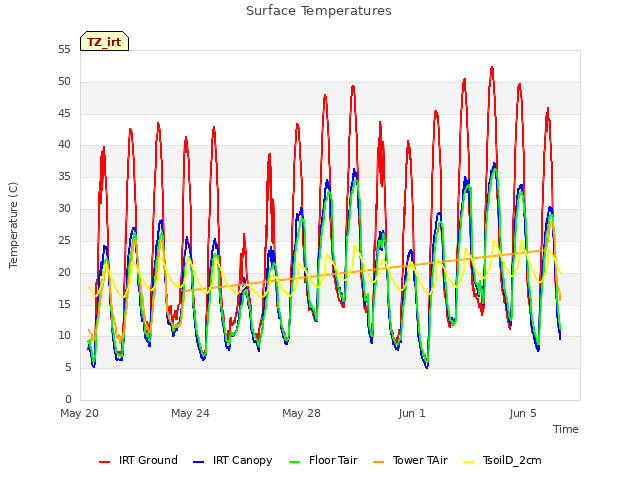

Explore the graph:Surface Temperatures in a new window

No data found for TZ_windprof.
1 TZ_tflux graphs found

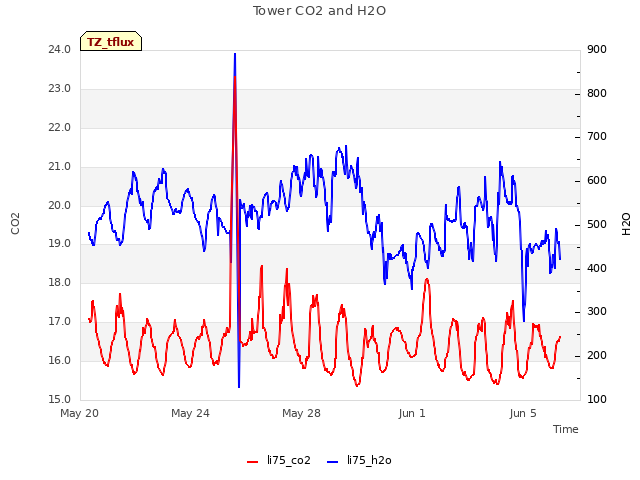

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

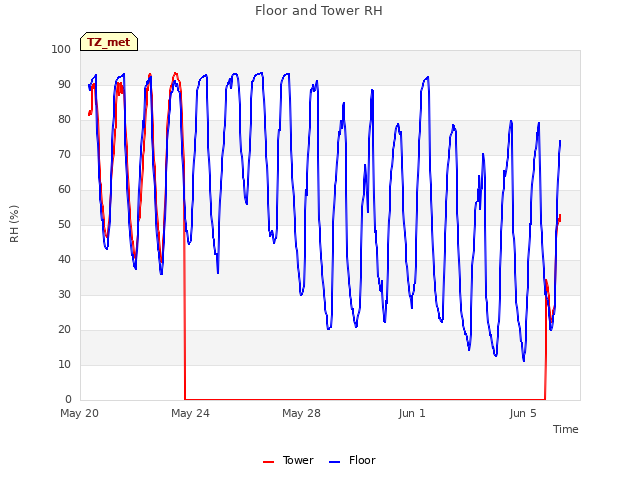

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

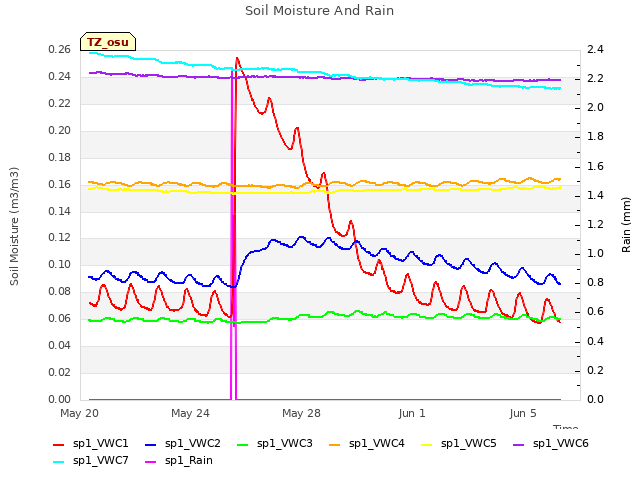

Explore the graph:Soil Moisture And Rain in a new window

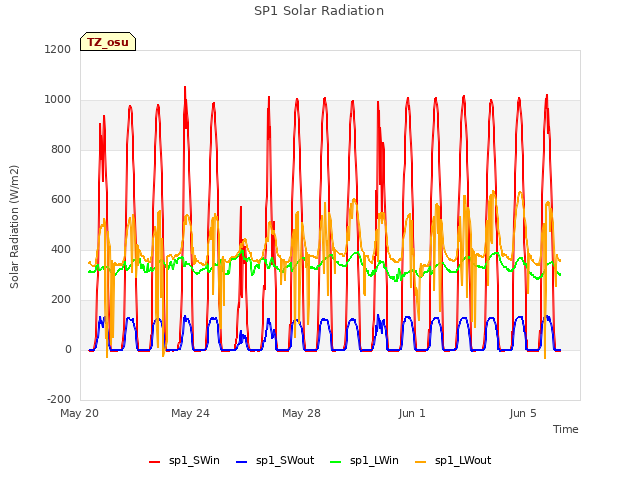

Explore the graph:SP1 Solar Radiation in a new window

Explore the graph:SP1 Soil Temperature Profile in a new window

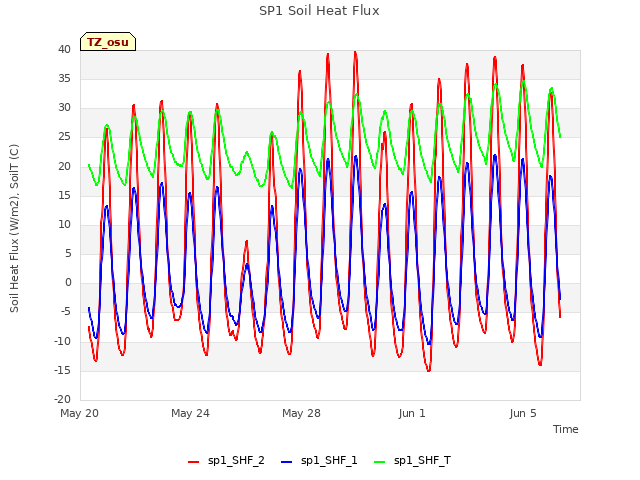

Explore the graph:SP1 Soil Heat Flux in a new window

Explore the graph:SP2 Soil Moisture in a new window

Explore the graph:SP2 Soil Temperature in a new window

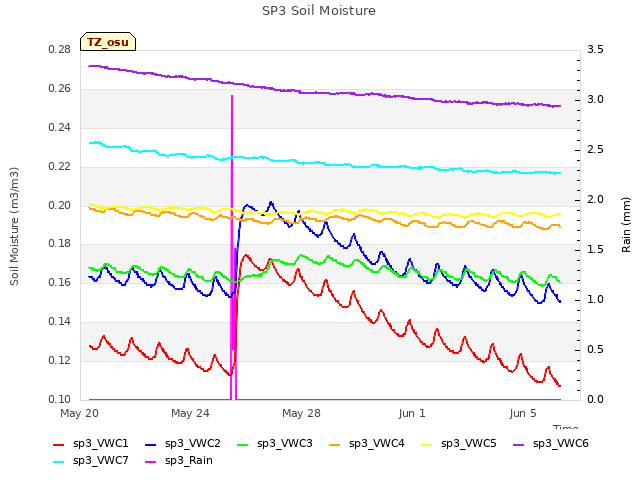

Explore the graph:SP3 Soil Moisture in a new window

Explore the graph:SP3 Soil Temperature in a new window

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
