Tonzi: 2018-04-13 10:00:00 (DOY 103)
Author: Joe Verfaillie
Others: Siyan, Ana, Alex

Summary: Standard field work, spectra library with ASD, first leaf water potential, removed northeast sap flow station.

Tonzi
2018-04-13

I arrive at about 10:00 with Siyan, Alex and Ana. Everything is super green. All the trees have leaves although some individuals are only about 50 percent. There were puddles in the road but the ground is not squishy. There are some flowers here and there. It was clear, sunny and cool with a gusty breeze shifting from south to west.

Ana and Alex used the ASD spectrometer to get spectra of different ground cover that Ana hopes to use to classify satellite images. Later they pulled out the remains of the northeast sap flow station trees # and #?

I collected all the data. I added split loom to the new well sensor cable from the data logger to the well. I fixed a broken wire on the cow fence around the soil co2 site.

Siyan did the usual field work including leaf water potential for the first time this year.

Veg Height (cm): Tape measure from ground to top of plant
15, 17, 23, 28, 29, 10, 14, 13, 7, 16, avg = 17.2, stdev = 7.3

Field Data

No tank data

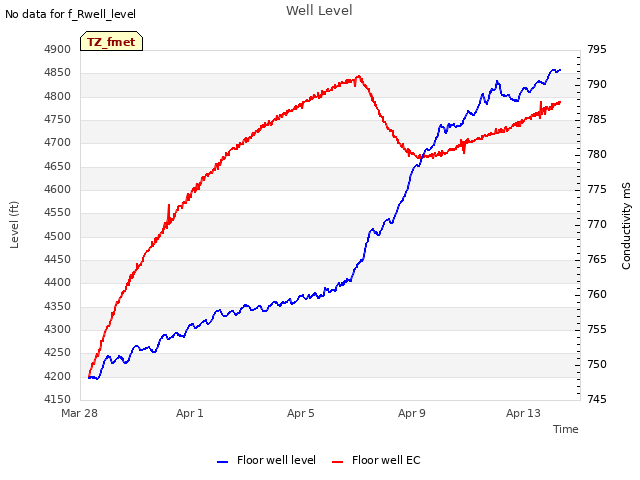

Well Depth

Date	Location	Depth (feet)
2018-04-13	TZ_floor	20.3
2018-04-13	TZ_road	29.2
2018-04-13	TZ_tower	23.7

mode = both

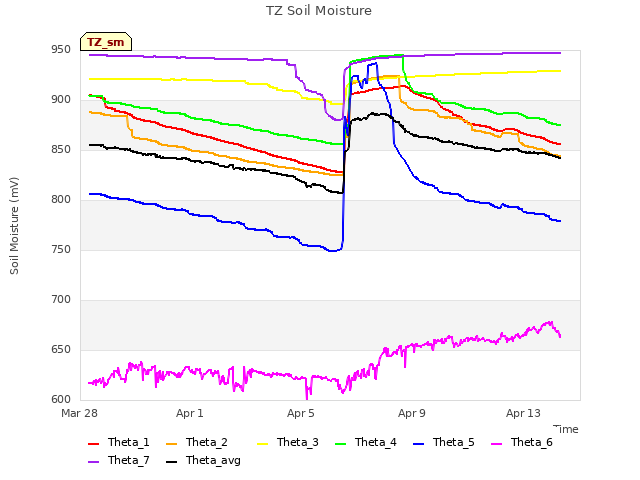

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-04-13	103	0	nan	40.5	30.8	51.9	35.5	28.8	14.7	24.7	20.9	34.9	27.8	23.5	37.1	39.6	50	37.4	31.3	31.3	31.6	22.2	28.6	23.4	31.6	36.6	43.5	39.6	41.9	33.8	31	33.8	33.8	33.5	35.4	39.4	41.4	54.5	41.4	48.3	35.4	45.4	50.3	33.1	46	51.4	52
2018-04-13	103	1	nan	39.9	31.4	43.4	36.4	23.5	22.9	24.1	20.9	34.6	27.9	24.4	36.8	40.2	38.1	37.1	31.3	31.6	31	22.2	27.7	22.8	31.6	36.6	42.4	41.1	41.3	33.2	31.8	33.5	32.9	35.7	35.7	39.1	41.1	57.4	58.3	44	36.8	45.1	50.9	33.4	45.4	51.1	49.4
2018-04-13	103	Avg	0-15cm																																													0
2018-04-13	103	Avg	15-30cm																																													0
2018-04-13	103	Avg	30-45cm																																													0
2018-04-13	103	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-04-13	103	0	nan	23.8	23.5	25	12.1	26.4	30.3	25.2	20	30.4	28.7	27.6	29.6	42	29.9	20.2	31.9
2018-04-13	103	1	nan	23.8	21.1	25.3	12.4	27.7	30.7	36.5	20	30.1	20.9	28.8	29.9	41.1	28.7	27.3	32.8
2018-04-13	103	Avg	0-15cm																	0
2018-04-13	103	Avg	15-30cm																	0
2018-04-13	103	Avg	30-45cm																	0
2018-04-13	103	Avg	45-60cm																	0

Grass Height TZ 10

Date	Height reps (cm)										Location	Average	Samp	STDEV
2018-04-13	15	17	23	28	29	10	14	13	7	16	GH_ALL	17.2	10	6.93

Grass Height VR 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-04-13	33	27	42	32	40	28	32	18	30	22	26	25	22	20	24	GH_ALL	28.07	15	6.67

Tree DBH

Date	Tag#	Reading (mm)
2018-04-13	1	17.2
2018-04-13	102	10.4
2018-04-13	2	22.3
2018-04-13	245	9.5
2018-04-13	3	17.9
2018-04-13	4	8.2
2018-04-13	5	7.8
2018-04-13	7	21.2
2018-04-13	72	14.0
2018-04-13	79	11.8
2018-04-13	8	24.0

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2018-04-13 11:53:00	OAK	102	-4	-6
2018-04-13 11:53:00	OAK	35	-7	-7
2018-04-13 11:53:00	OAK	92	-9	-10
2018-04-13 12:10:00	PINE	OLD	0	-2	-0.5
2018-04-13 12:10:00	PINE	YNG	-13	-17	-4
