Field Notes

Twitchell Alfalfa: 2018-01-04 10:45:00 (DOY 4)
Author: Daphne Szutu
Others: Elke, Kyle, Dennis

Summary: Regular data collection/cleaning, Soil respiration, Veg height, Moved HMP fan from 12V to 24V power

2018-01-04
Twitchell Alfalfa

We arrived at 10:45. It was foggy, hazy, and mostly overcast. The alfalfa looks thoroughly chewed.

Kyle took soil respiration measurements and Dennis took veg height measurements. Elke cleaned the rain gauge and tipped it 6 or 7 times ~11:00.
The LI-6400 displayed a 'High Humidity Warning' message the entire time although the knob on the desiccant was turned all the way to scrub. We should probably change the desiccant.

I collected met, soil CO2, camera, and USB GHG data. We used the new field laptop, and I set up the met CR1000 and soilCO2 CR1000 as new stations.

Elke cleaned the radiation sensors and Dennis cleaned the 7500. Dennis checked the HMP fan. It was a 24V fan connected to 12V power (so spinning slowly), so I moved the fan power from the 12V to 24V screw terminal inside the datalogger enclosure. We reattached the HMP shield below the 7500; the new HMP height is 2.7 m.

LI-7500 readings:
CO2 459 ppm
H2O 320 mmol/m3
T 16.6 C
P 101.9 kPa
SS 75.4 --> 104.4 after cleaning

We left at 11:20.

Veg Height (cm): Tape measure from ground to top of plant
4, 2, 2, 1, 0, 3, 8, 0, 3, 0, 4, 9, 0, 4, 5, 4, 0, 6, 0, 4, 7, 0, avg = 3, stdev = 2.79

0 photos found

7 sets found

Can't check TA_met

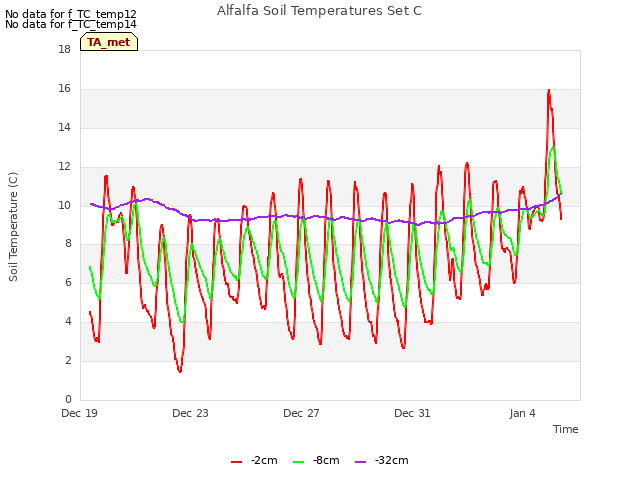

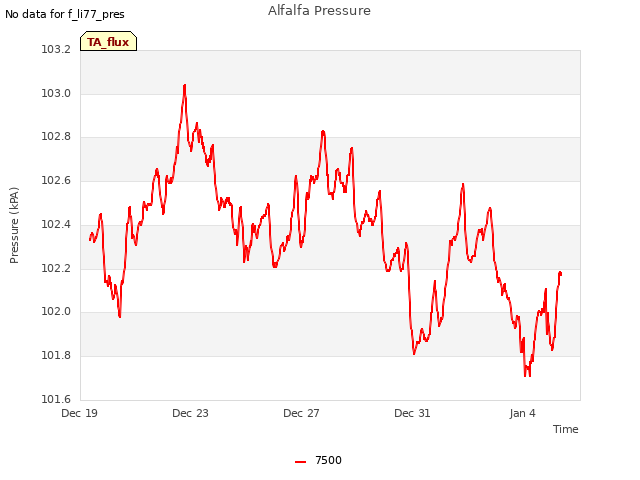

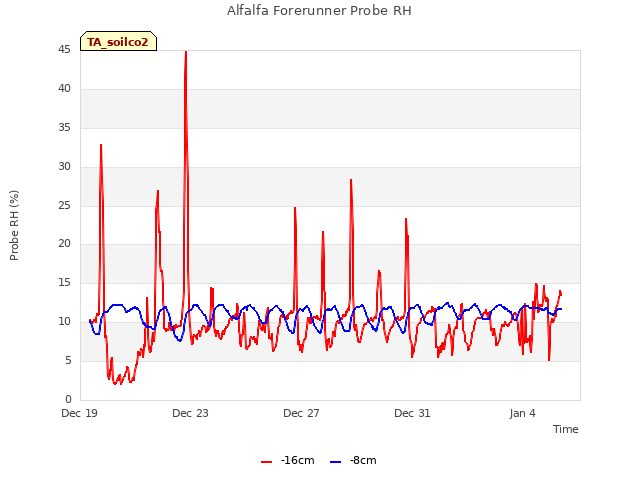

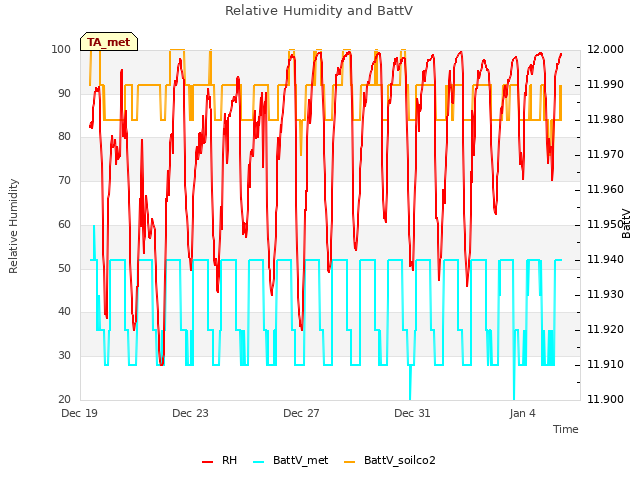

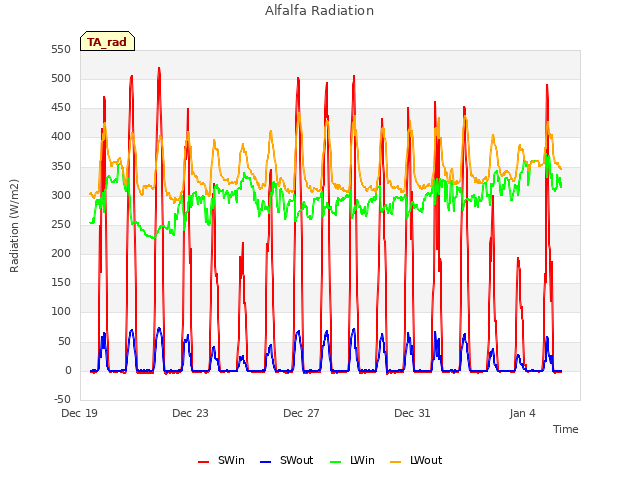

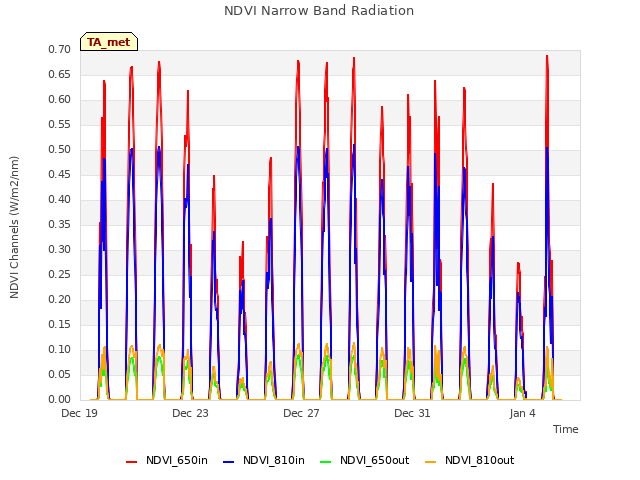

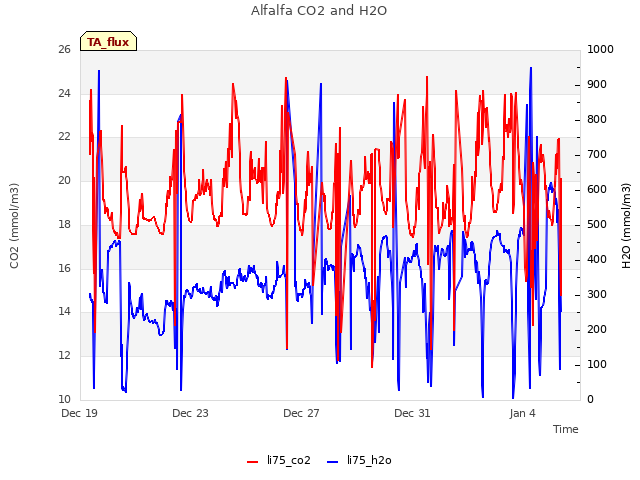

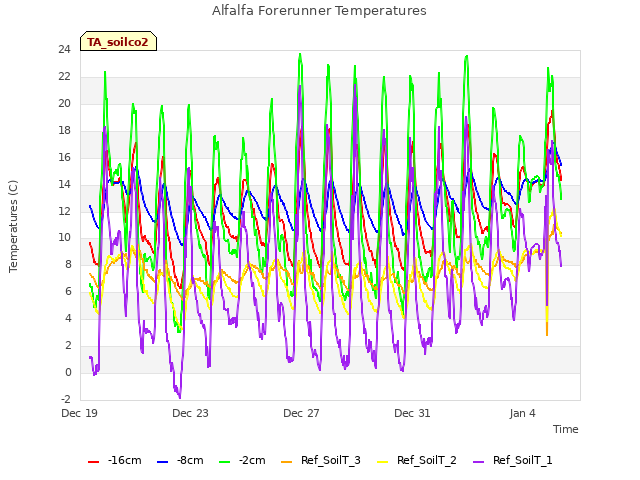

11 TA_met graphs found
