Bouldin Corn: 2017-12-19 10:00:00 (DOY 353)
Author: Joe Verfaillie
Others:

Summary: Water on the field, swapped HMP60 fan, standard data collection

Bouldin Corn
2017-12-19

I arrived at 10:00am. It was cool with a thin overcast and a breeze from the southwest. There were puddles of water on the field. I talked with a fieldworker that stopped by who asked if the water was okay. I told him shallow water was okay.

Some of the CSI TDRs probes are reporting -9999 due to the water on the field.

The 7500 read: 492.6ppm CO2, 487.9mmol/m3 H2O, 8.59C, 101.8, 86.5SS
The 7700 read: 3.01ppm CH4, 40.0RSSI -2.93ppm CH4, 71.2RSSI after cleaning
The wash reservoir was 3/4 full, but I did not have water with me. I thought about using the spray tank water but it look a little dirty and I think the remaining water will last.

The HMP60 fan was dead. It was a 12V fan. I replaced it with a 24V fan and moved its power cable to the 24V power bus.

Tyler was out later to look at their equipment.

1 photos found

Chambers flooding
Chambers flooding

Graphs display:
6 sets found

17 BC_met graphs found

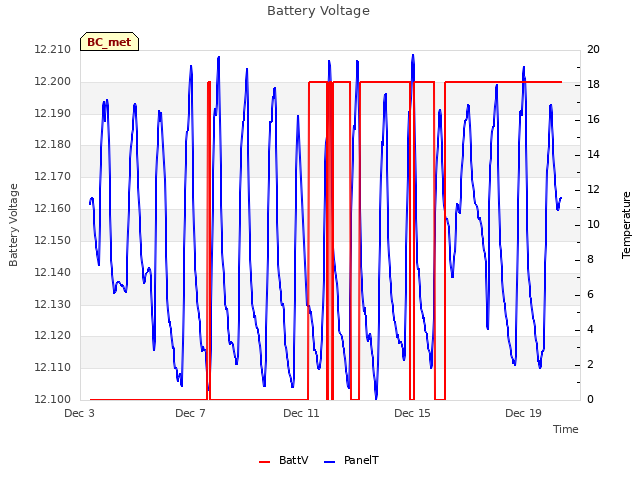

Explore the graph:Battery Voltage in a new window

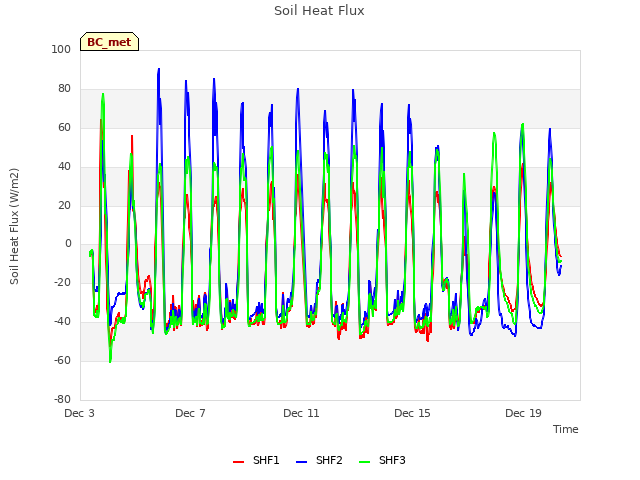

Explore the graph:Soil Heat Flux in a new window

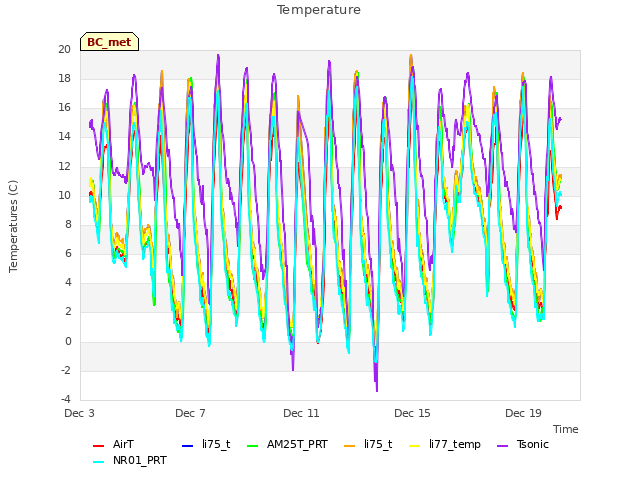

Explore the graph:Temperature in a new window

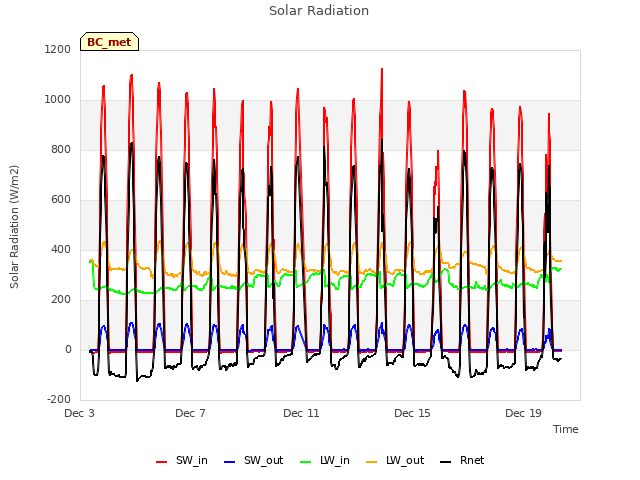

Explore the graph:Solar Radiation in a new window

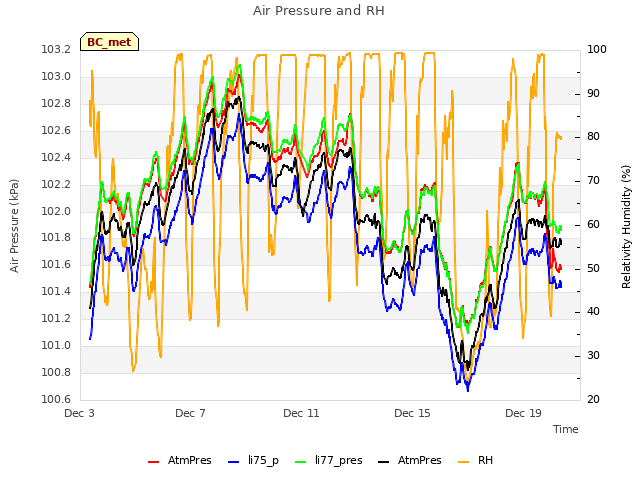

Explore the graph:Air Pressure and RH in a new window

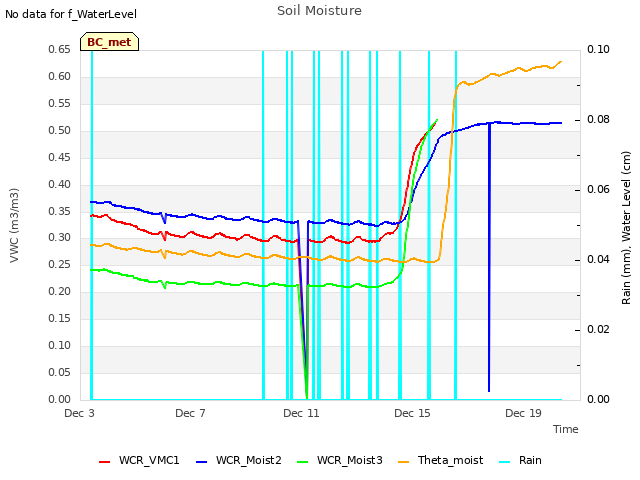

Explore the graph:Soil Moisture in a new window

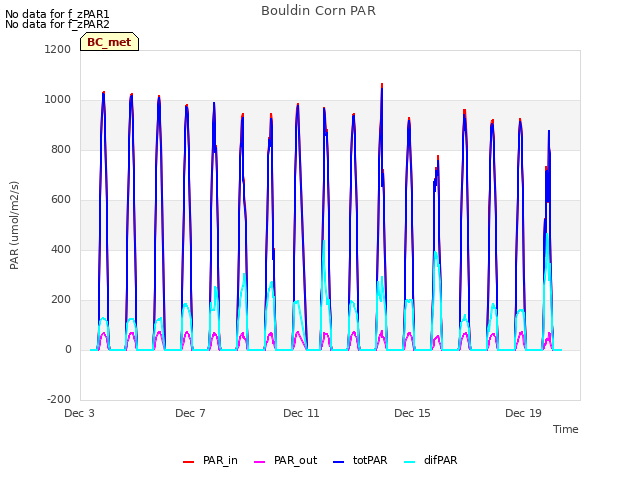

Explore the graph:Bouldin Corn PAR in a new window

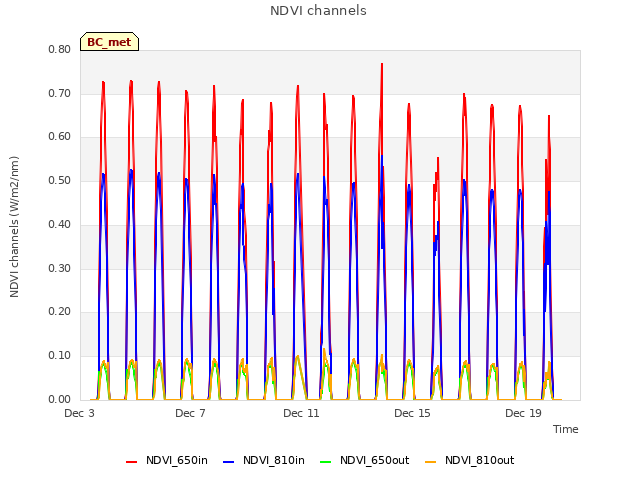

Explore the graph:NDVI channels in a new window

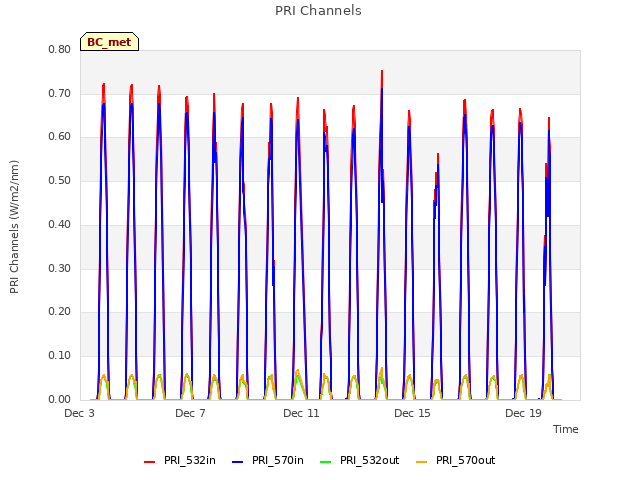

Explore the graph:PRI Channels in a new window

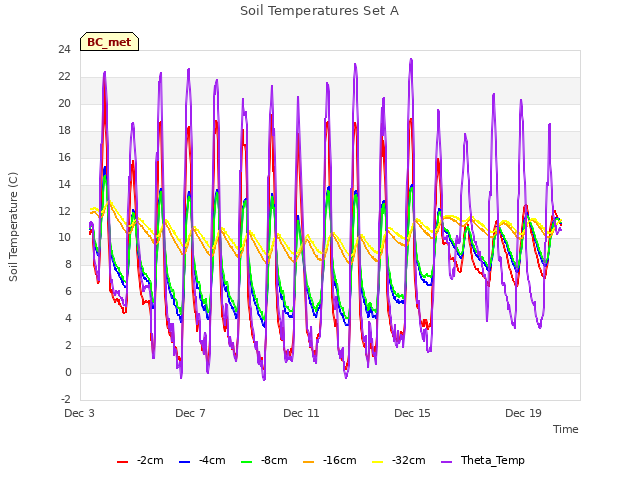

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

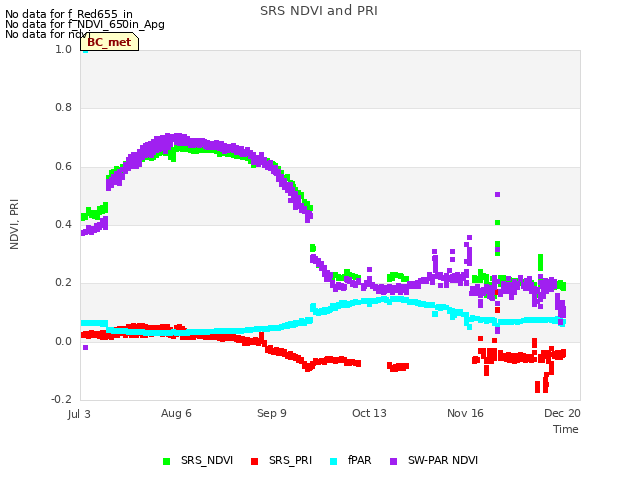

Explore the graph:SRS NDVI and PRI in a new window

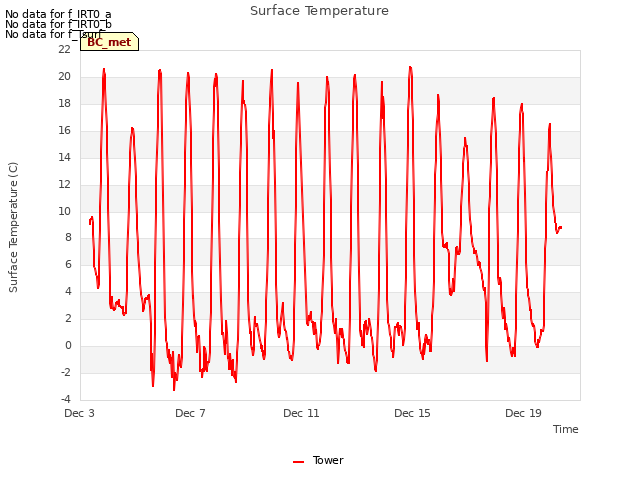

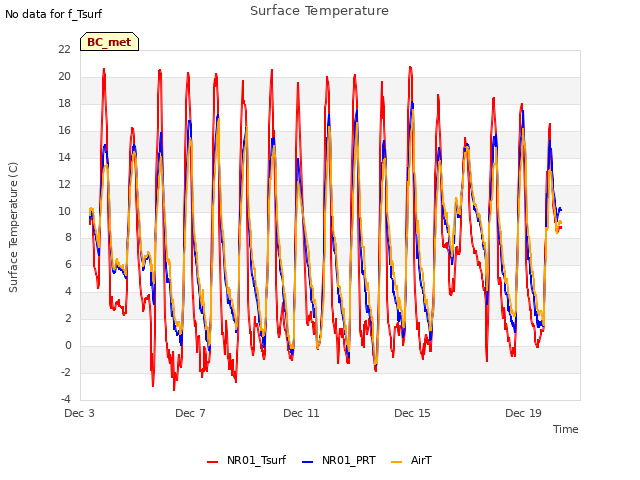

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

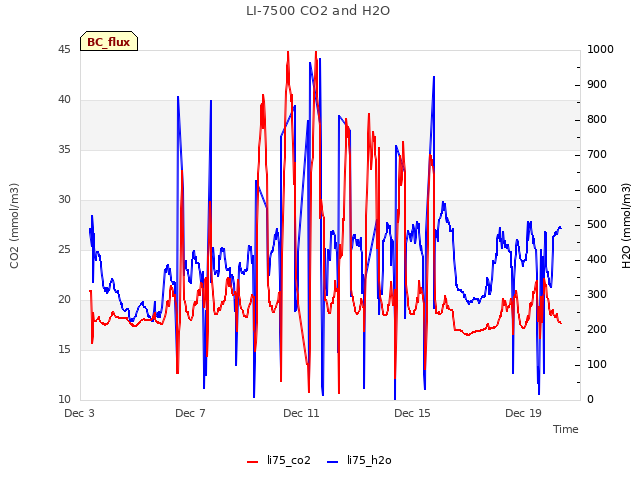

Explore the graph:LI-7500 CO2 and H2O in a new window

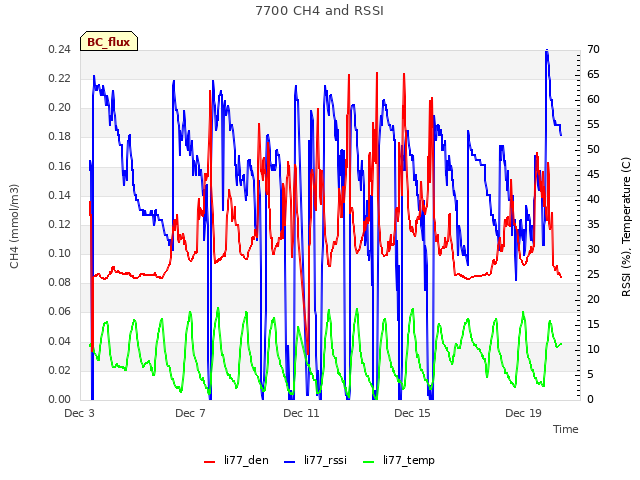

Explore the graph:7700 CH4 and RSSI in a new window

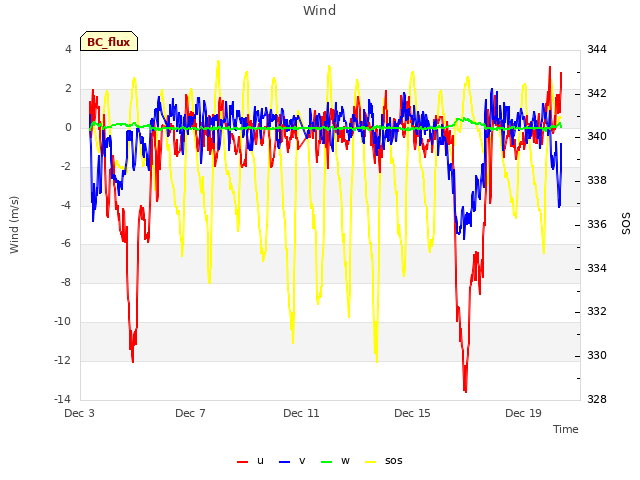

Explore the graph:Wind in a new window

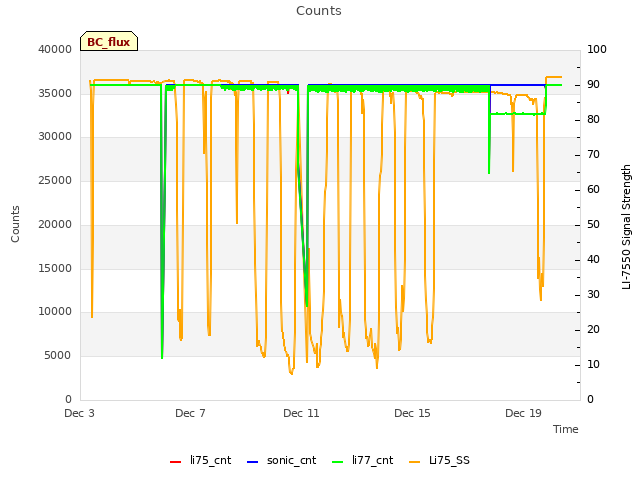

Explore the graph:Counts in a new window

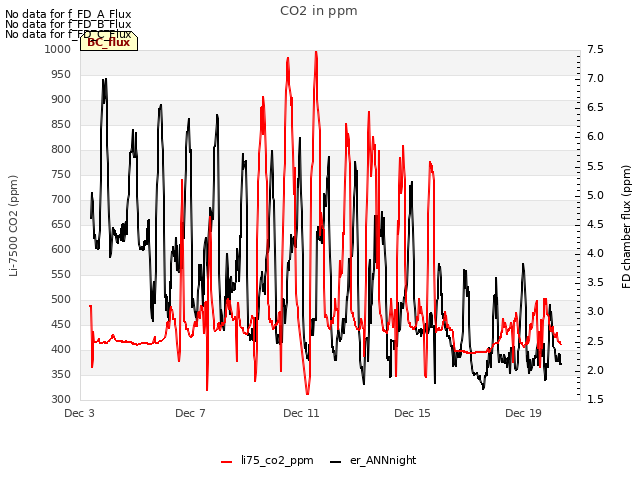

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BC_pa.
No data found for BC_arable.
