Field Notes
<--2017-08-17 10:30:00 | 2017-09-07 10:30:00-->Other sites visited today: Tonzi
Vaira: 2017-08-25 15:45:00 (DOY 237)
Author: Daphne Szutu
Others: Joe Verfaillie
Summary: Downloaded Licor GHG and eclipse met data, Removed Vaisala CO2 probes
2017-08-25 Vaira We arrived around 15:45. It was sunny and warm. I downloaded the Licor GHG and removed the CR1000 CF card with the met data. I updated the CR1000 program so that it stores the 30-min data only and uploaded the new program to the CR1000, VR_met_20170825.CR1. Joe removed the Vaisala CO2 probes and brought them back to the lab for calibration: sn K1350103 - West, -2 cm depth sn K1350102 - West, -4 cm depth sn K1350101 - West, -8 cm depth sn G0230062 - North, -2 cm depth sn L2010068 - North, -4 cm depth sn L2010070 - North, -8 cm depth sn Y2009109 - East, -2 cm depth sn K1310103 - East, -4 cm depth sn Y2030049 - East, -8 cm depth We left around 16:15. |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2017-08-25 | TZ_floor | 22.5 |
2017-08-25 | TZ_road | 31.8 |
2017-08-25 | TZ_tower | 27.5 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_East
[3] => Floor_West
[4] => Soil_Transect_4
[5] => Soil_Transect_3
[6] => Soil_Transect_2
[7] => Soil_Transect_1
[8] => SoilCO2_West_A
[9] => SoilCO2_West_B
[10] => SoilCO2_West_C
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_East |
Floor_West |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2017-08-25 | 237 | 0 | 0-15cm | 2.1 | 2.1 | 6.8 | 10.6 | 0.4 | 2.8 | 3.3 | 0.1 | 7.1 | 3.6 | 3.1 | |||
2017-08-25 | 237 | 0 | 15-30cm | 12.7 | 10 | 10.3 | 2.9 | 7.8 | 13.9 | 13 | 4.5 | 7.2 | 0.6 | 12.1 | |||
2017-08-25 | 237 | 0 | 30-45cm | 15.4 | 7.6 | 14.5 | 14.3 | 9.2 | 15.4 | 16.8 | 13.7 | 17 | 15.9 | 13.7 | |||
2017-08-25 | 237 | 0 | 45-60cm | 15.9 | 3.3 | 14.2 | 16.8 | 12.5 | 20.8 | 29.1 | 11.3 | 17.9 | 15.6 | 25.4 | |||
2017-08-25 | 237 | 1 | 0-15cm | 2.4 | 4.8 | 7.4 | 10.9 | 0.4 | 0.1 | 0.7 | 5.9 | 3.6 | 1.3 | ||||
2017-08-25 | 237 | 1 | 15-30cm | 14.2 | 10.3 | 11.2 | 1.7 | 7.8 | 13.9 | 13.3 | 3.9 | 7.5 | 1.2 | 12.1 | |||
2017-08-25 | 237 | 1 | 30-45cm | 15.1 | 8.4 | 13.7 | 14.3 | 9.5 | 15.9 | 16.8 | 13.7 | 16.8 | 15.9 | 14.5 | |||
2017-08-25 | 237 | 1 | 45-60cm | 17 | 3.3 | 14.5 | 16.8 | 11.9 | 24.8 | 29.1 | 11.3 | 18.5 | 15.6 | 25.1 | |||
2017-08-25 | 237 | Avg | 0-15cm | 2.25 | 3.45 | 7.1 | 10.75 | 0.4 | 1.45 | 3.3 | 0.4 | 6.5 | 3.6 | 2.2 | 3.76 | 11 | 21 |
2017-08-25 | 237 | Avg | 15-30cm | 13.45 | 10.15 | 10.75 | 2.3 | 7.8 | 13.9 | 13.15 | 4.2 | 7.35 | 0.9 | 12.1 | 8.73 | 11 | 22 |
2017-08-25 | 237 | Avg | 30-45cm | 15.25 | 8 | 14.1 | 14.3 | 9.35 | 15.65 | 16.8 | 13.7 | 16.9 | 15.9 | 14.1 | 14 | 11 | 22 |
2017-08-25 | 237 | Avg | 45-60cm | 16.45 | 3.3 | 14.35 | 16.8 | 12.2 | 22.8 | 29.1 | 11.3 | 18.2 | 15.6 | 25.25 | 16.85 | 11 | 22 |
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
1 photos found
view of field site
9 sets found

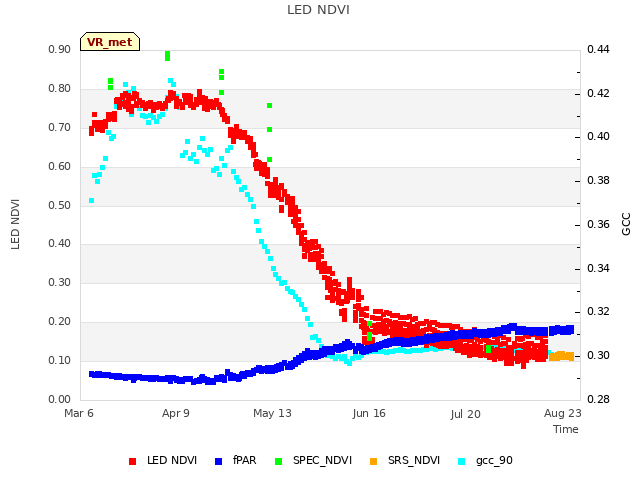

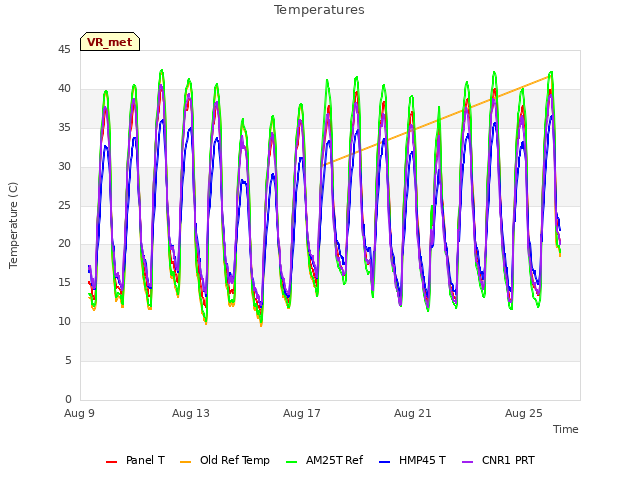

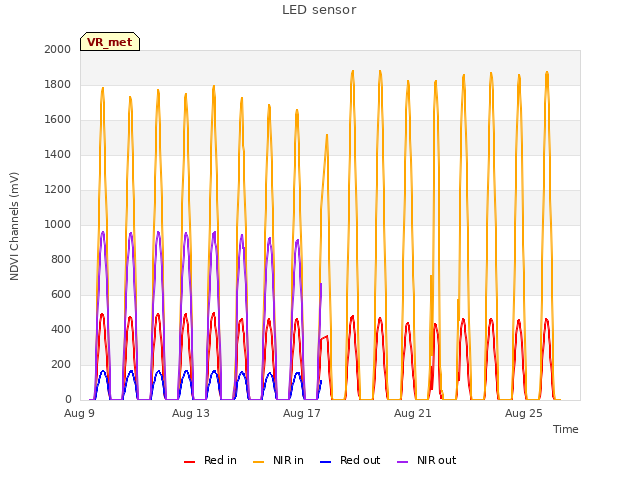

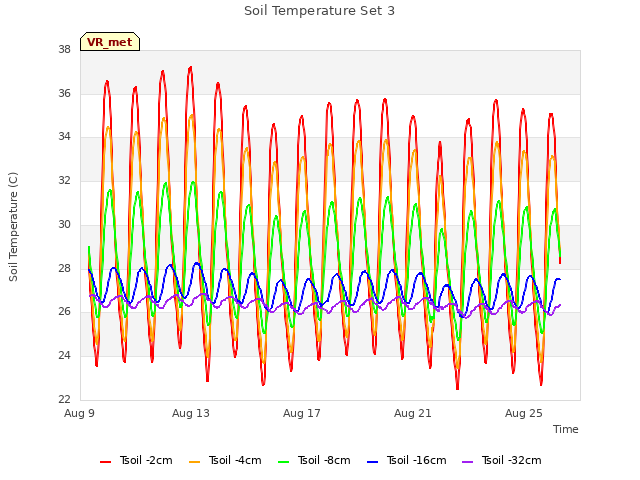

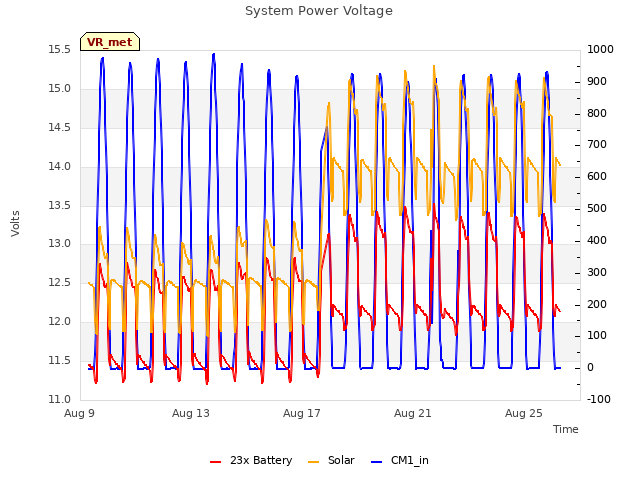

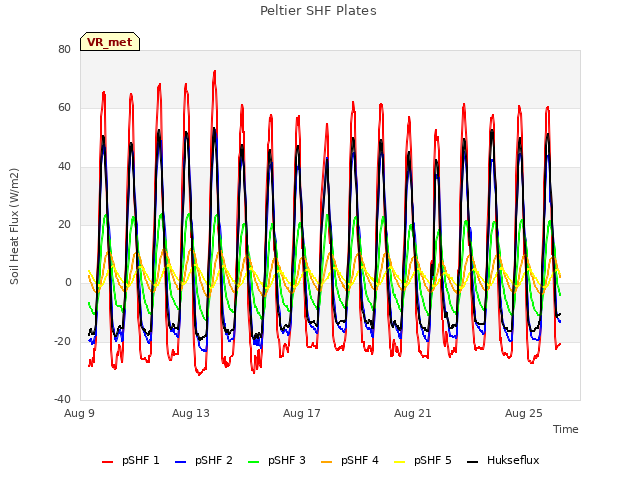

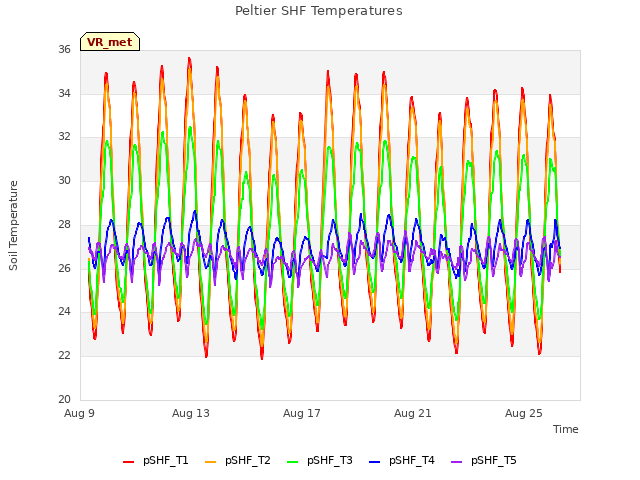

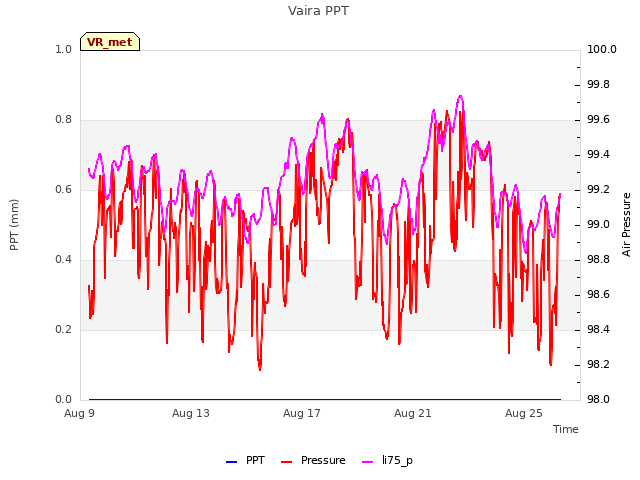

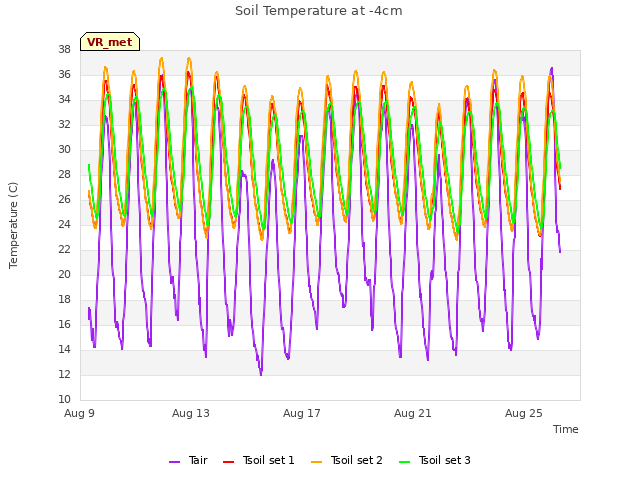

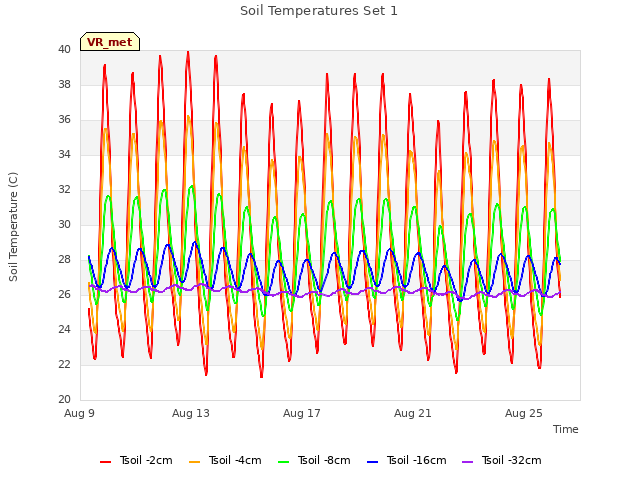

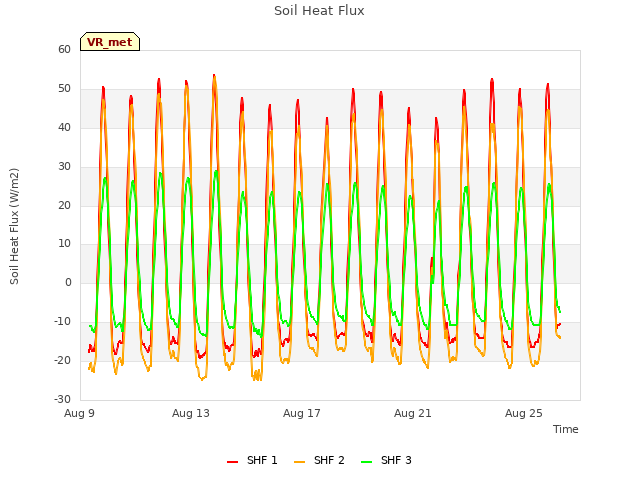

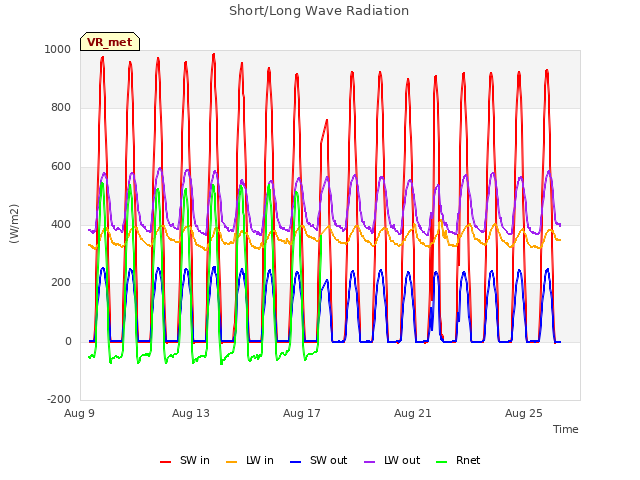

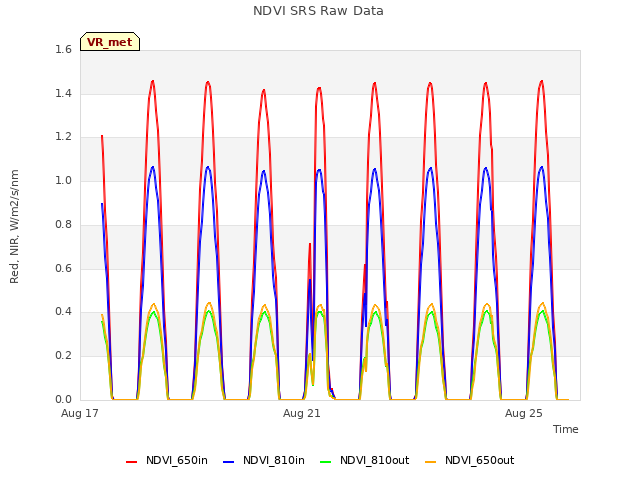

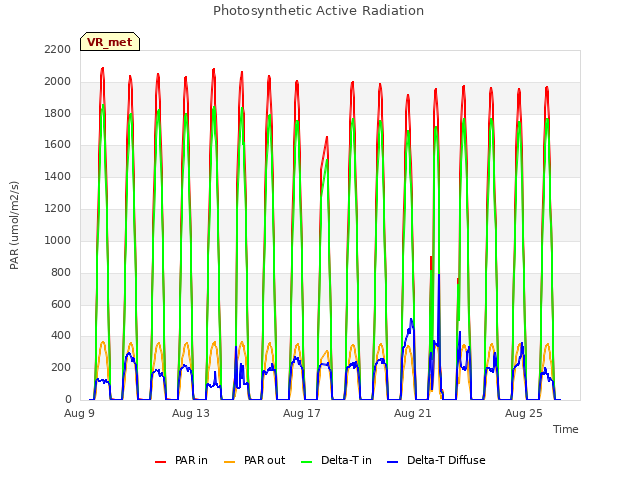

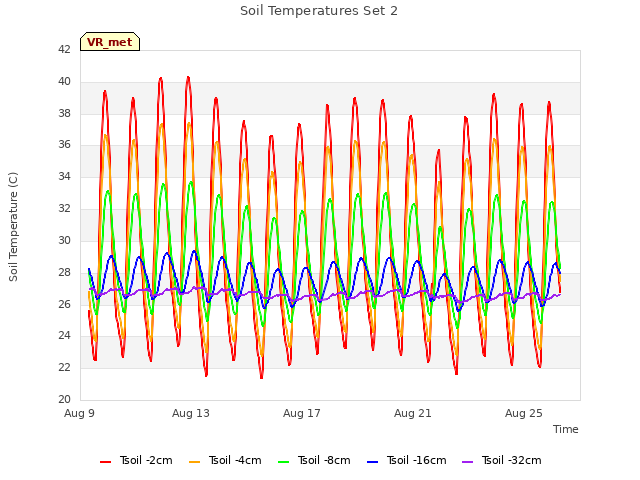

16 VR_met graphs found

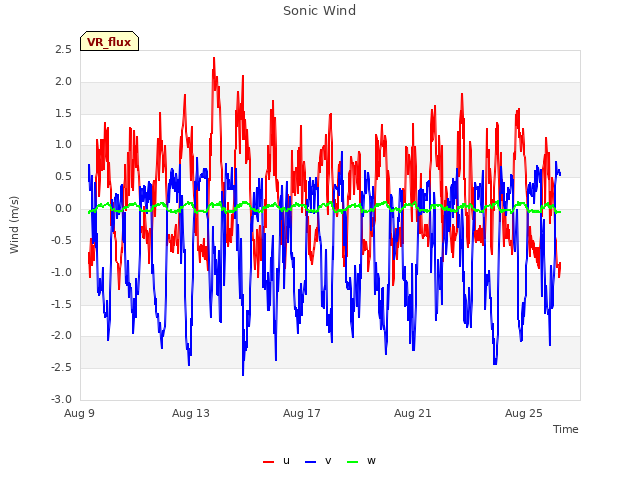

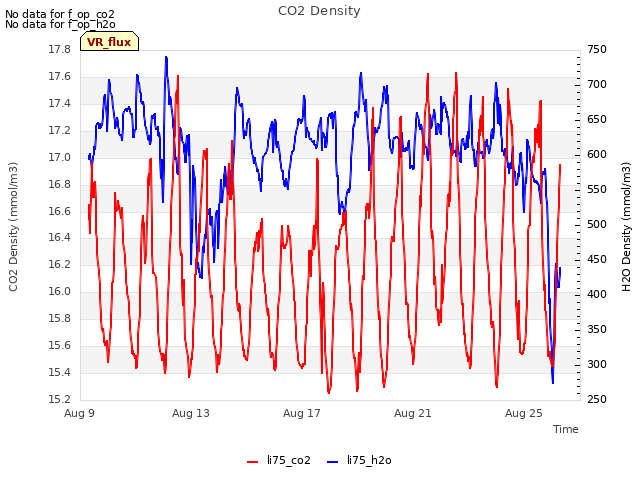

2 VR_flux graphs found

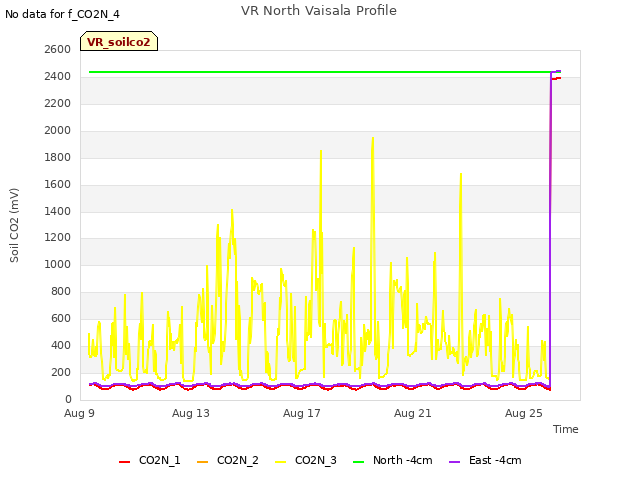

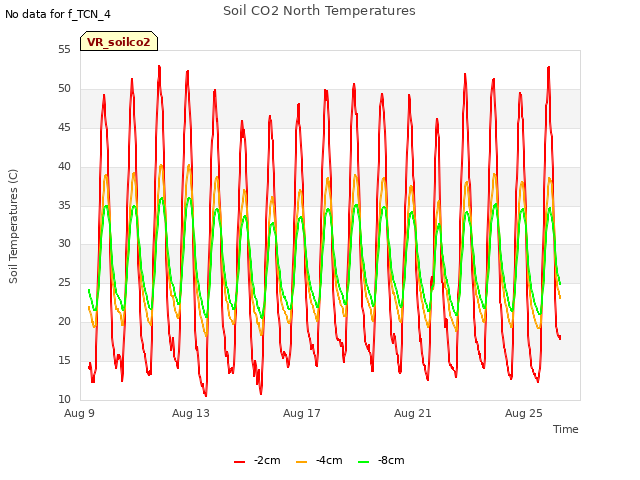

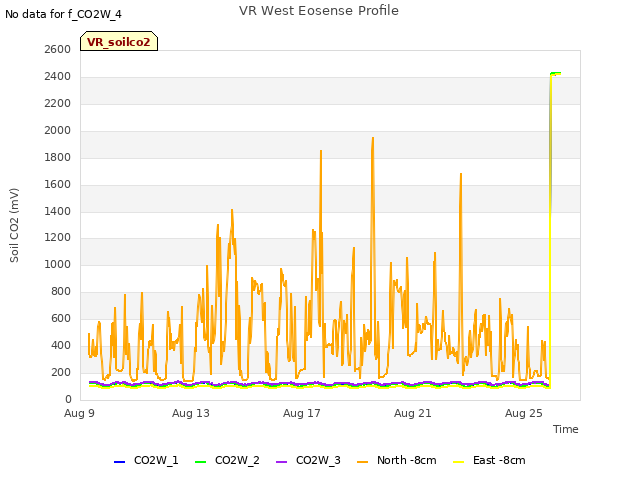

6 VR_soilco2 graphs found

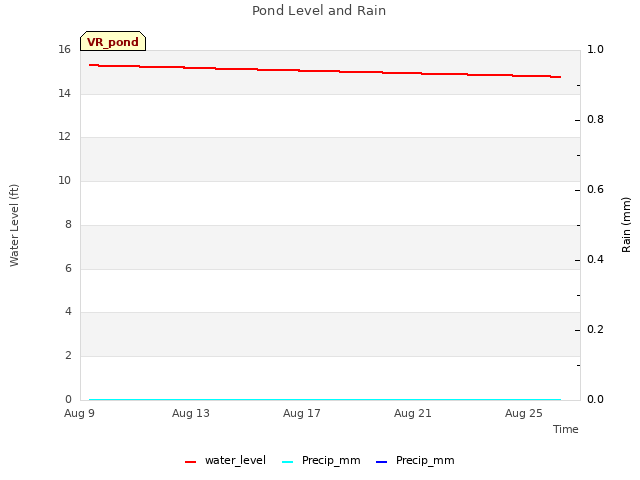

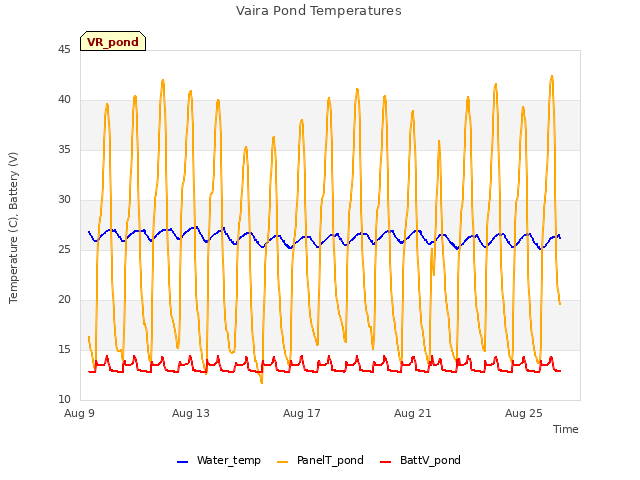

2 VR_pond graphs found
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
