Field Notes
<--2017-08-25 15:45:00 | 2017-09-14 14:30:00-->Other sites visited today: Tonzi
Vaira: 2017-09-07 10:30:00 (DOY 250)
Author: Daphne Szutu
Others: Dennis, Siyan, Joe
Summary: Regular data collection, many brown trees, updated met datalogger program

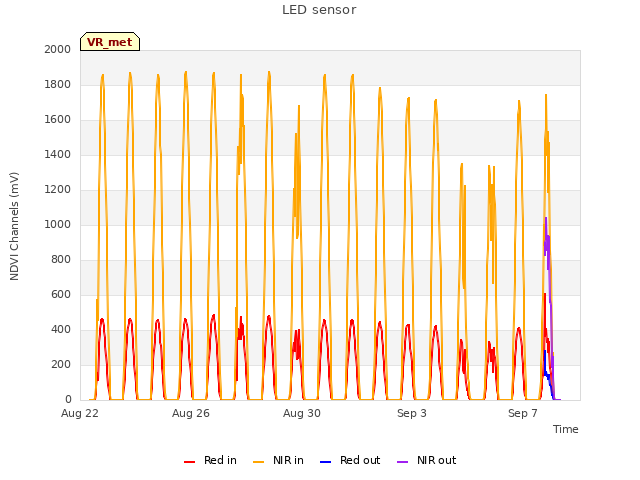

| Vaira 2017-09-07 We arrived at 10:30. It was sunny, hazy, and warm. There was a hot spell last weekend, with temperatures ~45C. Many of the trees have some brown leaves, and about 1/3 of the trees are completely brown. Based on our past data, the leaves start browning/falling around this time. Dennis collected soil moisture data. Siyan collected spectral, flux, and phenocam data. I collected met data and updated the CR1000 program to v20170907.CR1. This new program now records all 4 LED channels. I also started cleaning up the wiring with the CR1000/AM1632. Joe connected the CR1000 to the computer using the RS232 line that was connected to the radio link to the pond. Joe, Dennis, and Siyan collected pond data. The pond level was about 14.3ft. We left around 11:50. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2017-09-07 | TZ_floor | 23.8 |
| 2017-09-07 | TZ_road | 33.2 |
| 2017-09-07 | TZ_tower | 28.7 |
| 2017-09-07 | VR_pond | 14.3 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_East
[3] => Floor_West
[4] => Soil_Transect_4
[5] => Soil_Transect_2
[6] => SoilCO2_West_A
[7] => SoilCO2_West_B
[8] => SoilCO2_West_C
)
| Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_East |
Floor_West |
Soil_Transect_4 |
Soil_Transect_2 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2017-09-07 | 250 | 0 | 0-15cm | 2.1 | 3.7 | 6.2 | 10.4 | 1.3 | 3.6 | 4.2 | 5.6 | 2.9 | |||
| 2017-09-07 | 250 | 0 | 15-30cm | 13.3 | 12.1 | 9.7 | 7.5 | 8.4 | 12.4 | 9 | 0.3 | 11.8 | |||
| 2017-09-07 | 250 | 0 | 30-45cm | 15.4 | 8.4 | 15.1 | 12.9 | 9.2 | 16.5 | 17.8 | 16.2 | 14.3 | |||
| 2017-09-07 | 250 | 0 | 45-60cm | 17 | 3 | 15.3 | 20.2 | 11 | 28.5 | 17.9 | 14.5 | 25.9 | |||
| 2017-09-07 | 250 | 1 | 0-15cm | 2.4 | 3.7 | 6.2 | 3.9 | 1 | 3.3 | 4.2 | 5.6 | 4 | |||
| 2017-09-07 | 250 | 1 | 15-30cm | 13.6 | 12.7 | 10.6 | 3.2 | 8.7 | 12.1 | 7.8 | 0.6 | 12.4 | |||
| 2017-09-07 | 250 | 1 | 30-45cm | 15.6 | 8.5 | 14 | 13.7 | 9.2 | 16.8 | 17.8 | 15.9 | 14 | |||
| 2017-09-07 | 250 | 1 | 45-60cm | 16.5 | 3 | 14.8 | 17.6 | 11.3 | 28.8 | 17.8 | 1512.4 | 25.6 | |||
| 2017-09-07 | 250 | 2 | 0-15cm | 2.7 | 4.8 | 5.3 | 10.3 | 1.6 | 4.2 | 3.6 | 5.3 | 1 | |||
| 2017-09-07 | 250 | 2 | 15-30cm | 13.3 | 12.1 | 11.8 | 2.9 | 8.4 | 12.4 | 8.4 | 1.2 | 11.8 | |||
| 2017-09-07 | 250 | 2 | 30-45cm | 15.1 | 7.8 | 14 | 12.9 | 9.5 | 16.8 | 17.3 | 15.9 | 14.5 | |||
| 2017-09-07 | 250 | 2 | 45-60cm | 17 | 3.3 | 14.8 | 18.5 | 11.3 | 29.1 | 17.3 | 15 | 25.6 | |||
| 2017-09-07 | 250 | Avg | 0-15cm | 2.4 | 4.07 | 5.9 | 8.2 | 1.3 | 3.7 | 4 | 5.5 | 2.63 | 4.19 | 9 | 27 |
| 2017-09-07 | 250 | Avg | 15-30cm | 13.4 | 12.3 | 10.7 | 4.53 | 8.5 | 12.3 | 8.4 | 0.7 | 12 | 9.2 | 9 | 27 |
| 2017-09-07 | 250 | Avg | 30-45cm | 15.37 | 8.23 | 14.37 | 13.17 | 9.3 | 16.7 | 17.63 | 16 | 14.27 | 13.89 | 9 | 27 |
| 2017-09-07 | 250 | Avg | 45-60cm | 16.83 | 3.1 | 14.97 | 18.77 | 11.2 | 28.8 | 17.67 | 513.97 | 25.7 | 72.33 | 9 | 27 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
| Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|
| 2017-09-07 | 250 | 0 | 0-15cm | 3 | 1 | 1.8 | 3 | |||
| 2017-09-07 | 250 | 0 | 15-30cm | 10 | 6.3 | 5.1 | 3.5 | |||
| 2017-09-07 | 250 | 0 | 30-45cm | 15.1 | 3.9 | 9.8 | 15.4 | |||
| 2017-09-07 | 250 | 0 | 45-60cm | 29.4 | 15 | 12.8 | 18.8 | |||
| 2017-09-07 | 250 | 1 | 0-15cm | 0.4 | 2.1 | 1 | ||||
| 2017-09-07 | 250 | 1 | 15-30cm | 6.6 | 4.8 | 3.9 | ||||
| 2017-09-07 | 250 | 1 | 30-45cm | 3.9 | 9.8 | 15.1 | ||||
| 2017-09-07 | 250 | 1 | 45-60cm | 14.8 | 12.2 | 18.5 | ||||
| 2017-09-07 | 250 | 2 | 0-15cm | 7 | 1.5 | 1 | ||||
| 2017-09-07 | 250 | 2 | 15-30cm | 5.4 | 5.7 | 3.5 | ||||
| 2017-09-07 | 250 | 2 | 30-45cm | 5 | 9.8 | 15.1 | ||||
| 2017-09-07 | 250 | 2 | 45-60cm | 14.8 | 11.9 | 18.2 | ||||
| 2017-09-07 | 250 | Avg | 0-15cm | 3 | 2.8 | 1.8 | 1.67 | 2.32 | 4 | 10 |
| 2017-09-07 | 250 | Avg | 15-30cm | 10 | 6.1 | 5.2 | 3.63 | 6.23 | 4 | 10 |
| 2017-09-07 | 250 | Avg | 30-45cm | 15.1 | 4.27 | 9.8 | 15.2 | 11.09 | 4 | 10 |
| 2017-09-07 | 250 | Avg | 45-60cm | 29.4 | 14.87 | 12.3 | 18.5 | 18.77 | 4 | 10 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

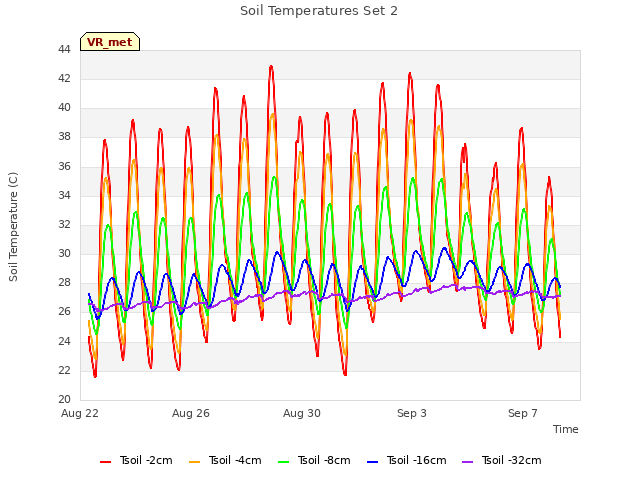

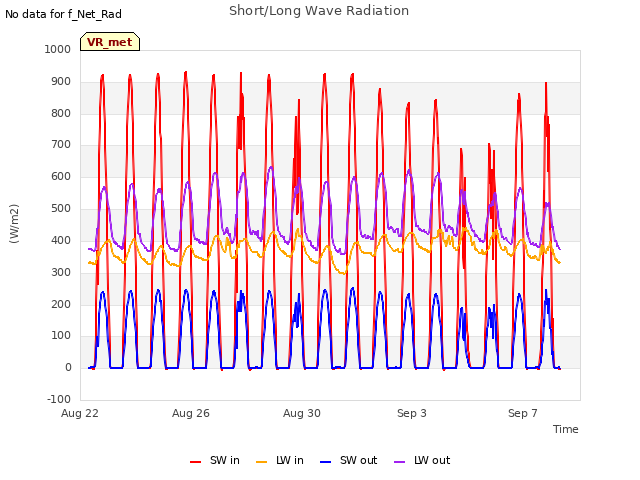

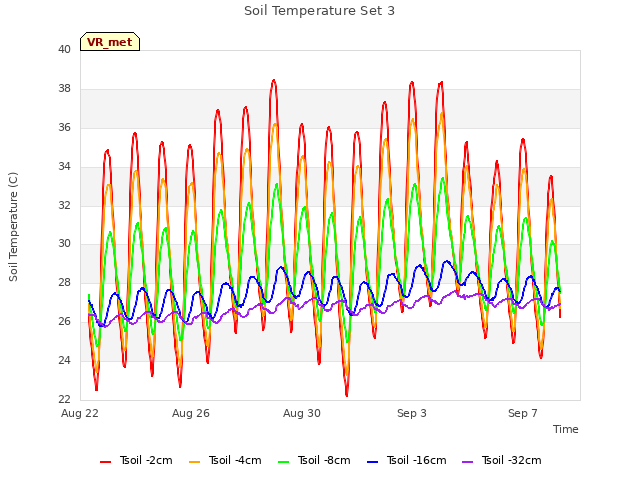

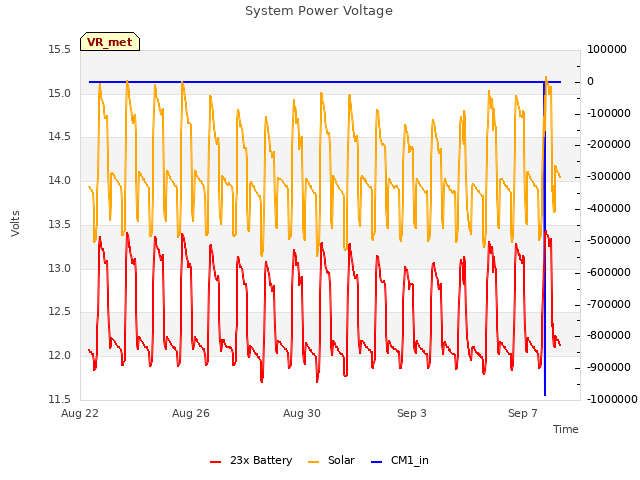

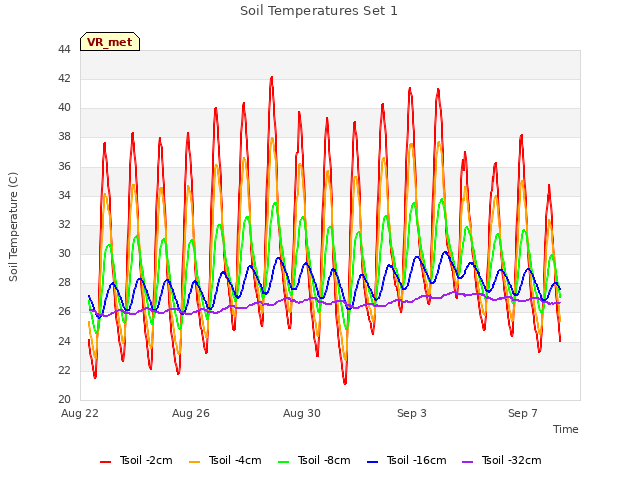

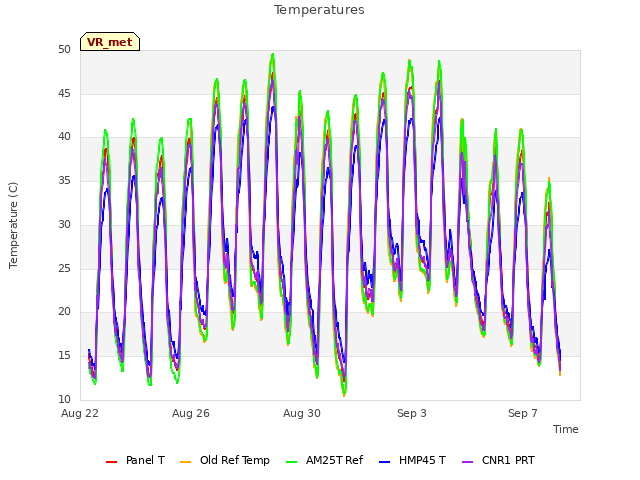

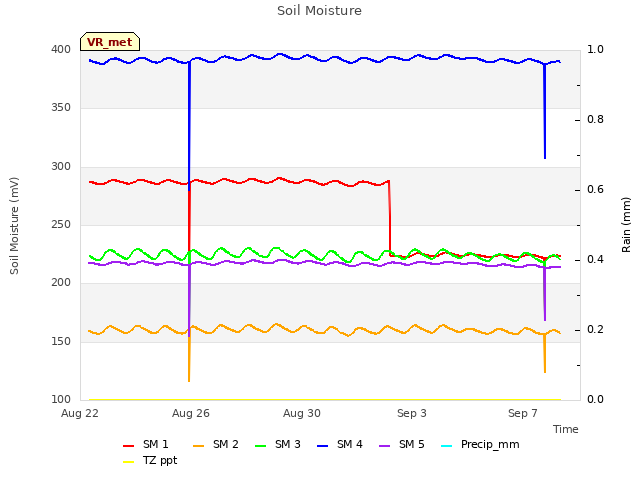

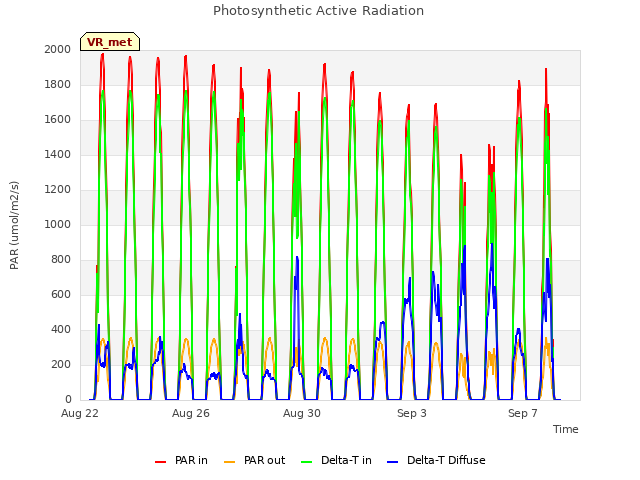

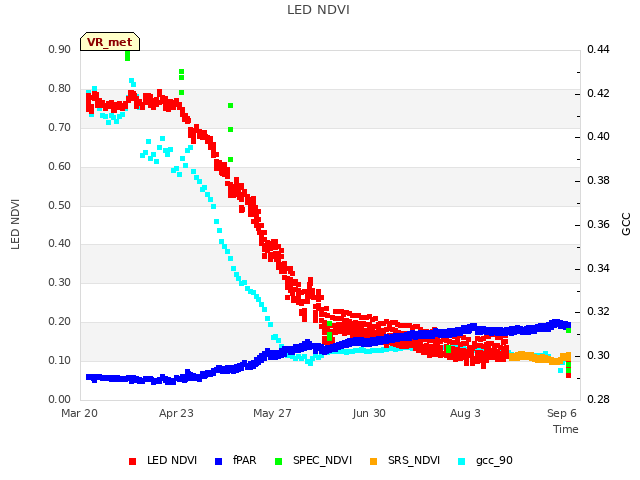

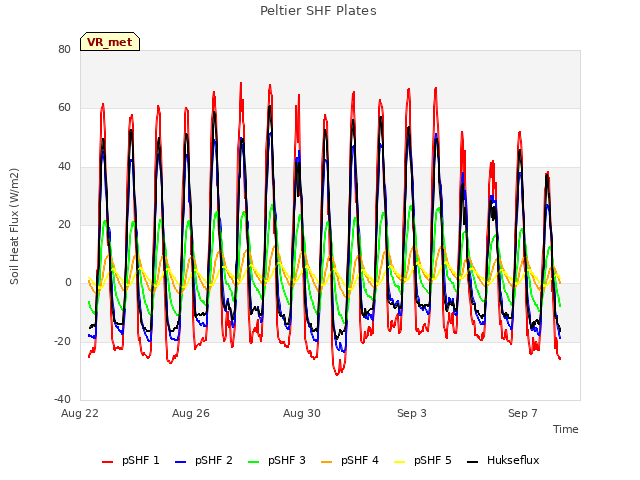

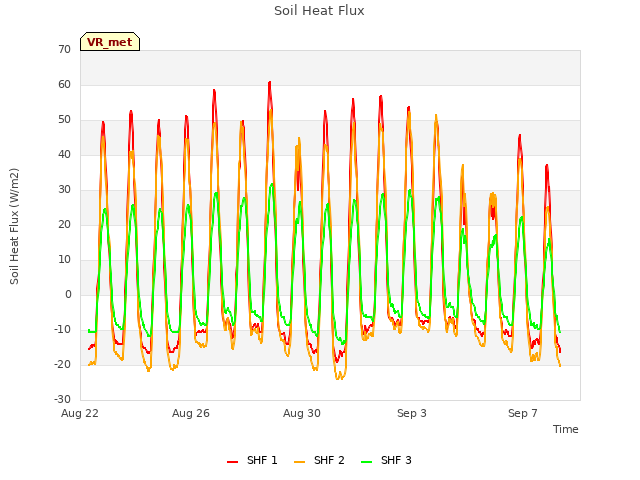

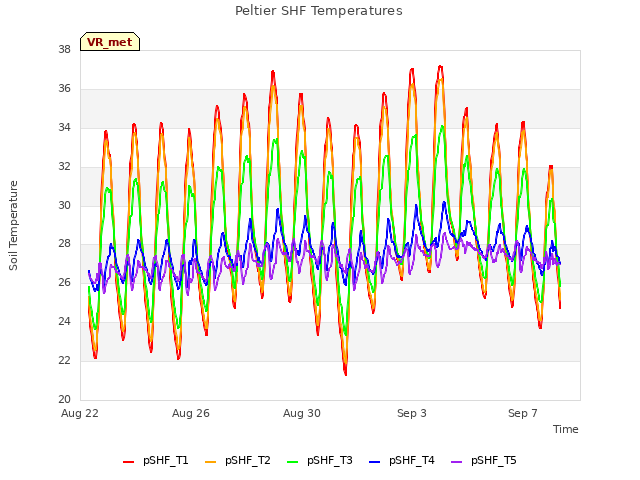

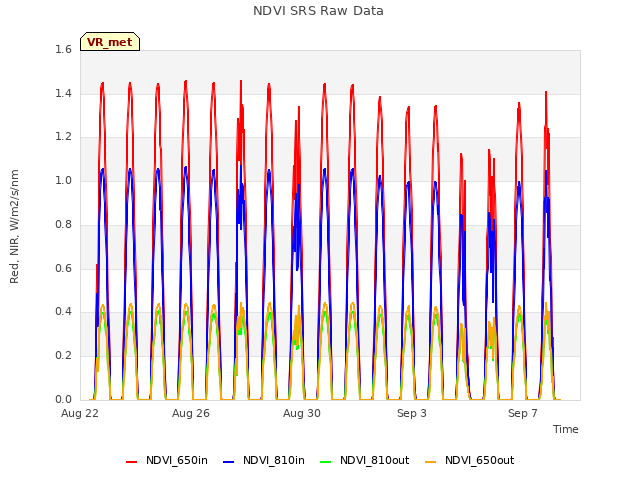

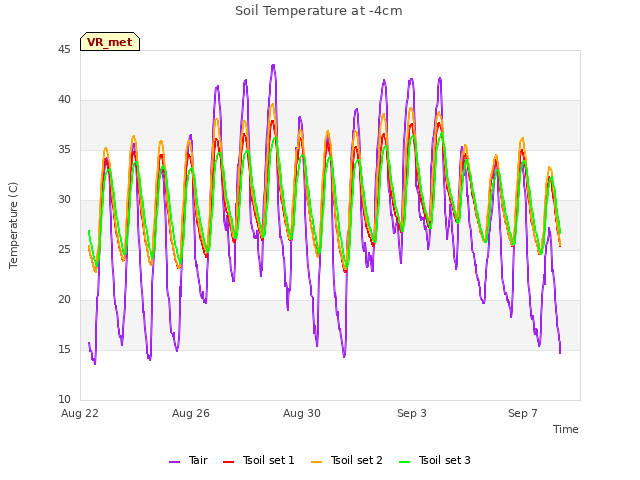

16 VR_met graphs found

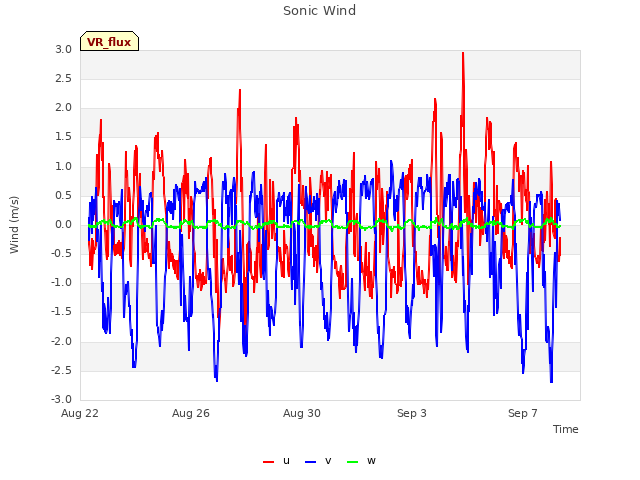

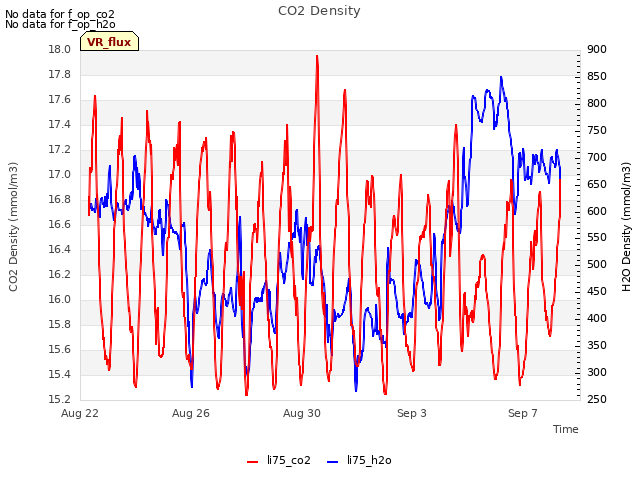

2 VR_flux graphs found

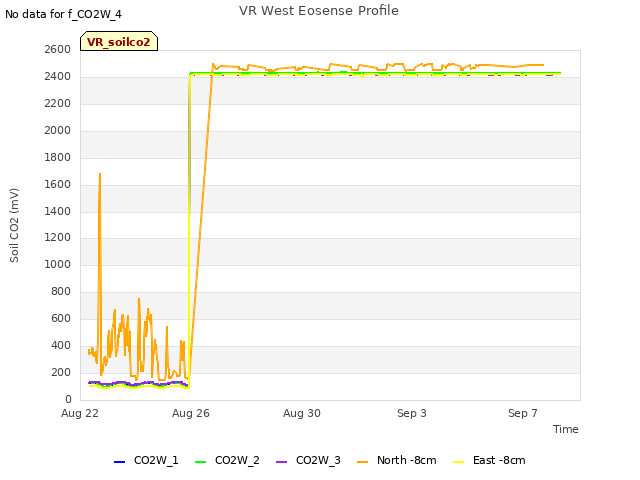

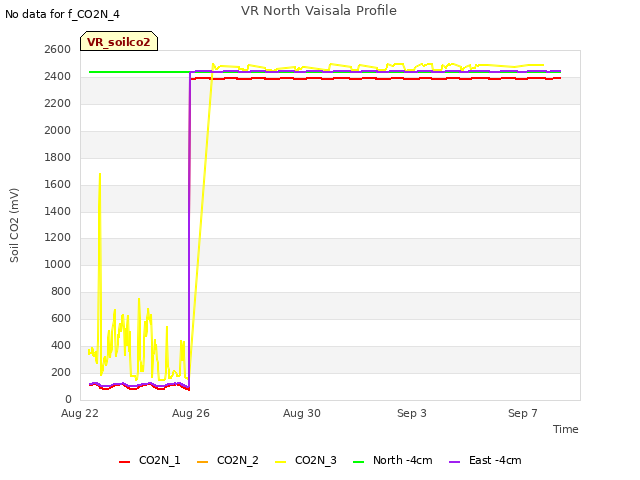

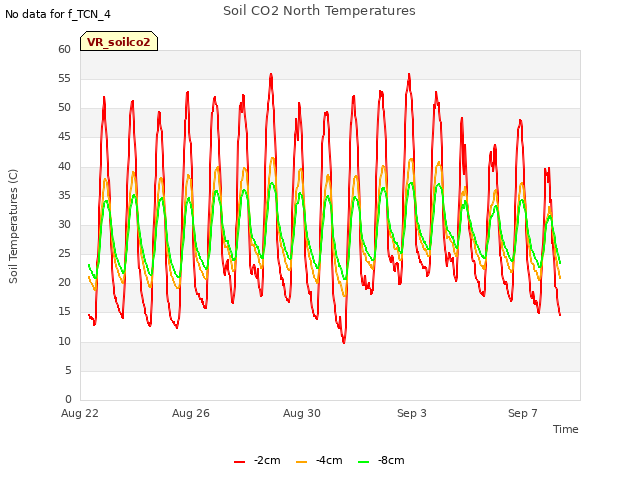

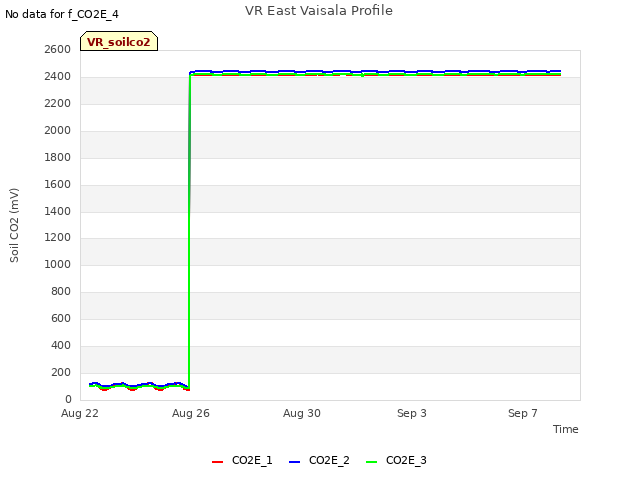

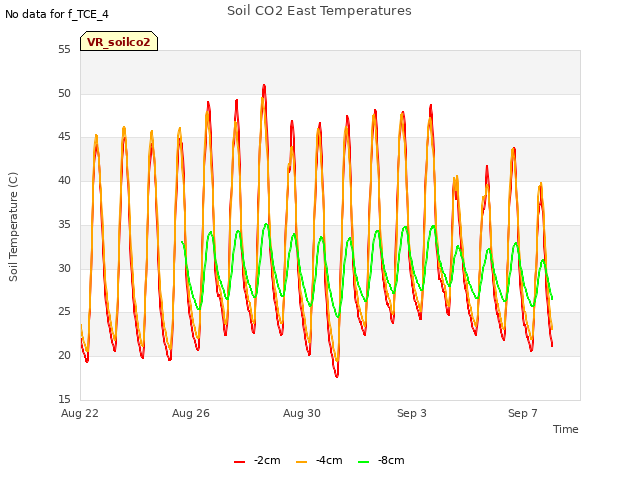

6 VR_soilco2 graphs found

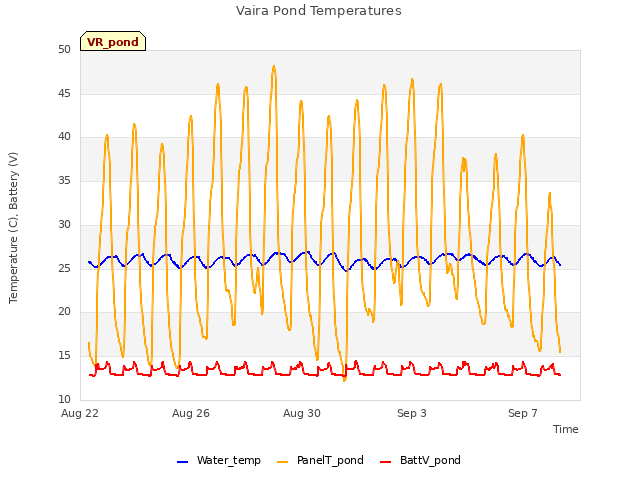

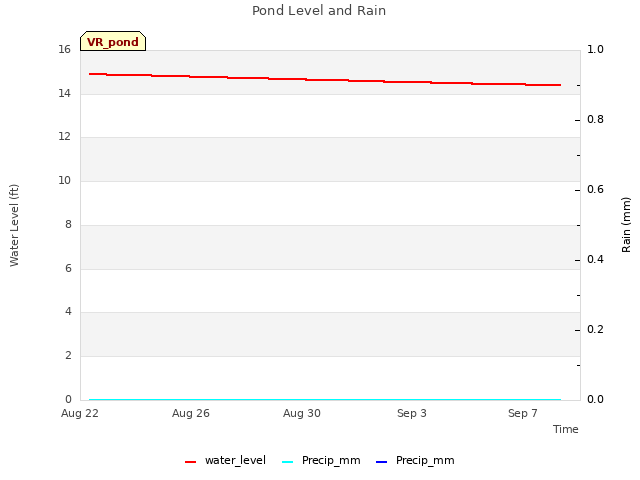

2 VR_pond graphs found
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
