Tonzi: 2017-08-17 15:45:00 (DOY 229)
Author: Daphne Szutu
Others: Joe Verfaillie

Summary: Downloaded Licor GHG data, swapped LI-7500 heads, upgraded LI-7550 software to v8.7.5, changed tower met data to collect data every minute

2017-08-17
Tonzi

We arrived at 15:45. It was clear, sunny, and warm.

I started at the floor site. I downloaded the LicorGHG data, upgraded the LI-7550 sn AIU-1869 software from v8.5.0 to v8.7.5, and checked the site setup settings.

I swapped the LI-7500 head: sn 0042 came down, and sn 75H-2180 went up. I uploaded a new config file, updated the pressure coefficients, and reset the LI-7550 box.

Floor LI-7500 readings:
-First column is 7550 v8.5.0 with sn 0042, Second column is 7550 v8.7.5 with sn 0042, Third column is 7550 v8.7.5 with sn 75H-2180.

CO2 391.5 --> 394.8 --> 396.5
H2O 786.4 --> 788.4 --> 659.3
P 99.1 --> 99.1 --> 99.1
T 35.8 --> 35.6 --> 35.8
SS 100 --> 100 --> 101

Joe was at the tower site. He updated the CR23X met program to collect data every minute, which the datalogger can store for 12 days (if we collected data every 10 sec, the datalogger only had space for 2 days).

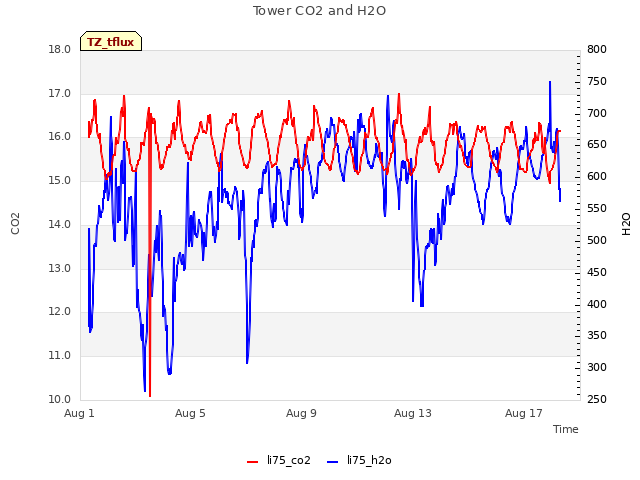

He downloaded the LicorGHG data and swapped the LI-7500 head: sn 0041 came down, and sn 75H-2182 went up. He upgraded the LI-7550 sn AIU-1866 software from v8.5.0 to v8.7.5, uploaded a new configuration file, and updated the pressure coefficients.

-First column is 7550 v8.5.0 with sn 0041, Second column is 7550 v8.7.5 with sn 0041, Third column is 7550 v8.7.5 with sn 75H-2182.

CO2 387.1 -> 387.6 -> 391.6
H2O 677.5 -> 678.4 -> 650.0
T 32.15 -> 32.21 -> 32.89
P 98.98 -> 98.99 -> 98.95
SS 96.1 -> 96.13 -> 88.3

We left at 16:30.

Field Data

No tank data

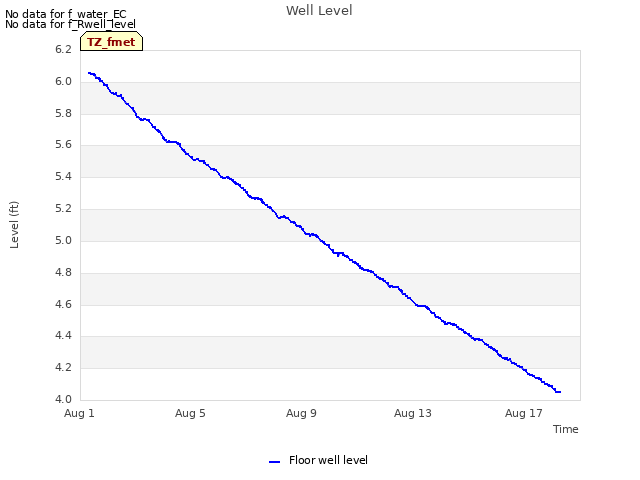

Well Depth

Date	Location	Depth (feet)
2017-08-17	VR_pond	14.9

No TZ Moisture Point data found

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-08-17	229	0	nan	0.6	0.1	1.2	0.3	15.2	6	5.7	3.9	16.2	4.6	10.3	15.1	20.2	15.3	11.9	19.1
2017-08-17	229	1	nan	0.7	0.4	0.9	0.3	15.8	6.3	5.7	3.9	19.5	4.5	9.8	14.5	20.2	15.3	12.2	18.5
2017-08-17	229	2	nan	0.1				15.2				16.2				19.1
2017-08-17	229	Avg	0-15cm																	0
2017-08-17	229	Avg	15-30cm																	0
2017-08-17	229	Avg	30-45cm																	0
2017-08-17	229	Avg	45-60cm																	0
