East End: 2017-07-19 11:00:00 (DOY 200)
Author: Daphne Szutu
Others:
Summary: Permanent tower -- fixed camera, updated CR1000 OS to 31.08 T3/Boardwalk -- regular data collection/cleaning
| 2017-07-19 East End Permanent Tower I arrived at 11:00. It was clear and sunny with a slight breeze. I downloaded the met data and current program. I saved it as 'EastEndMet_20170602_retrieve.CR1', did not make any changes, and re-saved it 'EastEndMet_20170719.CR1'. I noticed there was no CRD under LoggerNet File Control, so I tried reformatting, but still no CRD visible. On CR1000 sn 47110, I updated the OS to CR1000.Std.31.08, which was released on June 30, 2017. I used the new Serial-USB converter cable and the connection seemed steady. I sent the most recent program to the datalogger, 'EastEndMet_20170719.CR1'. The numbers seem ok but still no CRD. Finally, I disconnected the NL115 (Ethernet and CF card module) from the CR1000 and discovered a lot of dead ants in the connection between the module and the datalogger. I cleaned the ants away, reconnected, and CRD showed up! I configured CR1000 IP address and FTP settings through Device Config Utility. I left at 12:00, and came back at 13:35 and saw some photos on the CRD. I tried to fiddle with the camera angle but it is still tilted. Temporary Tower #3 Boardwalk I arrived at 12:00. I downloaded the met data and collected the flux CF card (labeled 'VR'). The reservoir water was 4/5 full and I refilled it. I cleaned the 7500 and 7700 but could only reach the bottom portion of those two sensors. I connected to the 7700 directly via Ethernet, but I wasn't sure how to connect to the 7500 without the interface box. CH4: 2.06 RSSI: 54.1 --> 65.9 after cleaning I left at 12:20 and then returned at 13:15 to download the minidot data and HOBO (stop, readout, launch). I left for the second time at 13:30. |
0 photos found
11 sets found

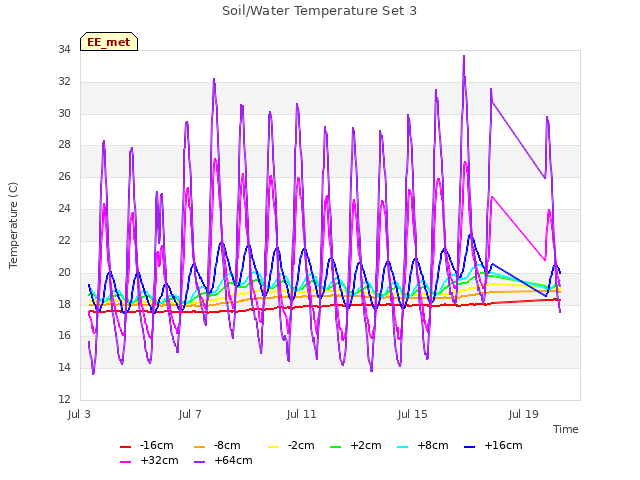

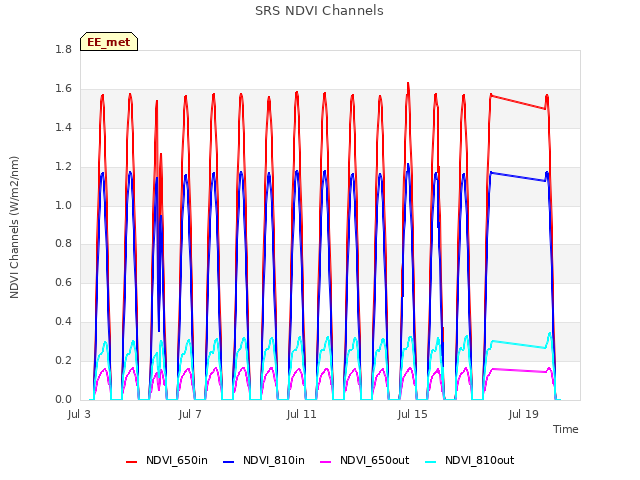

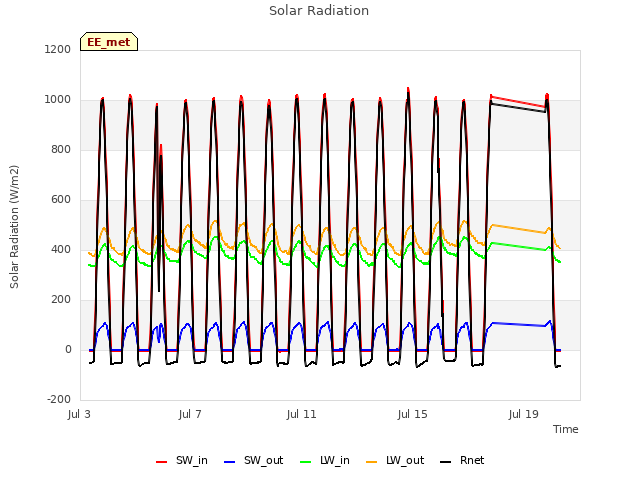

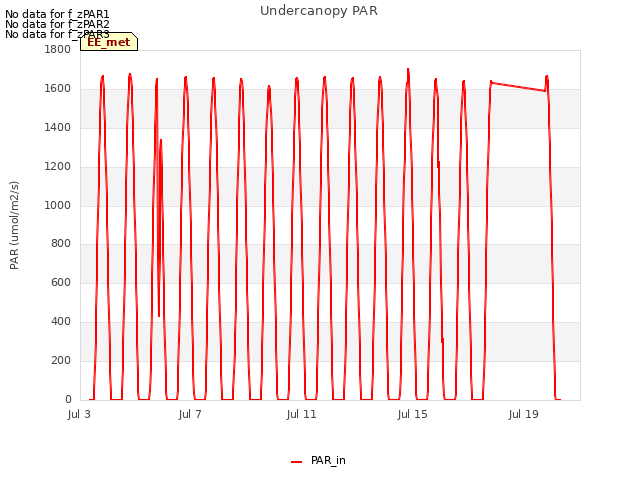

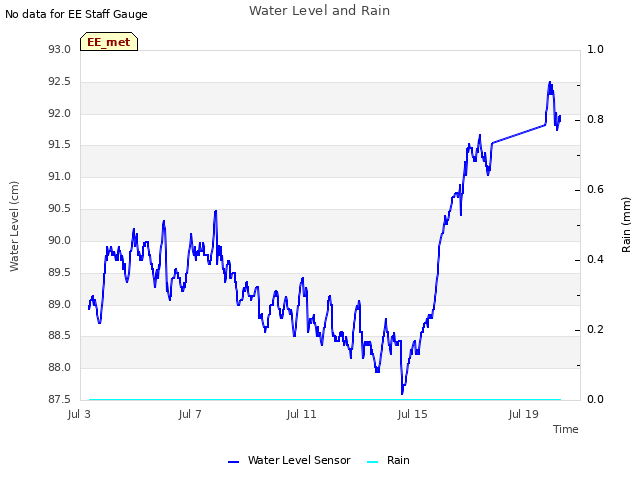

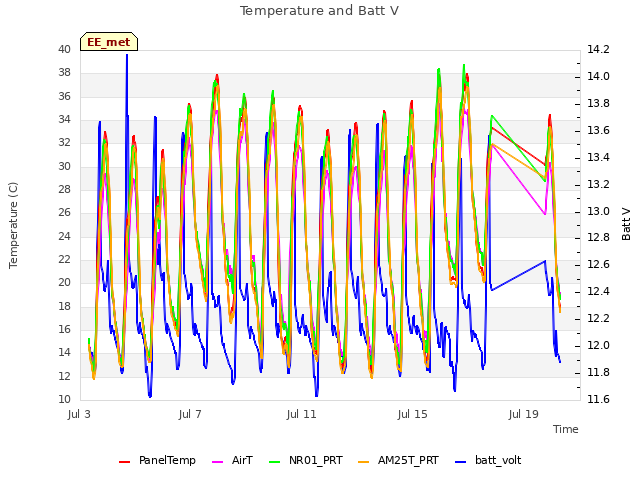

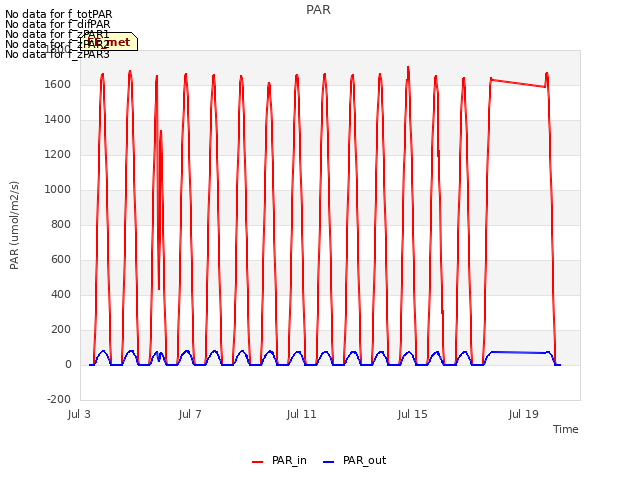

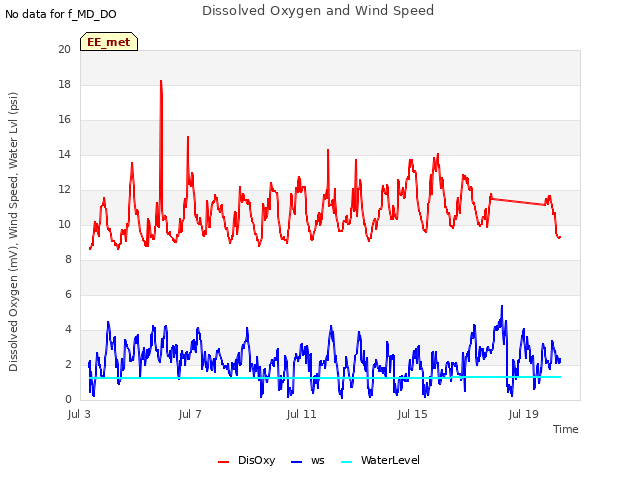

14 EE_met graphs found
Can't check EE_mixed

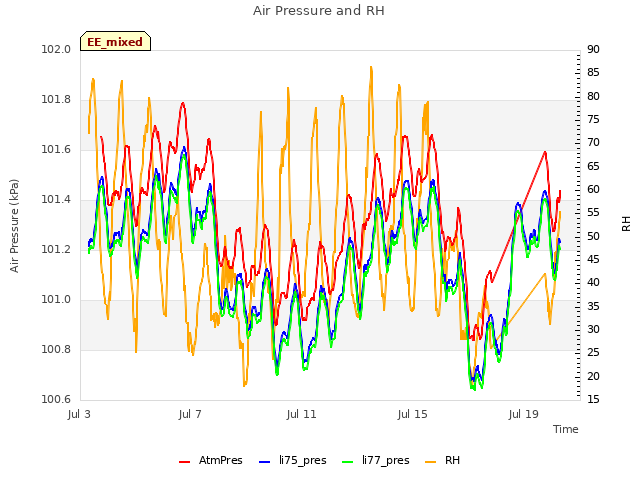

1 EE_mixed graphs found

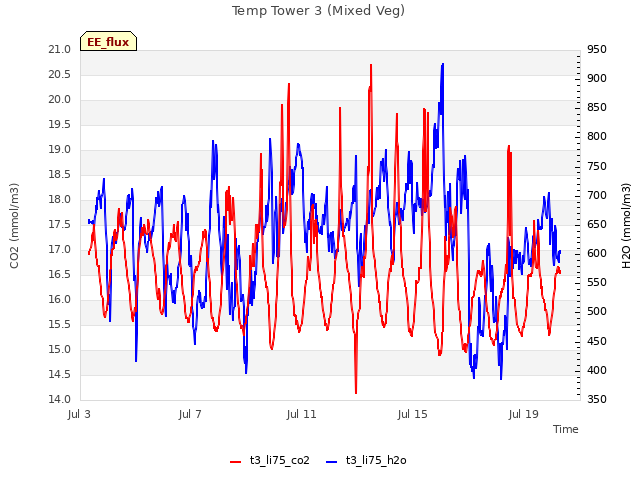

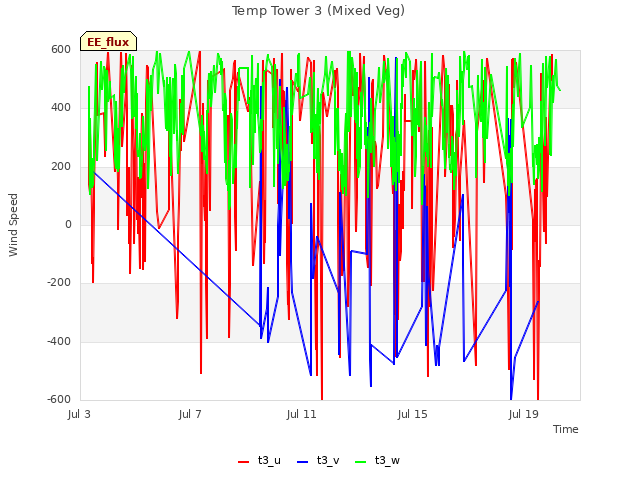

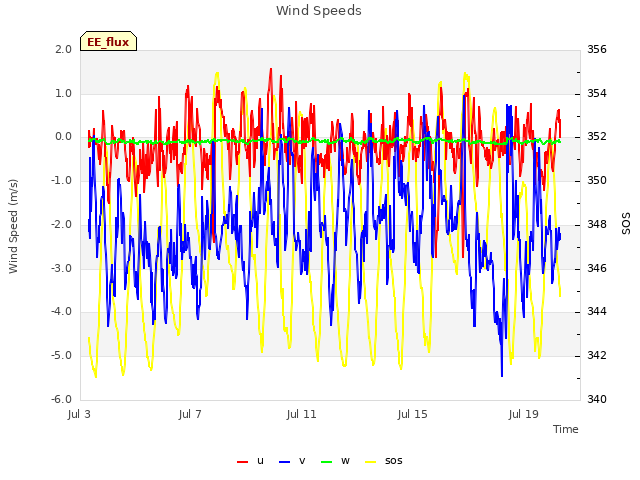

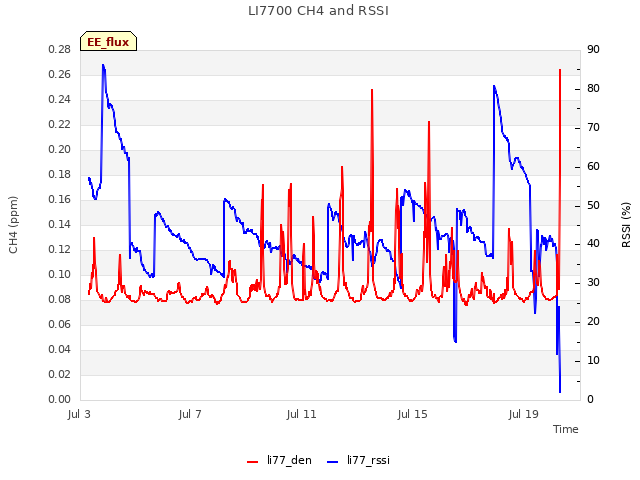

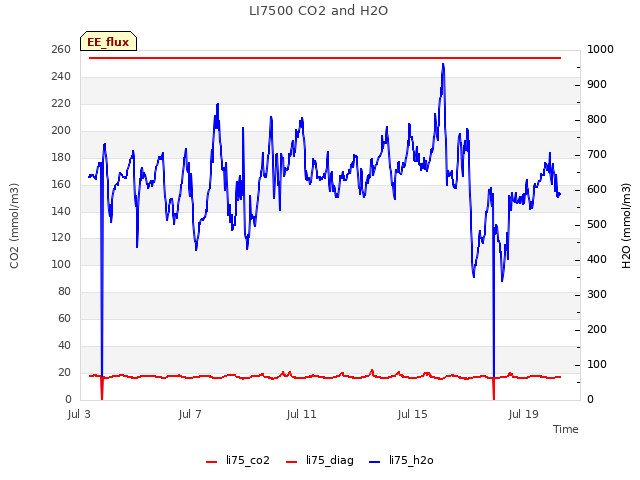

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed
No data found for EE_cam.
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

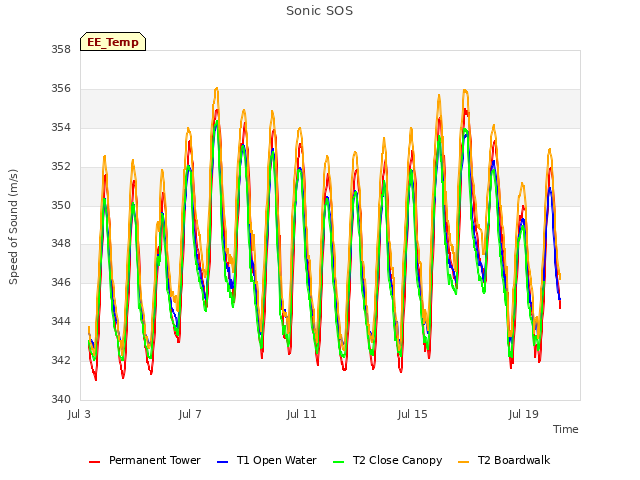

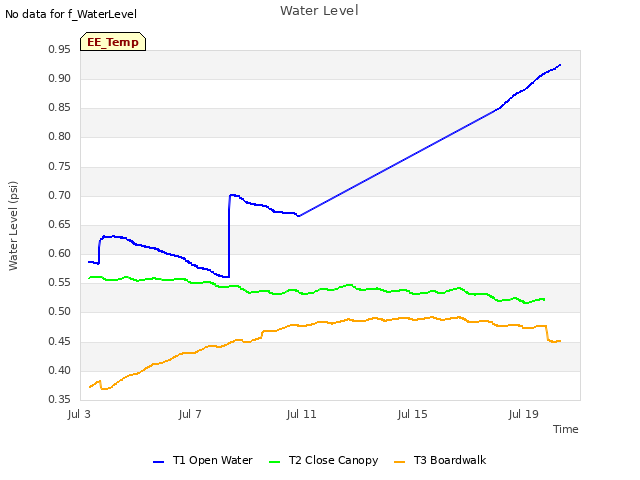

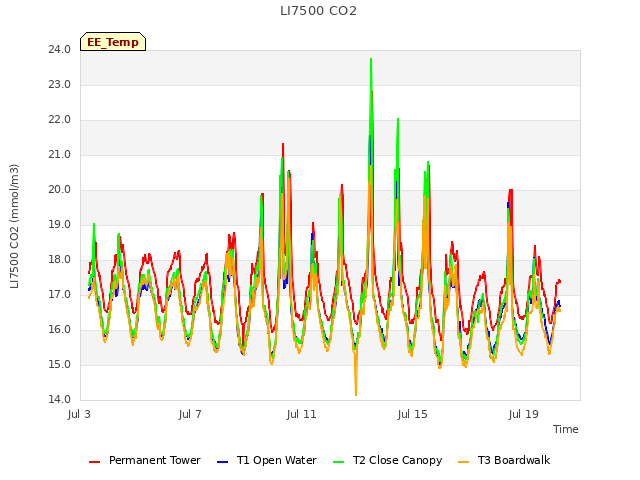

5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

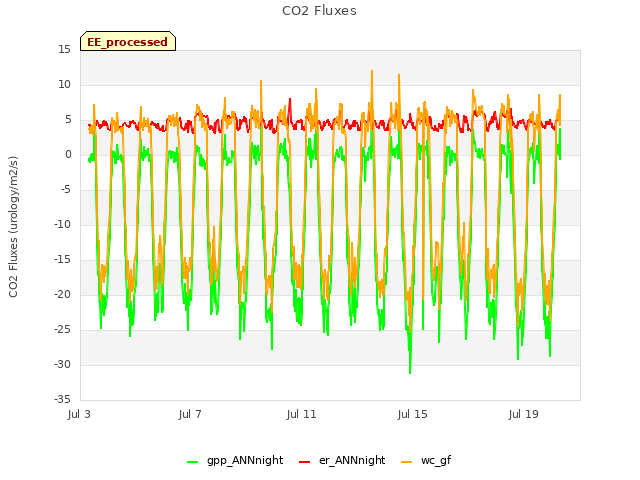

1 EE_processed graphs found
