Field Notes

<--2017-03-02 10:30:00 | 2017-03-16 09:00:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2017-03-02 10:30:00 (DOY 61)
Author: Siyan Ma
Others: Joe

Summary: Standard field work, clear and sunny, went to the pond

When: Date: 3/2/2017 , Day: 61 , Watch Time: 10:30 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: clear, sunny

Phenology:



Summary

  1. Swapped memory cards of CR1000s at three sites. (Joe)
  2. Checked and downloaded phenocam images at Tower and Vaira. (Joe)
  3. Read dendrometers
  4. Measured soil moisture
  5. Measure groundwater well and download GlobalWater data
  6. Spectrum of Vaira grassland
  7. Download IRT data
  8. Downloaded Vaira pond data (Joe)

Vaira_Grass Site

  1. Fence worked.
  2. Downloaded Phenocam images. (Joe)
  3. Swapped the memory cards of CR1000. (Joe)
  4. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  5. Checked levels of Radiation sensors, clear up surfaces.YES!
  6. Checked rain gage, make sure not clogged. YES!
  7. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence worked.
  2. swapped the memory cards of CR1000.


  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Screens of met dataloggers:

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile



  1. CO2 profile system: off

8. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence worked.
  2. Swapped the memory cards of CR1000. (Joe)
  3. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2017-03-02TZ_floor14.3
2017-03-02TZ_road27.1
2017-03-02TZ_tower16.8
2017-03-02VR_pond22.26

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => Soil_Transect_4 [5] => Soil_Transect_3 [6] => Soil_Transect_2 [7] => Soil_Transect_1 [8] => SoilCO2_West_A [9] => SoilCO2_West_B [10] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2017-03-02 61 0 0-15cm 39.3 27.6 39.9 38.2 36.1 21.4 28.5 36.4 35.2 34.9 35.5
2017-03-02 61 0 15-30cm 41.7 43.6 38.4 40.8 33.5 32.6 32.3 25.2 31.3 25.8 32.6
2017-03-02 61 0 30-45cm 38.6 43.5 39.6 42.4 36.3 32.4 37.7 35.7 36.6 39.1 39.9
2017-03-02 61 0 45-60cm 40 56.6 41.4 45.1 35.1 45.4 48.3 37.7 45.4 51.4 48.6
2017-03-02 61 1 0-15cm 38.4 24.7 39.9 38.2 35.2 21.4 27.6 35.8 36.1 34.3 36.4
2017-03-02 61 1 15-30cm 42.3 43.9 39.9 41.4 32.3 31.9 32.3 24.9 31.6 25.9 33.2
2017-03-02 61 1 30-45cm 38.5 42.7 39.6 43.3 36.6 32.7 36.6 36.3 36.6 39.4 39.4
2017-03-02 61 1 45-60cm 38.8 56.3 41.4 45.4 35.7 45.7 49.4 36.2 45 51.1 49.1
2017-03-02 61 Avg 0-15cm 38.85 26.15 39.9 38.2 35.65 21.4 28.05 36.1 35.65 34.6 35.95 33.68 11 22
2017-03-02 61 Avg 15-30cm 42 43.75 39.15 41.1 32.9 32.25 32.3 25.05 31.45 25.85 32.9 34.43 11 22
2017-03-02 61 Avg 30-45cm 38.55 43.1 39.6 42.85 36.45 32.55 37.15 36 36.6 39.25 39.65 38.34 11 22
2017-03-02 61 Avg 45-60cm 39.4 56.45 41.4 45.25 35.4 45.55 48.85 36.95 45.2 51.25 48.85 44.96 11 22

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2017-03-02 61 0 0-15cm 30.2 21.2 31.4 9.7
2017-03-02 61 0 15-30cm 29.5 34.4 19.1 21.6
2017-03-02 61 0 30-45cm 36.8 24.8 24.6 32.1
2017-03-02 61 0 45-60cm 38.2 19.1 21.6 32.6
2017-03-02 61 1 0-15cm 29.7 31.1 9.1
2017-03-02 61 1 15-30cm 29.8 32.4 19.4 21.3
2017-03-02 61 1 30-45cm 36.8 23.9 24 31.3
2017-03-02 61 1 45-60cm 38.5 20.8 21.9 33.7
2017-03-02 61 Avg 0-15cm 29.95 21.2 31.25 9.4 22.95 4 7
2017-03-02 61 Avg 15-30cm 29.65 33.4 19.25 21.45 25.94 4 8
2017-03-02 61 Avg 30-45cm 36.8 24.35 24.3 31.7 29.29 4 8
2017-03-02 61 Avg 45-60cm 38.35 19.95 21.75 33.15 28.3 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2017-03-02125.5
2017-03-0210223.0
2017-03-02219.9
2017-03-0224523.3
2017-03-02323.9
2017-03-02420.0
2017-03-02521.1
2017-03-02717.7
2017-03-027223.5
2017-03-027922.8
2017-03-02821.0

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

Z-cam 3 fell over
Z-cam 3 fell over

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Tonzi Tower Met: Temperature and Power

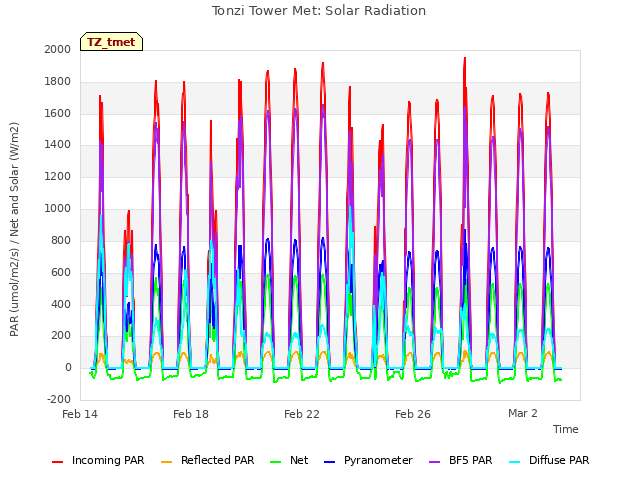

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

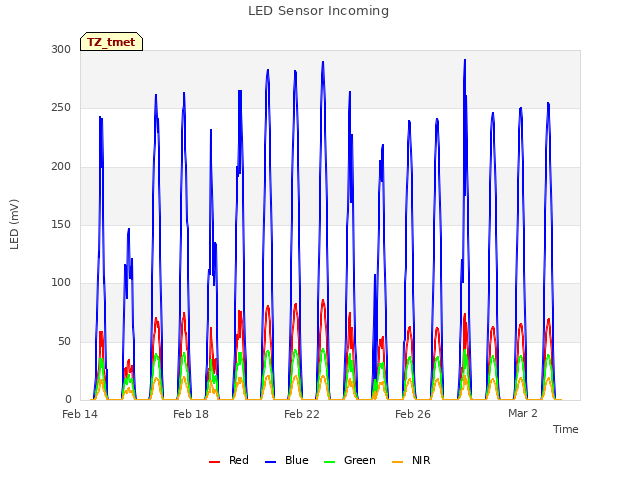

LED Sensor Incoming

LED Sensor Outgoing

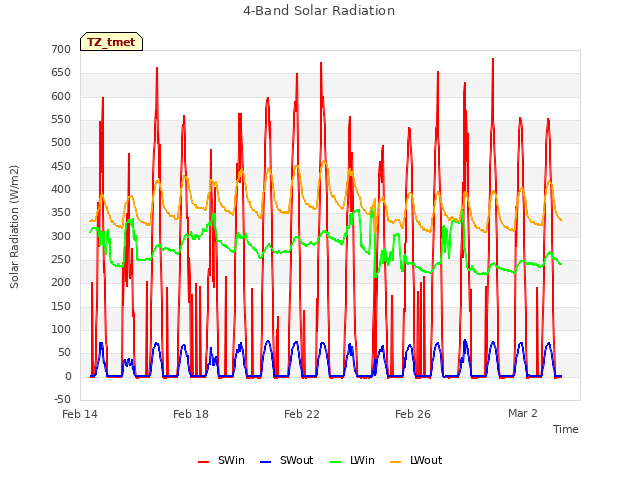

4-Band Solar Radiation

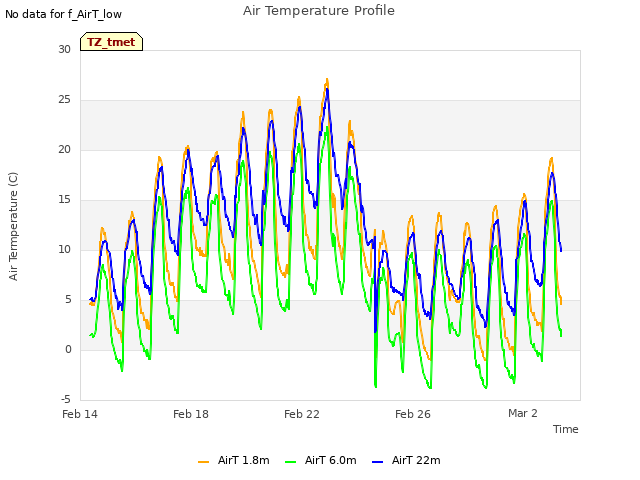

Air Temperature Profile

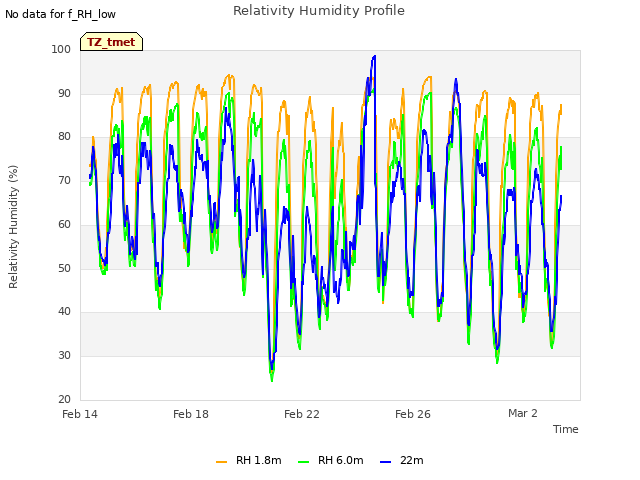

Relativity Humidity Profile

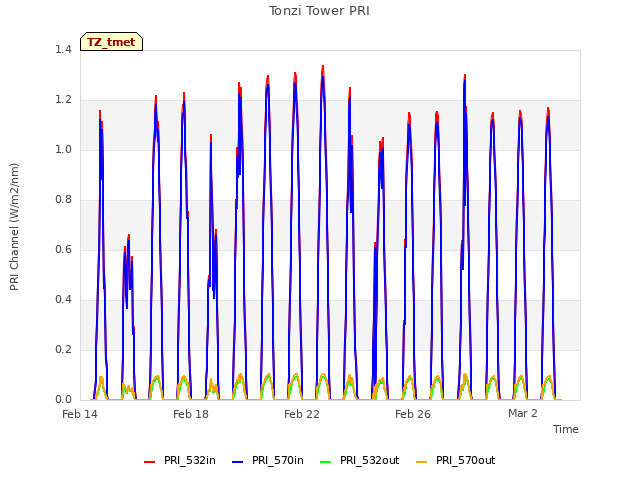

Tonzi Tower PRI

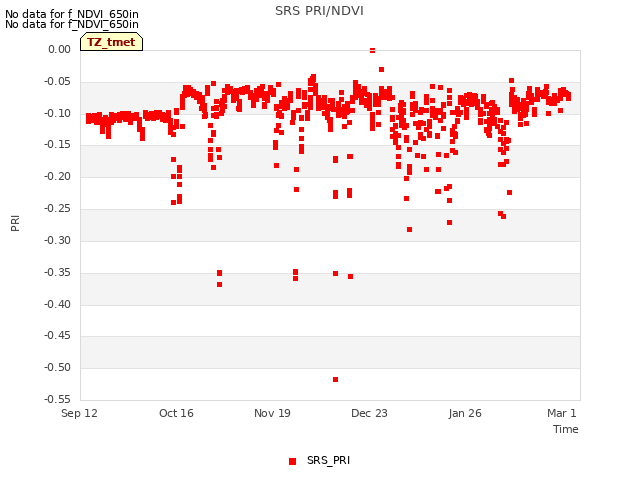

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

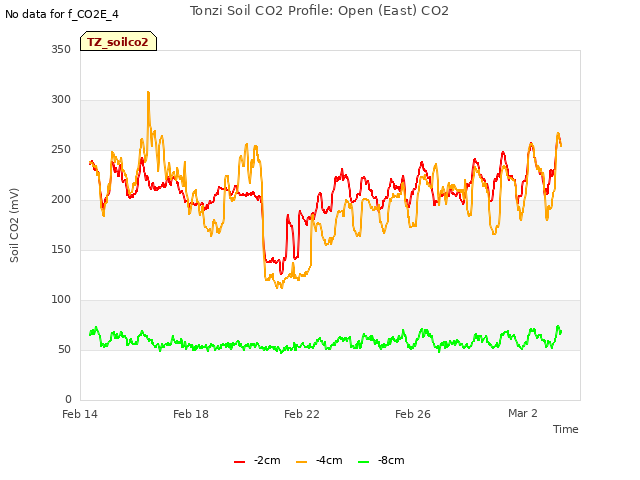

Tonzi Soil CO2 Profile: Open (East) CO2

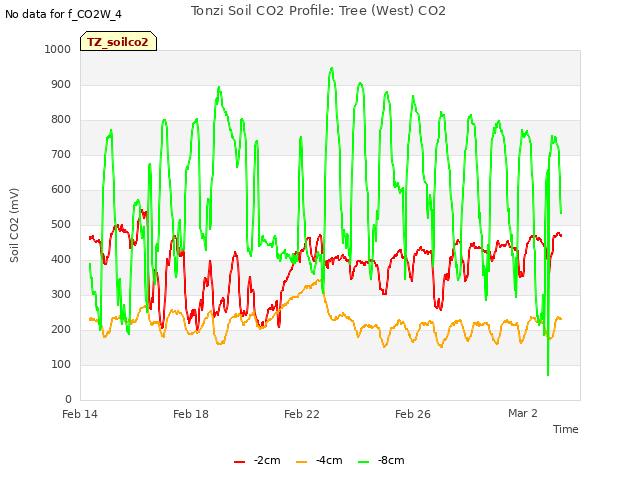

Tonzi Soil CO2 Profile: Tree (West) CO2

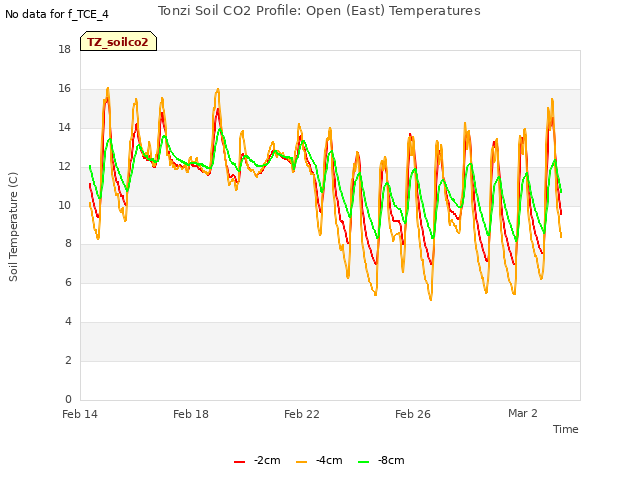

Tonzi Soil CO2 Profile: Open (East) Temperatures

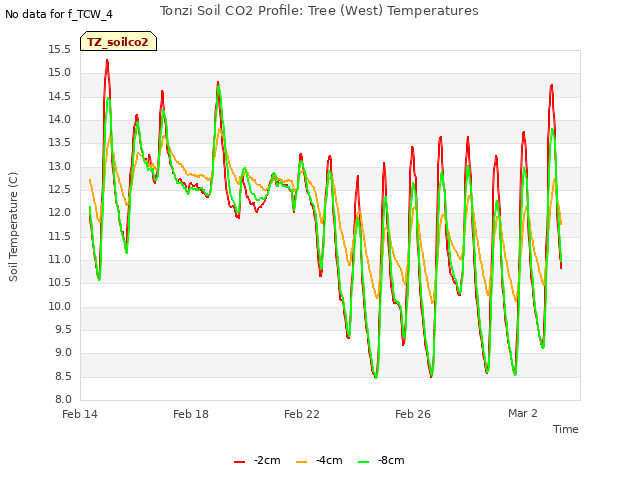

Tonzi Soil CO2 Profile: Tree (West) Temperatures

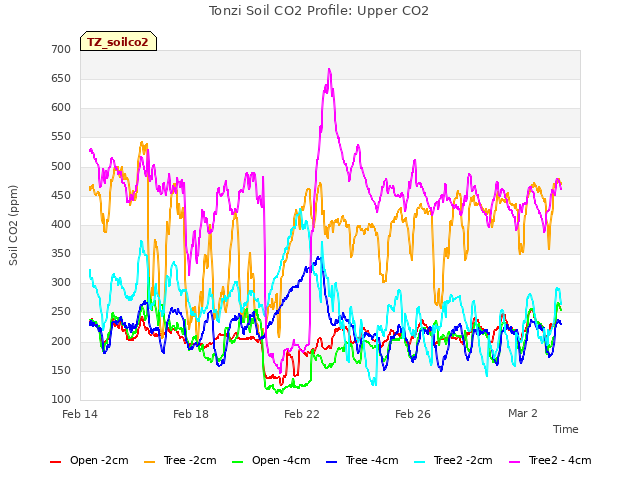

Tonzi Soil CO2 Profile: Upper CO2

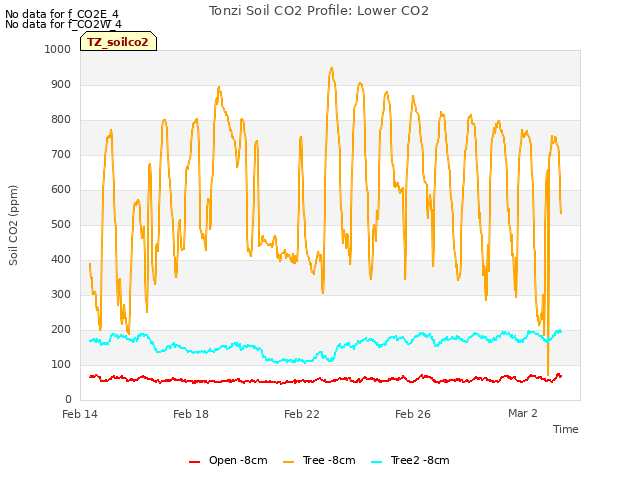

Tonzi Soil CO2 Profile: Lower CO2

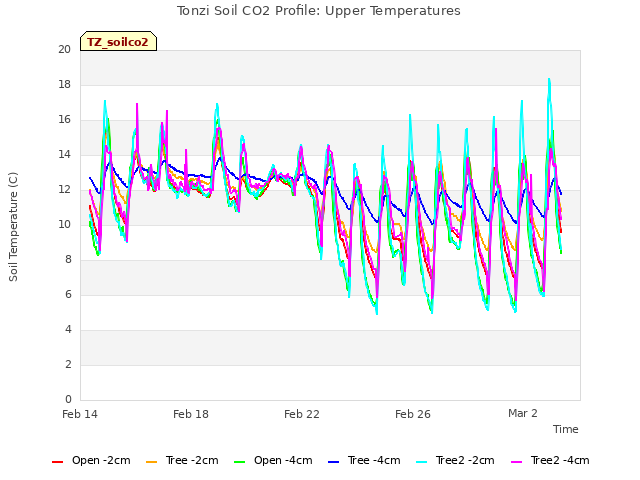

Tonzi Soil CO2 Profile: Upper Temperatures

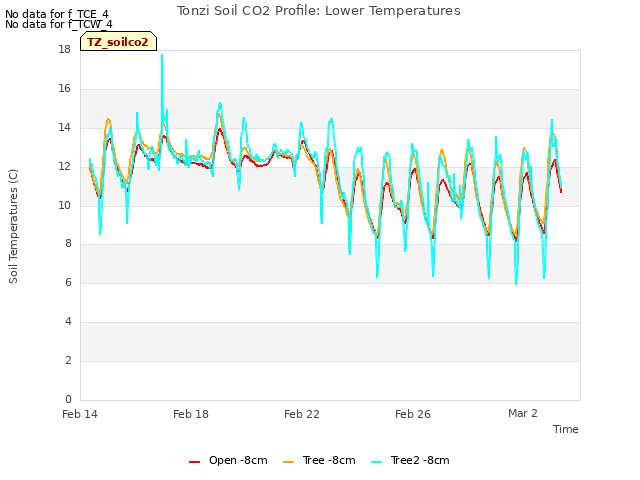

Tonzi Soil CO2 Profile: Lower Temperatures

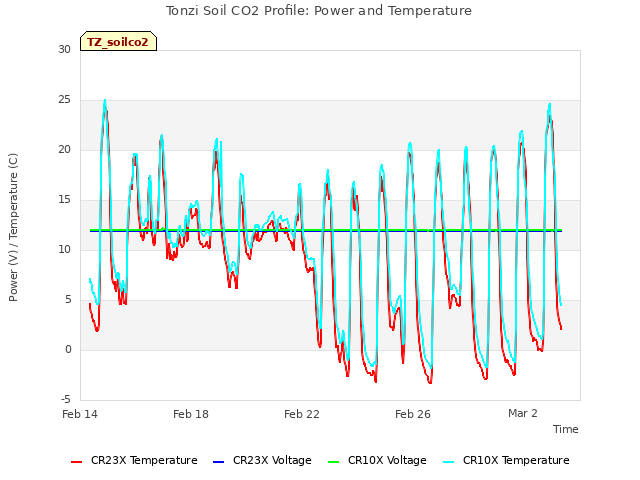

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

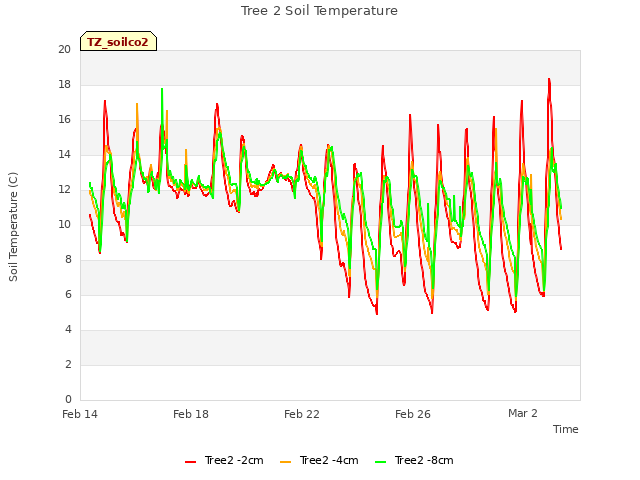

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

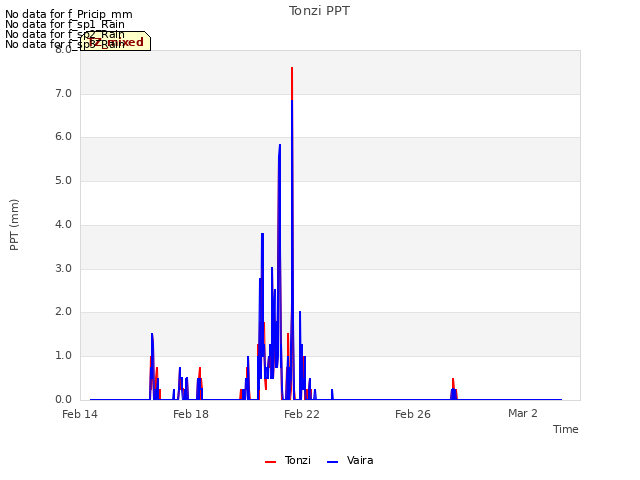

Tonzi PPT

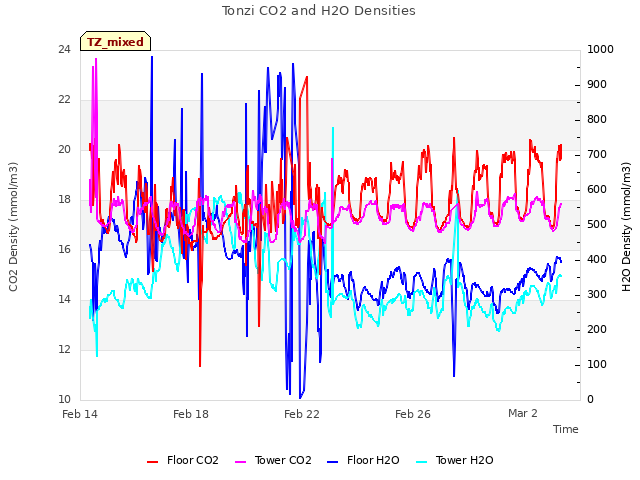

Tonzi CO2 and H2O Densities

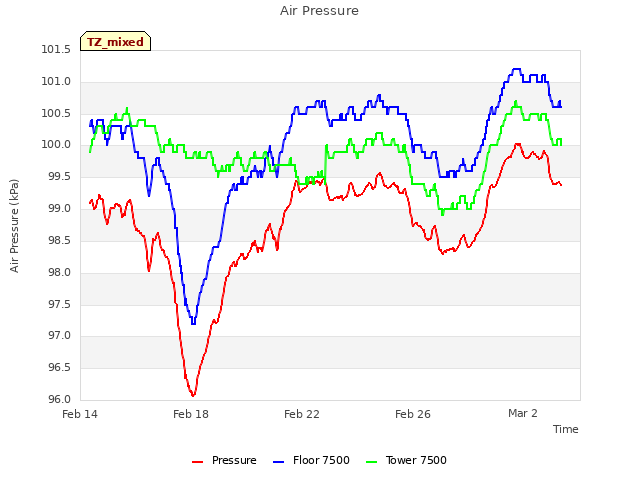

Air Pressure

1 TZ_fflux graphs found

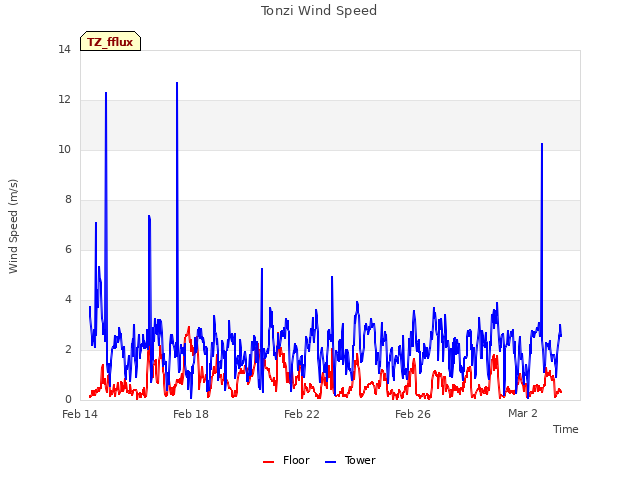

Tonzi Wind Speed

8 TZ_fmet graphs found

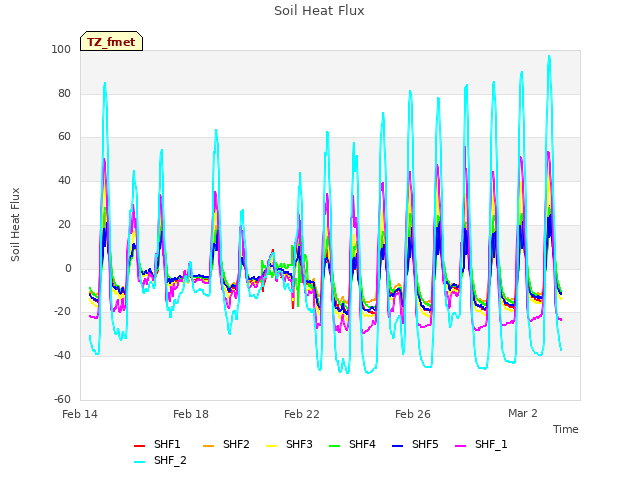

Soil Heat Flux

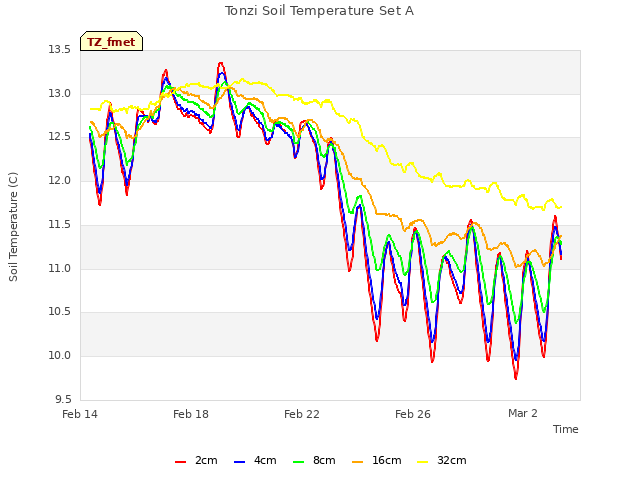

Tonzi Soil Temperature Set A

Tonzi Soil Temperatures Set B

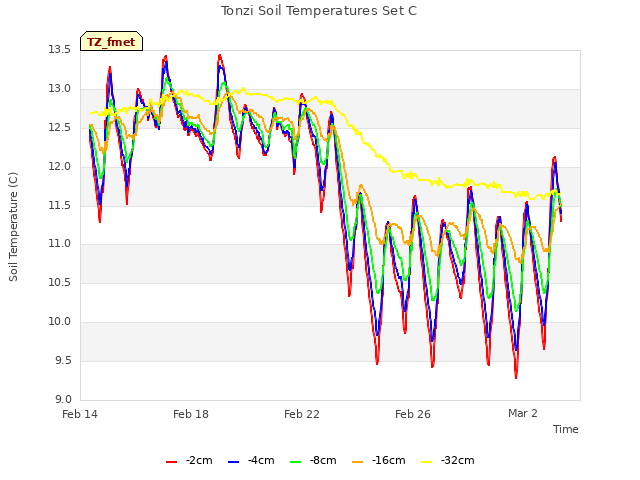

Tonzi Soil Temperatures Set C

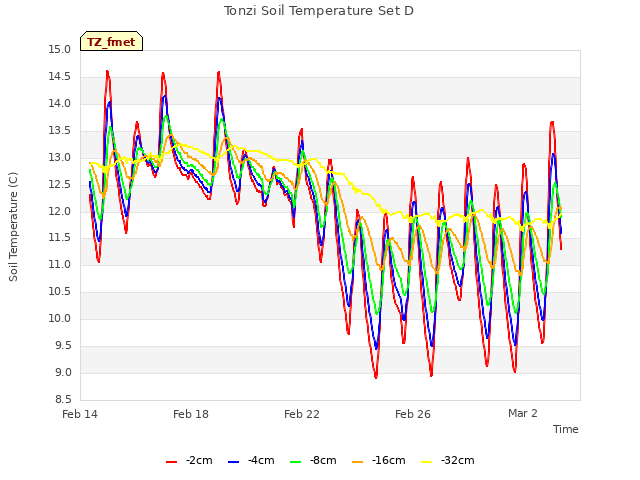

Tonzi Soil Temperature Set D

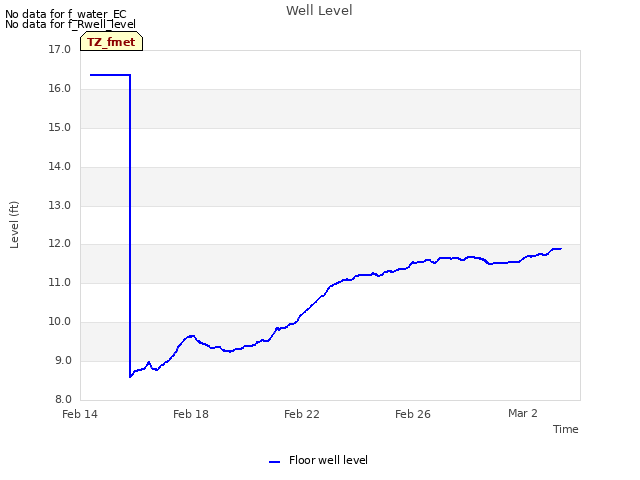

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

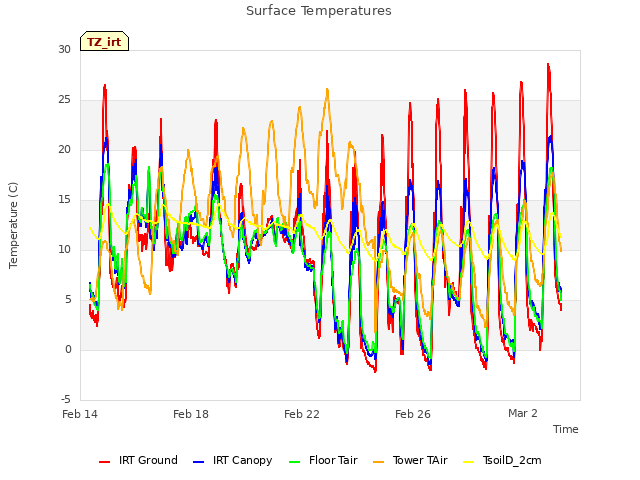

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

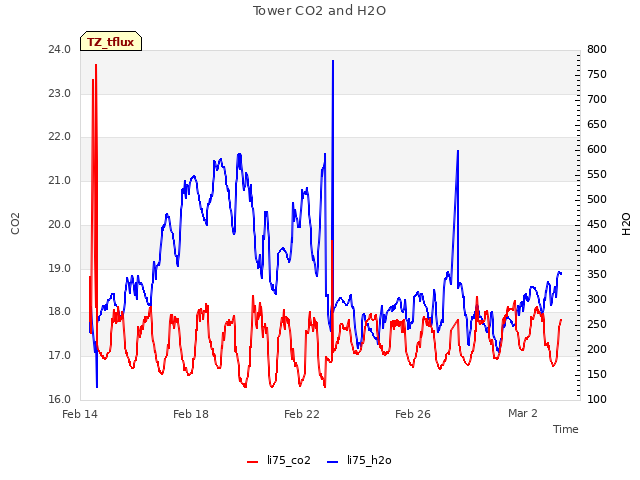

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

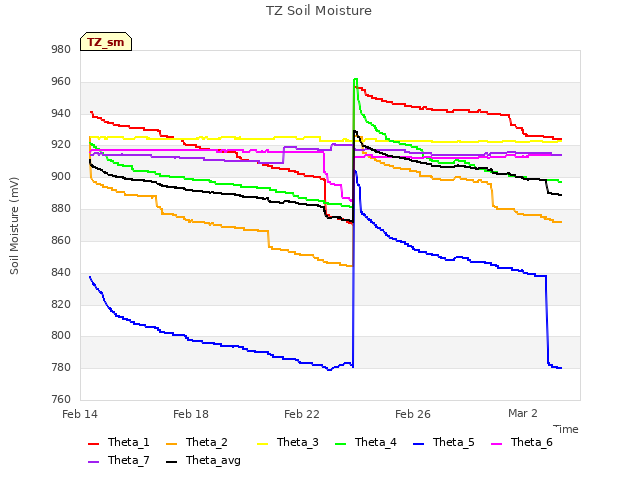

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

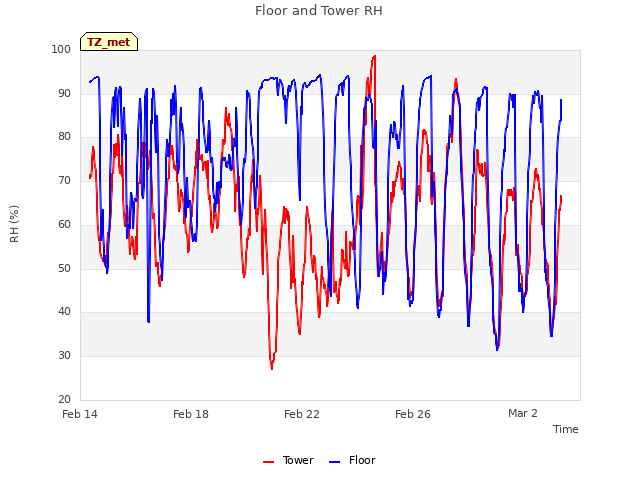

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
