Bouldin Alfalfa: 2017-03-01 10:00:00 (DOY 60)
Author: Daphne Szutu
Others: Sam Chamberlain

Summary: Regular data collection/cleaning

2017-03-01
Bouldin Alfalfa

We arrived at 10:00. The weather was sunny, clear, breezy. There were many geese on the field. The road by the field enough is dry enough to drive on. There was not too much dew on the alfalfa so we could keep our shoes dry.

Sam cleaned the radiation and EC sensors. He refilled the wash reservoir; it was 1/3 empty.

I downloaded the met and USB GHG data. I collected all data on the datalogger; the data starts at 2/1/2017 12:30. I also swapped the camera card.

LI7500 readings:
CO2 428.3 umol/mol
H2O 373.3 mmol/m3
T 11.3 Celsius
P 103.0 kPa
SS 80.8 -> 81.3 after cleaning

LI7700 readings:
CH4: 2.16
RSSI: 47.9 -> 76.1 after cleaning

We left at 10:15.

Next Mowing: 2017-04-24

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

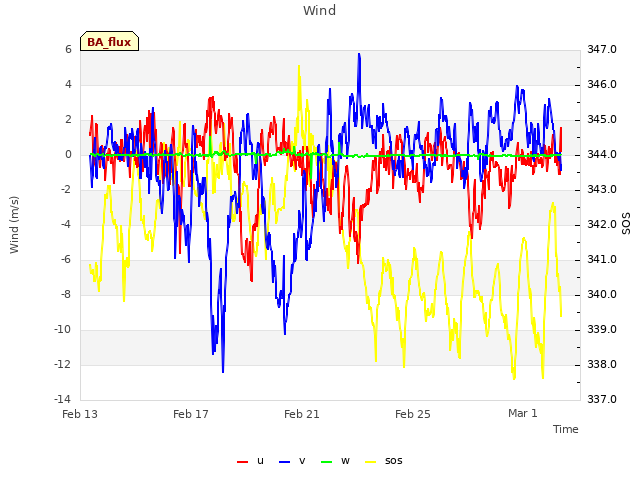

Explore the graph:Wind in a new window

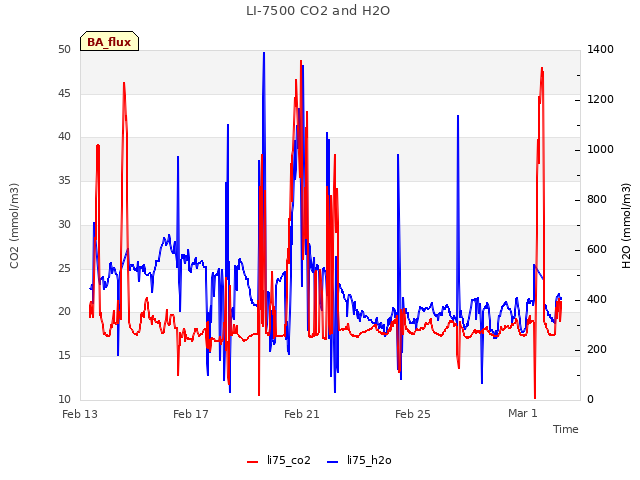

Explore the graph:LI-7500 CO2 and H2O in a new window

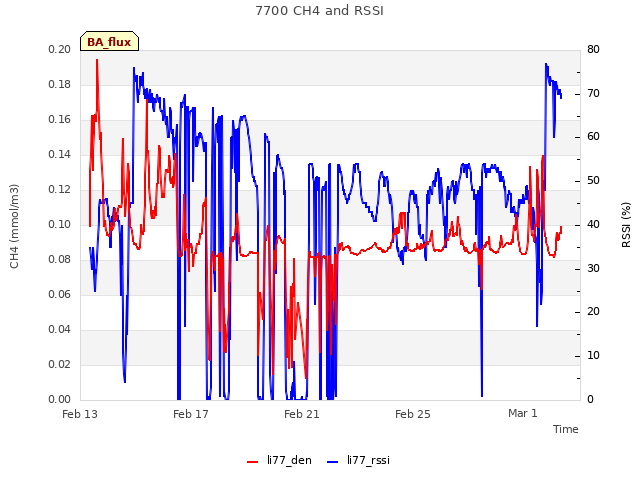

Explore the graph:7700 CH4 and RSSI in a new window

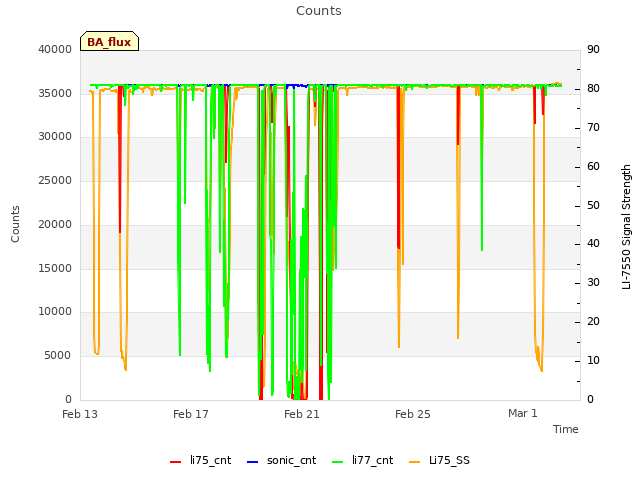

Explore the graph:Counts in a new window

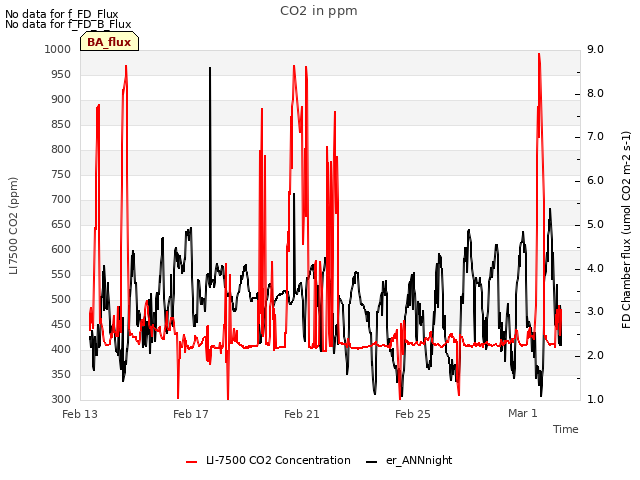

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

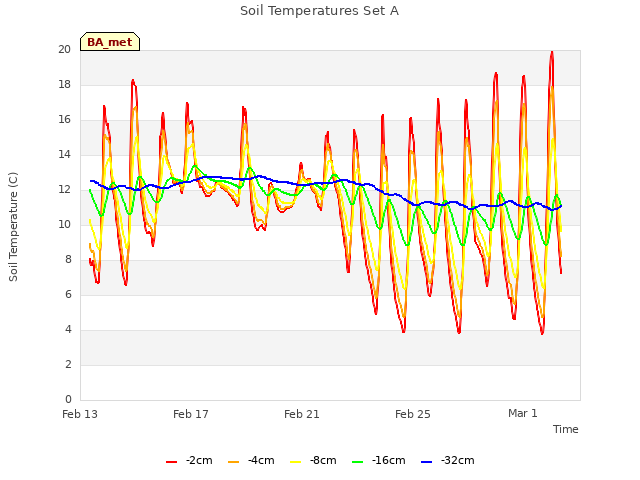

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

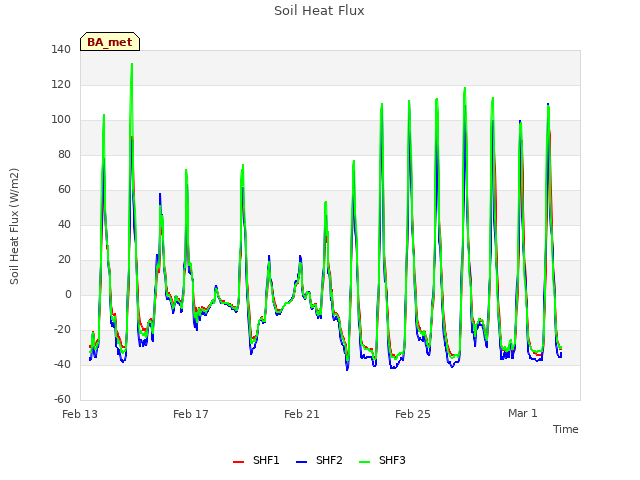

Explore the graph:Soil Heat Flux in a new window

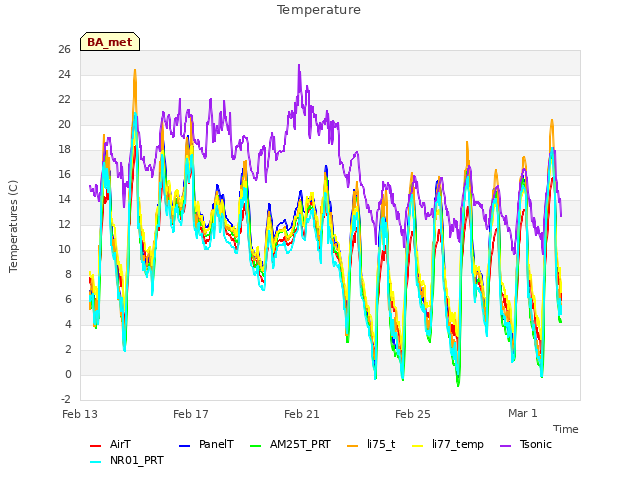

Explore the graph:Temperature in a new window

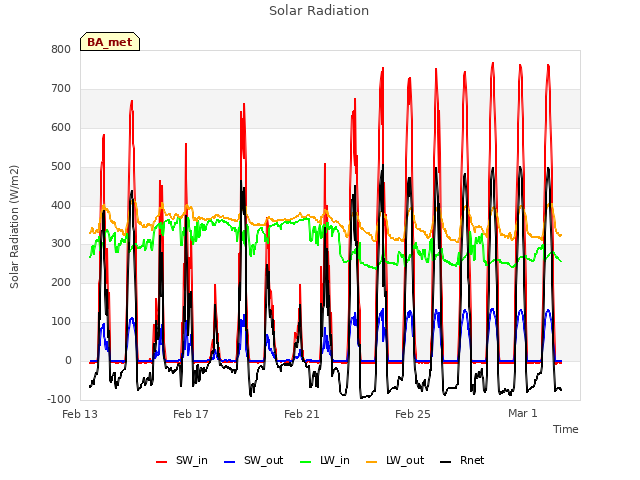

Explore the graph:Solar Radiation in a new window

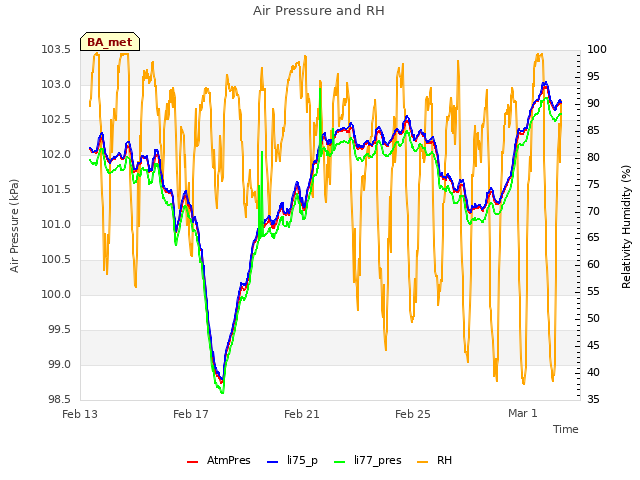

Explore the graph:Air Pressure and RH in a new window

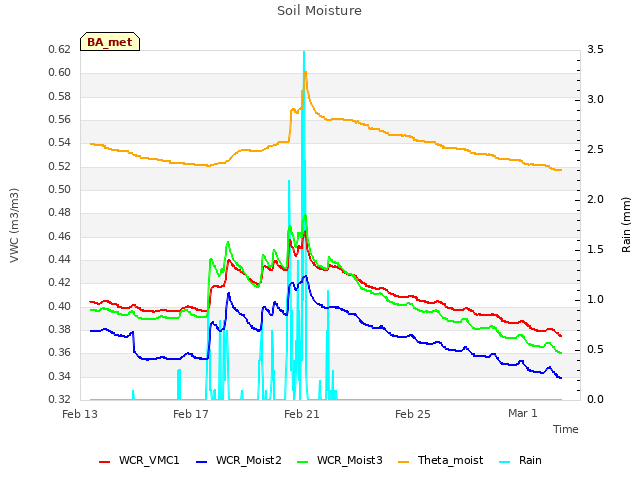

Explore the graph:Soil Moisture in a new window

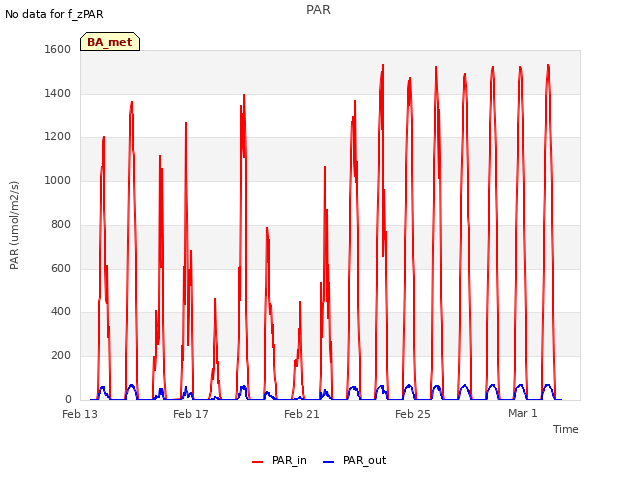

Explore the graph:PAR in a new window

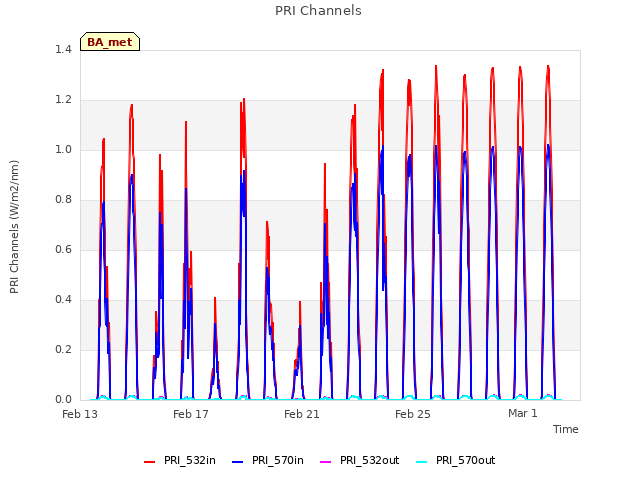

Explore the graph:PRI Channels in a new window

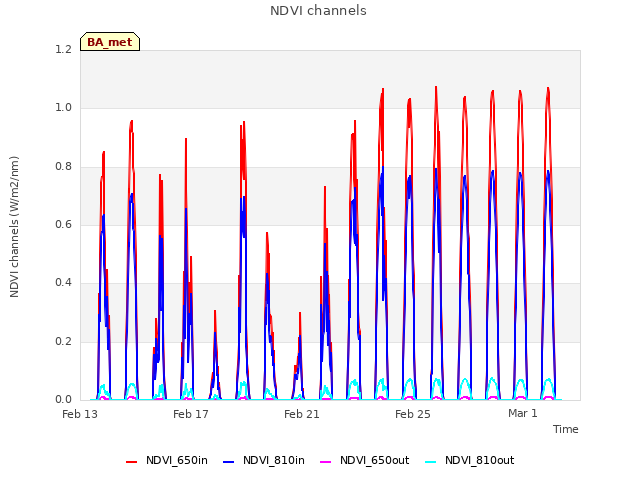

Explore the graph:NDVI channels in a new window

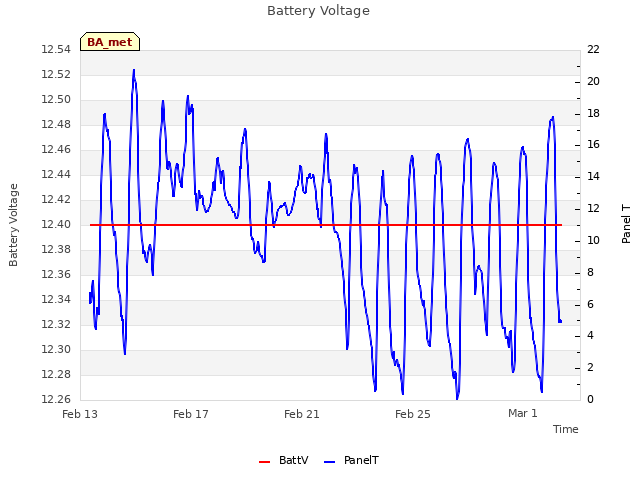

Explore the graph:Battery Voltage in a new window

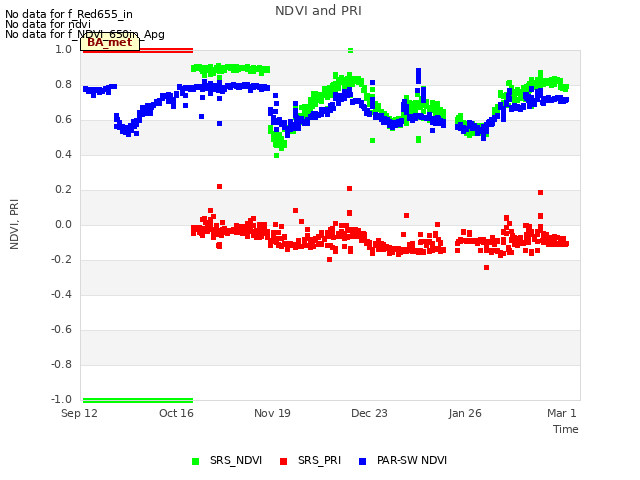

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

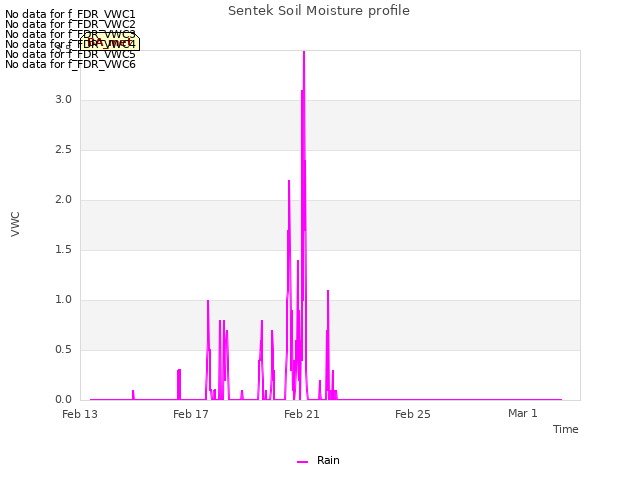

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

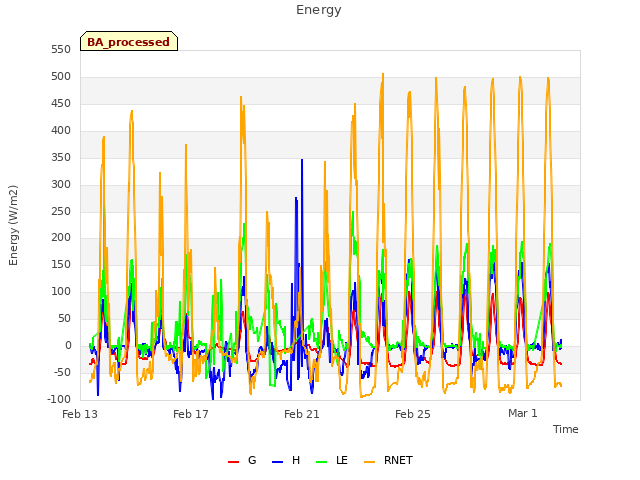

Explore the graph:Energy in a new window
