Field Notes
<--2007-06-23 15:30:00 | 2007-07-09 00:00:00-->Other sites visited today: Sherman Island
Phenocam link: Searching...
Tonzi: 2007-06-27 00:00:00 (DOY 178)
Author: Ted Hehn
Others:
| Tonzi Ranch:
Tower LI 7500 traces flat – no voltage present intermittent cable/receptacle problem Problem lies in loose terminals of green connector on mother board Remove Ryl3a from RRR and install ryl 4. This version only takes raw data if unit is in motion at 9 am and remains at charge station until light levels are sufficient. Old version undocked when charge point was reached CO2 profile pump stalled- hit with fist and it starts build mount that holds the pump vertical (longer tubing required) to allow dust to fall away from brushes Vaira Ranch: All appears well. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
Water Potential - mode: raw
| Time | Species | Tree | readings (bar) | ||||
|---|---|---|---|---|---|---|---|
| 2007-06-27 04:42:00 | OAK | 255 | -17 | -17 | -19 | -23 | -32 |
| 2007-06-27 04:50:00 | OAK | 102 | -18 | -18.5 | -18 | -18.5 | -19.5 |
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

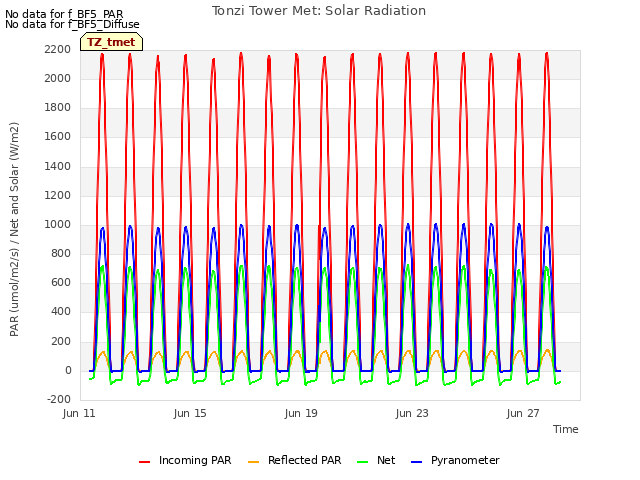

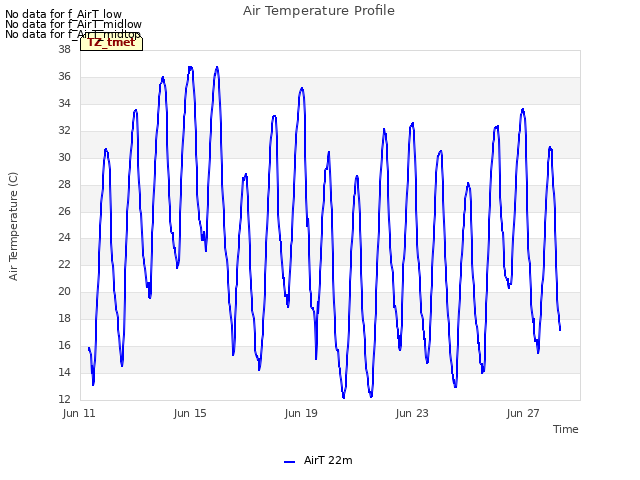

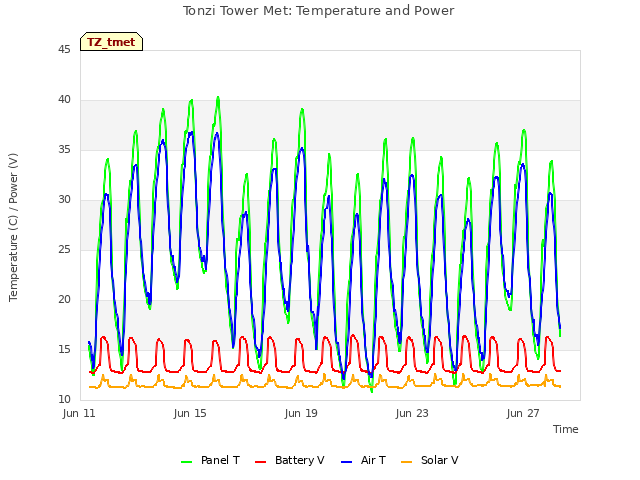

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

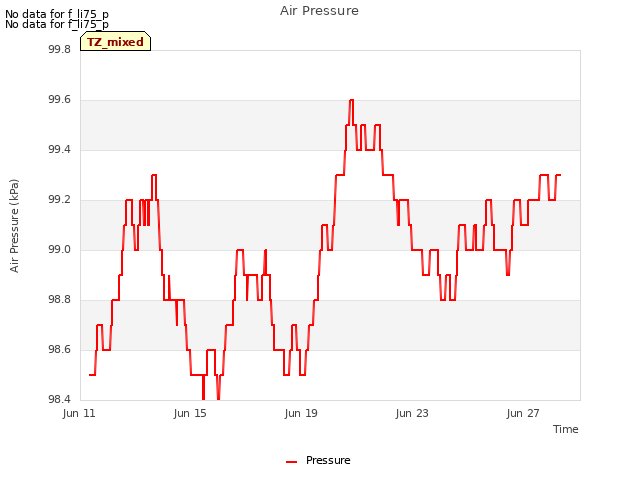

3 TZ_mixed graphs found
No data found for TZ_fflux.

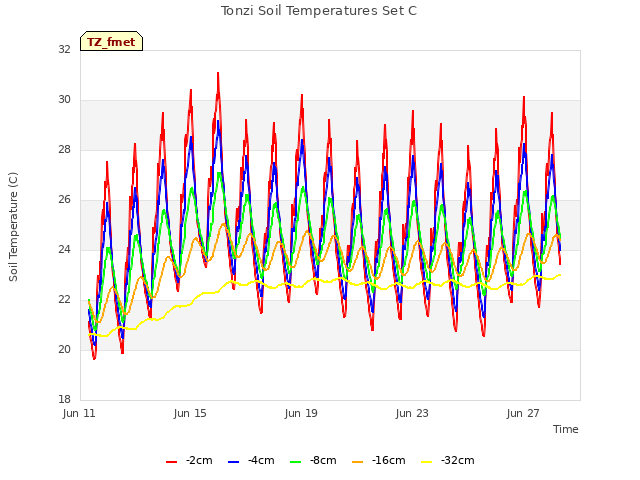

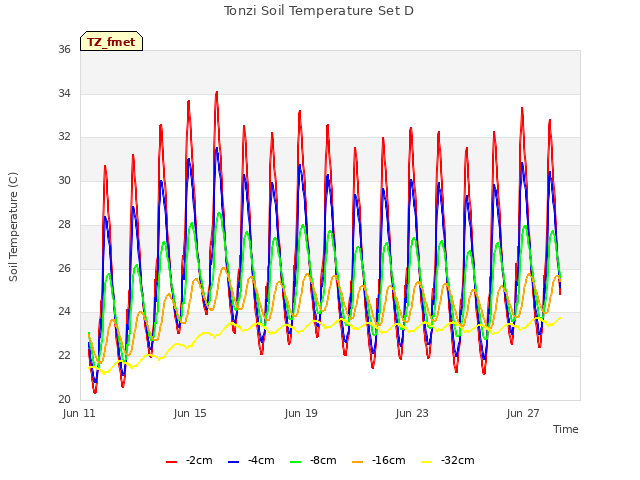

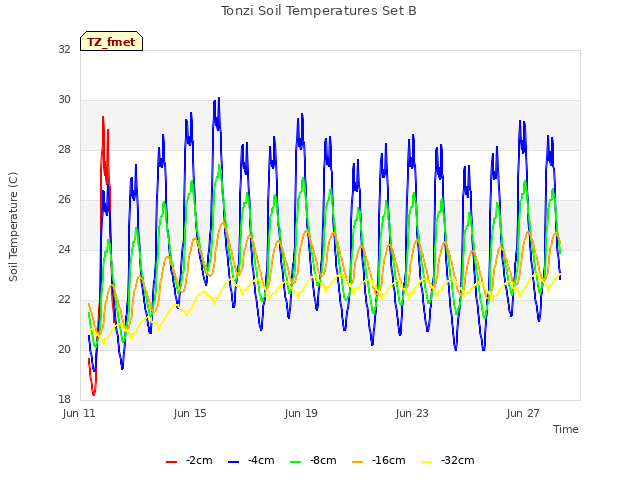

8 TZ_fmet graphs found
No data found for TZ_tram.

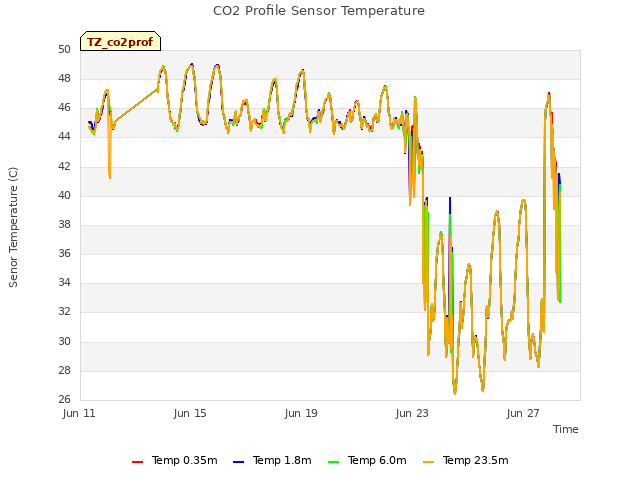

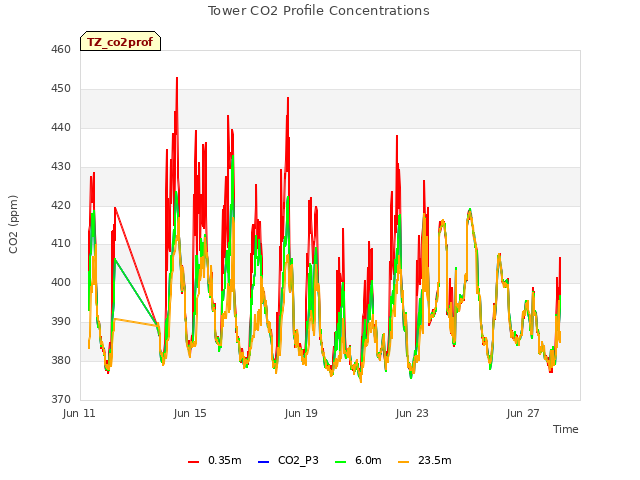

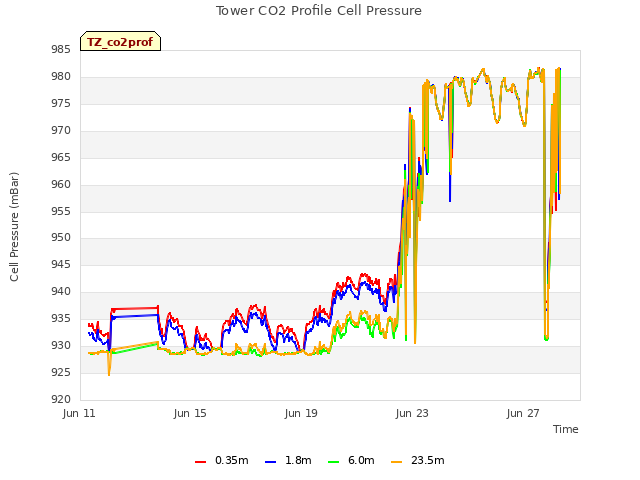

3 TZ_co2prof graphs found
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

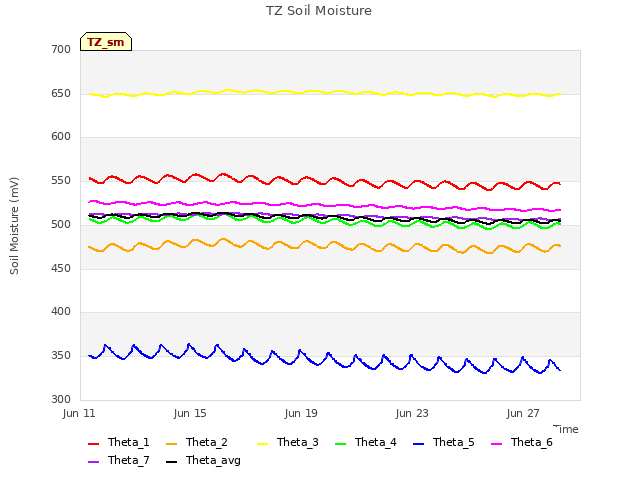

2 TZ_sm graphs found
Can't check TZ_met

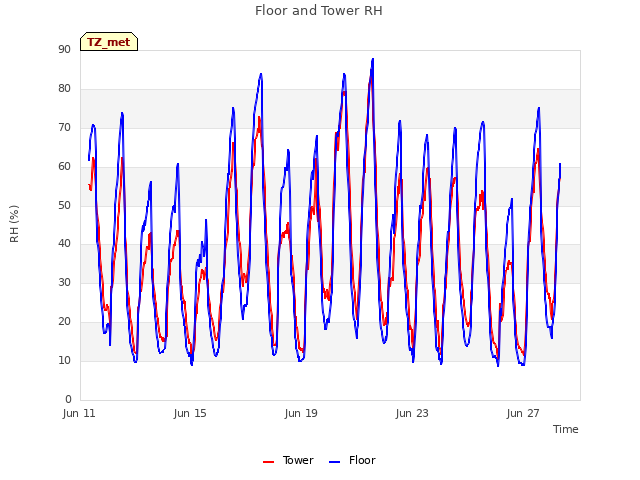

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
