Field Notes

<--2007-06-21 12:30:00 | 2007-07-05 13:00:00-->
Other sites visited today: Tonzi

Sherman Island: 2007-06-27 12:15:00 (DOY 178)
Author: Matteo Detto
Others:

Summary: Downloaded Sherman Island data; checked auto power-on; downloaded data from laser; checked old files; took 4 LAI samples; set up bug traps.

When: Date: 27 June 2007 Day 178 Standard Time: 12:15

Where: Sherman Island - Methane Study

Who: MD

Weather: clear sky and windy

Phenology: weed still in flower, green&dry

Tasks

  1. check and download data at Sherman Island
  2. Check auto power-on
  3. download data from laser
  4. Check old files
  5. Take 4 LAI samples
  6. Bugs trap

Sherman Island Pasture Site

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: 12.019V
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File name

D:\Data\SI07 .raw

mean

std

mean

std

w

-0.17

Ts

25.6

u

2.6

H2O

3.0

v

4.8

CO2

1.7

CH4

1.842

  1. Methane Sensor

Cell Pressure – near 159

159.8

Cell Temperature

34.8

Mirror time

15.4

    1. Double Check

i. Sample rate: 10Hz?:

ii. Methane ppm Hi flow:

iii. Methane ppm, low flow (remember to put back in high flow:

iv. Pump status??:____

v. Filter Status:______

vi. Check Water in tube:

  1. downloading data
  2. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  3. Check the fans of air temp. and relative humidity sensors
  4. Check MD-9 system connections
  5. Check CR23X with two multiplexers and sensor values
  6. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

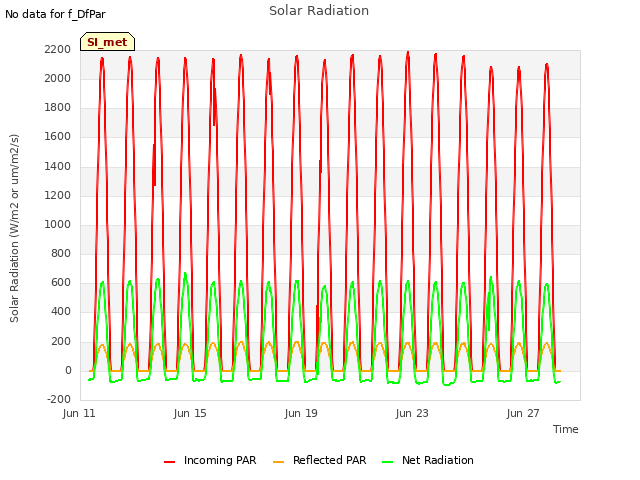

Solar Radiation

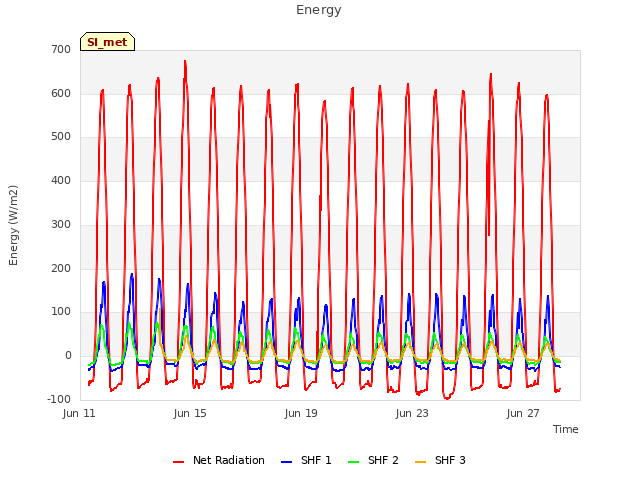

Energy

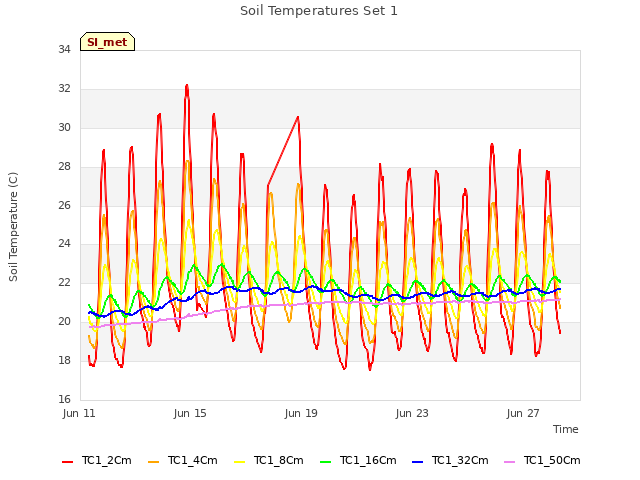

Soil Temperatures Set 1

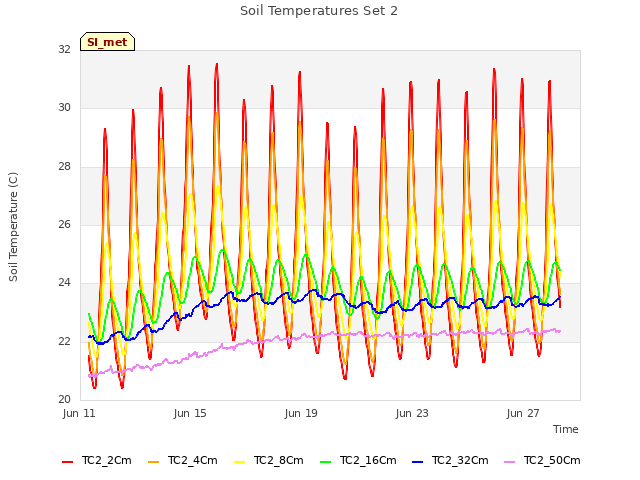

Soil Temperatures Set 2

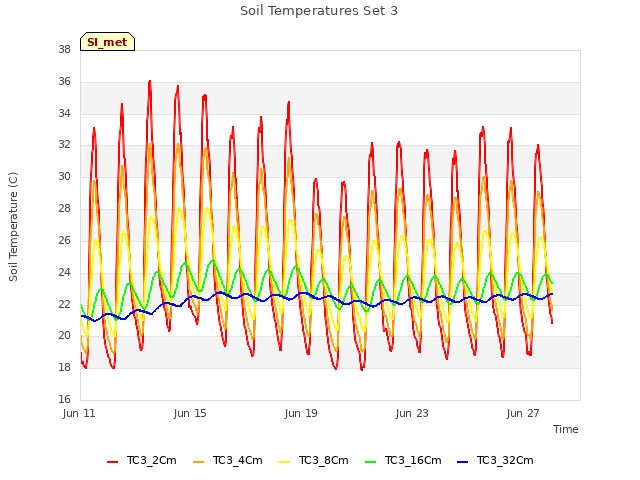

Soil Temperatures Set 3

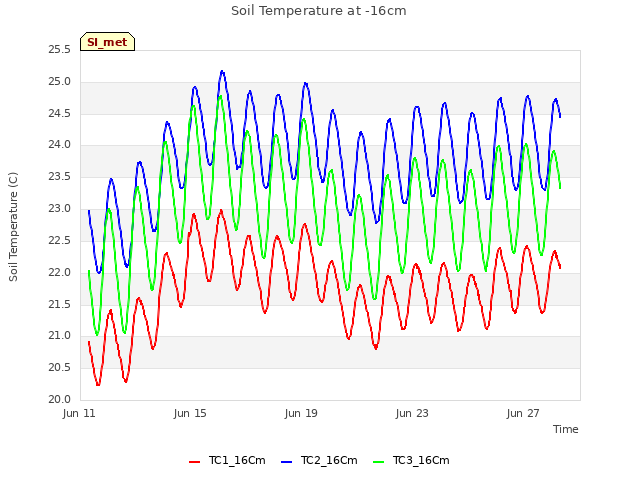

Soil Temperature at -16cm

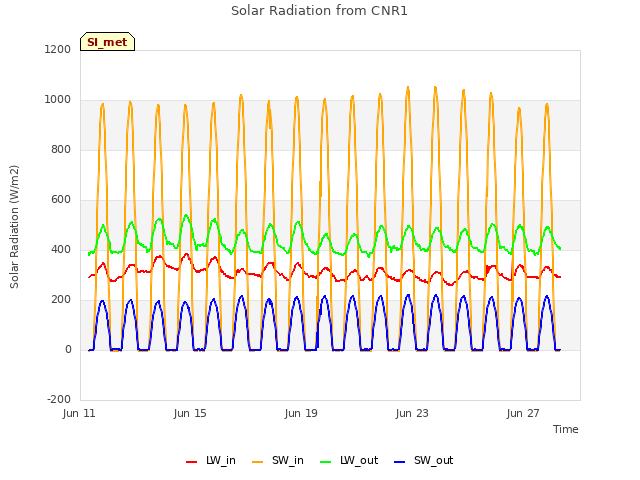

Solar Radiation from CNR1

Sherman Island Rain

Sherman Well Level

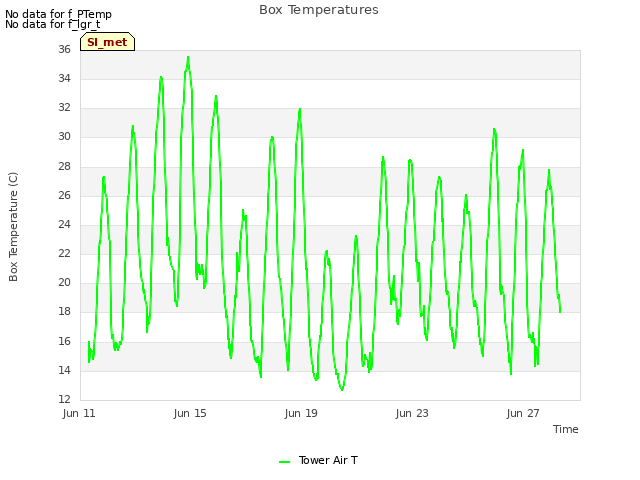

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

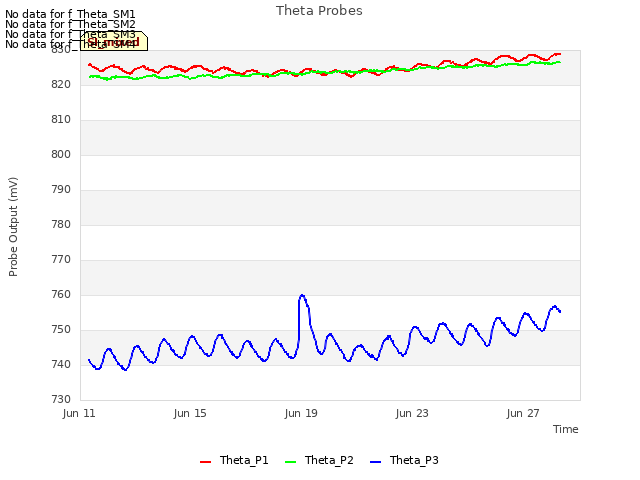

Theta Probes

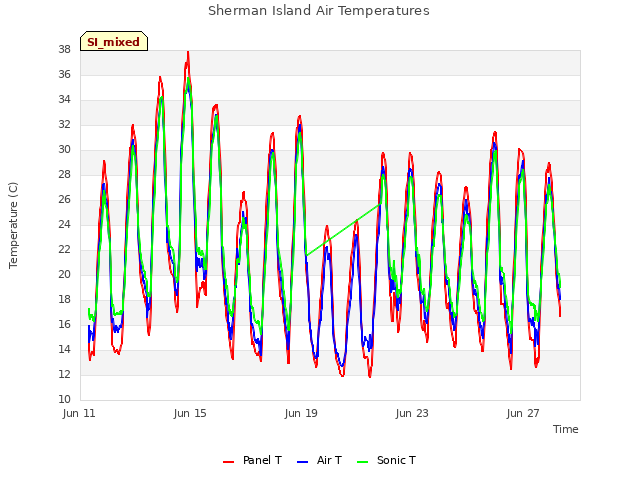

Sherman Island Air Temperatures

4 SI_flx graphs found

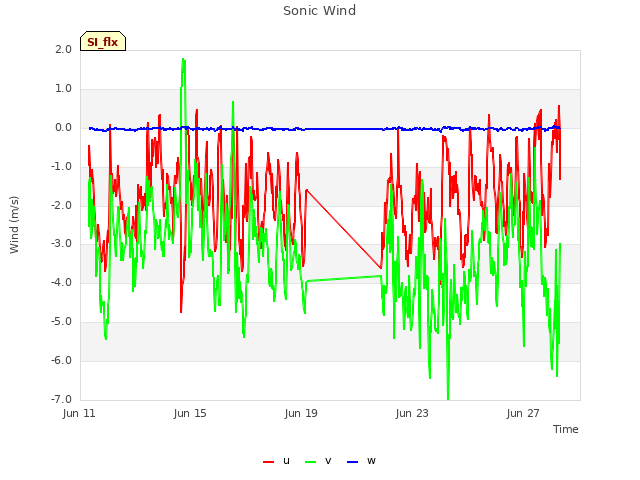

Sonic Wind

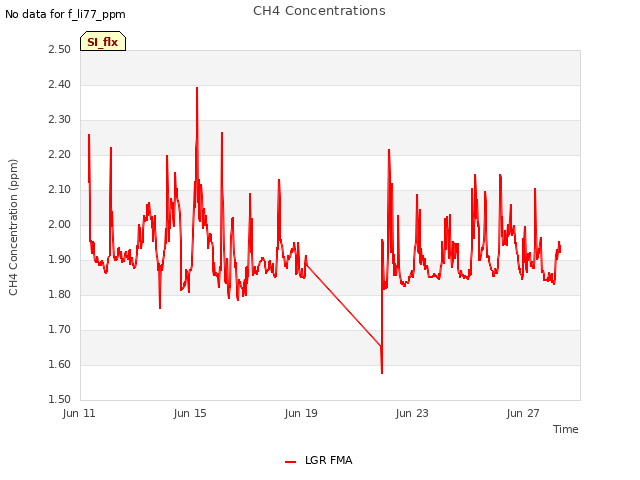

CH4 Concentrations

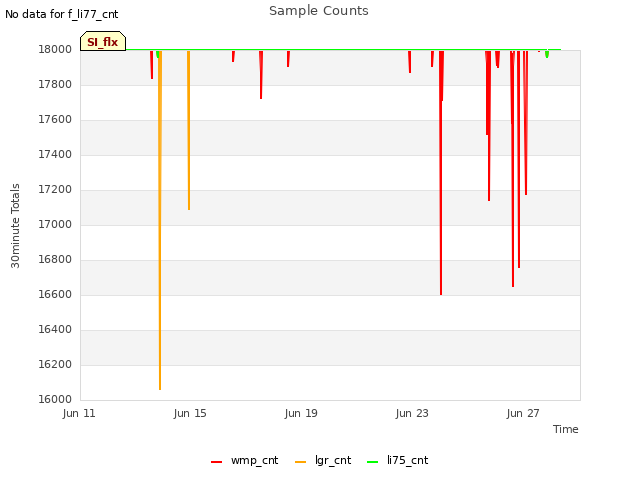

Sample Counts

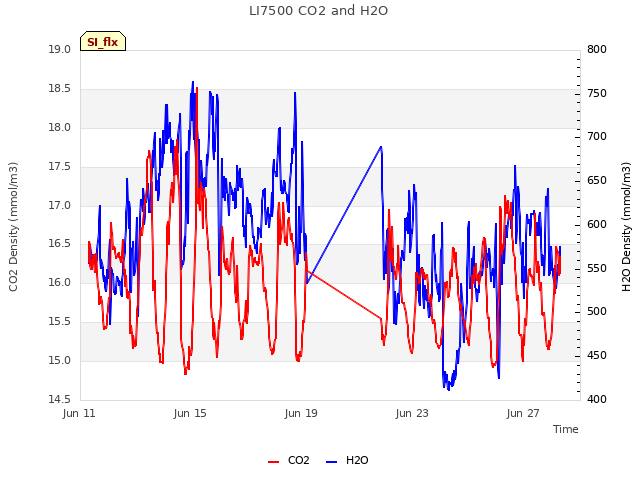

LI7500 CO2 and H2O

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
