Field Notes

<--2016-10-13 09:30:00 | 2016-10-20 12:00:00-->
Other sites visited today: Vaira | Tonzi
Phenocam link: Searching...

Tonzi: 2016-10-13 10:30:00 (DOY 287)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard field work, fixed Floor fence, removed equipment from sap flow stations, reset CR200 clock, water potential

Tonzi
2016-10-13

I arrived about 10:30 with Siyan. Many of the trees are already brown here. Things are very dry, but rain is coming tomorrow.

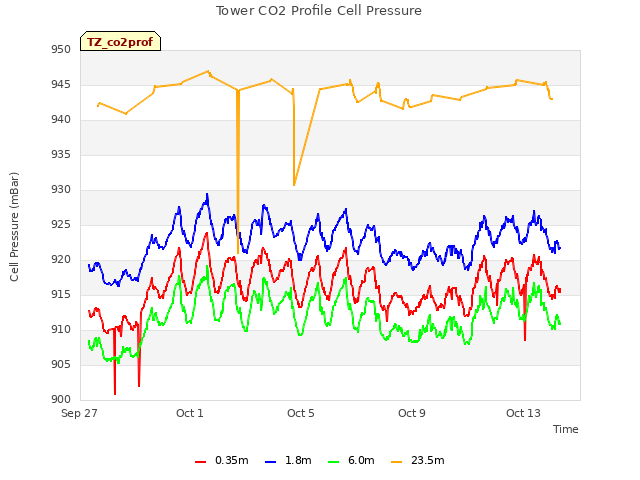

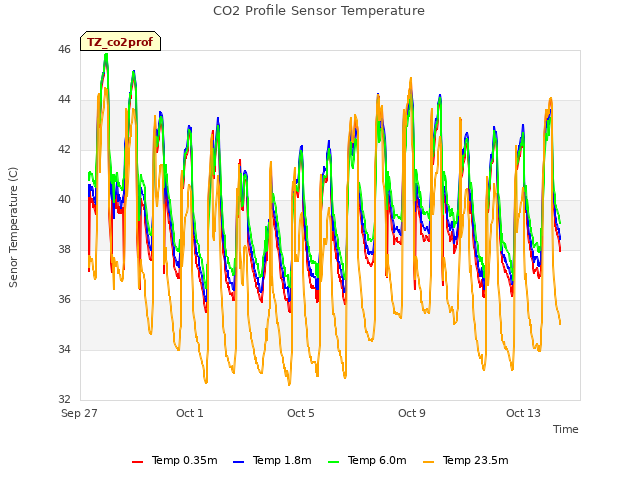

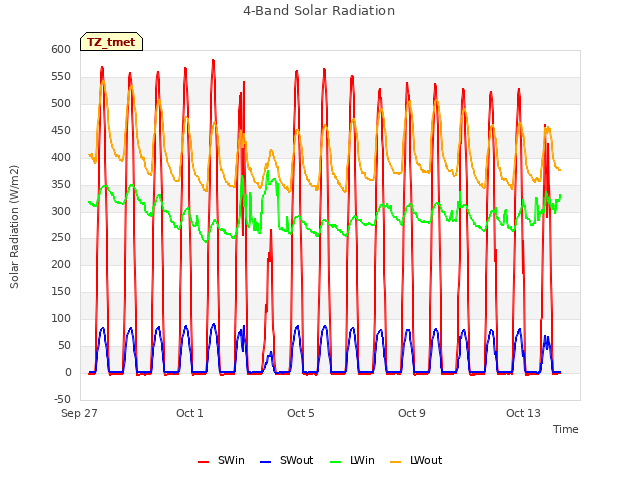

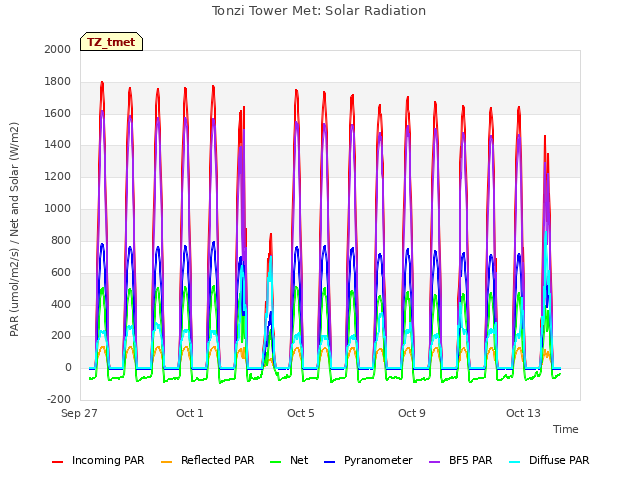

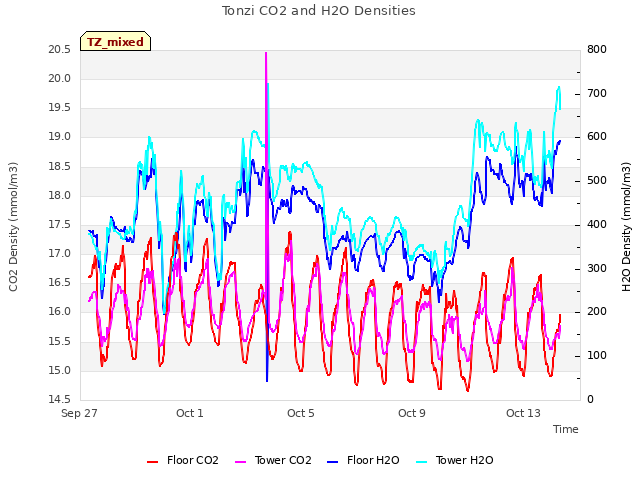

I collected data, calibrated the CO2 profile system, cleaned the radiometers and serviced the zcams.

I cleaned the inside and outside of the phenocam window. This meant moving the camera. The Ethernet connection here has been flakey and was unstable. I replaced the connector at the camera and it seemed better.

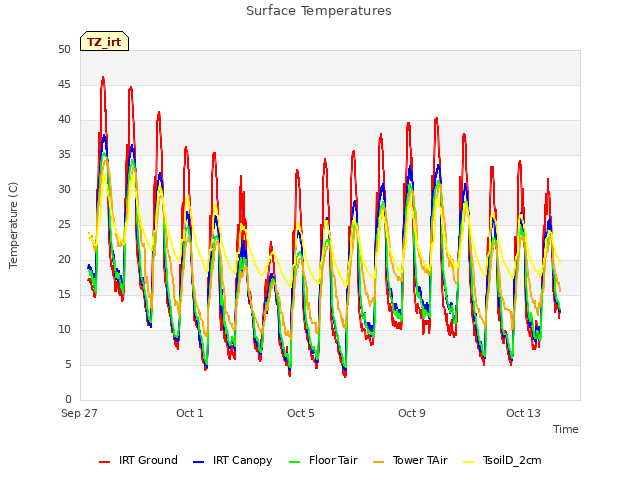

I checked all the tipping buckets (our and OSUâ€™s). The cables on the OSU 4-way net had come loose and one looked chewed. I tied them back up. Also the OSU IR temperature near the tower looks like a bird has been poking at it.

The Floor fence battery was dead and the leads corroded. I stole one of the batteries from the tram location and got it running again.

I reset the clock on the CR200 running the zcam near the floor site. It was about 30min behind.

I collected data loggers and multiplexers from the two remaining, non-functioning sap flow stations:
Near tower: CR10X sn 48042, AM16/32A sn 1429 and sn 1430
North of road: CR10X sn 47772, AM16/32A sn 1236

Siyan did soil moisture, well level, DBH and midday water potential.

Field Data

No tank data

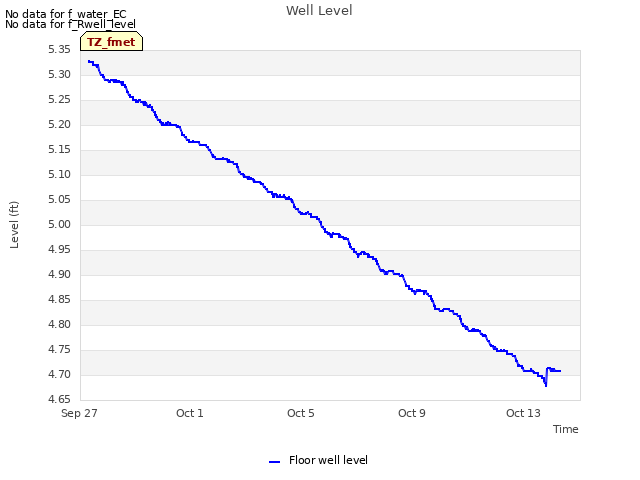

Well Depth

Date	Location	Depth (feet)
2016-10-13	TZ_floor	29.8
2016-10-13	TZ_road	37
2016-10-13	TZ_tower	34.2

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2016-10-13	287	0	nan	4.5	0.1	5.3	9.7	5.1	0.1	0.4	4.2	2.7	4.7	3.1	3.6	10	8.7	9	1.2	6	7.8	13.3	10.9	3.9	8.1	0.5	11.8	15.4	7.3	11.2	12.6	5.9	9.8	12.3	15.6	12.9	15.1	14.8	9.8	10.2	2.7	17.6	16.2	17.9	11	17.6	21.3	10.2	15.9	11.9	27.4
2016-10-13	287	1	nan	4.7	0.1	5	7.7	5.6	0.1	1.5	3.3	2.4	5	1	3	10.3	8.4	9.7	2.6	5.1	8.4	13.3	11.2	4.2	8.4	0.8	10.9	14.8	7.8	10.9	11.7	5	9.5	12.3	15.4	13.1	14.8	15.4	7.8	9.6	2.4	17	16.8	18.2	11	16.5	21.6	9.6	14.8	11.6	19.1
2016-10-13	287	Avg	0-15cm																																																	0
2016-10-13	287	Avg	15-30cm																																																	0
2016-10-13	287	Avg	30-45cm																																																	0
2016-10-13	287	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2016-10-13	287	0	nan	0.04	0.01	1.8	0.4	7.2	6.6	5.4	3.2	14	4.5	9.5	11.7	25.2	14.2	9.6	15.9
2016-10-13	287	1	nan	0.01	0.04	2.4	0.4	7.5	6.6	4.8	3.5	13.7	3.4	9.2	11.5	26.5	13.6	10.5	15.6
2016-10-13	287	Avg	0-15cm																	0
2016-10-13	287	Avg	15-30cm																	0
2016-10-13	287	Avg	30-45cm																	0
2016-10-13	287	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2016-10-13	1	24.5
2016-10-13	2	18.7
2016-10-13	3	22.0
2016-10-13	4	15.8
2016-10-13	5	18.5
2016-10-13	7	15.6
2016-10-13	72	23.4
2016-10-13	79	23.2
2016-10-13	8	18.6

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2016-10-13 01:10:00	PINE	OLD	-2	-4	-17
2016-10-13 01:10:00	PINE	YNG	-5	-4	-7
2016-10-13 12:47:00	OAK	102	-45	-48	-53
2016-10-13 12:47:00	OAK	35	-41	-36	-35
2016-10-13 12:47:00	OAK	92	-31	-31	-38
