Vaira: 2016-10-13 09:00:00 (DOY 287)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard fieldwork, tried to install compute stick.

Vaira 2016-10-13 I arrived about 9am with Siyan. It was mild and mostly cloudy. Things are very dry and the trees are starting to turn brown. The water hole is dry and dusty. Rain coming tomorrow though. We drove down toward the pond we are going to monitor but the road is rough and I was not sure where to go exactly. I tried to install a compute stick with cell modem, but I forgot the multiport serial box and I could not get the screen resolution to work right. There is some cell signal and the modem was able to connect to the network, but did not connect to mrspoc but I did not try hard. In the end I left the Raspberry Pi running and brought the screen in to test. We did the standard fieldwork: data, soil moisture, spectral, and cleaned the radiometers. Made sure the tipping bucket was clean.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-10-13	TZ_floor	29.8
2016-10-13	TZ_road	37
2016-10-13	TZ_tower	34.2

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2016-10-13	287	0	nan	4.5	0.1	5.3	9.7	5.1	0.1	0.4	4.2	2.7	4.7	3.1	3.6	10	8.7	9	1.2	6	7.8	13.3	10.9	3.9	8.1	0.5	11.8	15.4	7.3	11.2	12.6	5.9	9.8	12.3	15.6	12.9	15.1	14.8	9.8	10.2	2.7	17.6	16.2	17.9	11	17.6	21.3	10.2	15.9	11.9	27.4
2016-10-13	287	1	nan	4.7	0.1	5	7.7	5.6	0.1	1.5	3.3	2.4	5	1	3	10.3	8.4	9.7	2.6	5.1	8.4	13.3	11.2	4.2	8.4	0.8	10.9	14.8	7.8	10.9	11.7	5	9.5	12.3	15.4	13.1	14.8	15.4	7.8	9.6	2.4	17	16.8	18.2	11	16.5	21.6	9.6	14.8	11.6	19.1
2016-10-13	287	Avg	0-15cm																																																		0
2016-10-13	287	Avg	15-30cm																																																		0
2016-10-13	287	Avg	30-45cm																																																		0
2016-10-13	287	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2016-10-13	287	0	nan	0.04	0.01	1.8	0.4	7.2	6.6	5.4	3.2	14	4.5	9.5	11.7	25.2	14.2	9.6	15.9
2016-10-13	287	1	nan	0.01	0.04	2.4	0.4	7.5	6.6	4.8	3.5	13.7	3.4	9.2	11.5	26.5	13.6	10.5	15.6
2016-10-13	287	Avg	0-15cm																		0
2016-10-13	287	Avg	15-30cm																		0
2016-10-13	287	Avg	30-45cm																		0
2016-10-13	287	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

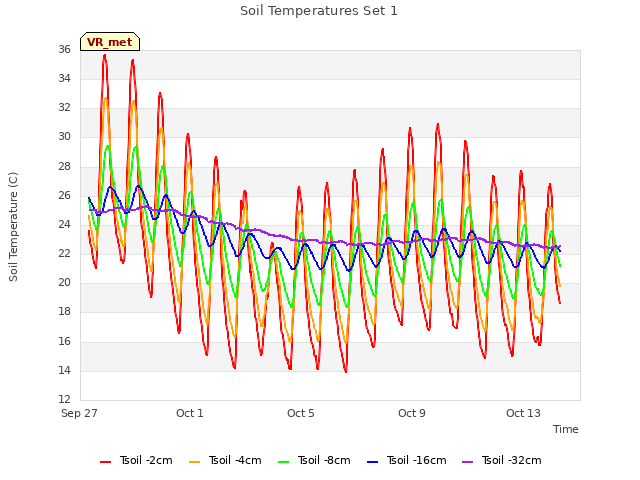

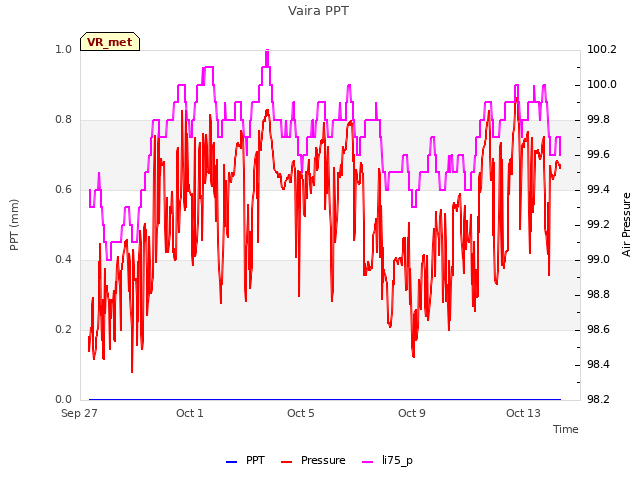

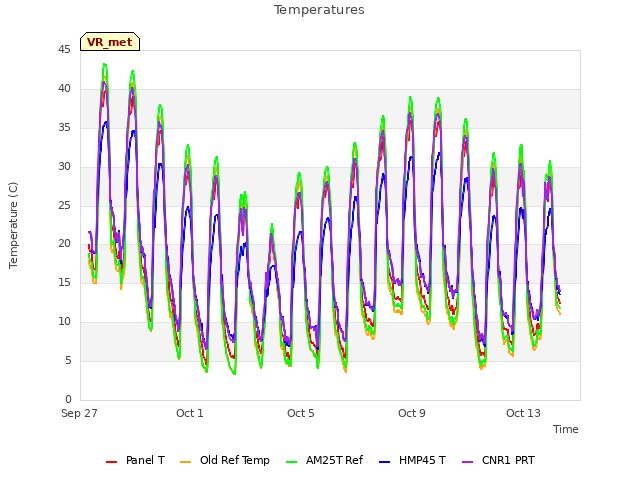

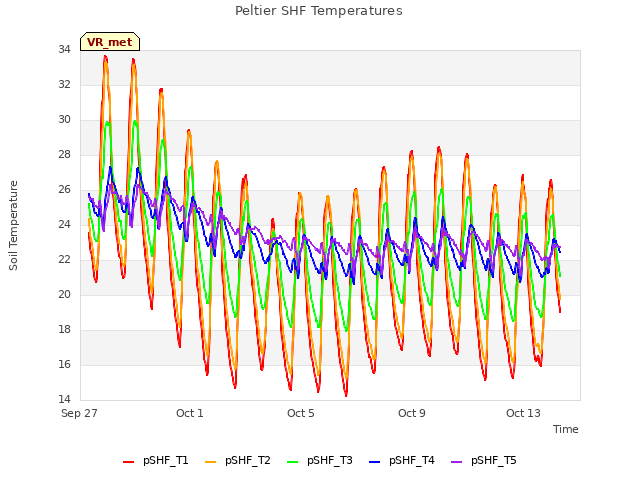

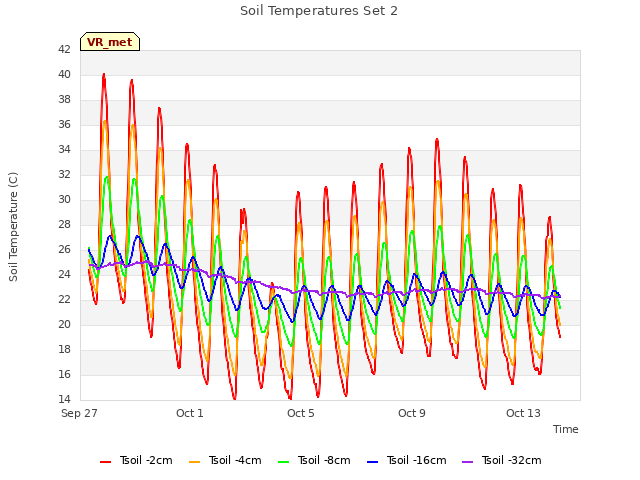

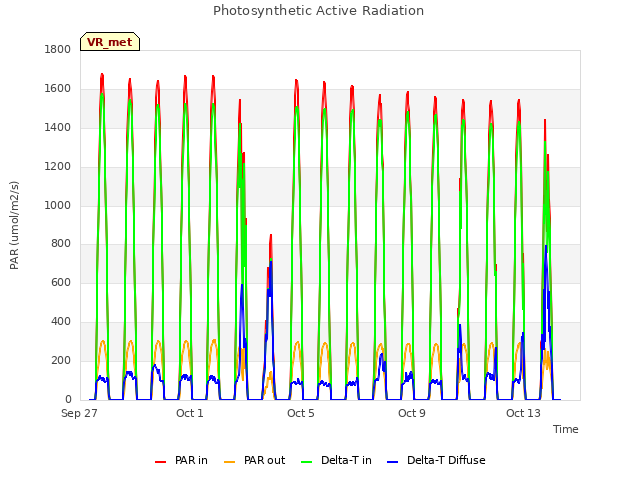

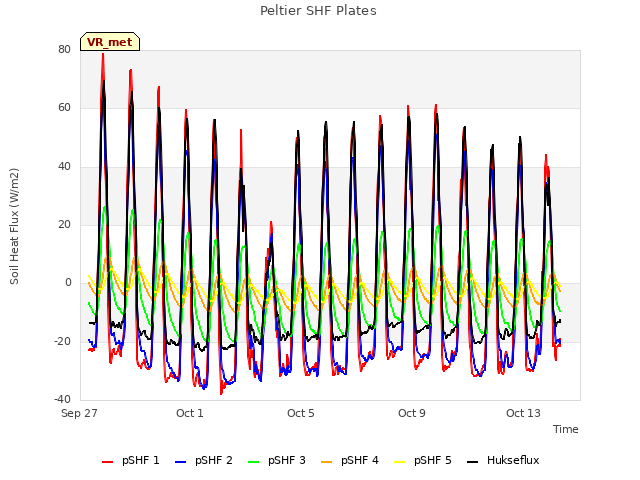

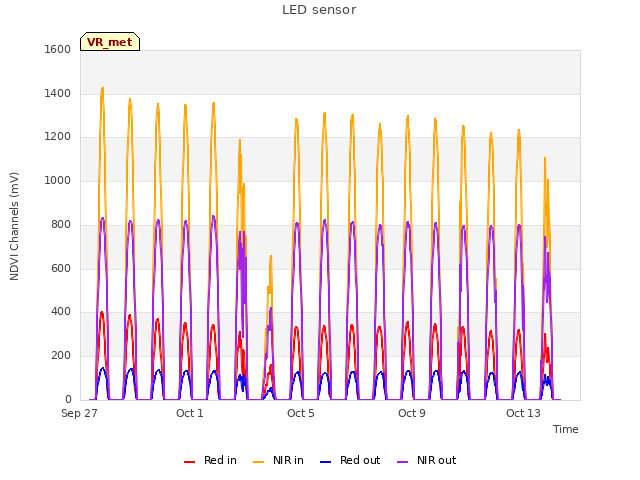

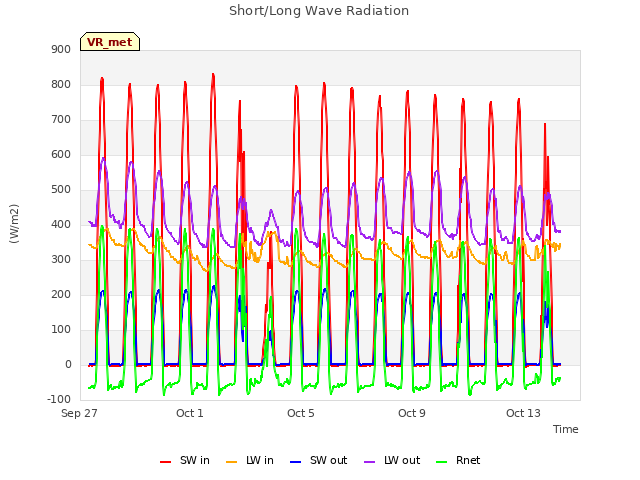

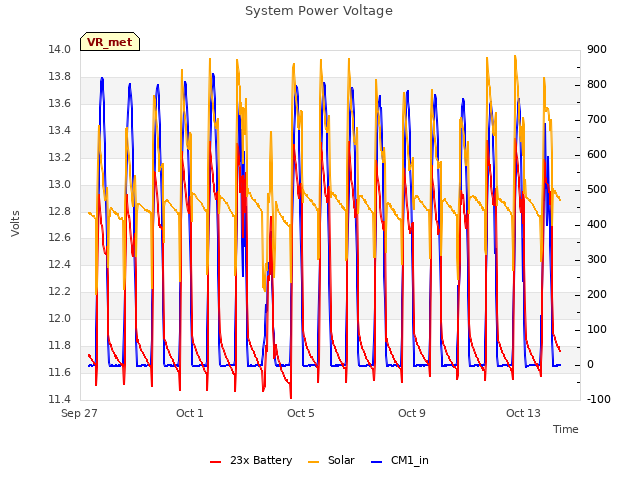

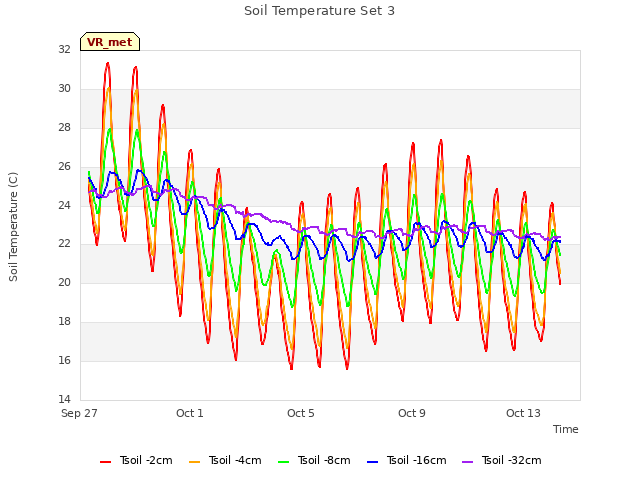

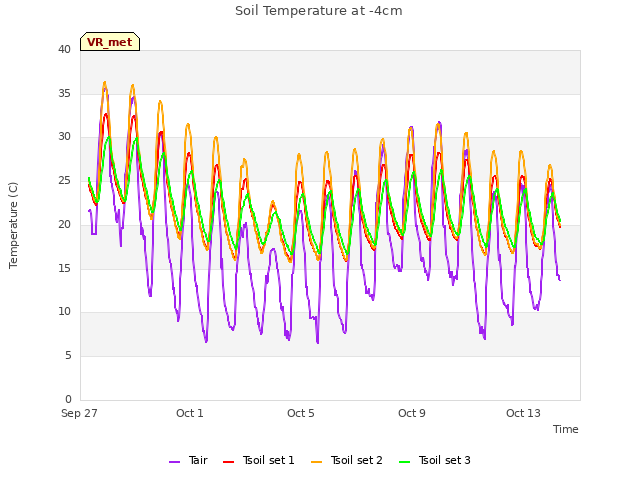

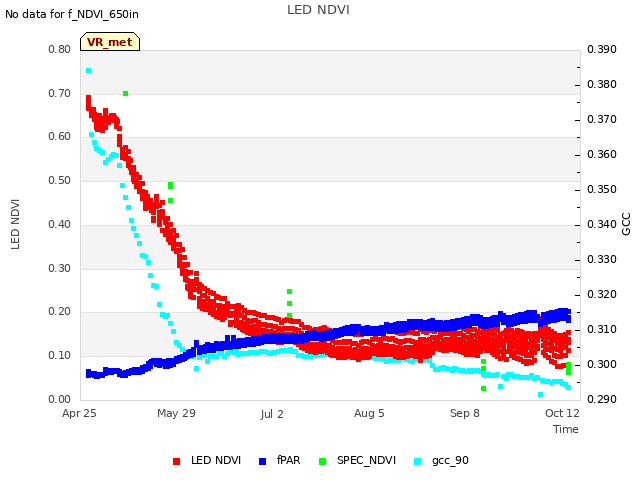

16 VR_met graphs found

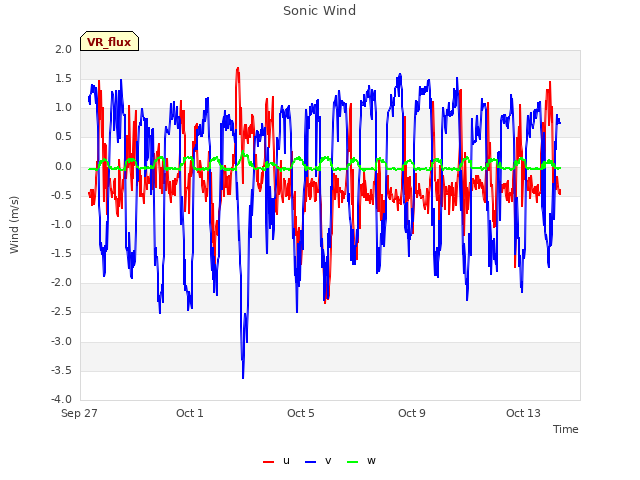

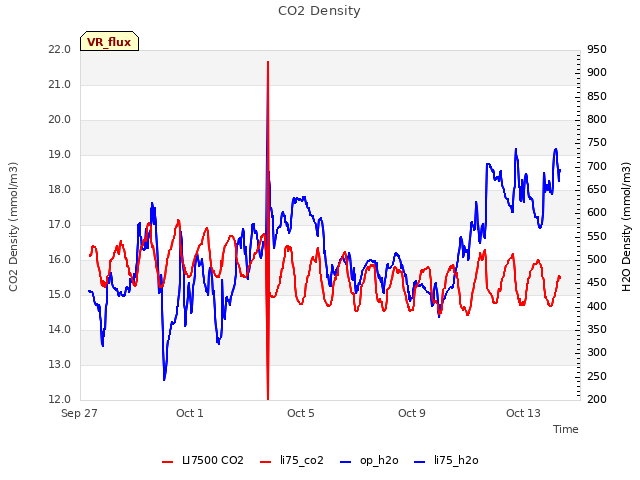

2 VR_flux graphs found

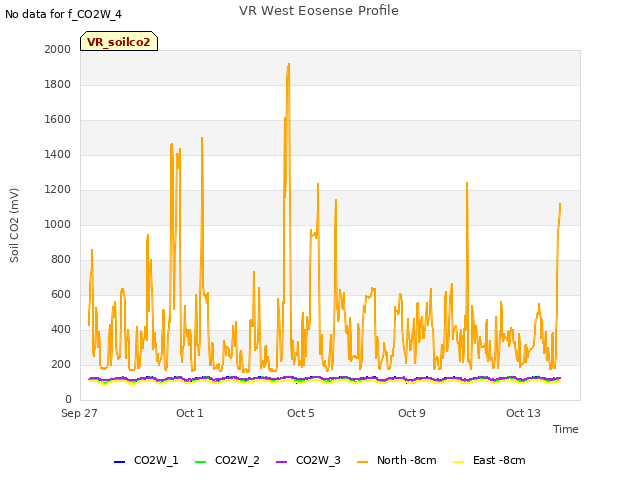

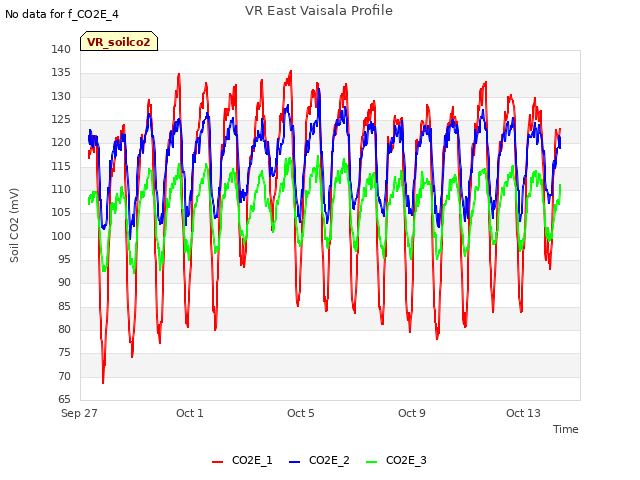

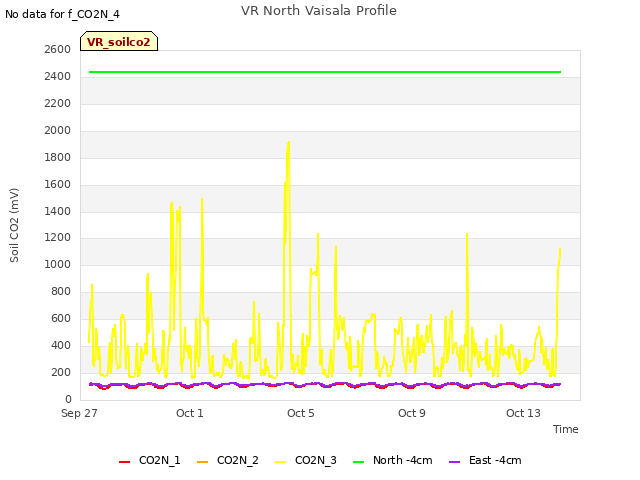

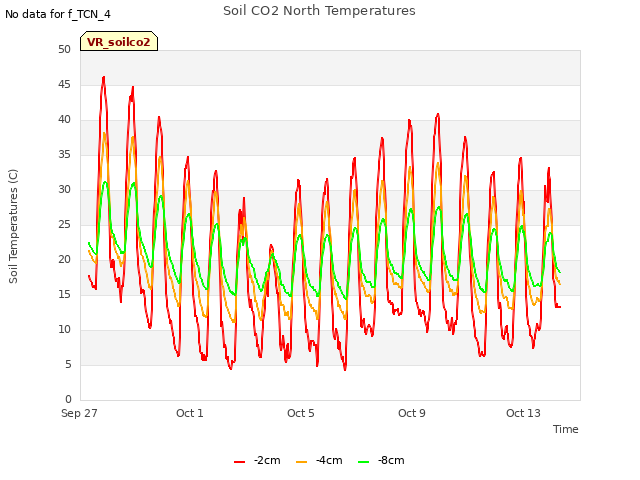

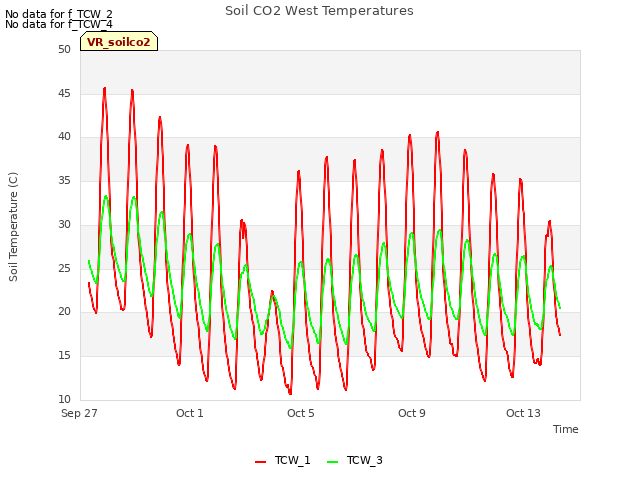

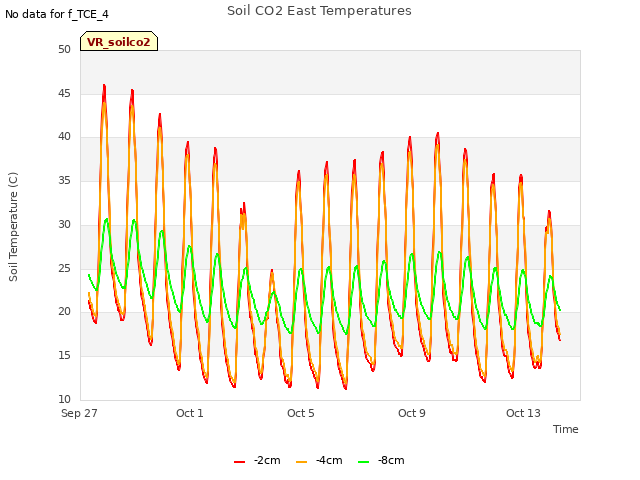

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
