East End: 2016-05-24 11:46:00 (DOY 145)
Author: Alison Haddad
Others: Elke Eichelmann

Summary: swapped 7500 for calibration, lost a 7500 base screw, regular data collection, water level still a little low.

Arrived at 11:46. Sunny, mostly clear sky, some fluffy clouds, light breeze. Water higher than previously, but still a little low.

Filled the LI7700 wash water reservoir, but it was still mostly full. Cleaned the LI7500 and LI7700.

Collected USB GHG data, collected met data from CR1000, collected camera pictures. One soil heat flux plate not working: SHFP2=NAN.

Swapped the LI7500 for calibration. sn 75H-2514 came down, sn 75H-2150 went up. Dropped a base screw for LI7500 into wetland; replace next time.

LI7500 2514 readings
CO2 413.42
H2O 640.8
T 20.66
P 101.38
SS 100.32
LI7700 readings
CH4 1.92
RSSI 66.8 ->86.04 after cleaning
LI7500 2150 readings
CO2 410.47
H2O 544.8
T 21.05
P 101.38
SS 94.32

Left at 12:36

1 photos found

Working on feldspar marker
Working on feldspar marker

Graphs display:
11 sets found

14 EE_met graphs found

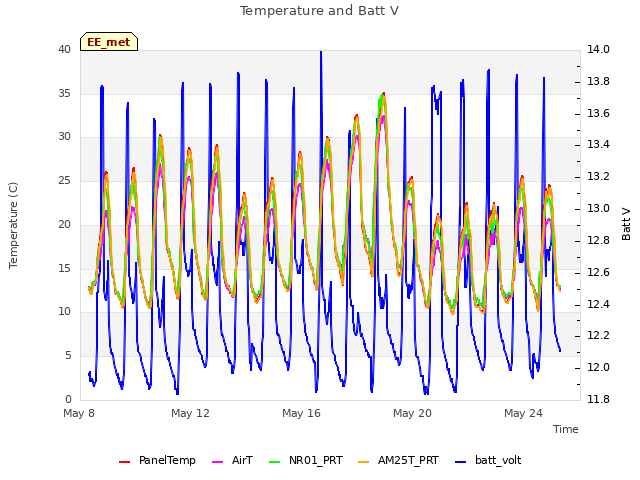

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

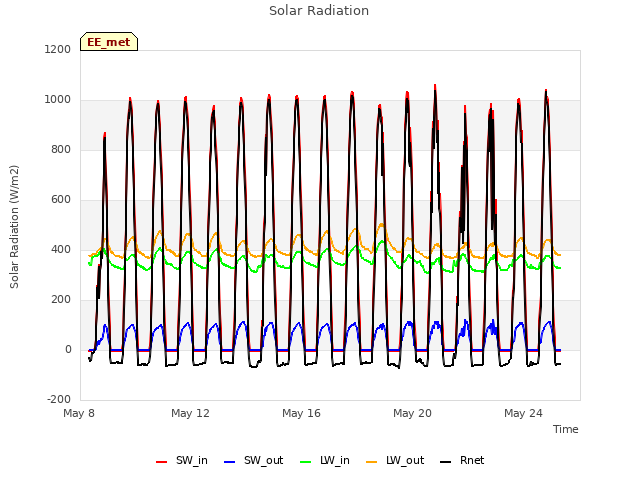

Explore the graph:Solar Radiation in a new window

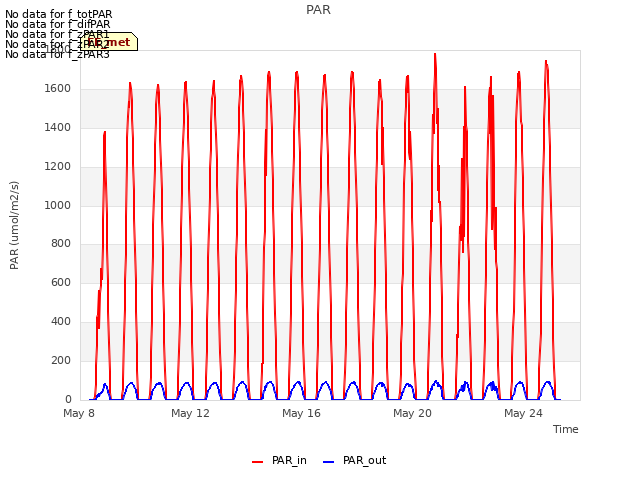

Explore the graph:PAR in a new window

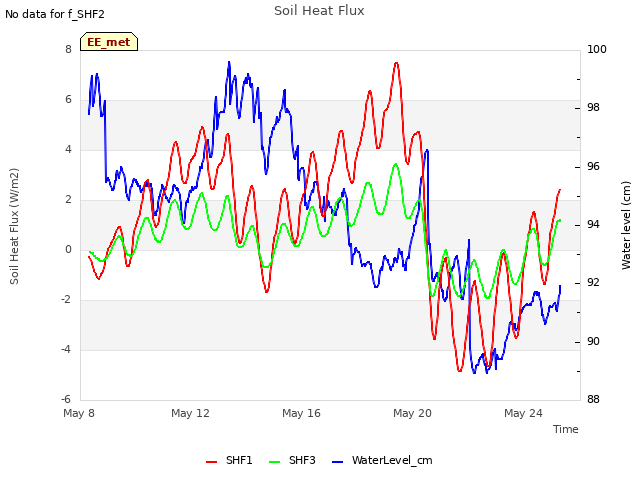

Explore the graph:Soil Heat Flux in a new window

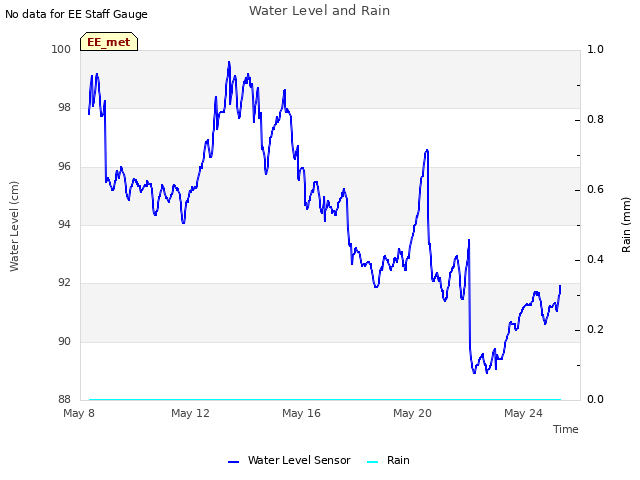

Explore the graph:Water Level and Rain in a new window

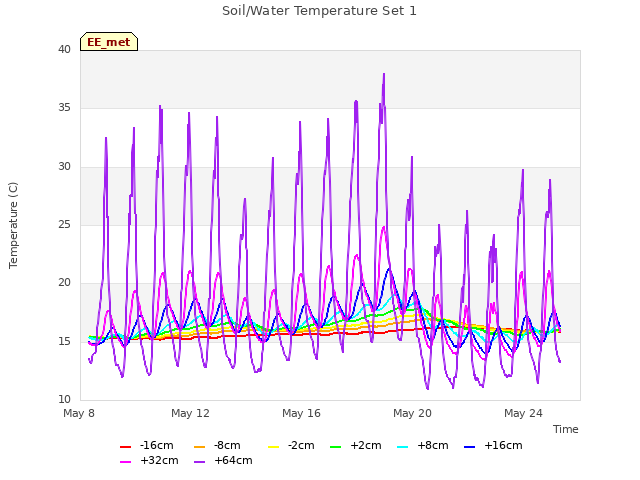

Explore the graph:Soil/Water Temperature Set 1 in a new window

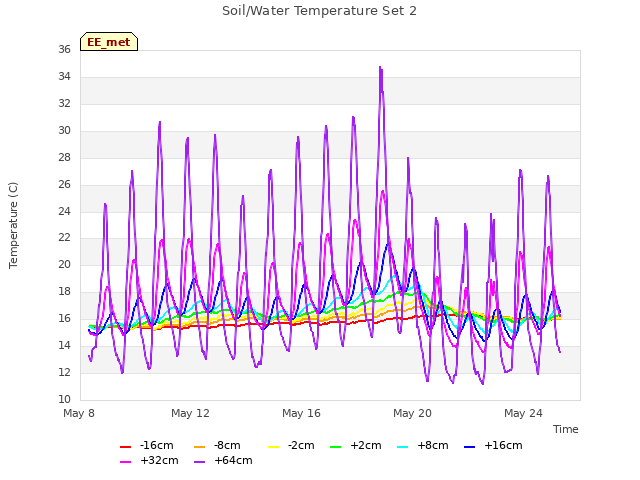

Explore the graph:Soil/Water Temperature Set 2 in a new window

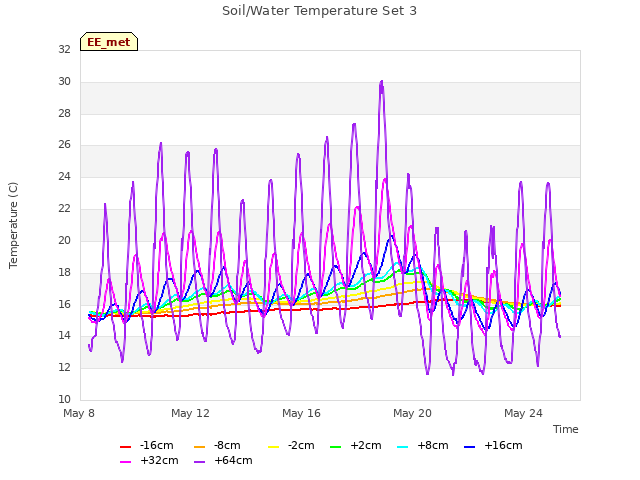

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

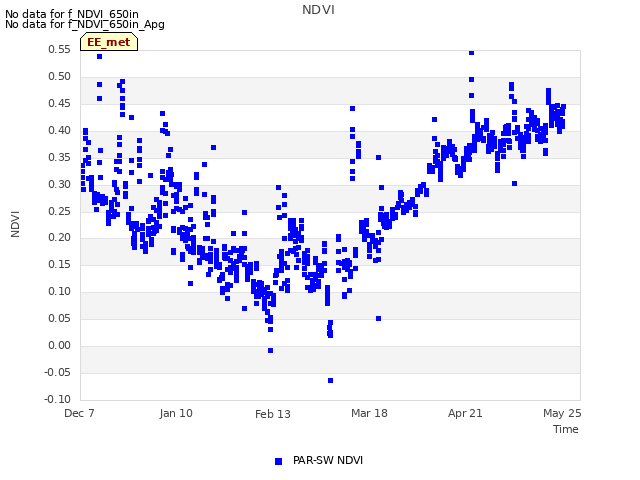

Explore the graph:NDVI in a new window

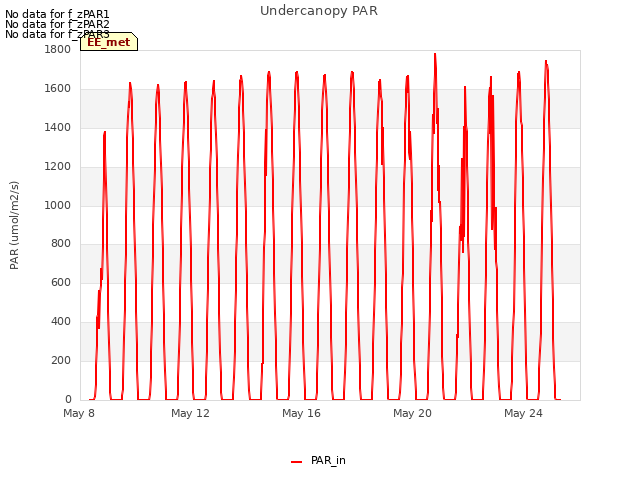

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

Explore the graph:Wind Speeds in a new window

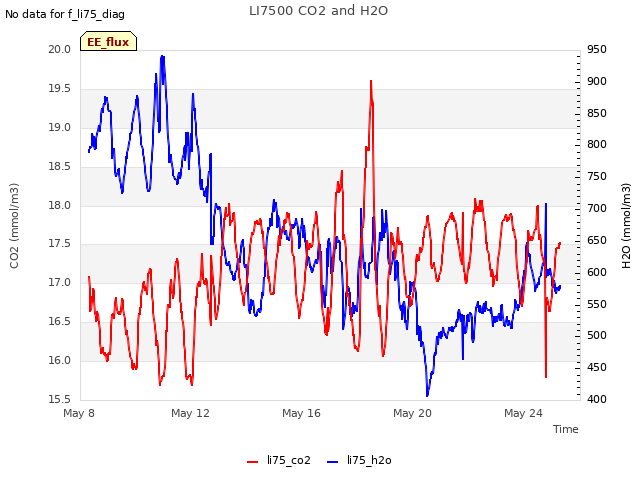

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

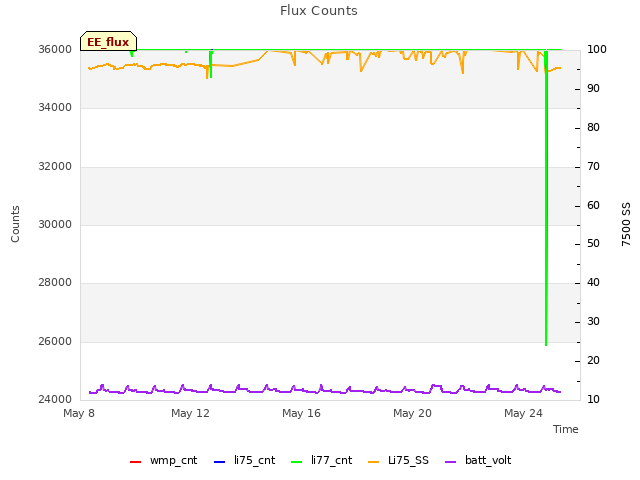

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

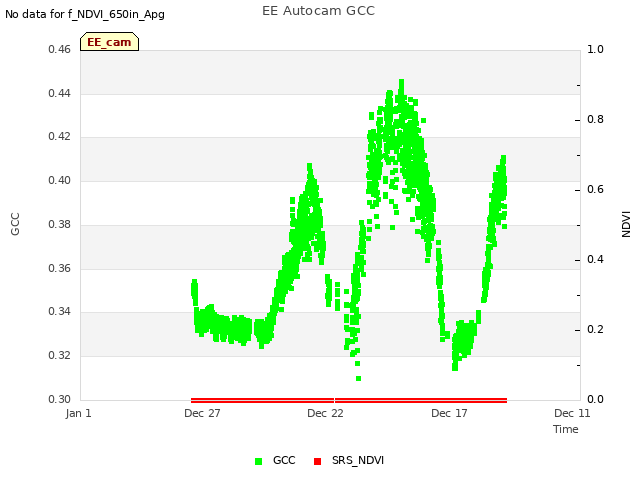

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

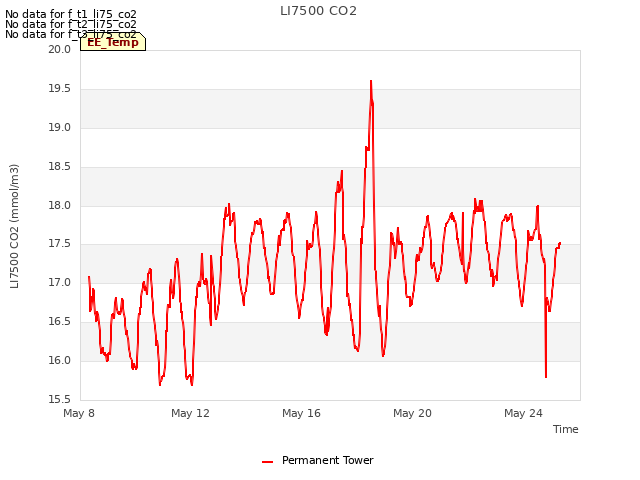

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

Explore the graph:LI-7700 CH4 in a new window

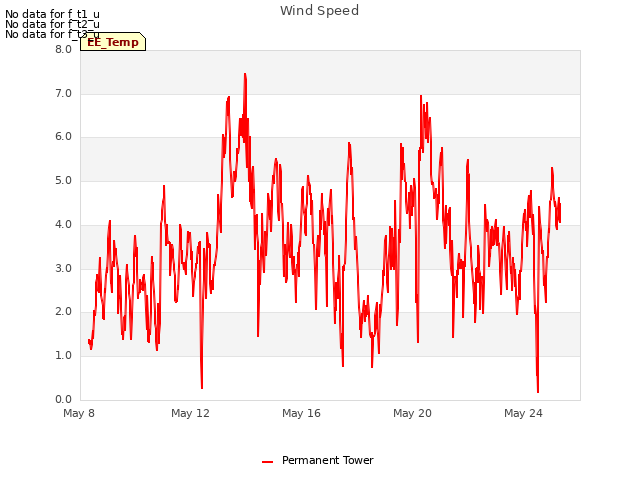

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

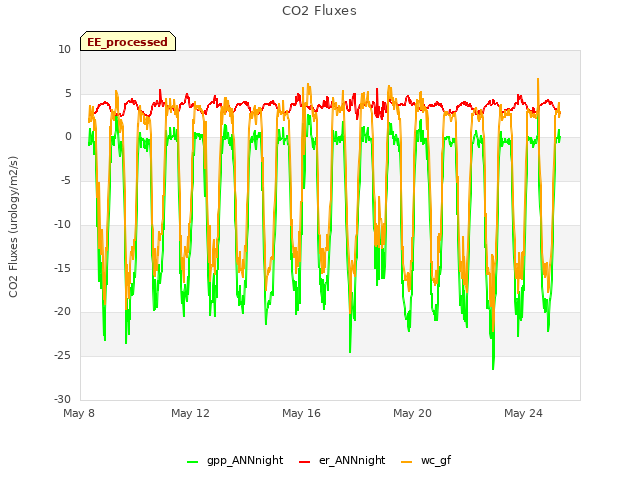

Explore the graph:CO2 Fluxes in a new window
