West Pond: 2016-05-24 12:46:00 (DOY 145)
Author: Alison Haddad
Others: Elke Eichelmann

Summary: regular data collection, only LI7550 box teeming with ants.

Arrived at 12:46. Sunny, mostly clear sky with fluffy clouds on the horizon, light breeze. Wetland fairly green, mostly tules have flowered. Water level looks a little lower than usual. Inlet not running.

Filled the LI7700 wash water reservoir, but was practically full already. Cleaned the LI7500 and LI7700.

Collected USB GHG data, collected met data from CR1000, collected camera pictures. DO upper reading =zero.

Tons of ants in LI7550 box. Appear to have eaten away the styrofoam insulation and are nesting there. Cleaned out lots of eggs. We left the box open during our time at the site, closing it at 13:40. Most ants had visibly disappeared, but were likely hiding. The ant trap is completely clogged; bring new ant traps next time.

LI7500 readings
CO2 401.18
H2O 543.8
T 22.40
P 101.03
SS 101.26 -> 102.2 after cleaning
LI7700 readings
CH4 1.94
RSSI 43.2 -> 83.1 after cleaning

Left at 13:40

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

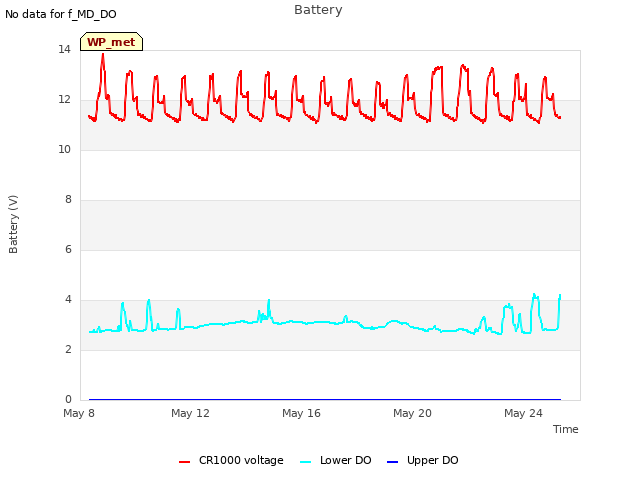

Explore the graph:Battery in a new window

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

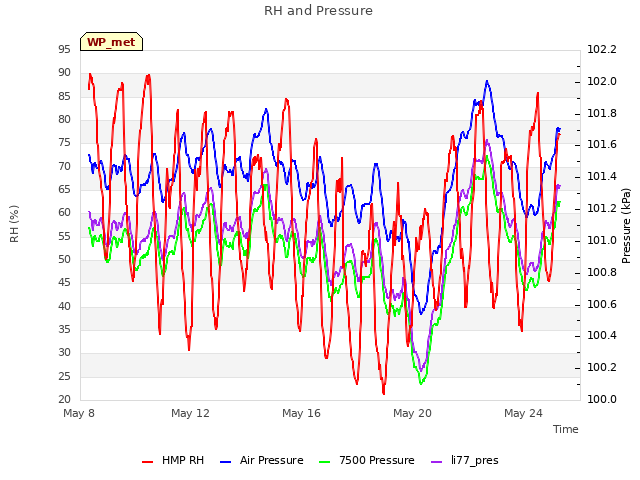

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

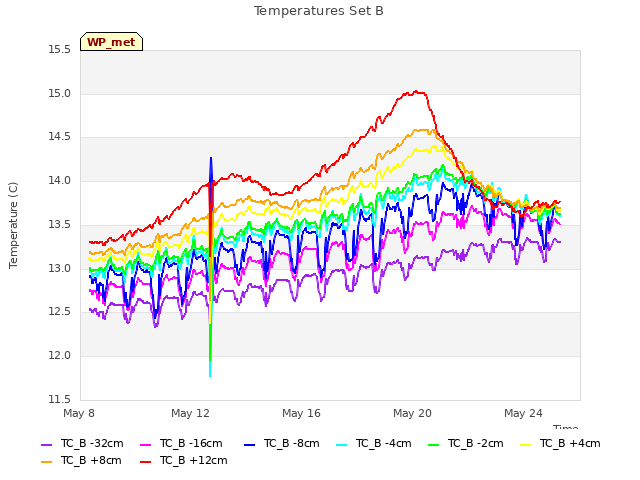

Explore the graph:Temperatures Set B in a new window

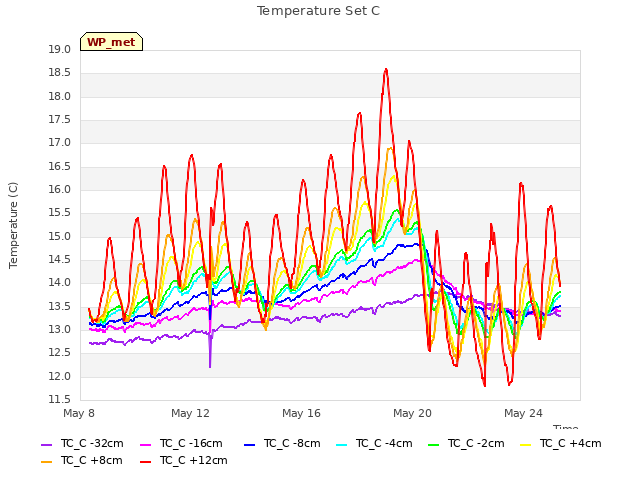

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

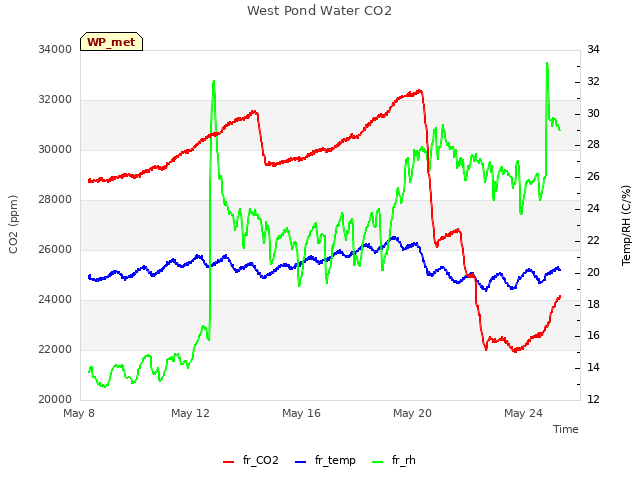

Explore the graph:West Pond Water CO2 in a new window

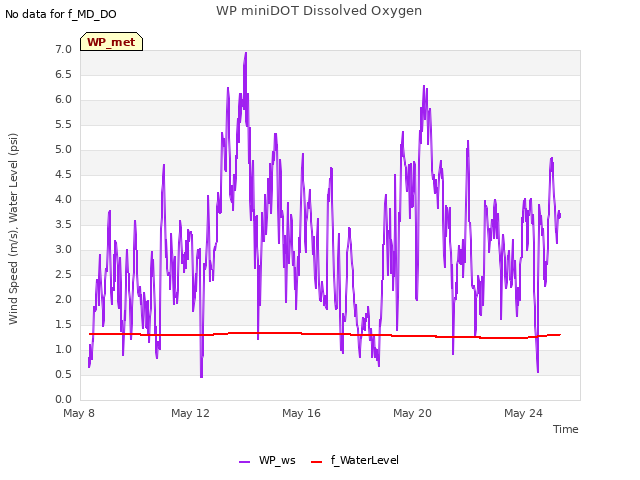

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

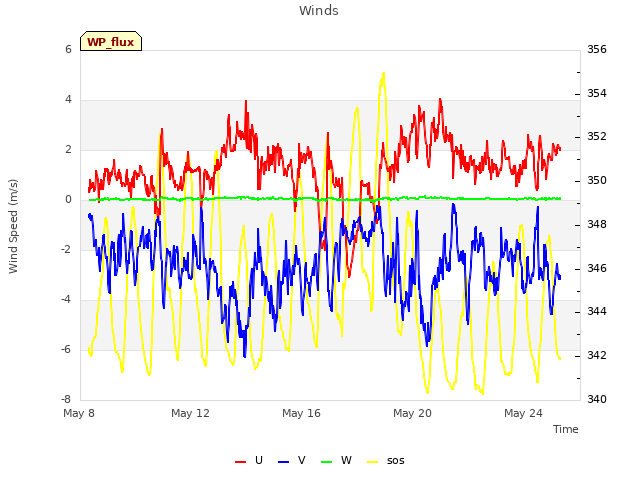

Explore the graph:Winds in a new window

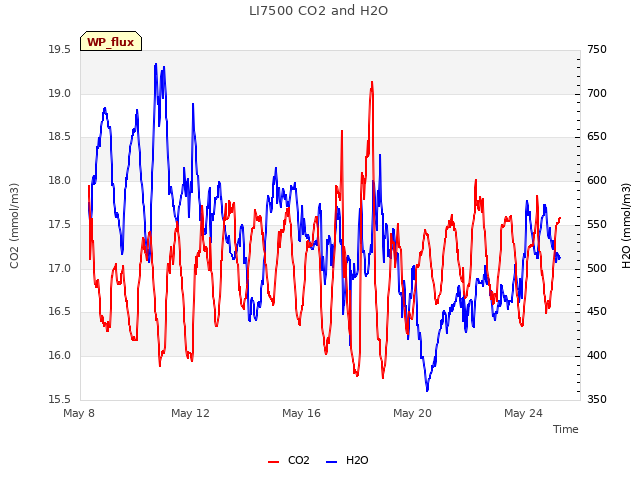

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

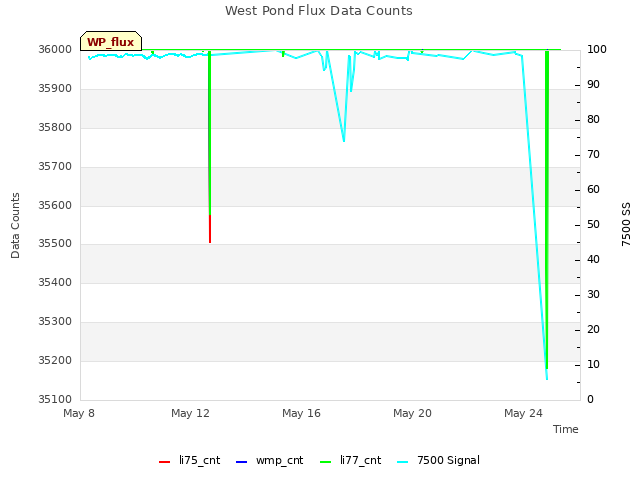

Explore the graph:West Pond Flux Data Counts in a new window

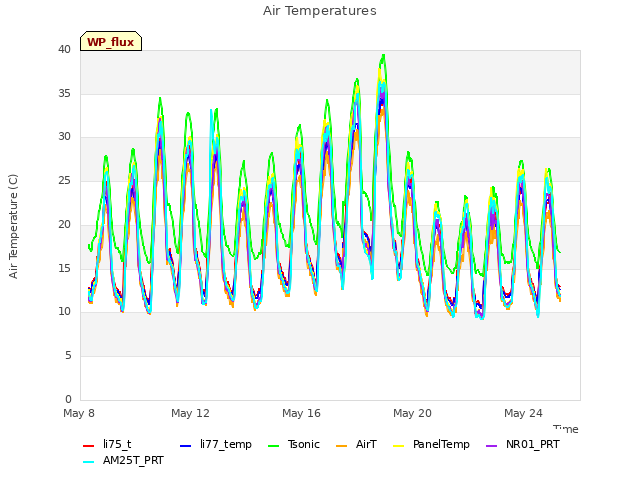

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

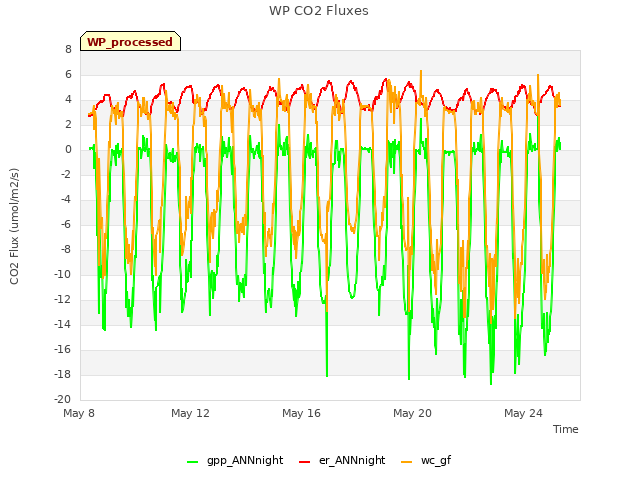

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
