East End: 2016-03-24 09:00:00 (DOY 84)
Author: Joe Verfaillie
Others:

Summary: Swapped solar system batteries, Licor clock 30 min ahead - fixed, was reservoir empty - filled.

East End
2016-03-24

I arrived at 9:00am. It was clear, sunny and warm. The cattail fluff has died down a bit. The wetland to the east is very green but to the west it is still just beginning. The levees have been mowed.

I swapped the batteries on the solar system sn BB-EE. Four old batteries were removed and six new group 27 deep cycle flooded batteries were installed. Five on the new batteries have a date on 2/16 and one is 1/16.

At the tower I restarted the camera. I think it only had 15 images on it. I checked the 7550. It was running with no errors, but its clock was about 30min ahead. When it read 9:31 I reset it to 9:02. The LI7700 RSSI was 32 and the wash reservoir was empty. I didn’t bring water with me so I went to Rio Vista and got distilled water at a super market on Hwy 12. Back at East End I filled the reservoir and cleaned the 7700. Afterwards the RSSI was 82.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

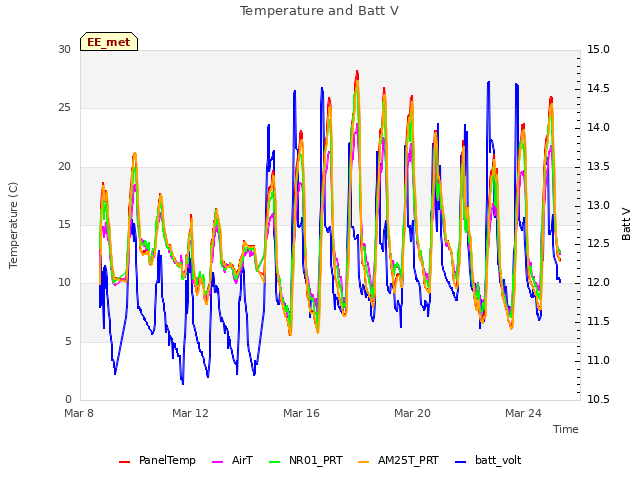

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

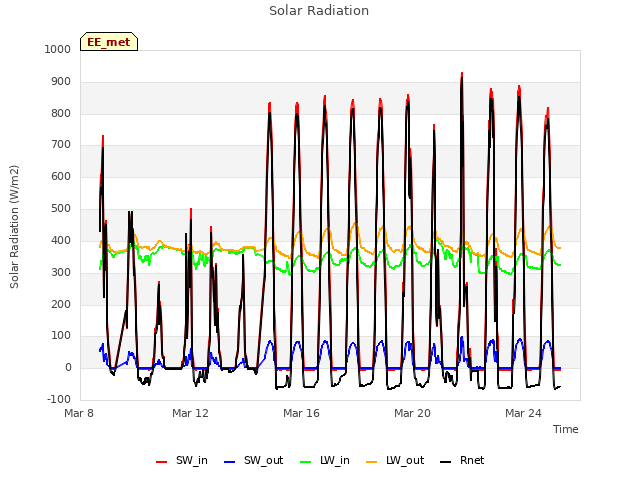

Explore the graph:Solar Radiation in a new window

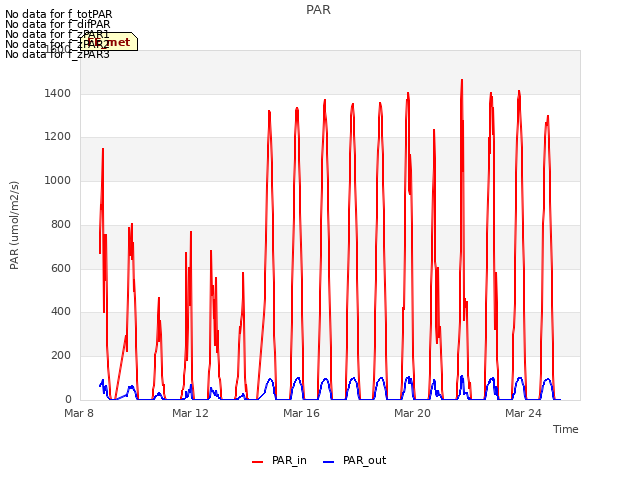

Explore the graph:PAR in a new window

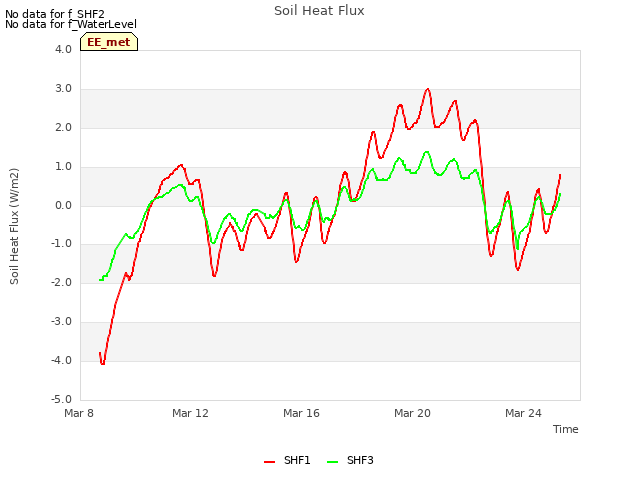

Explore the graph:Soil Heat Flux in a new window

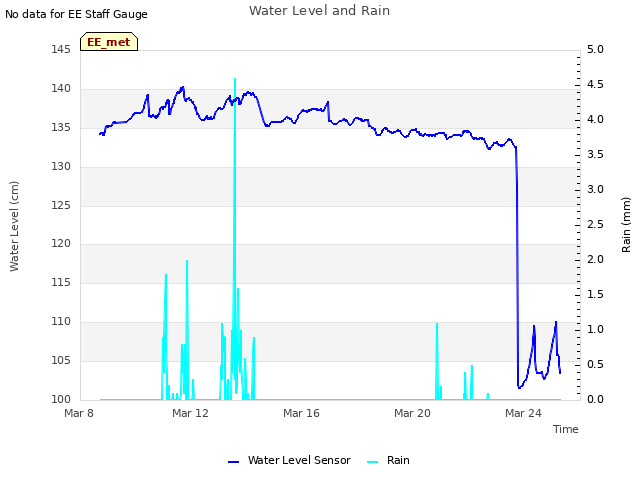

Explore the graph:Water Level and Rain in a new window

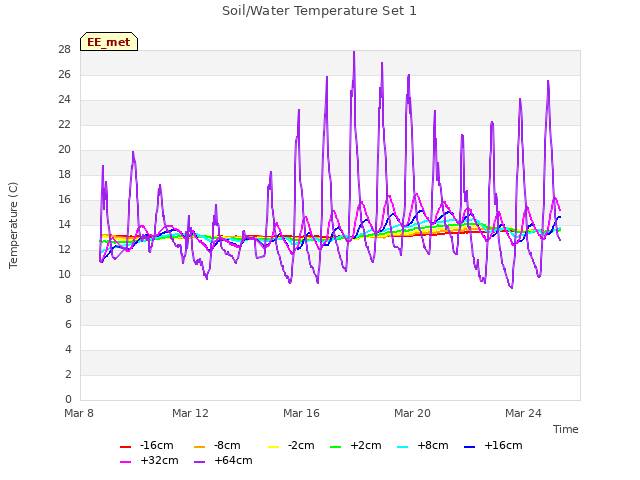

Explore the graph:Soil/Water Temperature Set 1 in a new window

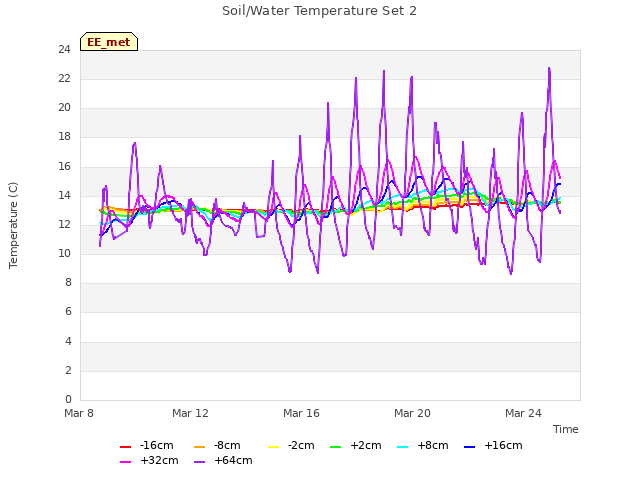

Explore the graph:Soil/Water Temperature Set 2 in a new window

Explore the graph:Soil/Water Temperature Set 3 in a new window

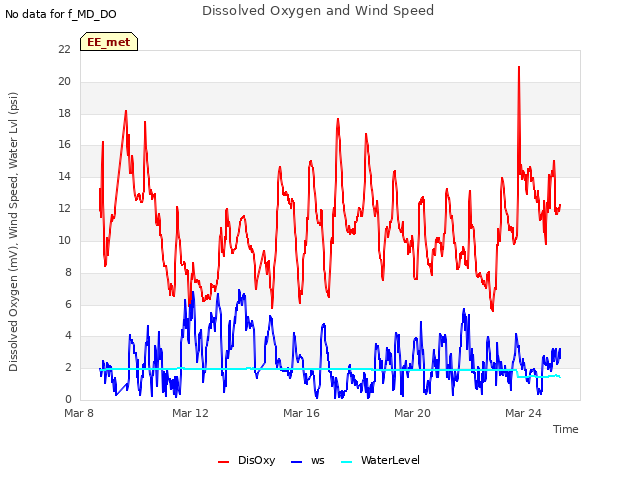

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:NDVI in a new window

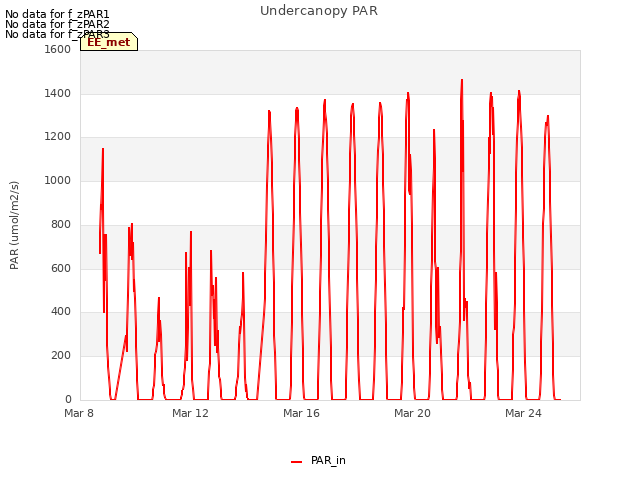

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

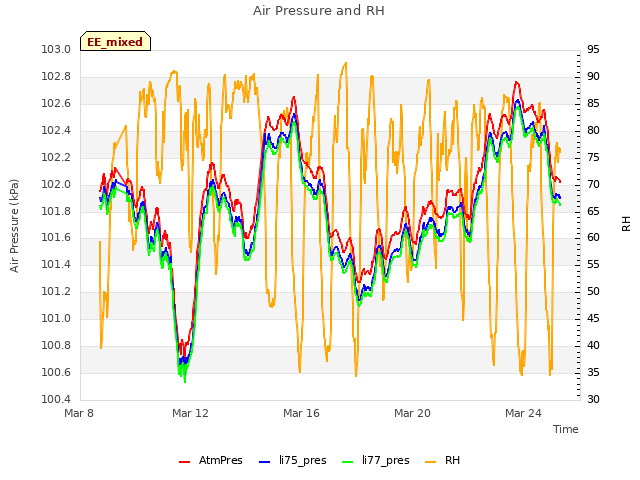

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

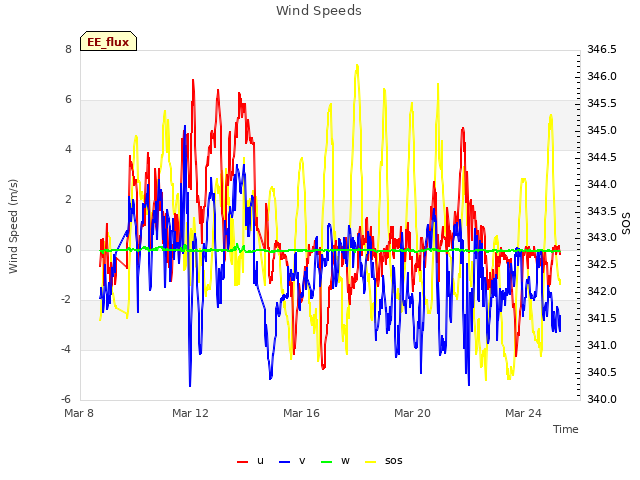

Explore the graph:Wind Speeds in a new window

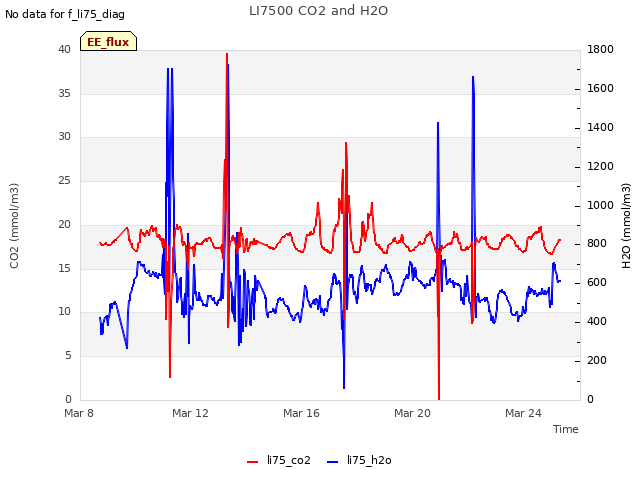

Explore the graph:LI7500 CO2 and H2O in a new window

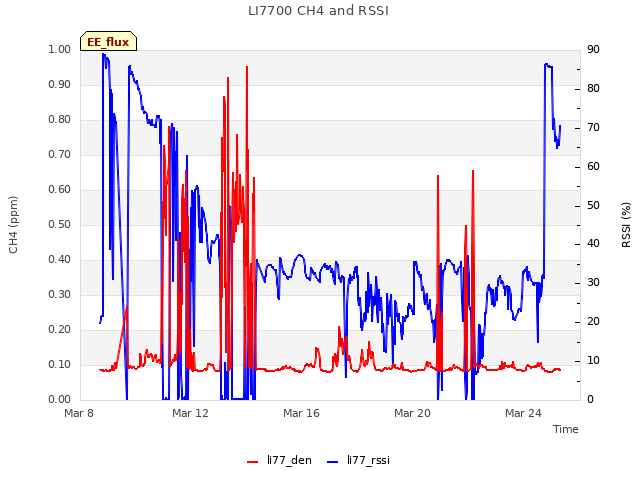

Explore the graph:LI7700 CH4 and RSSI in a new window

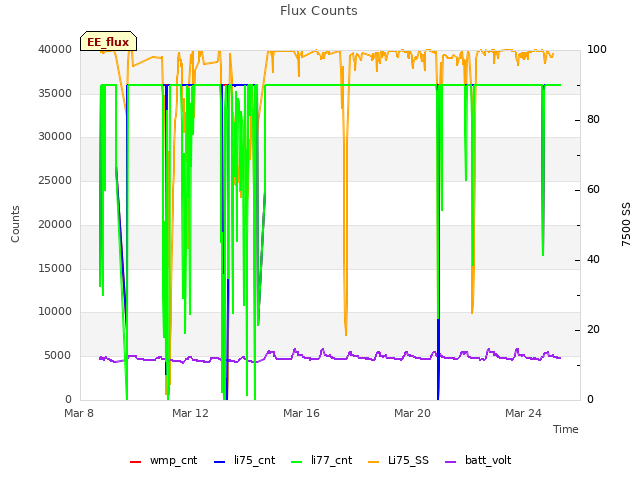

Explore the graph:Flux Counts in a new window

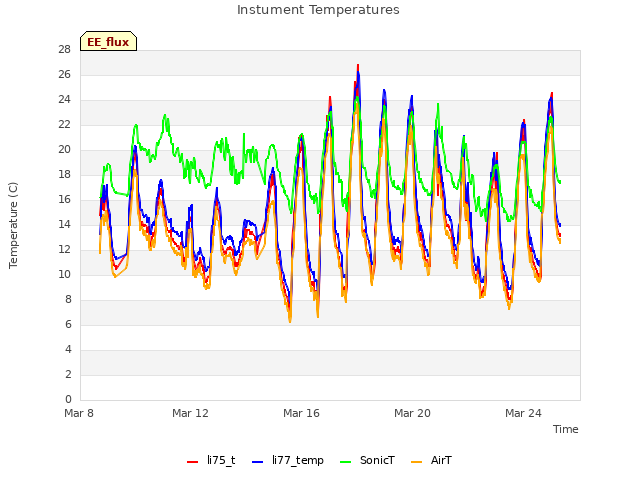

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

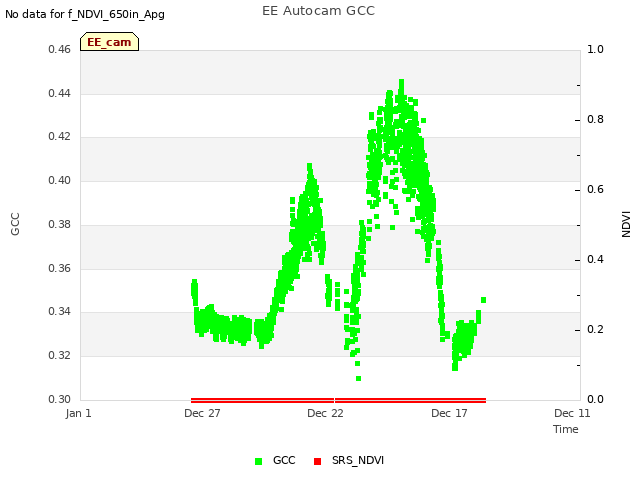

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

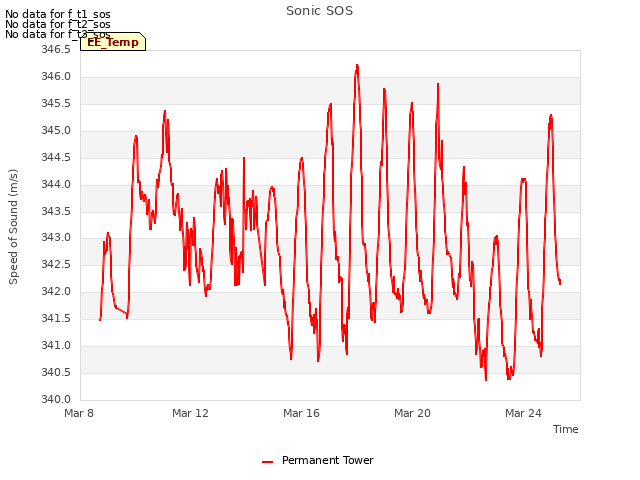

Explore the graph:Sonic SOS in a new window

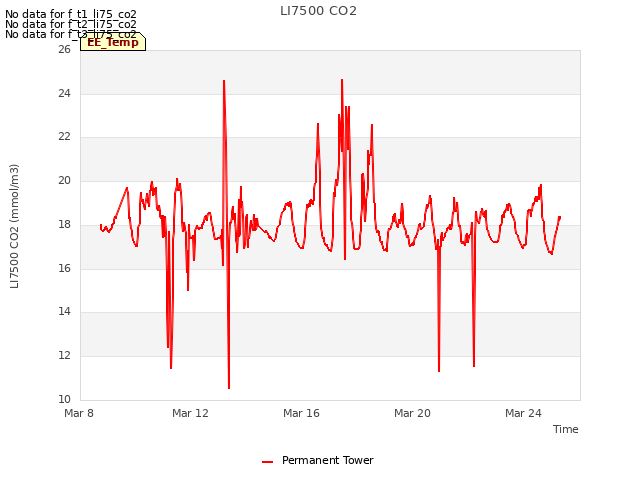

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

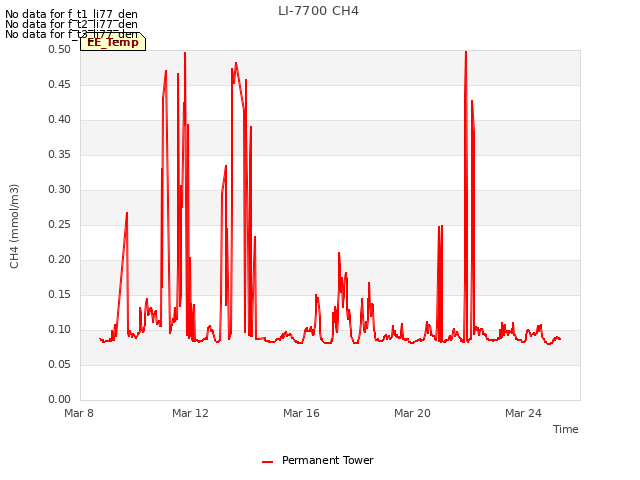

Explore the graph:LI-7700 CH4 in a new window

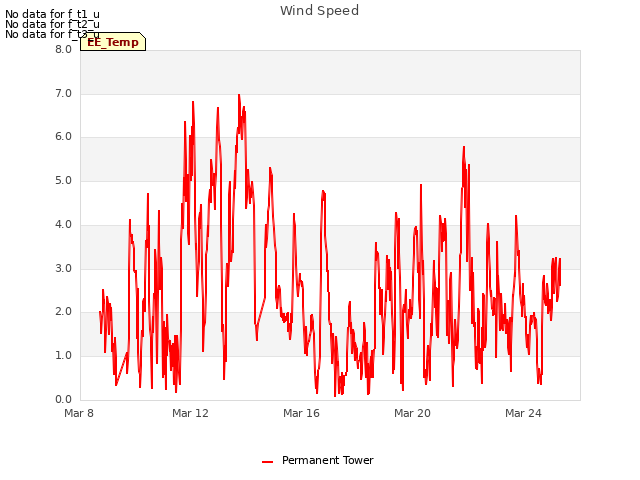

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

Explore the graph:CO2 Fluxes in a new window
