<--2009-06-09 04:40:00 | 2009-06-21 04:56:00-->Tonzi: 2009-06-10 09:30:00 (DOY 161)
Author: Joe Verfaillie
Others: Gretchen, Jaclyn
Summary: Zcam 3 setup
| Tonzi
6/10/2009 Arrived about 9:30 am with Gretchen and Jaclyn. Overcast, warm, light breeze. Set up new zenith cam near floor tower in same location as old Olympus. Used a CR200 data logger mounted in the sonic PCI enclosure at the floor tower for control. Camera takes pictures with auto snapshot script run at power on. Photos to be taken at 4, 5, 6, and 7pm. Camera set to PST but not sure about data logger. Other cameras set to take photos at 4, 5, 6, and 7pm as well. Need to check daylight savings time settings. Tram was working. Helped Gretchen with sap flow data logger inside tower fence. Multiplexer was not reporting, found two loose wires and several other terminal screws tightened half turn. Left about 2pm. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

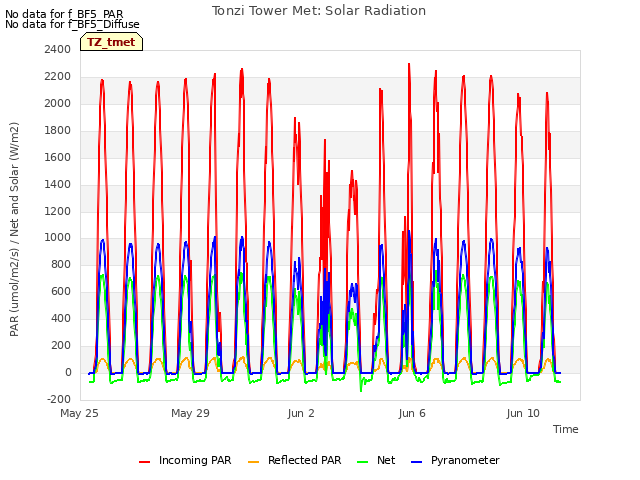

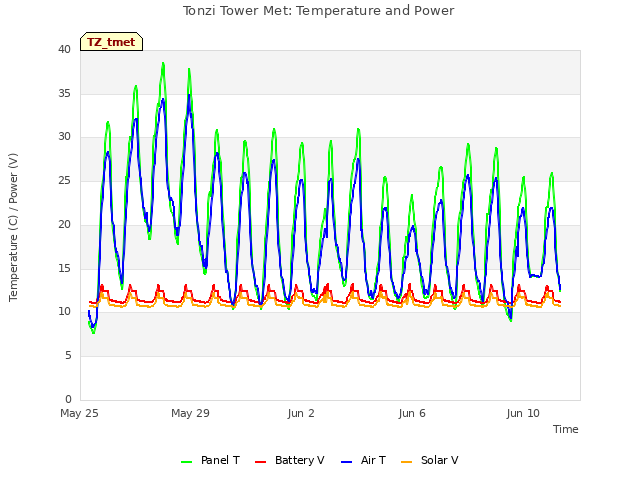

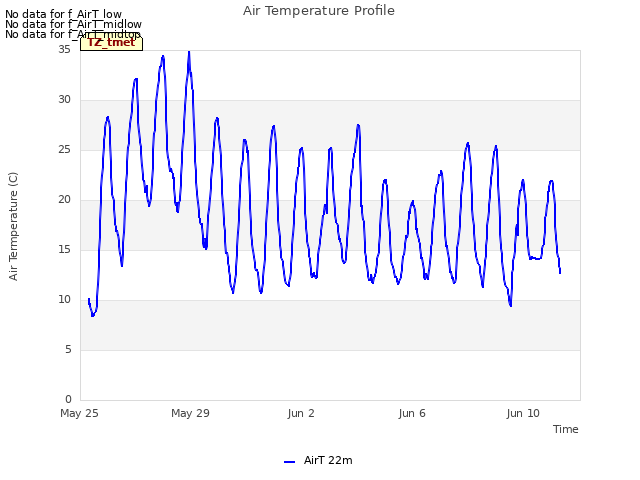

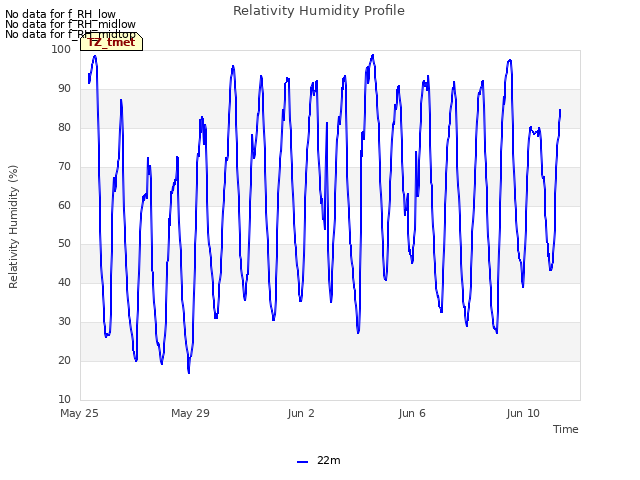

11 TZ_tmet graphs found

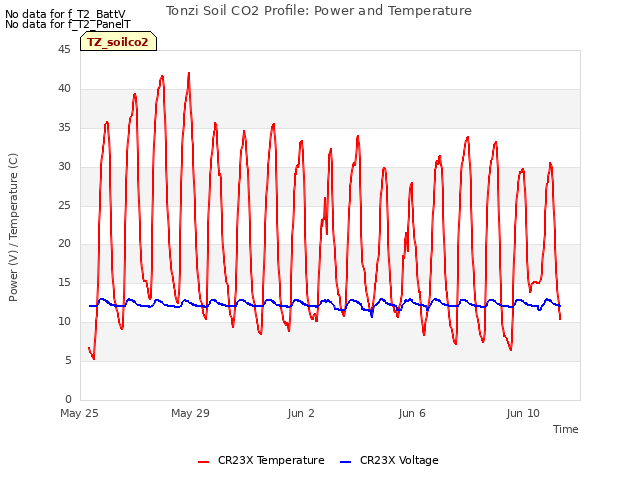

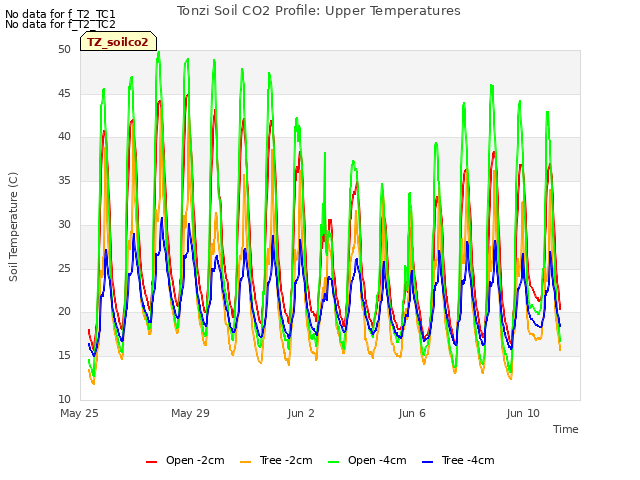

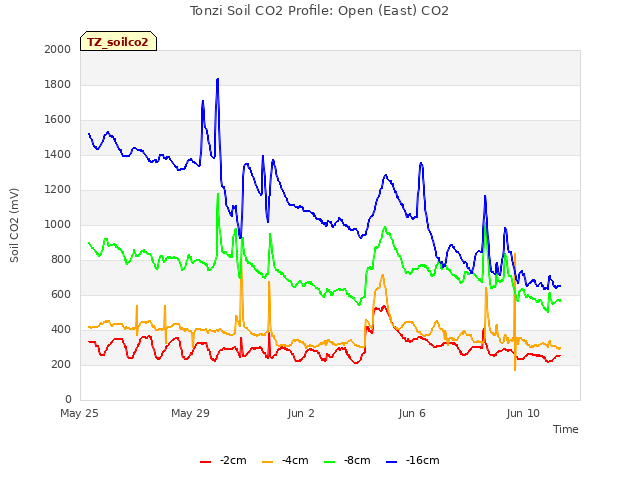

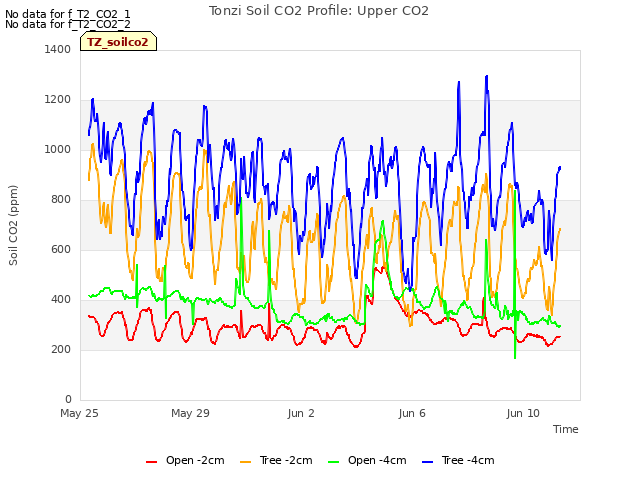

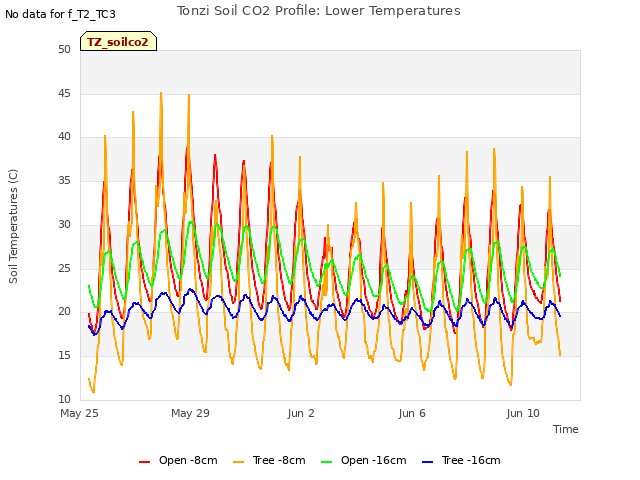

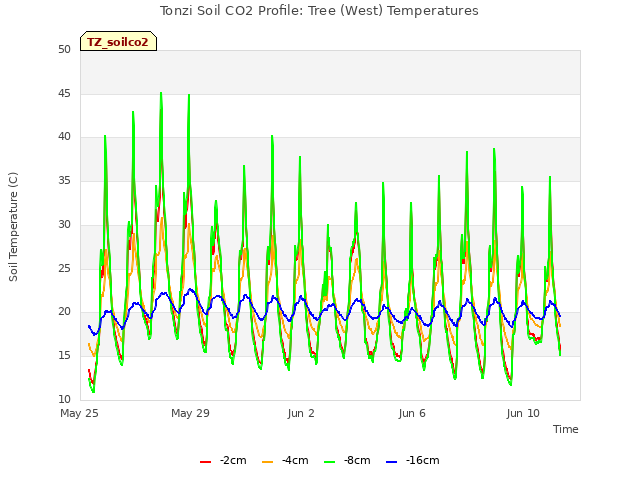

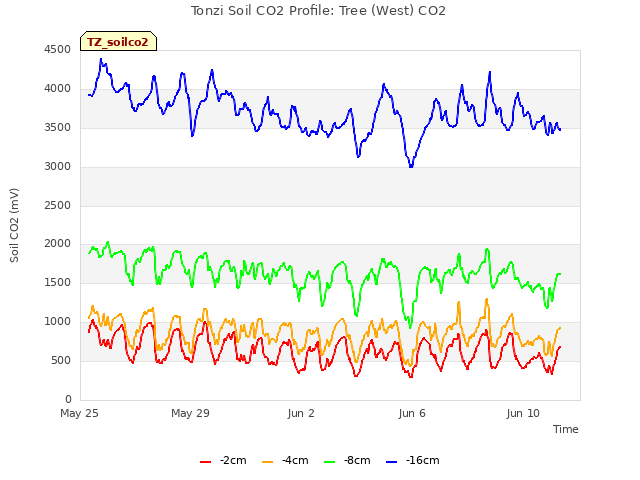

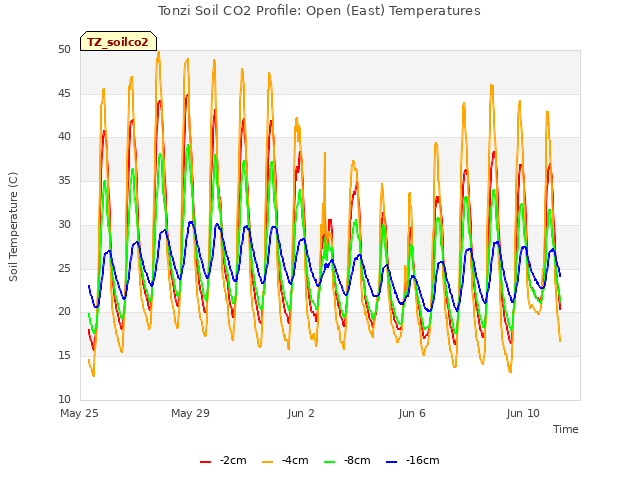

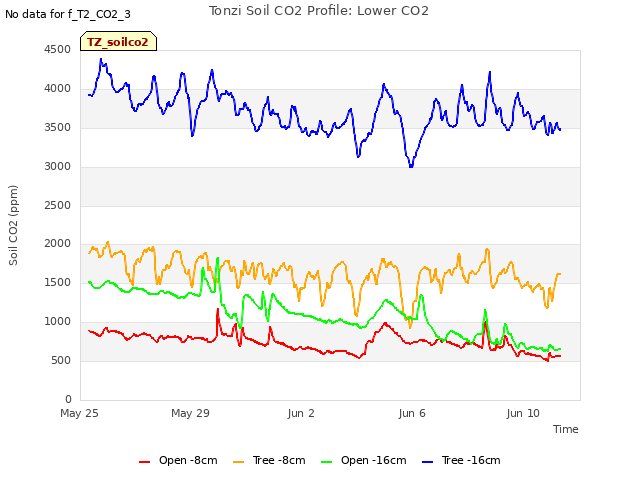

11 TZ_soilco2 graphs found
Can't check TZ_mixed

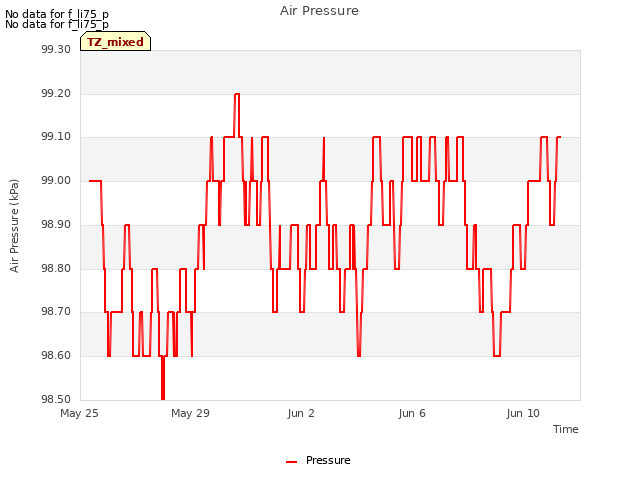

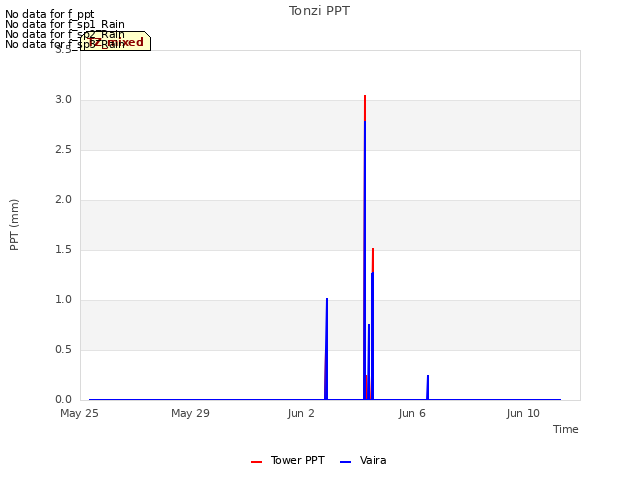

3 TZ_mixed graphs found
No data found for TZ_fflux.

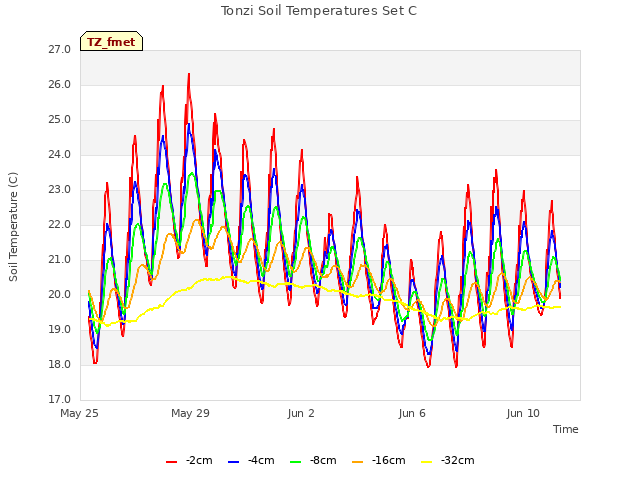

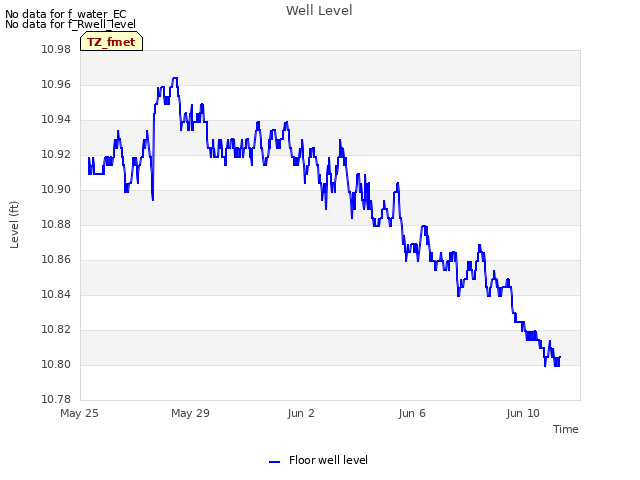

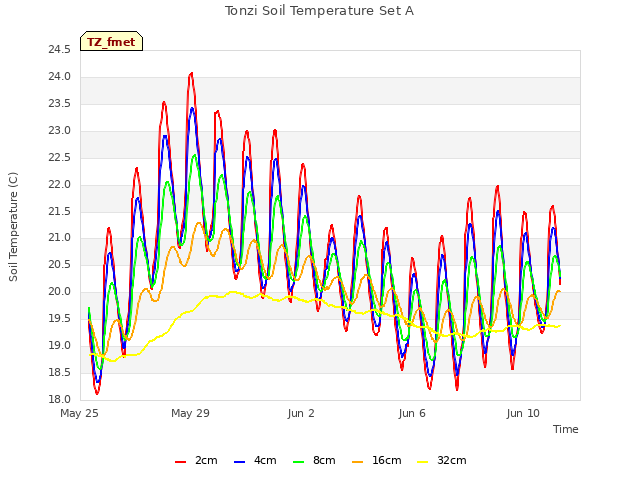

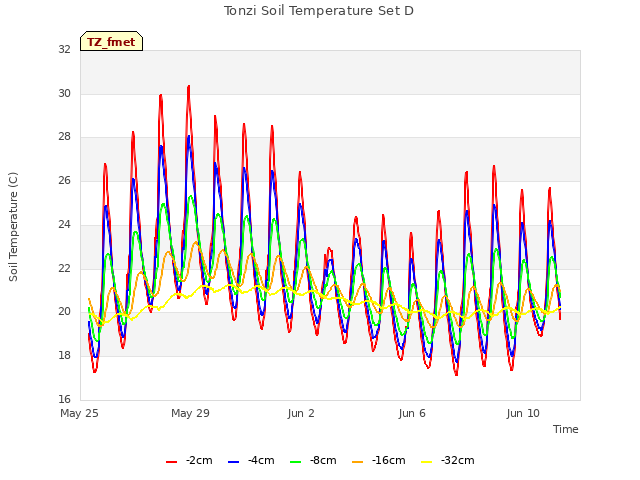

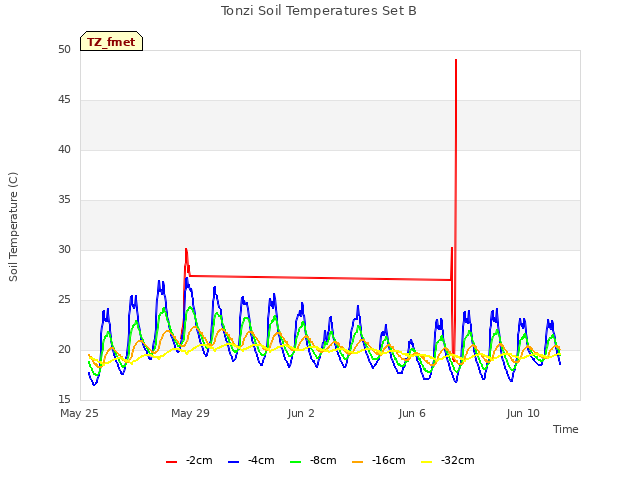

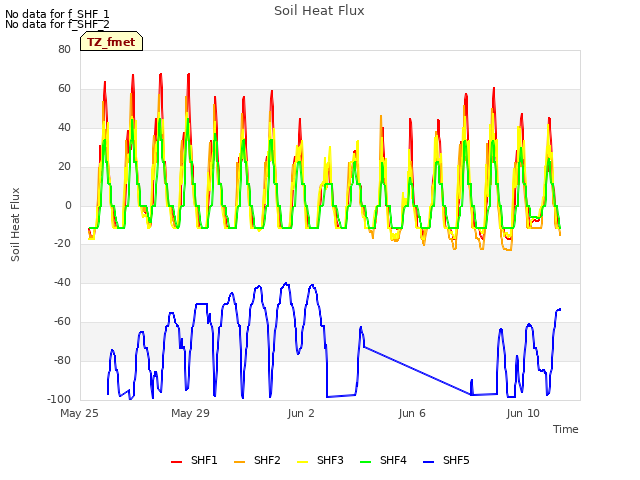

8 TZ_fmet graphs found

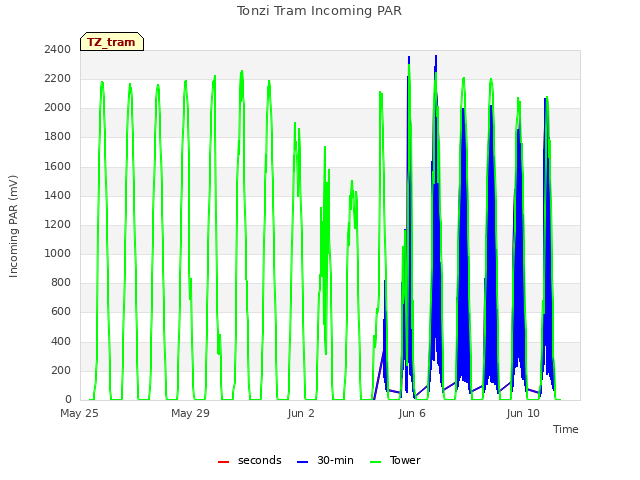

1 TZ_tram graphs found

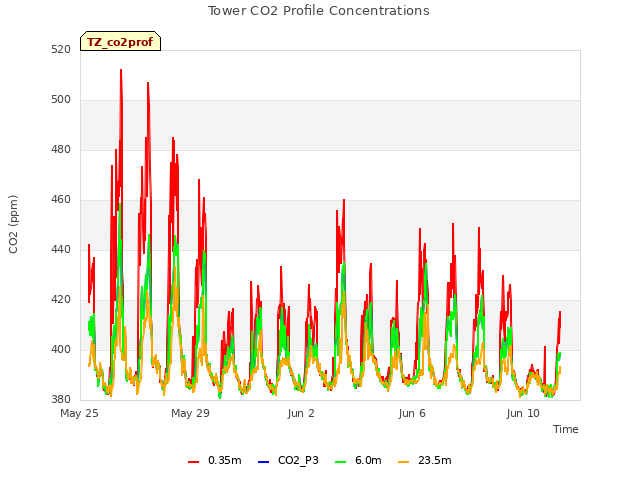

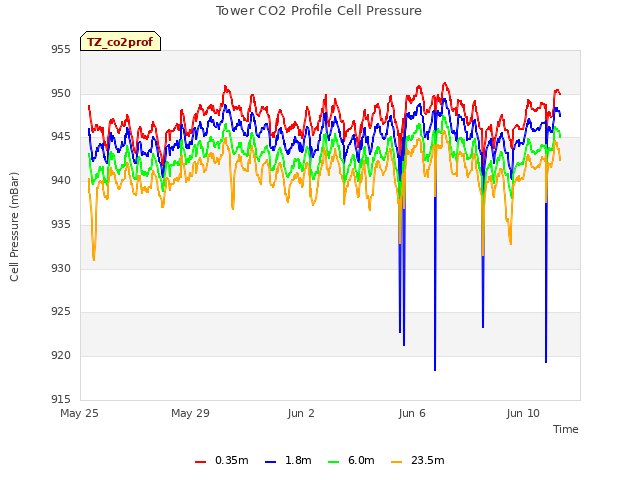

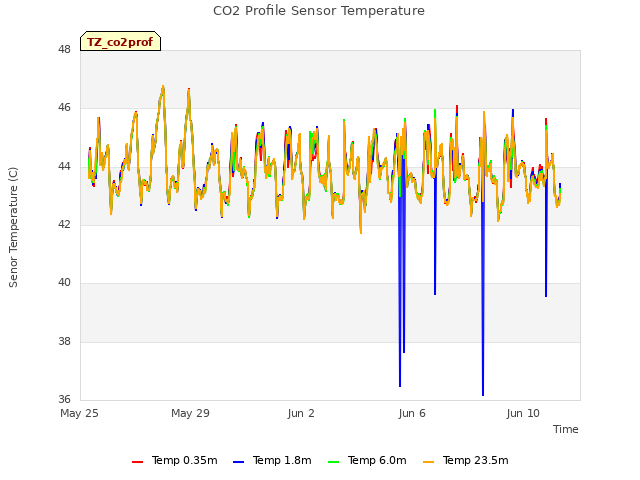

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

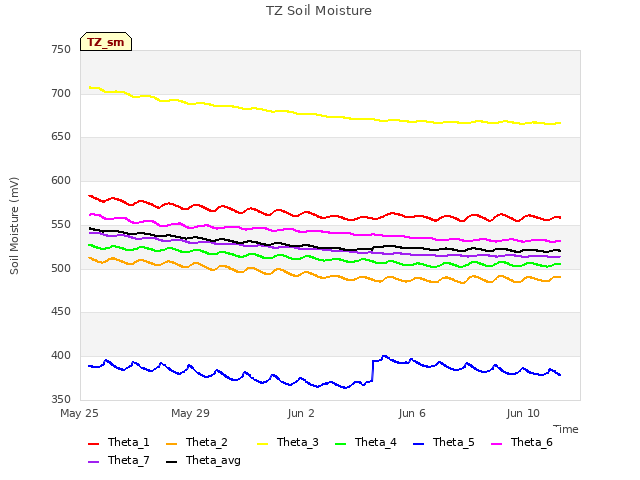

2 TZ_sm graphs found
Can't check TZ_met

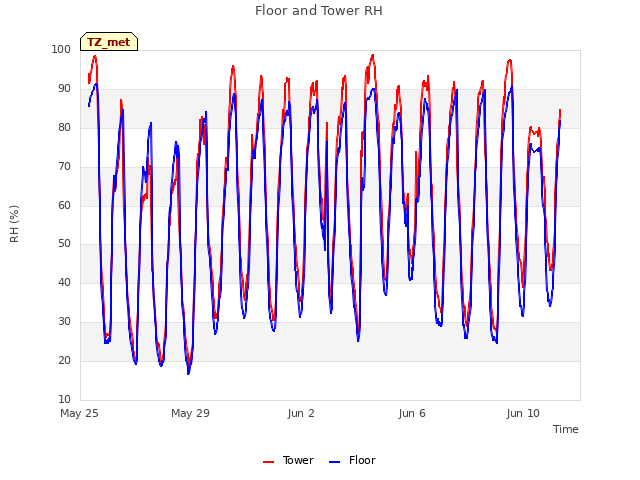

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
