When: Date: 6/21/2009 , Day: 172 , Watch Time: 4:56am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear
Phenology

Tonzi: still see yellow flowers of HYGL
	Mr. Tonzi’s pool
Vaira

Summary

1. Nitrogen tank pressure is low: N₂ 650 psig;
2. measured pre-dawn leaf water potential (~10 bar)
3. swapped Li-7500 at Tower nd Vaira
4. checked and downloaded data at Tower, Floor, and Vaira. Three systems worked well.
5. Calibrated Li-800 in the field (bring the copy of Ted’s instruction).
6. samples of oak leaves
7. dendrometer
8. soil moisture

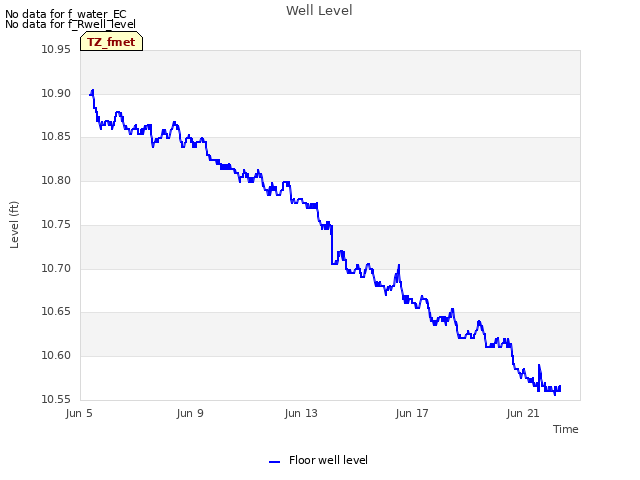

9. groundwater well

Date	DOY	Location	Depth from the black thing (feet)
6/21/2009	172	Floor	26.18
		Tower	30.35
		roadside	35.32

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.0 v; 6.1 amps; 2.2 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

after swap

1. downloading data

1. swaping Li-7500 Analyzer. (Remove SN# 418 ; install SN# 41 )
2. Swapped a new fan for air temp. and relative humidity sensor at Vaira.
3. Check CR23X: Sys_vot = 13.48

1. Check levels of Radiation sensors, clear up surfaces. YES!
2. Check rain gage, make sure not clogged. YES!
3. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.2 v; 0.0 amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!

1. swaping Li-7500 Analyzer. (Remove SN# 976 ; install SN# 42 )
2. check the fans of air temp. and relative humidity sensors on the tower and the floor.
3. Check rain gage, make sure not clogged. YES!
4. Check calibration cylinders;

CO₂ 850 psig; flow 20 psi; 431.25 ppm.
N₂ 650 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌YES!

1. close gate and set up fence. YES! The voltage is less than 12v. Checked the fence around, didn’t see broken wire.

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 12.3 v; 0.0 amps; 0.2 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data
2.

1. Check MD-9 system connections

CR23X3 – floor-Met

CR23X5 – soil CO₂ profile


CR23X6 – tower-Met


CR10X2 – floor-Met

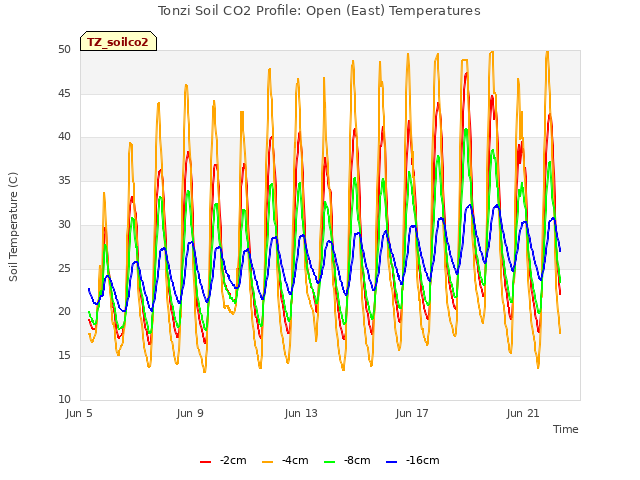

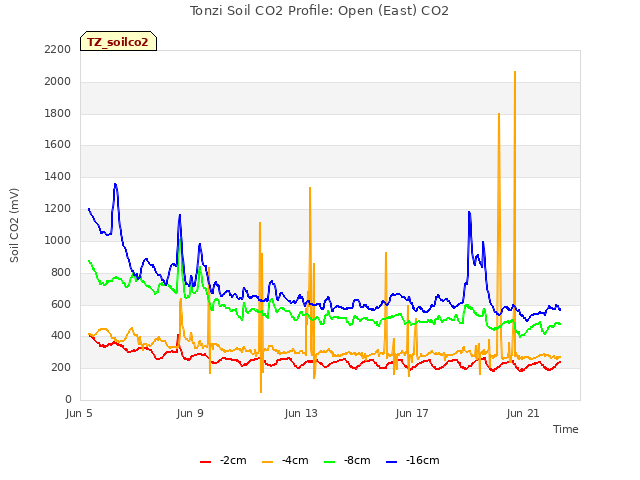

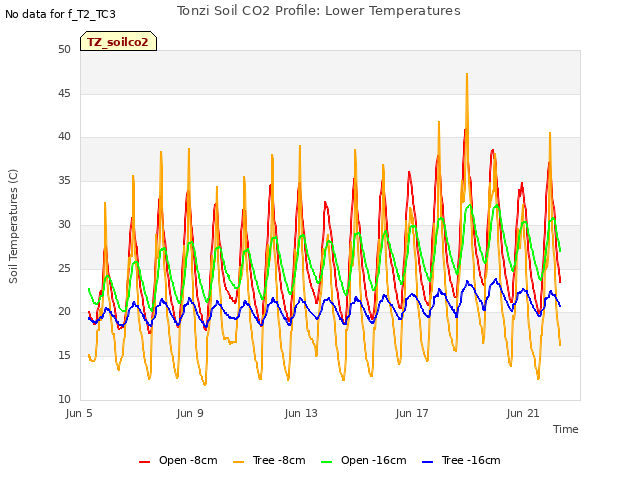

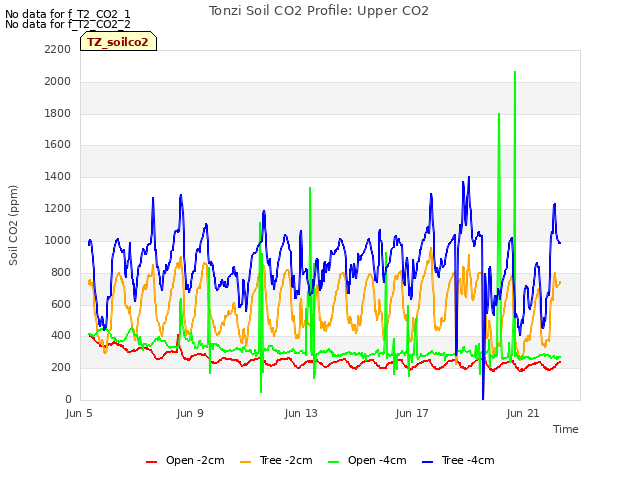

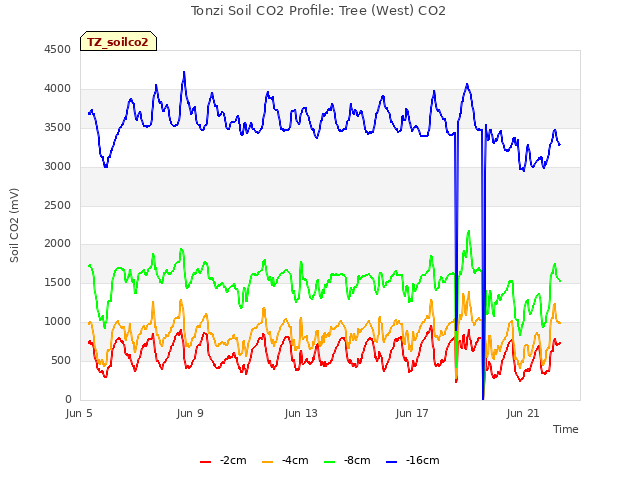

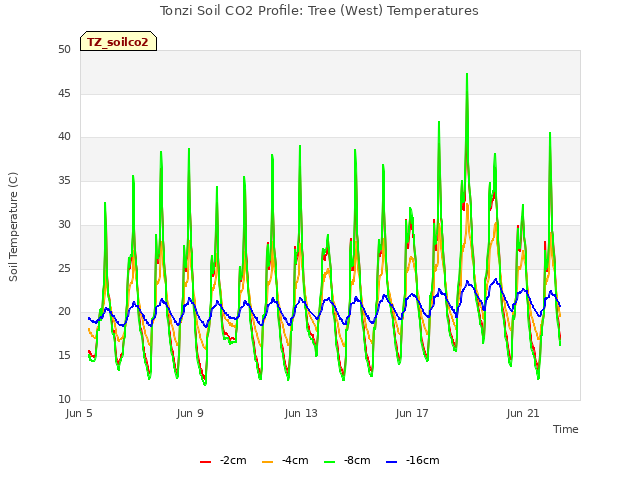

1. Soil CO₂ profile

Reading from datalogger
Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	480	1	2cm (1%)	1420	1
4cm	560	2	4cm	1700	4
8cm	980	3	8cm	2800	2
16cm	1110	4	16cm	6300	3

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (mm)
6/21/2009	172	71	X
		72	6.0
		77	X
		78	X
		79	9.2 (reset to 10.5 on May 7, 2009)
		245	8.2
		248	X
		250	16.9
		255	X
		‌252‌	X
		102	11.2

Notes: “X” means not working any more.
Dendrometers installed by Gretchen group

Date	Day	Tag #	Reading (mm)	Original reading (mm)	Location
6/21/2009	172	1	17.6		133
		2	8.4		11828
		3	13.5		11829
		4	4.3		‌
		5	11.2		‌
		6	X		broken
		7	12.6		‌
		8	14.0		‌

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
6/21/2009	172

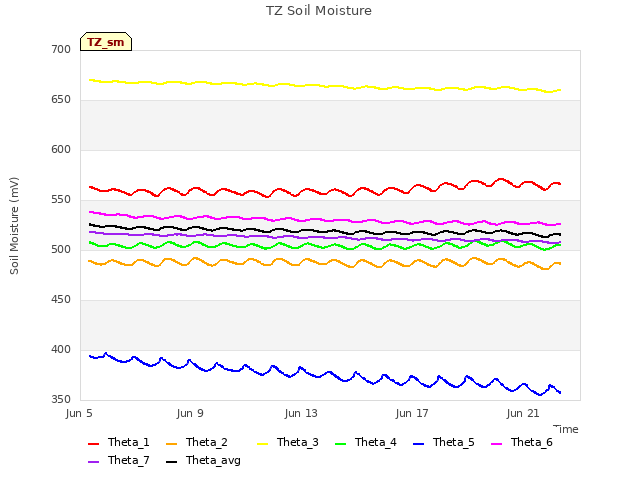

	SM
0-15	7.4	2.7	7.1	3.3	8.6	6.2	9.4	7.4	3.9
15-30	13.3	13.0	19.1	14.5	9.3	6.6	13.9	13.0	5.4
30-45	19.3	14.5	18.2	15.6	3.9	10.9	15.1	17.6	14.3
45-60	15.3	7.0	13.9	13.3	19.8	11.9	16.2	24.2	11.3
	A6D882B	A3D04E8	A6D72F5
0-15	8.6	8.0	3.6
15-30	8.7	10.0	13.3
30-45	16.5	18.2	14.8
45-60	18.2	20.2	7.0
vaira	57318a	7933dee
0-15	39.9	2.7
15-30	5.1	8.4
30-45	7.0	11.5
45-60	10.8	17.0
