Vaira: 2016-02-04 11:45:00 (DOY 35)
Author: Joe Verfaillie
Others: Dennis, Kyle

Summary: Nice day, Peltier SHF 1 not reading, removed Vaisala CO2 probes.

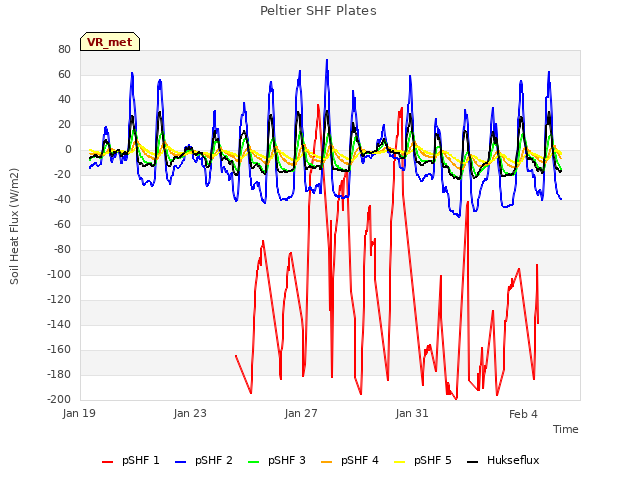

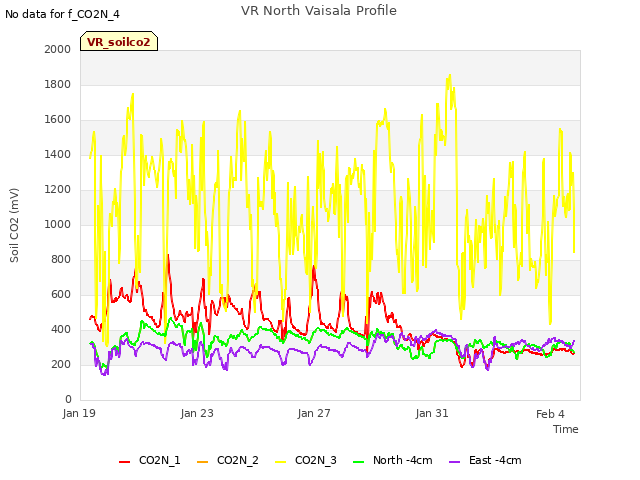

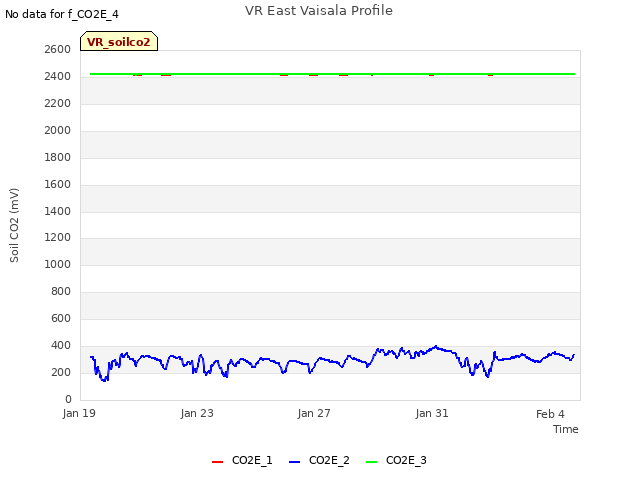

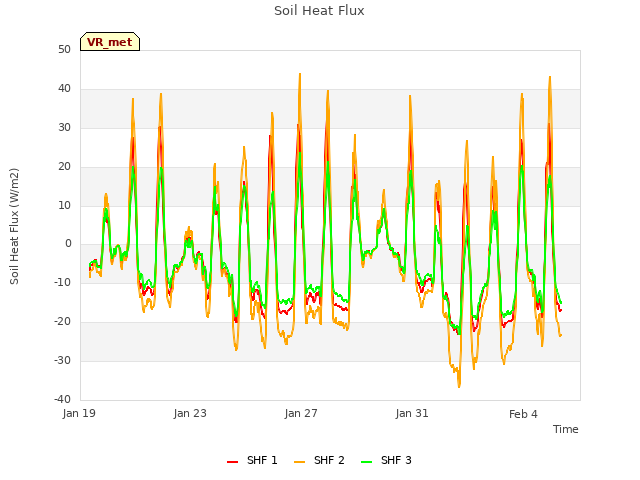

Vaira 2016-02-04 I arrived about 11:45 with Dennis and Kyle. It was clear and sunny with little to no wind. The grass is growing slowly. There were big puddles in the road and the water hole was full. The ground was damp but not soggy. I collected data. Peltier SHF plate #1 was reading –INF. I didn’t see any problems on the surface. I will check the data and dig it up next time. Dennis did Moisture Point, but missed the one by the gate. We removed the Vaisala CO2 probes for calibration. East: 2cm – Removed previously 4cm – sn Z2720015 – this one was full of ants. 8cm – Removed previously West: 2cm – sn K1350103 4cm – sn K1350102 8cm – sn K1350101 North: 2cm – sn G0230062 4cm – sn L2010068 8cm – sn L2010070

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-02-04	TZ_road	37.45
2016-02-04	TZ_tower	34

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2016-02-04	35	0	nan	39.9	27.3	39.9	33.2	37.3	28.2	17.9	25	26.1	29.4	25.3	27.6	50	41.4	35.9	37.1	38.7	32.3	31.3	31.6	27.1	41.1	26.1	32.6	39.6	43.3	36.6	41	44.9	39.9	35.4	36	37.4	46.3	38	38.2	41.4	52.9	64.3	43.7	42	34.2	45.7	46.8	37.1	45.1	50.6	46.6
2016-02-04	35	1	nan	39.9	26.7	39.9	32.6	32.3	27.9	22.3	24.4	26.1	29.1	25	27.9	50	41.4	37.8	37.4	33.8	32.2	31.6	31.9	27.1		27.1	32.6	39.6	43.8	39.4	41	44.9	39.4	35.2	35.2	37.4		38	38	41.1	52	60.6	44.3	49.1	34.5	44.5	46.8	36.2	45.4	49.1	48
2016-02-04	35	2	nan	39.9	36.4	39.9	32.6	37.6	27.9	22.6	25	26.4	29.1	25	28.2	50	40.5	31.6	36.8	33.1	32.3	31.3	31.3	26.8		26.1	32.9	39.6	44.9	33.8	41.3	45.2	39.8	35.2	35.2	37.1	52.5	37.7	37.7	41.1	52.6	59.2	45.4	41.1	34.2	45.1	47.7	36.2	45.4	50	48
2016-02-04	35	Avg	0-15cm																																																		0
2016-02-04	35	Avg	15-30cm																																																		0
2016-02-04	35	Avg	30-45cm																																																		0
2016-02-04	35	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2016-02-04	35	0	nan	23.5	29.7	9.7	28.9	29.8	22.5	15.9	30.1	31.8	30.8	42.3	32.8
2016-02-04	35	1	nan	22.9	29.4	9.1	29.5	31	22.8	15.9	31.6	30.4	29.9	43.1	32.8
2016-02-04	35	2	nan	22.9	29.4	9.7	29.8	30.4	22.5	15.9	31.8	30.1	30.8	42.8	31.9
2016-02-04	35	Avg	0-15cm														0
2016-02-04	35	Avg	15-30cm														0
2016-02-04	35	Avg	30-45cm														0
2016-02-04	35	Avg	45-60cm														0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

3 photos found

Panorama of Joe at eddy tower and solar panels

Green pasture and oak trees in the distance

Joe on site

Graphs display: days

9 sets found

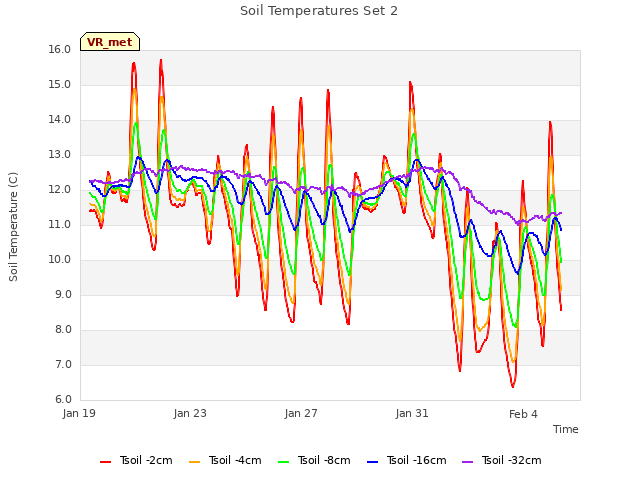

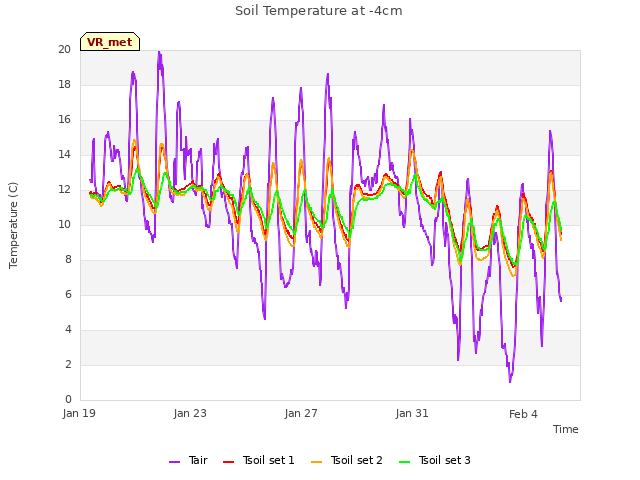

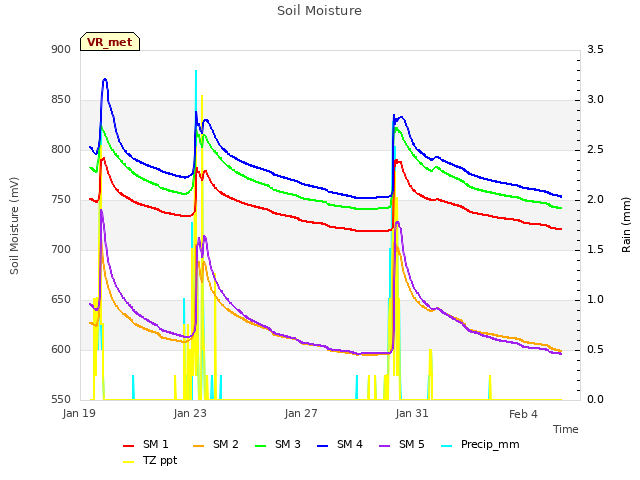

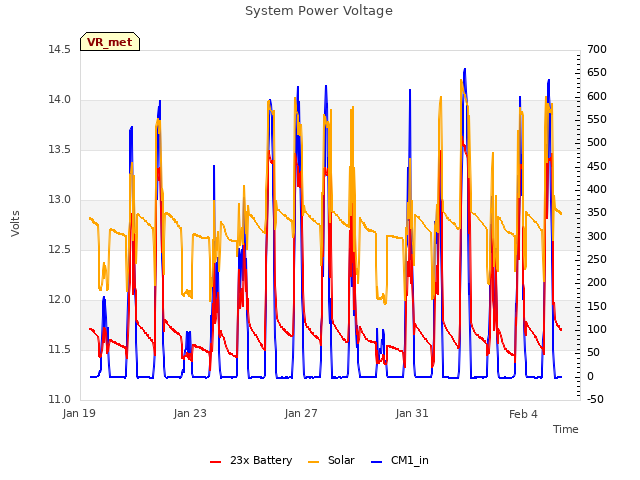

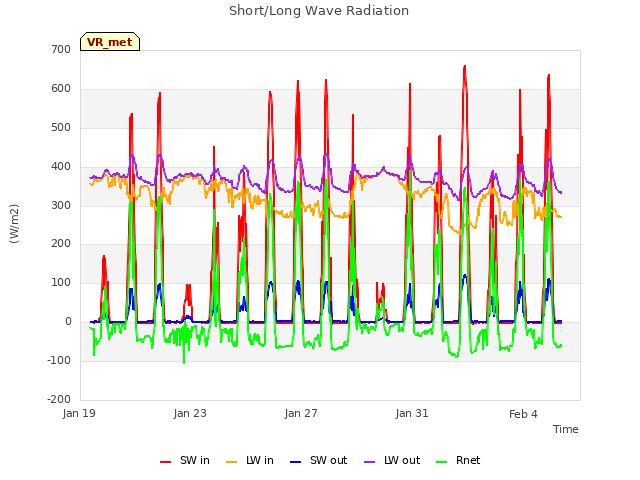

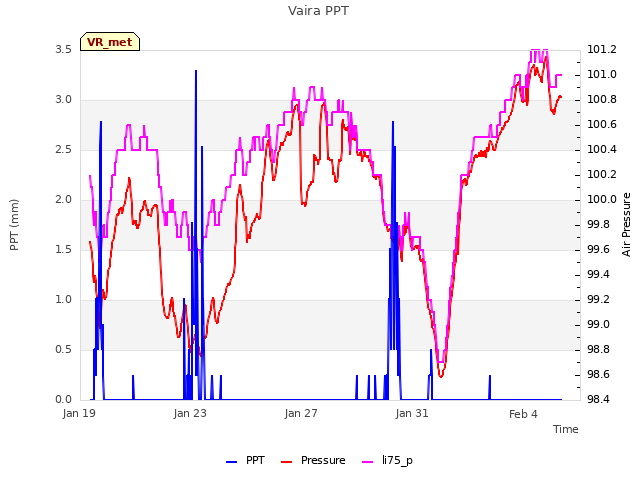

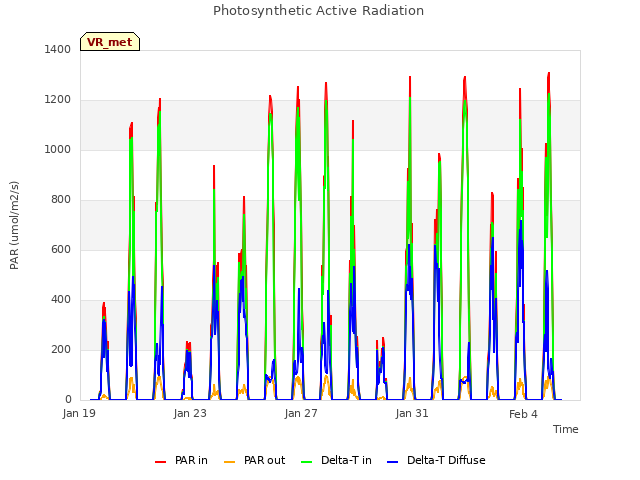

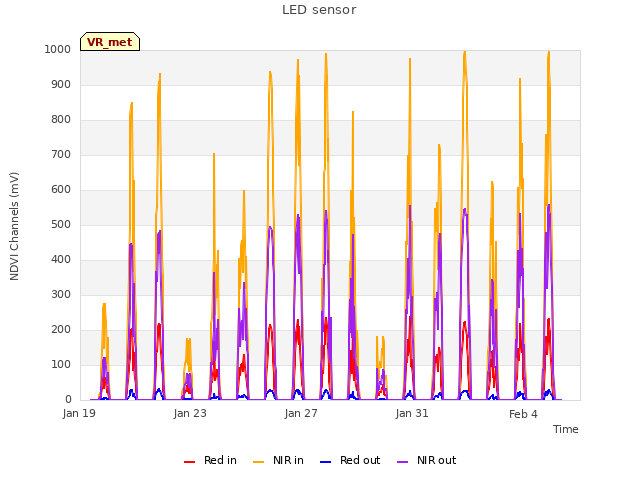

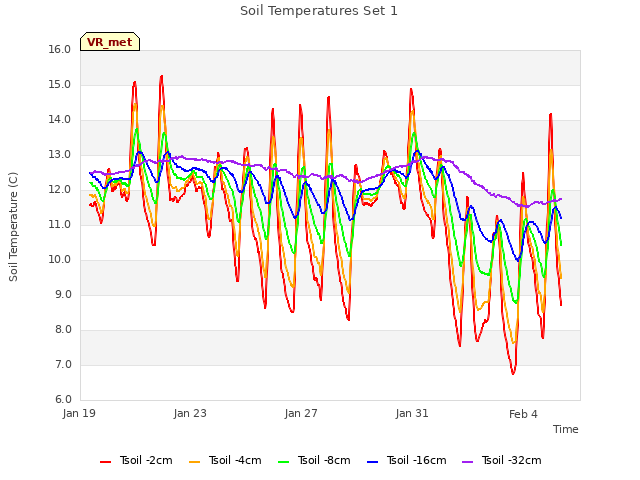

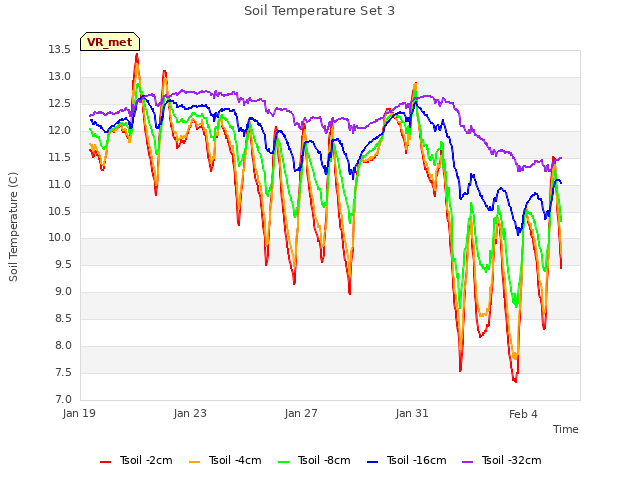

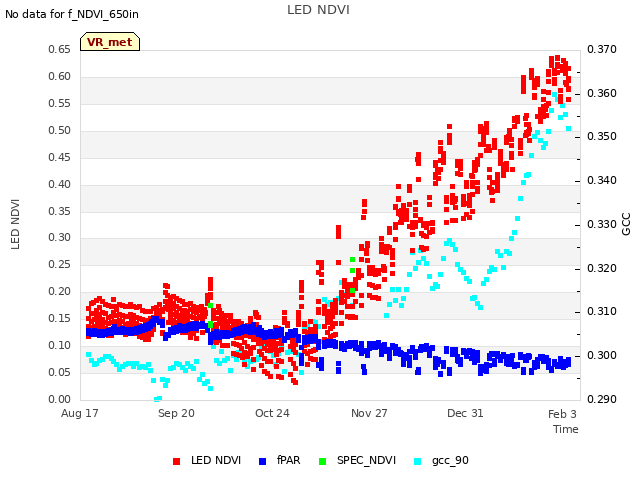

16 VR_met graphs found

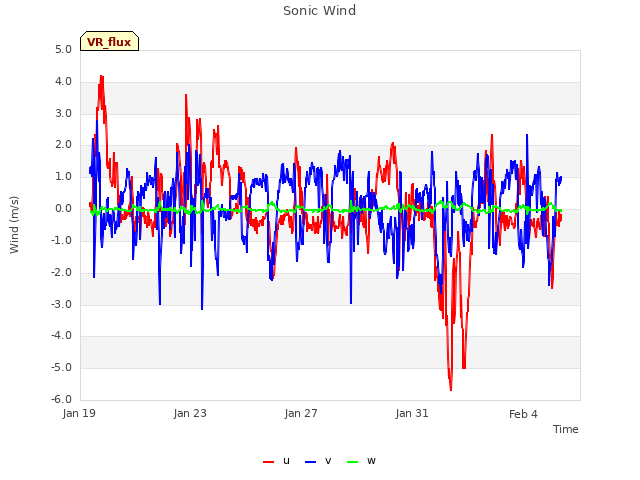

2 VR_flux graphs found

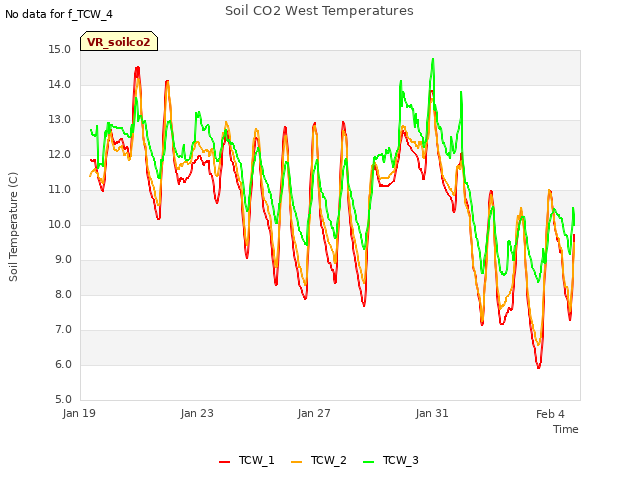

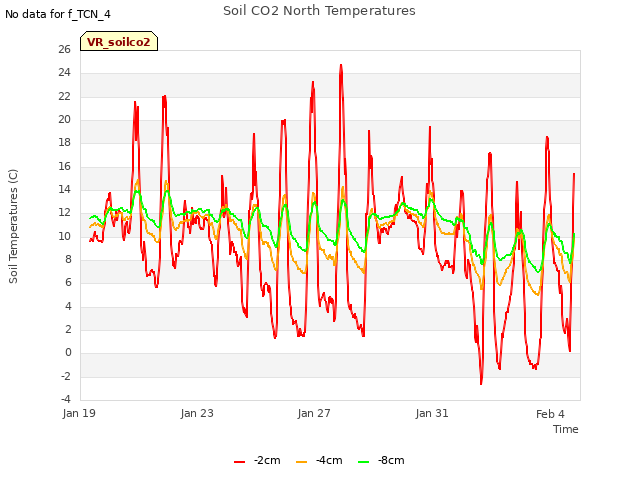

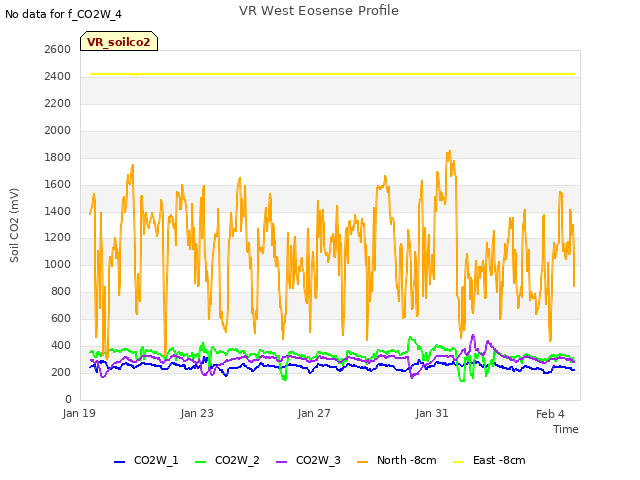

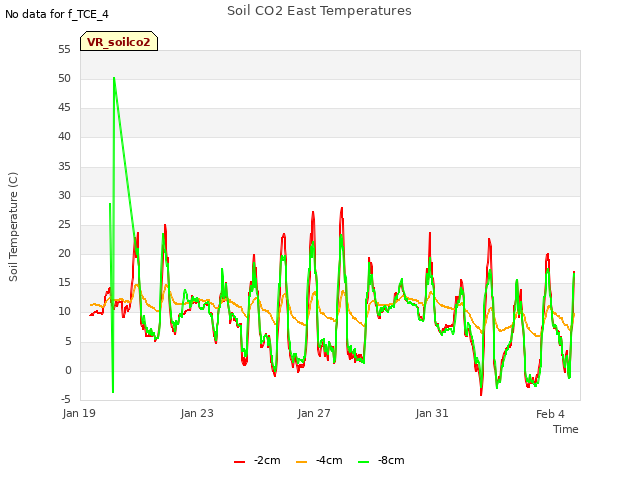

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
