Field Notes

<--2015-12-23 11:00:00 | 2016-01-20 10:00:00-->
Phenocam link: Searching...

Tonzi: 2016-01-08 09:20:00 (DOY 8)
Author: Siyan Ma
Others:

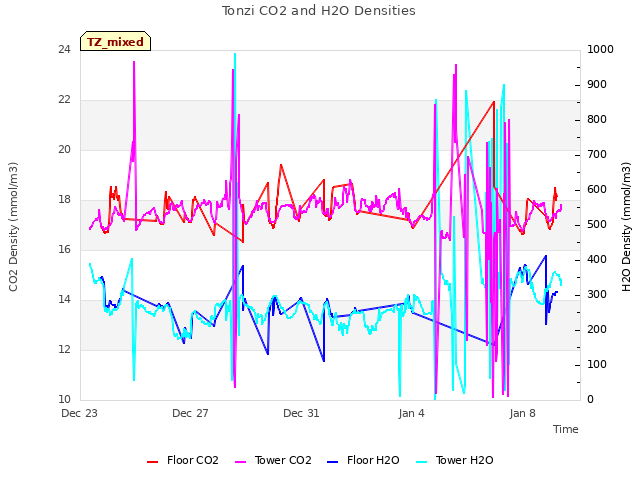

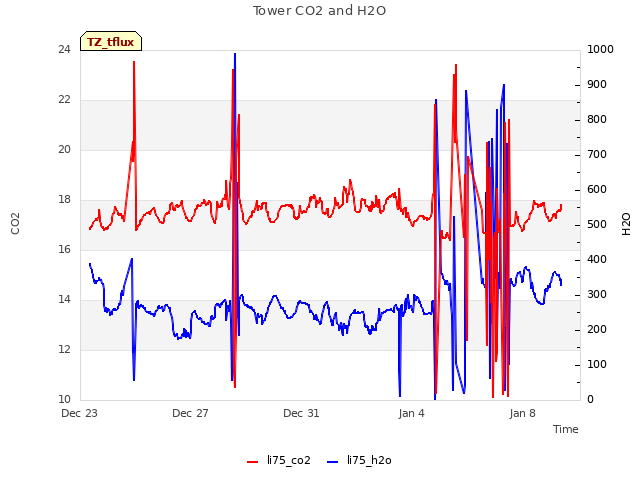

Summary: Standard data collection, Two probes from Vaira East location brought in one wire chewed. Tonzi tower co2 profile system still down.

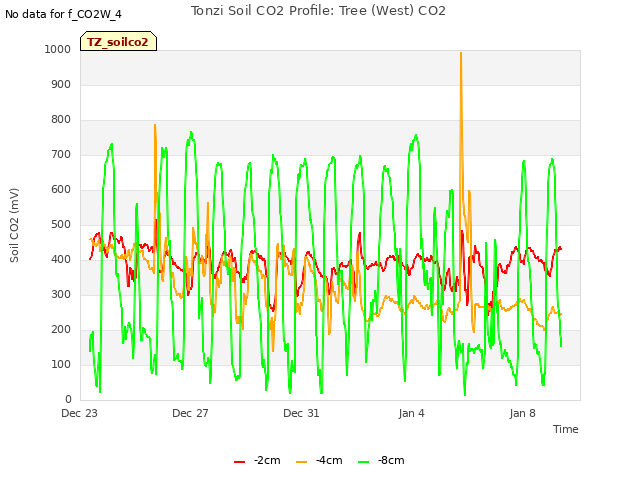

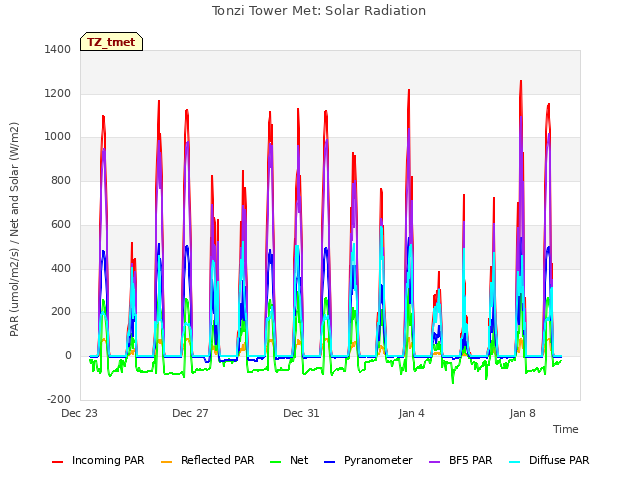

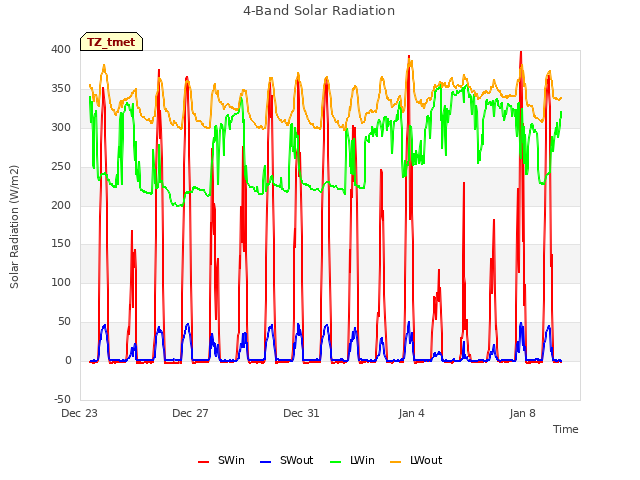

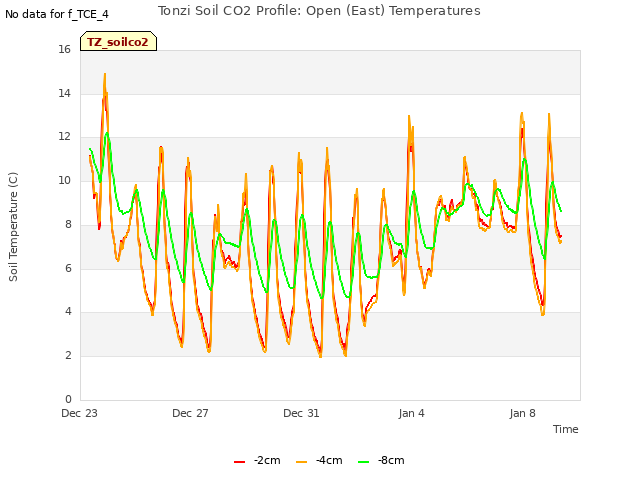

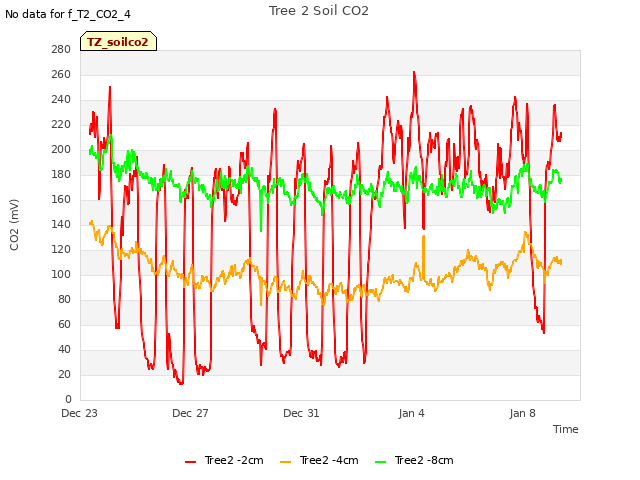

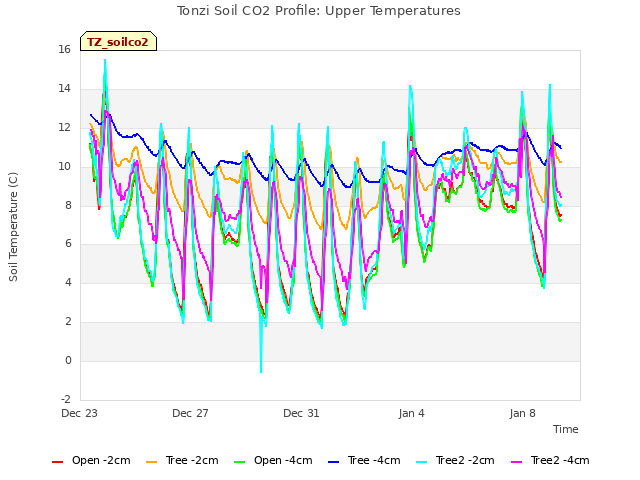

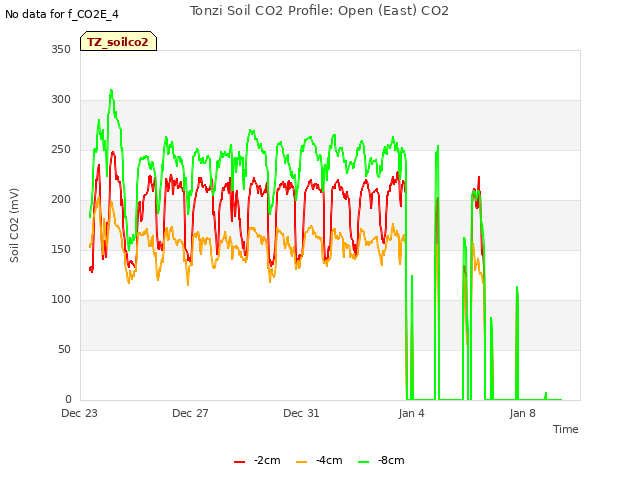

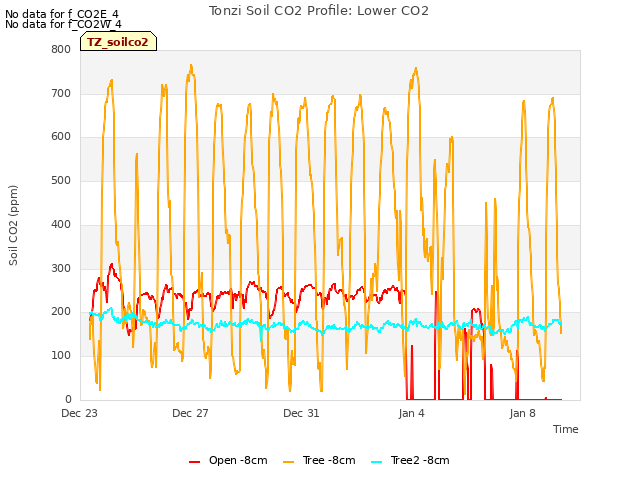

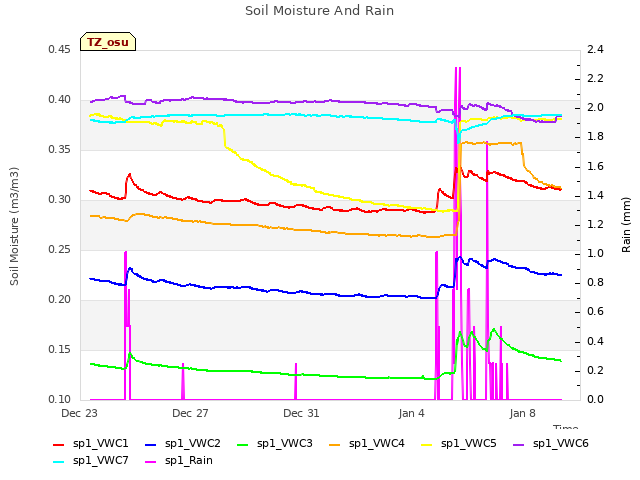

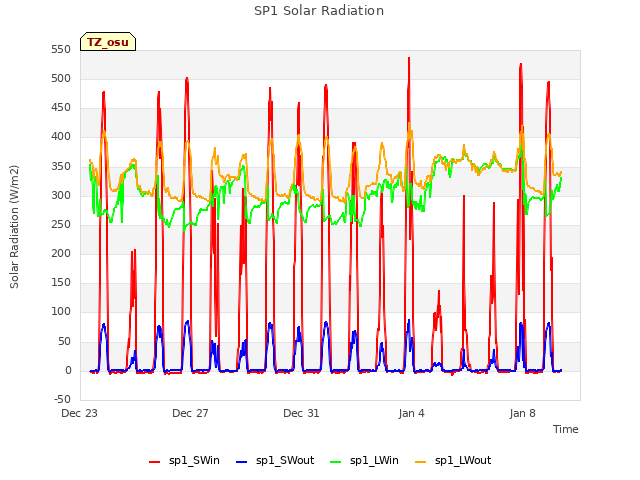

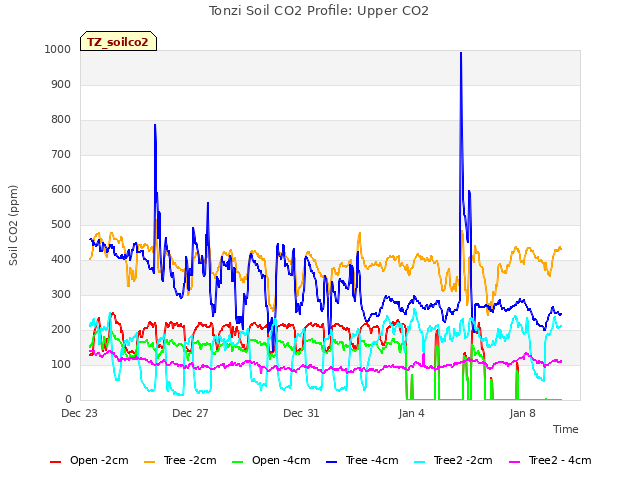

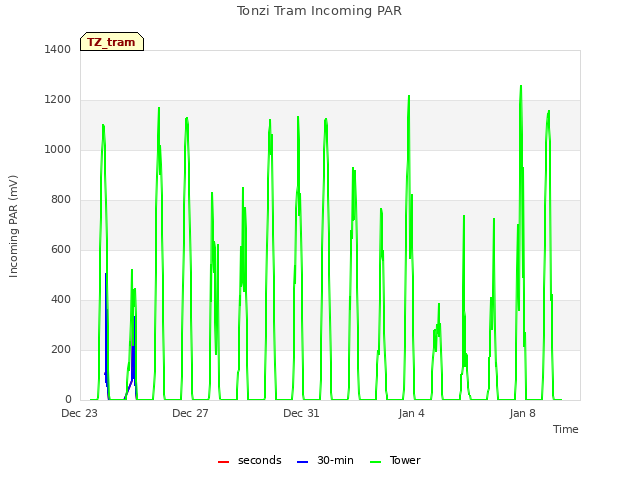

When: Date: 1/8/2016 , Day: 8 , Watch Time: 9:20 am . Where: Tonzi/Vaira Ranch Who: Siyan Weather: clear, sunny Phenology: green grasses, oak leaf-off; cows at Tonzi Summary Swapped memory cards of CR1000s at three sites. Everything worked well. Checked and downloaded met data from PC at Tower, Floor, and Vaira. The CO2 profile system was under construction. Checked the soil CO2 probes at Tonzi and Vaira; Vaira east 2cm (sn ) and 4 cm depth probes were out of soil; one of the cable was broken probably due to animals. Read dendrometers Measured soil moisture Measure groundwater well Vaira_Grass Site Downloaded Phenocam images. Swapped the memory cards of CR1000. Checked the fans of air temp and relative humidity sensors at Vaira. YES! Downloaded met and soil CO2 profile data: Checked levels of Radiation sensors, clear up surfaces.YES! Checked rain gage, make sure not clogged. YES! Closed gate and set up fence. YES! Tonzi_Tower Site Fence and gate power: 12 v. Downloaded tram from PC. YES! swapped the memory cards of CR1000. download Phenocam images. Yes! checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Checked rain gage, make sure not clogged. YES! Checked CO2 profile: wasnâ€™t running for upgrading. 8. closed gate and set up fence. YES! Toniz_Floor Site Fence and gate power: 12 v. Swapped the memory cards of CR1000. Turn on PC and downloaded met data from PC. YES! CR23X3 â€“ floor-Met, CR23X6 â€“ tower-Met, CR10X2 â€“ floor-Met, Soil CO2 profile: CR23X5 â€“ soil CO2 profile 4. Closed gate and set up fence. YES!

Field Data

No tank data

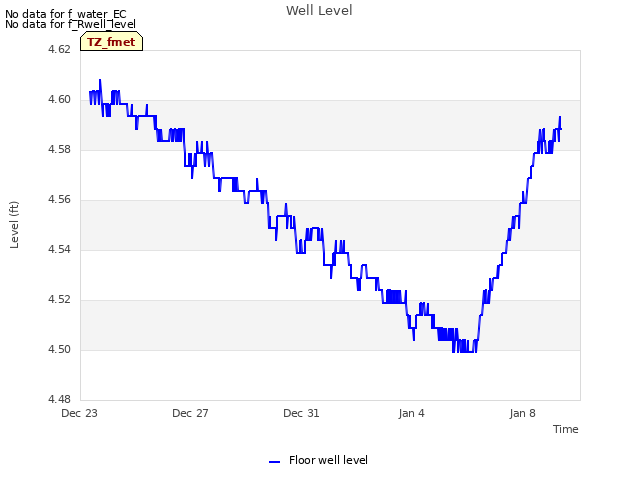

Well Depth

Date	Location	Depth (feet)
2016-01-08	TZ_floor	33.8
2016-01-08	TZ_road	42.4
2016-01-08	TZ_tower	38

mode = both

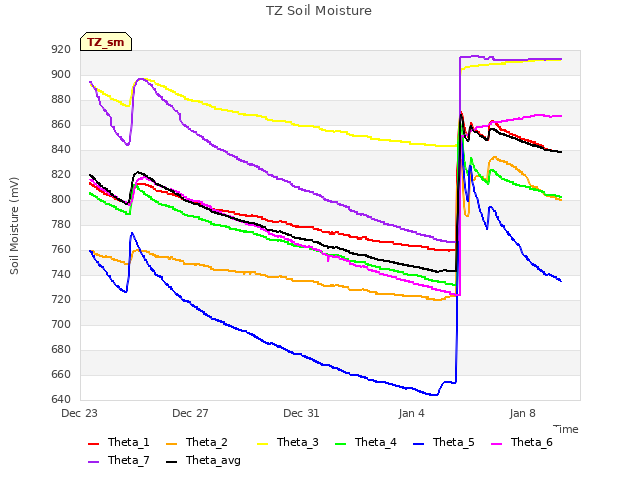

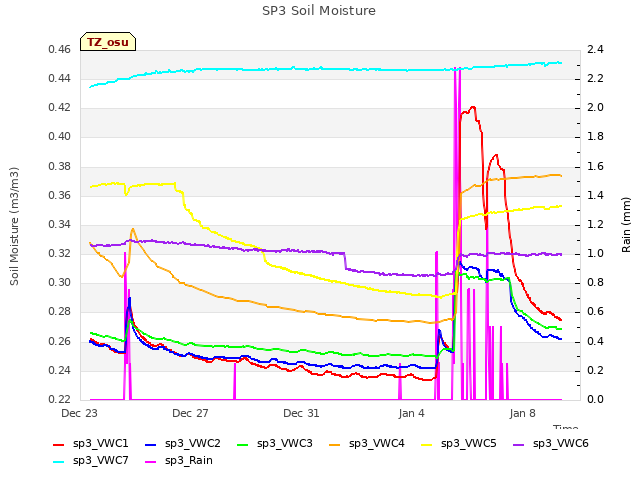

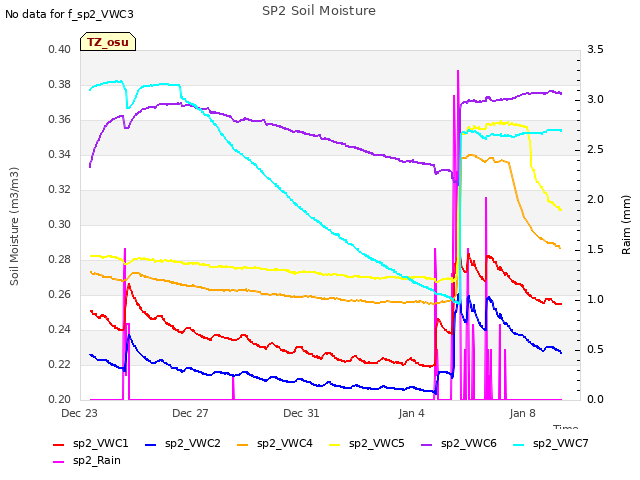

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2016-01-08	8	0	nan	24.4	25	44.3	28.5	32.3	22.3	21.7	23.5	24.4	24.7	24.1	24.1	31	29.5	31.6	28.9	37.4	29.9	31.3	31.9	17.3	28.3	22.5	31	37.1	42.7	33.2	35.2	43	38.3	31.6	33.5	24.3	44.1	38.2	36.3	39.1	43.4	86.1	44	38.2	32.8	43.1	47.9	13.3	44.8	48.3	47.7
2016-01-08	8	1	nan	24.4	21.4	48.7	29.1	32.6	20	20.9	22.9	24.7	24.1	23.8	24.4	30.4	35.3	31.6	30.7	36.8	29.2	31	31.9	17.6	39.6	21.9	30.4	37.1	43	34.1	37.7	43.3	38.2	35.7	32.9	24.3	44.4	37.4	35.2	38.5	42.5	85.2	39.4	39.1	33.1	42.8	45.4	11.6	42.8	48.6	46.8
2016-01-08	8	Avg	0-15cm																																																	0
2016-01-08	8	Avg	15-30cm																																																	0
2016-01-08	8	Avg	30-45cm																																																	0
2016-01-08	8	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2016-01-08	8	0	nan	29.7	23.5	20.3	10.3	31	29.8	23.4	24	32.7	16.6	32.1	31.8	43.1	30.5	33.4	32.2
2016-01-08	8	1	nan	28.2	24.1	20.3	10.6	31	30.4	22.8	24.6	32.7	17	31.5	31	43.4	30.8	33.4	31.9
2016-01-08	8	Avg	0-15cm																	0
2016-01-08	8	Avg	15-30cm																	0
2016-01-08	8	Avg	30-45cm																	0
2016-01-08	8	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2016-01-08	102	14.1
2016-01-08	2	16.0
2016-01-08	245	22.6
2016-01-08	3	17.3
2016-01-08	4	13.1
2016-01-08	5	16.1
2016-01-08	7	13.8
2016-01-08	72	21.8
2016-01-08	79	21.3
2016-01-08	8	16.8
