Vaira: 2001-03-22 12:00:00 (DOY 81)
Author: Dennis Baldocchi
Others:

Summary: Swapped IRGAs; fixed Licor sensor; reinstalled commercial voltage converter; swapped T/RH sensors.

March 22 D81

1200 At Vaira Ranch

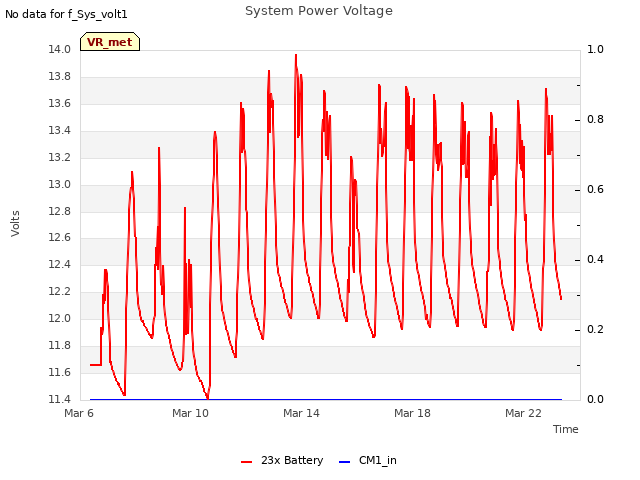

Solar system Aok. Batt volt 13.8 v; gen 6.8 amp, drawing 2.2 amp.

Some wild flowers are growing in the area.

Swapped IRGAs: sn 0065 came off and sn 0041 went on.

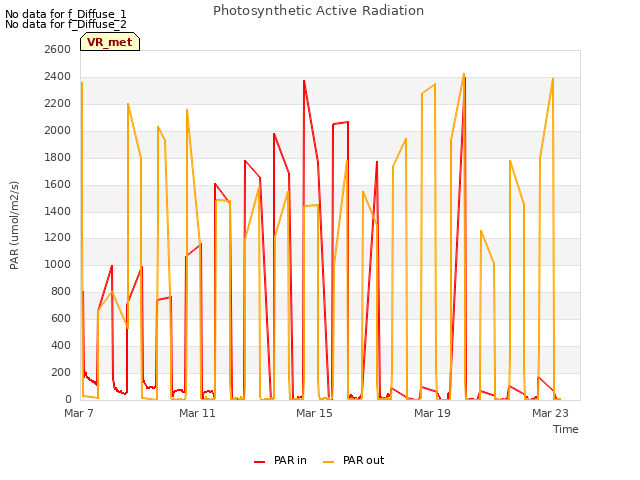

1237 Fixed LICOR Line sensor. Reinstalled the commericial voltage converter, 604 ohm resistor. The old one was eaten by a cow and I had a 604 ohm resistor across bnc terminals. Ted changed the program so a 520 micromol m-2 s-1/mv calibration factor is used. We need to recalibrate the line sensor. Checked its output in full sun with the PAR sensor. PAR was about 1600 and the line was about 1300. It was dirty. Tried to clean it, but did not affect signal enough.

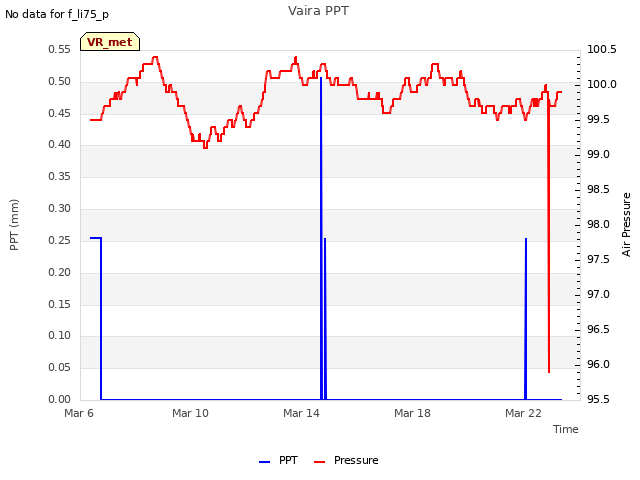

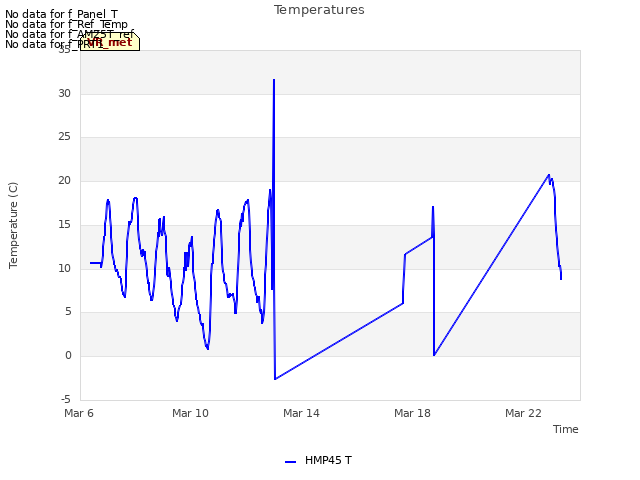

Swapped out dead T/RH sensor. New one could not fit through holes so had to rearrange signal leads. Had to remove and re-connect wetness sensor and precipitation. Found the wetness sensor seems not to be working when wet. Tested PPT after reinstallation, so there is a 1 mm of rain on the record that is not true.

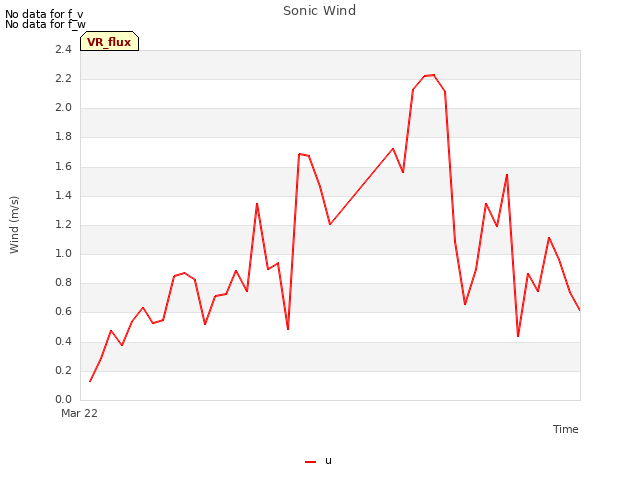

Tedâ€™s Bird wires on the sonic seem to work. No new bird crap on the sonic. Birds on the sonic may be a problem with spikes in the data. The radiometers look clean.

Downloaded raw data.

Ted cleaned up the Campbell programs and their listings.

Leaves on outlining trees are expanding.

1430 Back to Tonzi. Flux system up and running again.

Canopy Height

date	Ht, green	Ht, dead	Ht, fenced
3	3.81+/-1.87	14.44 +/- 3.67
30	Grass still short
Feb 8	3 +/- 1.64		7 +/-2.78
March 15	3

IRGA Log.

Starting Feb 7, 2001, we are setting everything to 10-25 on the CO2 sensor.

date	irga	H2O (mmol m-3)	CO2 (mmol m-3)
D1	75h_0042	0-1000	13-20
D5	75h_0035	0-1000	10-25
D16	75h_0042	0-1000	13-20
D30	75h-0073	0-1000	13-20
D 39, Feb 8	75h-0035	0-1000	10-25
Feb 23	75-0073
	75-0065
D81 March 22	75-0041

MD9 #3, CR23x data logger, met system

GR3_YRDAY.23x

	D005_2001	D0030_2001	D0047_2001 (~1400)	D074 ~1200
	Table		Table	Table
	Year		Year	Year
	Day		Day	Day
	Hour min		Hour min	Hour min
1	Battery volts		Battery volts	Battery volts
2	Pyranometer		Pyranometer	Pyranometer
3	Net radiometer		Net radiometer	Net radiometer
4	Par incoming	Installed 90025 KZ	Par incoming	Par incoming
5	Par reflected		Par reflected	Par reflected
6	Tair		Tair	Tair
7	Relative humidity		Relative humidity	Relative humidity
8	junk		junk	junk
9	Wetness		Wetness	Wetness
10	Pressure		Pressure	Pressure
11	Line sensor		Line sensor	Line sensor
12	Ppt		Ppt	Ppt
13	Stddev_pyran		Soil moisture [5], #19	Stddev_pyran
	Stddev_net rad		Soil HeatFlux[2], #141	Stddev_net rad
	Stddev_par incom		Stddev_pyran	Stddev_par incom
	Stddev par_reflec		Stddev_net rad	Stddev par_reflec
	Stddev tair		Stddev_par incom	Stddev tair
	Stddev rh		Stddev par_reflec	Stddev rh
	junk		Stddev tair	junk
			Stddev rh
			junk

Data Logger Log

CR10x

	Y2000; D296	Y2001; Feb 23 1230
	Table	Table
	Year	Year
	Day	Day
	Hour min	Hour min
1	Battery volt	Battery volt
2	junk	Ts2a
3	Ts2a	Ts4a
4	Ts4a	Ts8a
5	Ts8a	Ts16a
6	Ts16a	Ts32a
7	Ts32a	Ts2b
8	Ts2b	Ts4b
9	Ts4b	Ts8b
10	Ts8b	Ts16b
11	Ts16b	Ts32b
12	Ts32b	Ts2c
13	Ts2c	Ts4c
14	Ts4c	Ts8c
15	Ts8c	Ts16c
16	Ts16c	Ts32c
17	Ts32c	Ts2d
18	Ts2d	Ts4d
19	Ts4d	Ts8d
20	Ts8d	Ts16d
21	Ts16d	Ts32d
22	Ts32d	Soilheat1
23	Soilheat1	Soilheat2
24	Soilheat2	Soilheat3
25	Soilheat3	Soilmoisture1
26	Soilmoisture1	Soilmositure2
27	Soilmositure2	Soilmoisture3
28	Soilmoisture3	Soilmoisture4
29	Soilmoisture4	Soilmoisture5
30	Soilmoisture5
31
32
33
34
35
36

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

9 sets found

16 VR_met graphs found

2 VR_flux graphs found

No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
