Field Notes
<--2001-03-13 10:47:00 | 2001-03-22 09:00:00-->Other sites visited today: Vaira
Tonzi: 2001-03-15 09:00:00 (DOY 74)
Author: Dennis Baldocchi
Others: Nancy Kiang
Summary: Tower foundations installed; forest floor pc nonfunctional.
| March 15, D74 Tonzi Ranch Cloudy, been dry last few days, but wet near tower site The Beckman crew installed the foundation for the tower and were installing holes for anchors. The soil is shallow. They hit rock about 3 feet down. Good to know for roots. Ted moved solar panel, so we wont drop screwdrivers and nuts and bolts on it. We later intend to put solar panel on tower. PC at forest floor is crapping out. Keeps writing error to C. Took it in. Also missing data from the floor met and soil stations. The program on the PC208 was not calling the loggers as it was written. Code either got erases or was not saved. We need to save CR files to C:\tonzi. Nancy is setting up MD9_5 station and strung out coax cable Forest floor system is: Lat 38 25.896 N long 120 57.959 W alt 177m |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.
No data found for TZ_tmet.
No data found for TZ_soilco2.
Can't check TZ_mixed

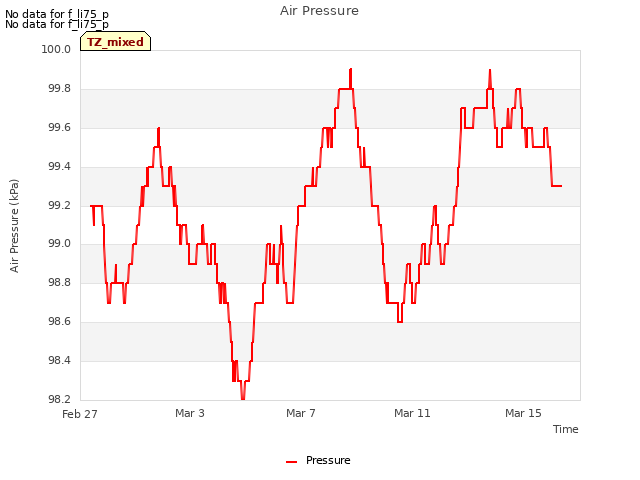

3 TZ_mixed graphs found
No data found for TZ_fflux.

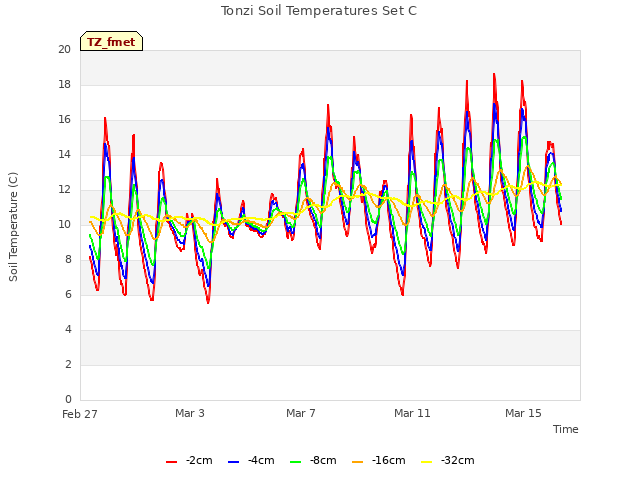

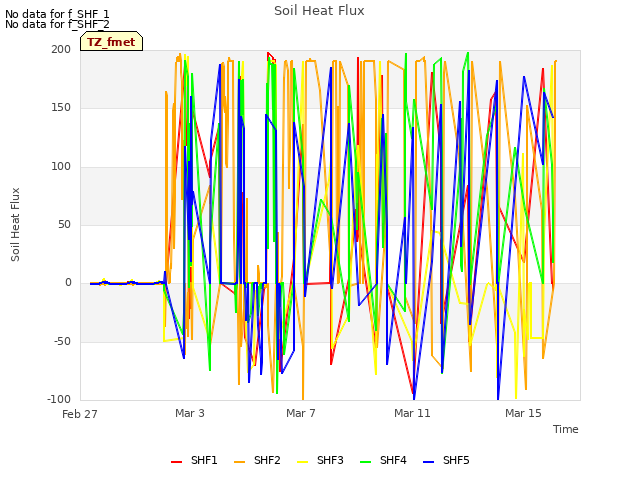

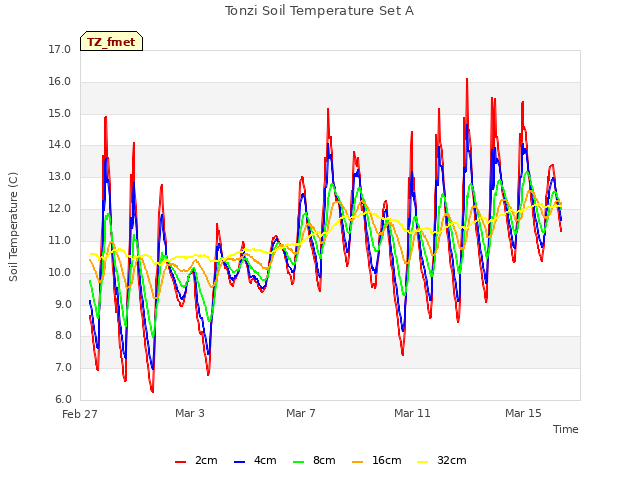

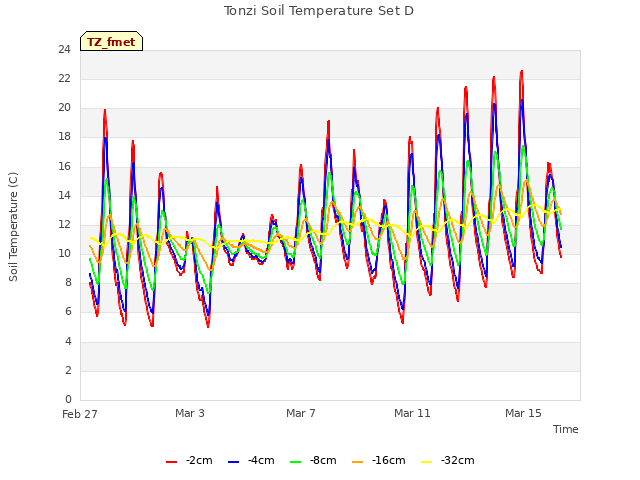

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

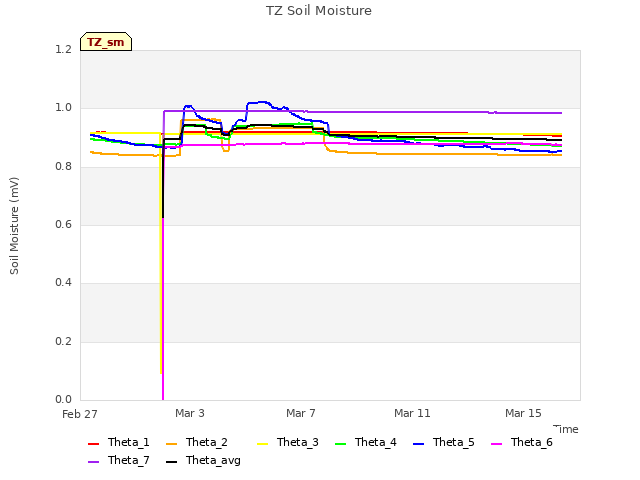

2 TZ_sm graphs found
Can't check TZ_met

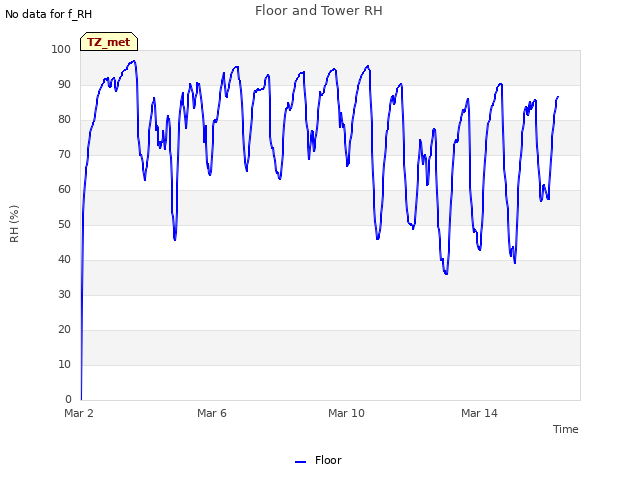

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
