Vaira: 2015-09-01 09:30:00 (DOY 244)
Author: Joe Verfaillie
Others: Siyan

Summary: Hot, dry, standard field work, reset phenocam clock.

Vaira 2015-09-01 I arrived about 9:30 with Siyan. It was clear, sunny and hot with little to no wind. Things are very dry and dusty. Some of the trees are beginning to turn brown. The standing grass litter is not as thick as last year, but I probably need to cut it back around the fence again. I collected data from the computer. The Phenocam clock was running about 10 minutes ahead. I reset it a little after 9am PST. Siyan took clip plots, moisture point and spectral measurements.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2015-09-01	TZ_floor	30.7
2015-09-01	TZ_road	38.8
2015-09-01	TZ_tower	34.5

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => SoilCO2_2 [16] => Soil_Transect_4_2 [17] => Soil_Transect_3_2 [18] => Soil_Transect_2_2 [19] => Soil_Transect_1_2 [20] => SoilCO2_West_A_2 [21] => SoilCO2_West_B_2 [22] => SoilCO2_West_C_2 [23] => Tower_3 [24] => Floor_South_3 [25] => Floor_East_3 [26] => Floor_West_3 [27] => SoilCO2_3 [28] => Soil_Transect_4_3 [29] => Soil_Transect_3_3 [30] => Soil_Transect_2_3 [31] => Soil_Transect_1_3 [32] => SoilCO2_West_A_3 [33] => SoilCO2_West_B_3 [34] => SoilCO2_West_C_3 [35] => Tower_4 [36] => Floor_South_4 [37] => Floor_East_4 [38] => Floor_West_4 [39] => SoilCO2_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2015-09-01	244	0	nan	5.6	1.3	1.8	6.5	1.1	1.3	3.9	4.5	7.7	4.2	2.4	9.7	2	9	9.3	5.7	7.2	13	10.9	3.9	6	1.4	10.9	15.4	9.2	11.2	13.1	7.8	9	11.5	15.1	13.1	14.3	14.4	14	8.6	2.4	16.8	17	18.8	10.2	14.8	23.4	10.2	15.6	15.9	19.3
2015-09-01	244	1	nan	5.6	1.3	1.5	4.1	1.3							9.7	5.4	8.1	9	6	7.5							14.8	9.2	10.3	13.1	7.6	9.5							8.2	2	17.3	16.5	18.5	10.5
2015-09-01	244	Avg	0-15cm																																																	0
2015-09-01	244	Avg	15-30cm																																																	0
2015-09-01	244	Avg	30-45cm																																																	0
2015-09-01	244	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2015-09-01	244	0	nan	0.3	1.2	3.3	0.7	11.8	8.7	6.6	3.9	15.6	5.1	11.5	13.7	29.4	13.8	9.9	16.5
2015-09-01	244	1	nan	0.6	1.5	3	0.1	11.8	7.8	6	2.9	15.6	5.3	6.8	13.4	29.4	14.2	11.5	15.9
2015-09-01	244	Avg	0-15cm																		0
2015-09-01	244	Avg	15-30cm																		0
2015-09-01	244	Avg	30-45cm																		0
2015-09-01	244	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Dennis doing spectral measurements at Vaira site

Graphs display: days

9 sets found

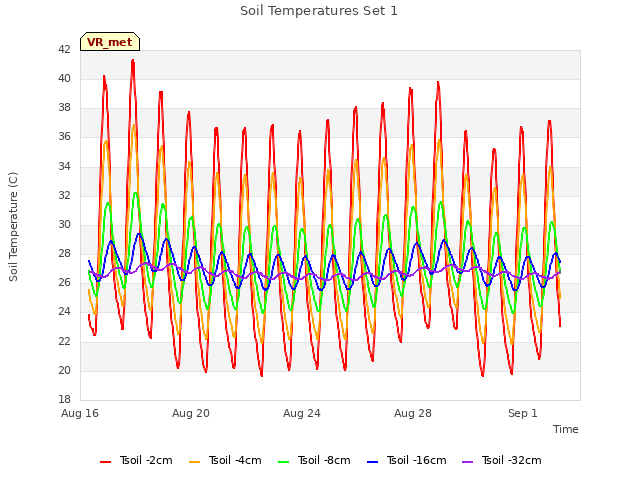

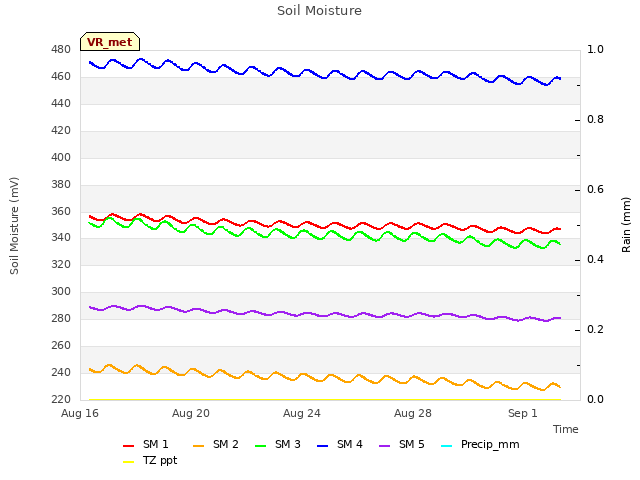

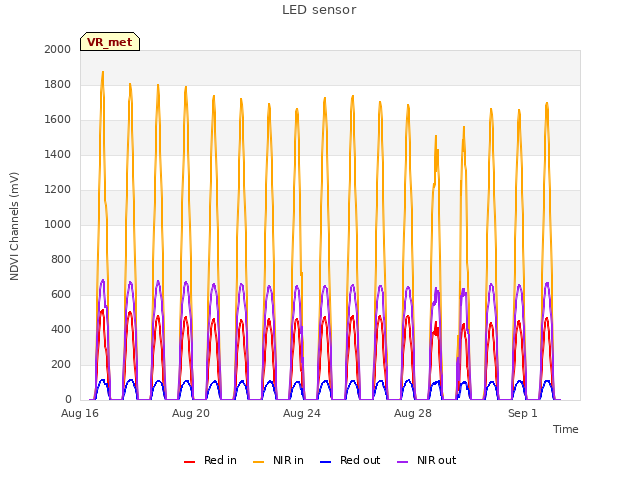

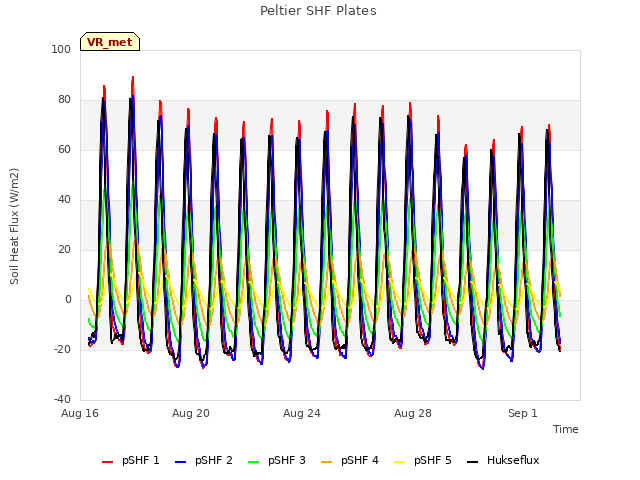

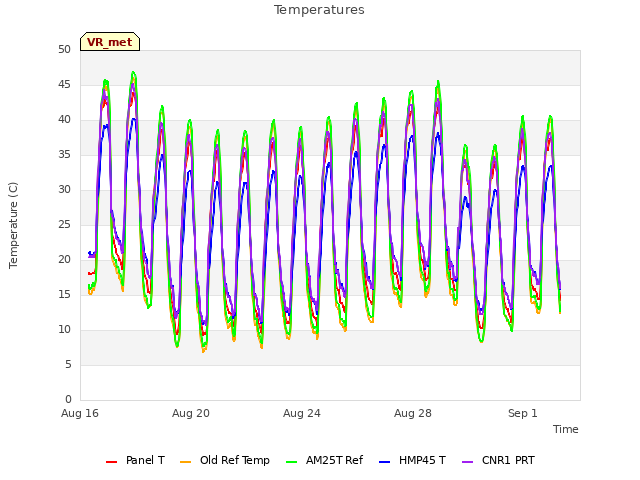

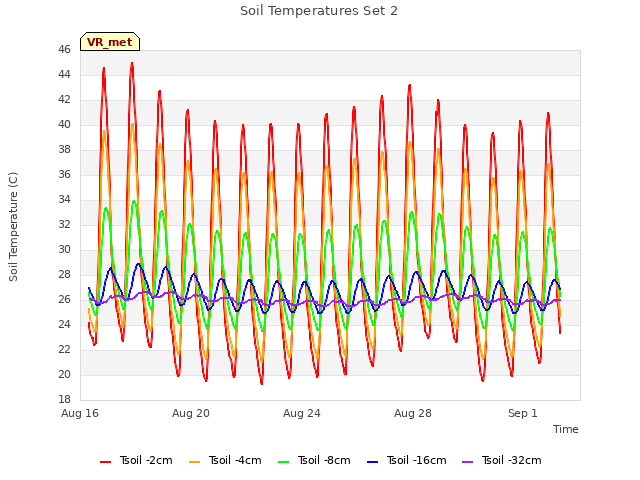

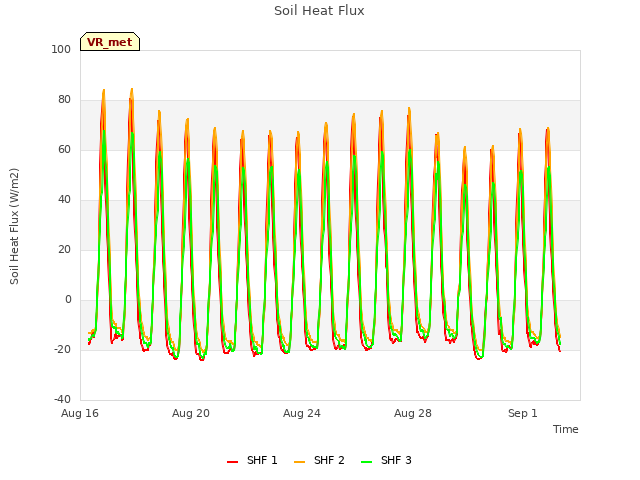

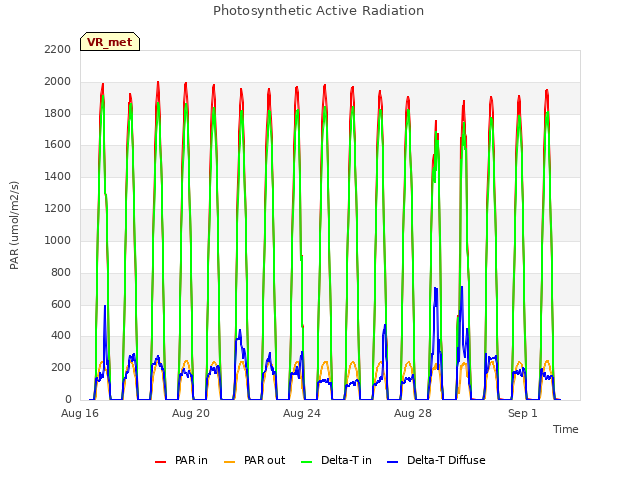

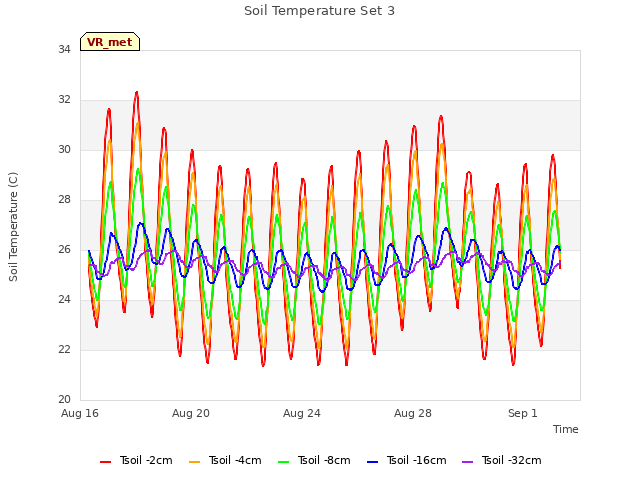

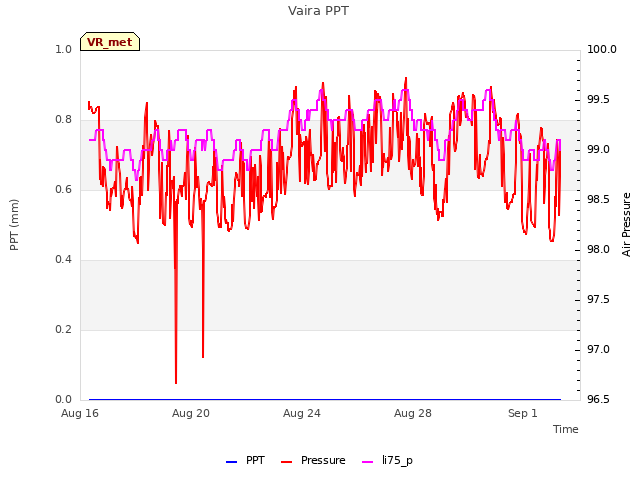

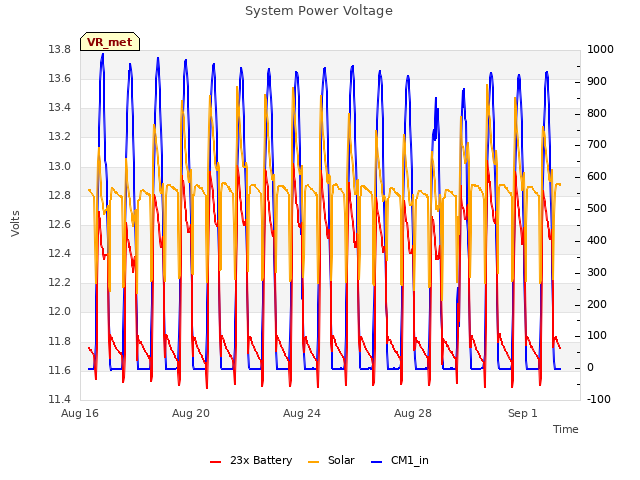

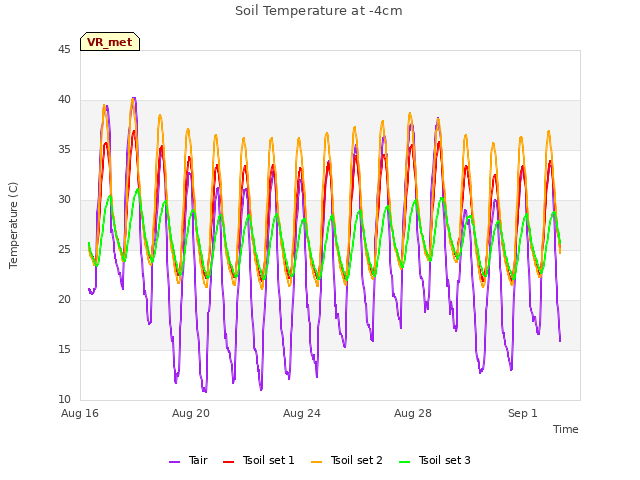

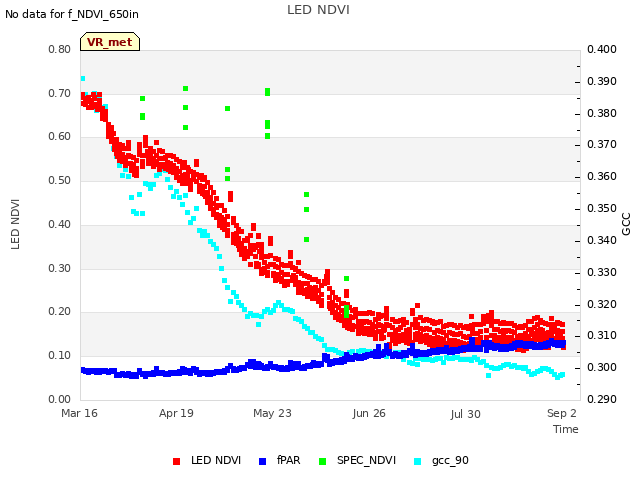

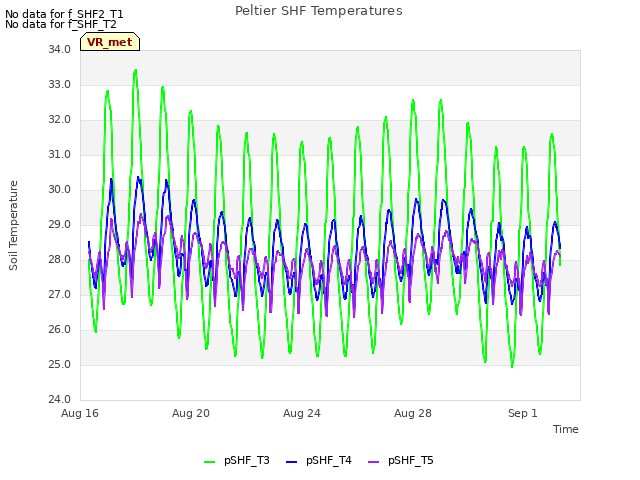

16 VR_met graphs found

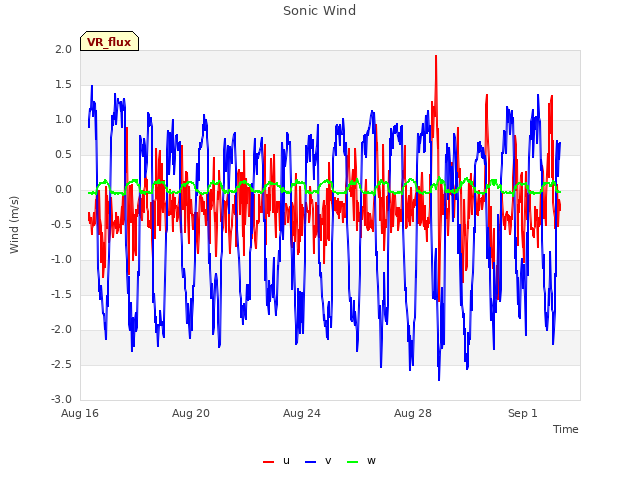

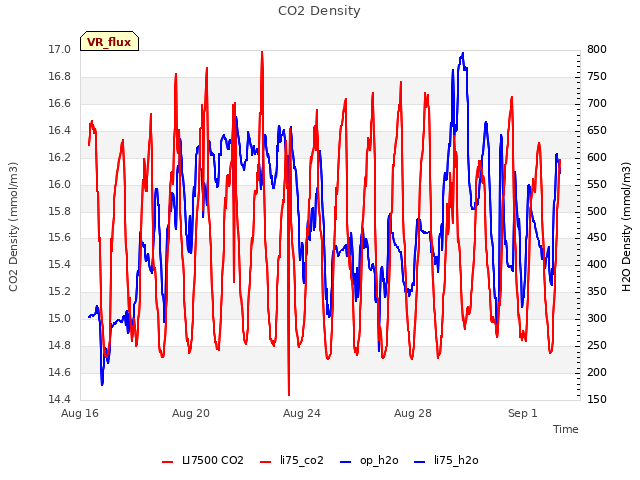

2 VR_flux graphs found

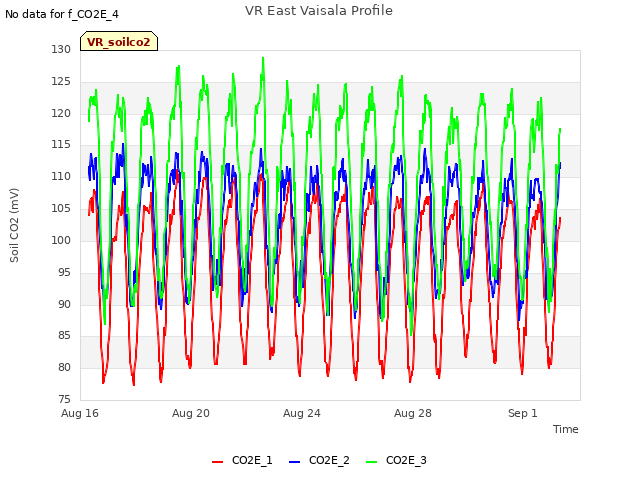

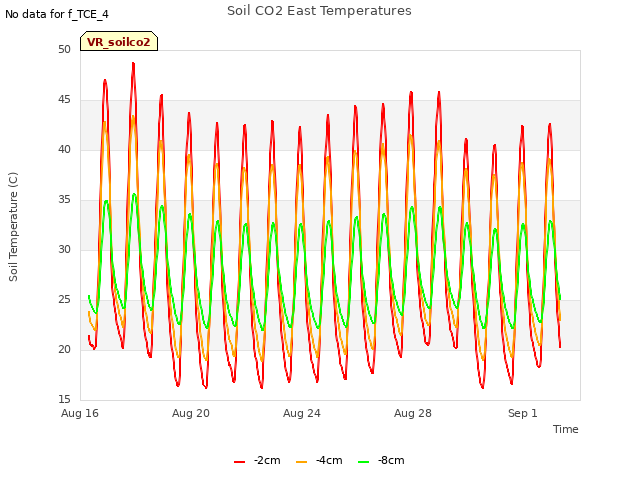

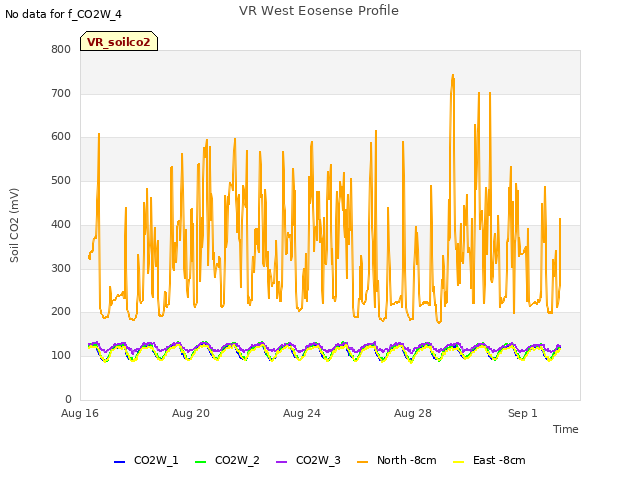

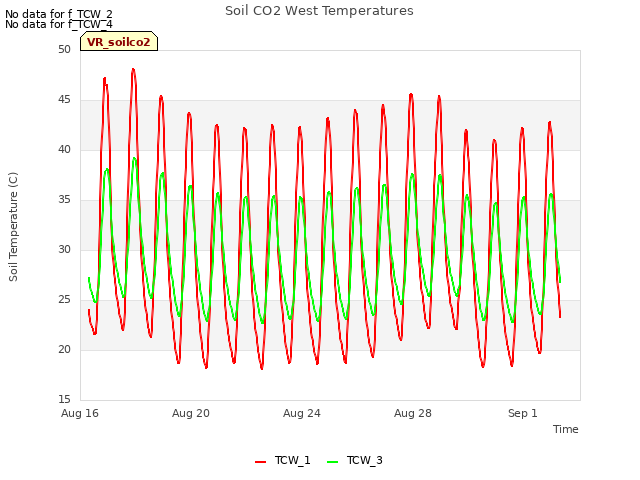

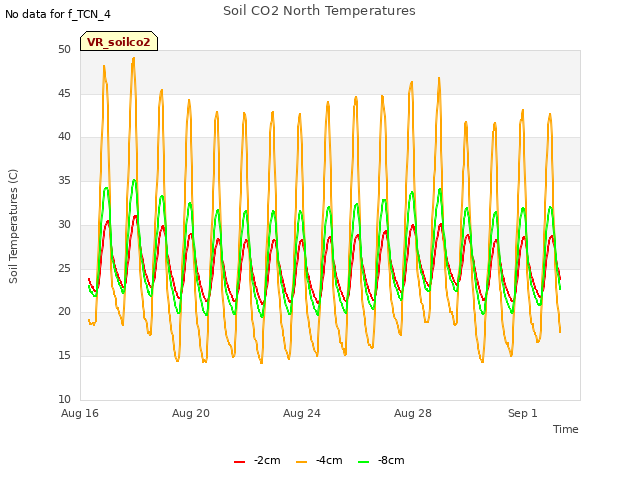

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
