Mayberry: 2015-07-22 09:20:00 (DOY 203)
Author: Patty Oikawa
Others: Sara, Noah Amme
Summary: installed forerunner, camera acting strange, need batts for minidots, caterpillars back
| We arrived at 9:20am. It was sunny with a light breeze. The caterpillars are back but not as bad as last year. Noah cleaned the radiation sensors, I downloaded data, Sara first tested the Forerunner (CO2 probe A) sn GP20140011 to make sure it was working before installing it in the water. Noah got in the water for installation and cleaning sensors. Sara noticed the camera has only recorded photos on certain days, I tightened the power connection but it started up just fine—need to keep an eye on this. We also downloaded minidot data. The middle height minidot did not record data since last download so we suspect bad batteries. We did not have batteries with us so need to bring them next time. Always carry batteries in the field bag! 7500 CO2: 383.7 µmol/mol (389 after cleaning) H2O: 703 mmol/m3 (644 after cleaning) SS: 90.6% (96 after cleaning) Pressure: 100.87 kPa Temperature: 22 ˚C SOS: 345.5 m s-1 7700 CH4: 1.95 ppm (2 after cleaning) RSSI: 35% (68 after cleaning) Reservoir: 1/2 full, Refilled Met: OK |
0 photos found
11 sets found

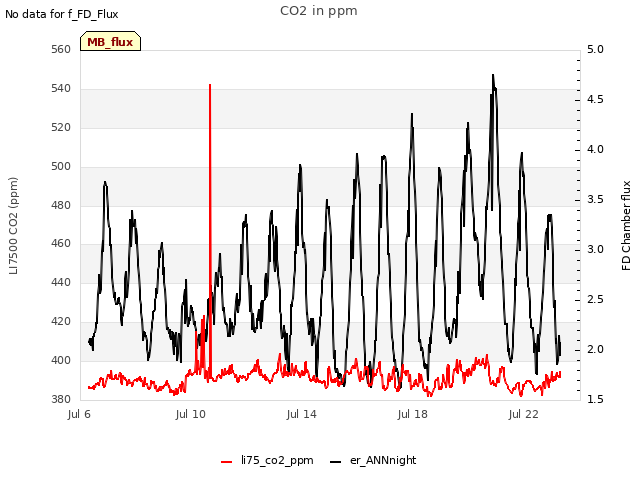

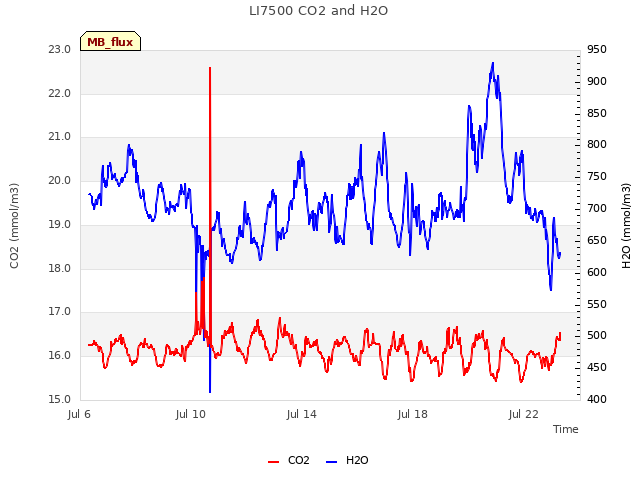

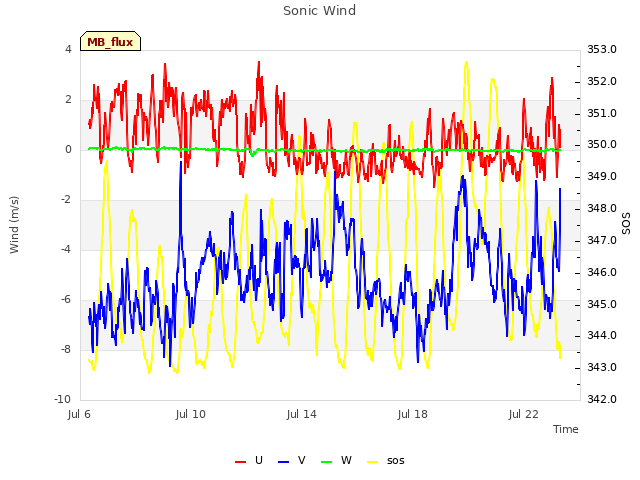

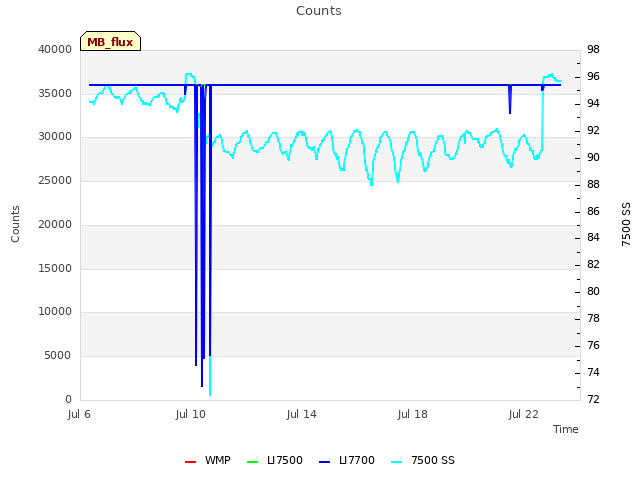

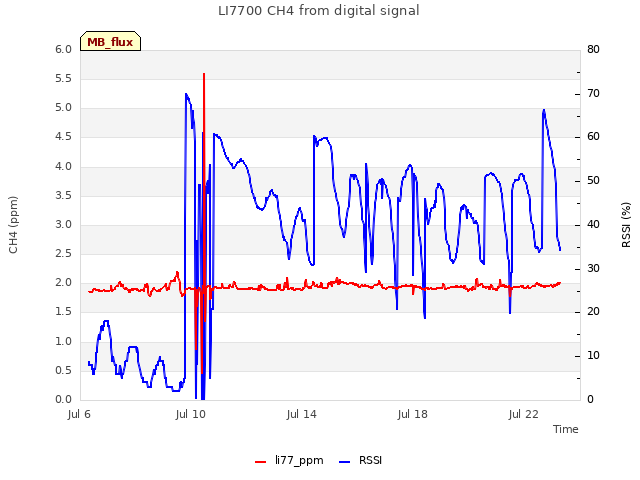

7 MB_flux graphs found
No data found for MB_met.

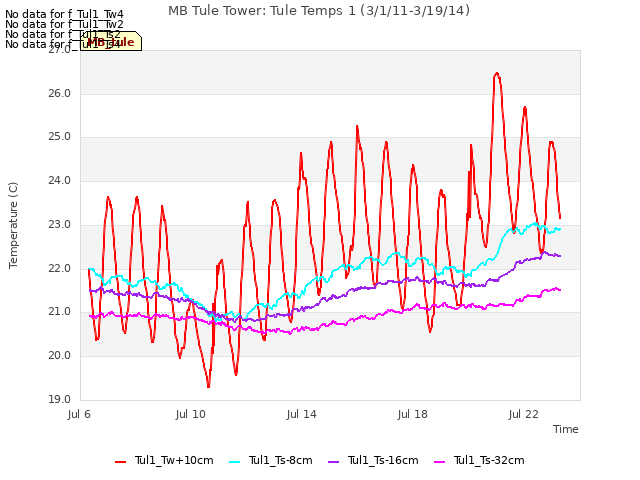

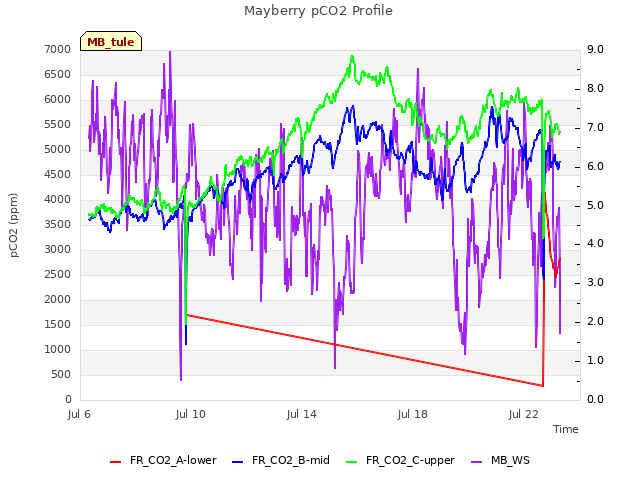

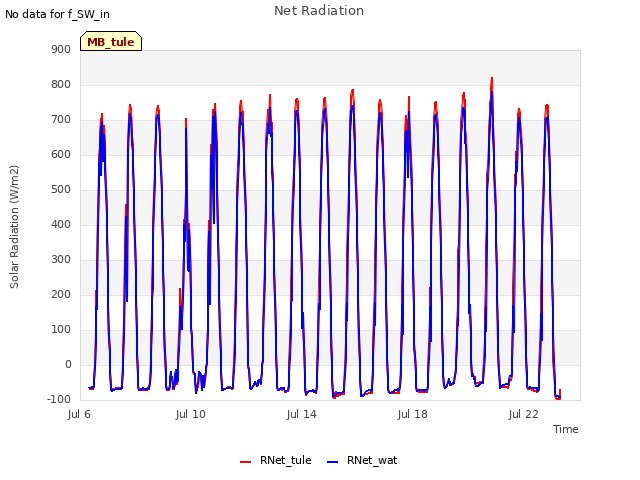

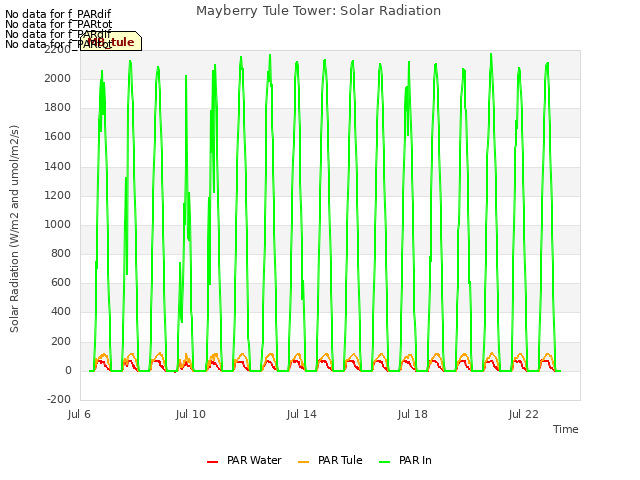

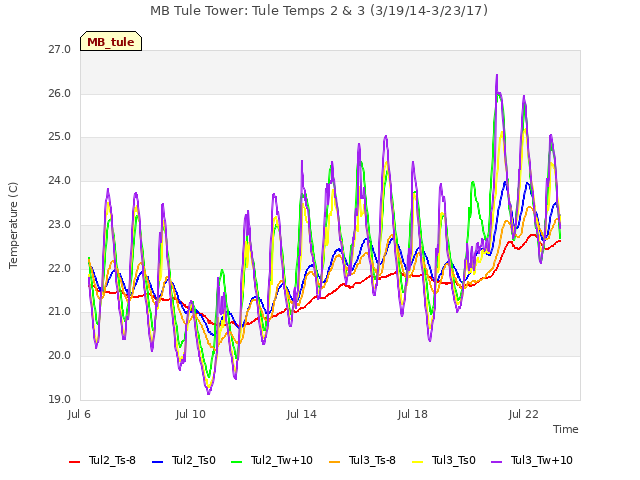

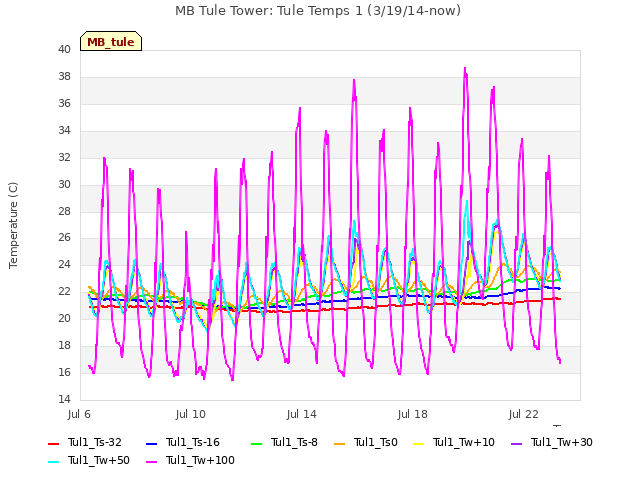

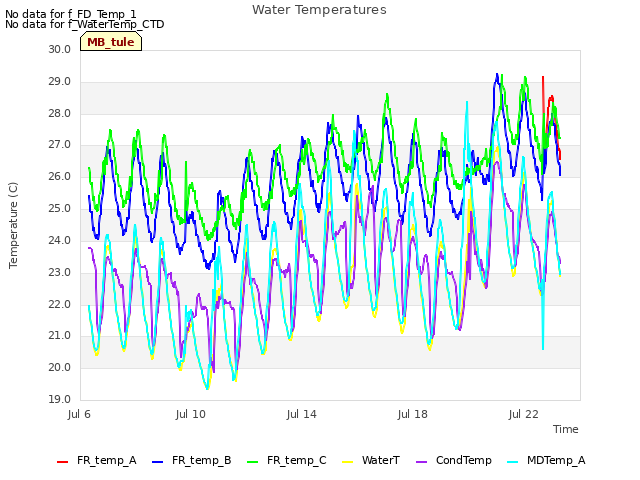

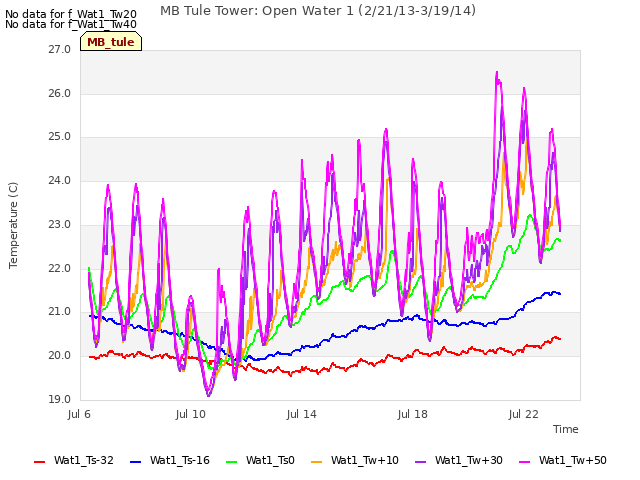

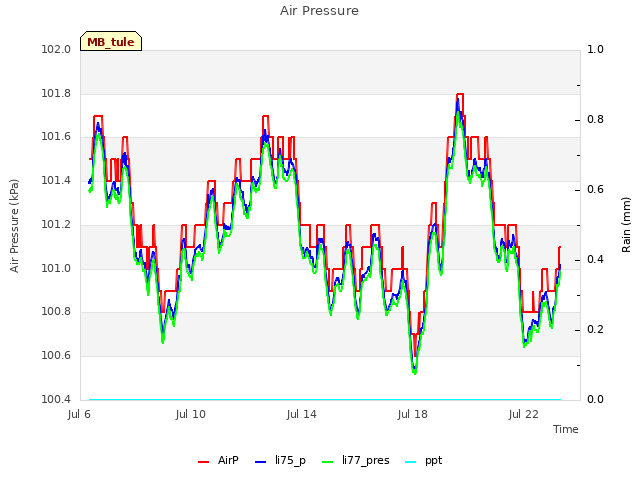

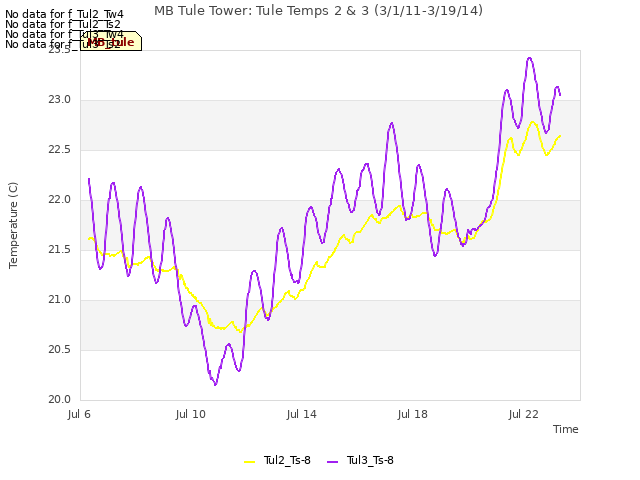

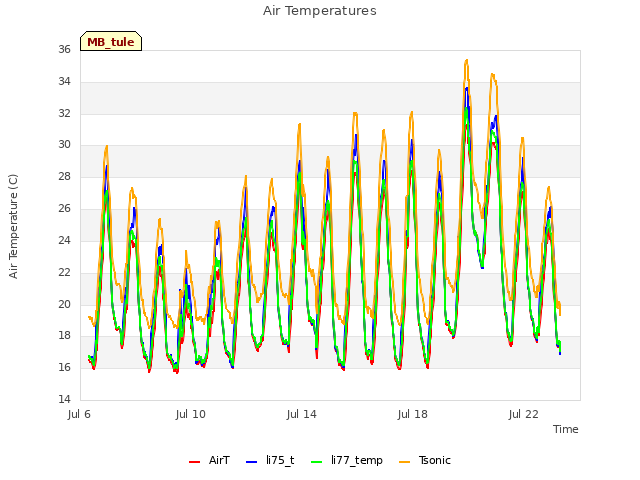

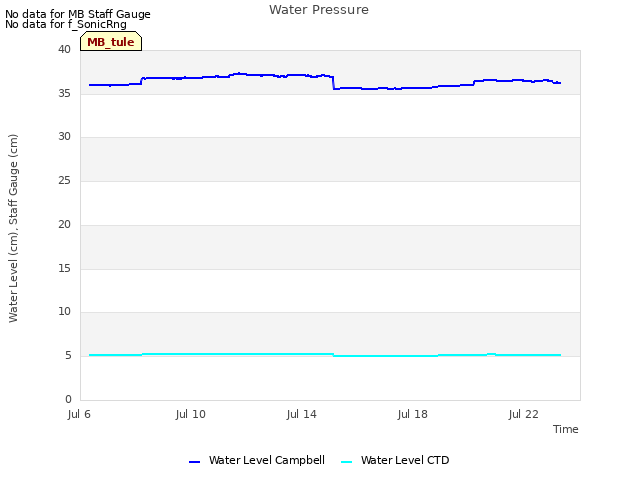

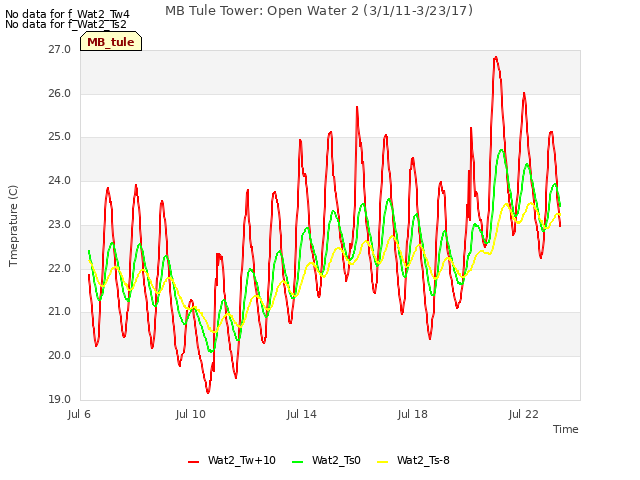

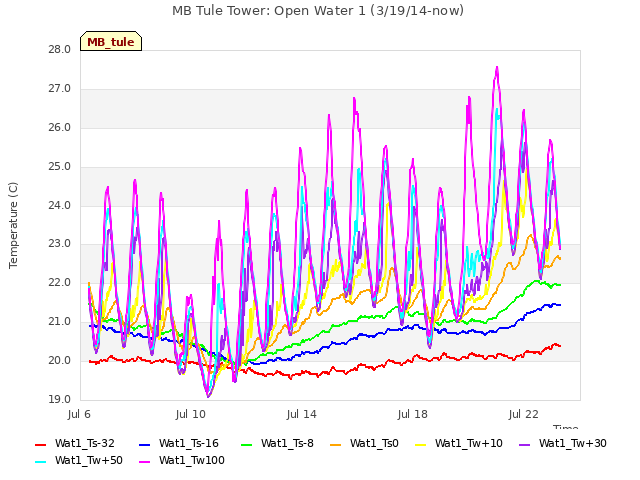

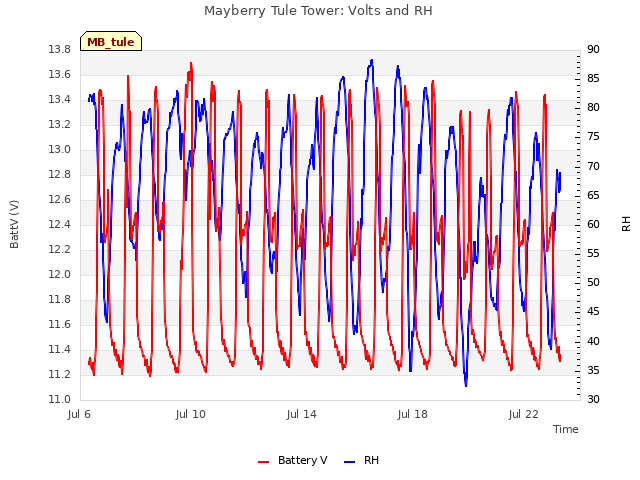

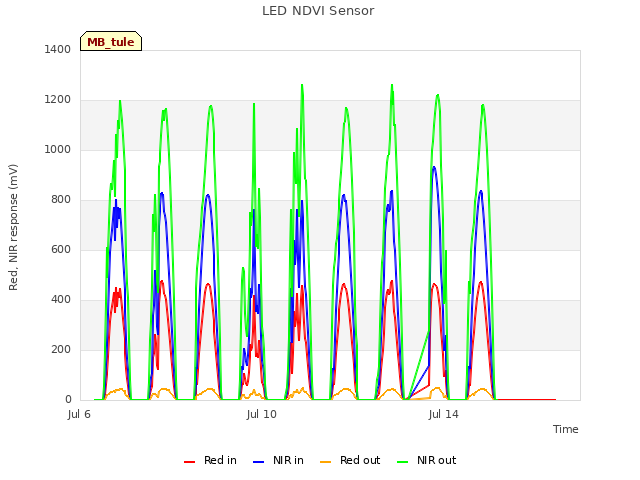

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

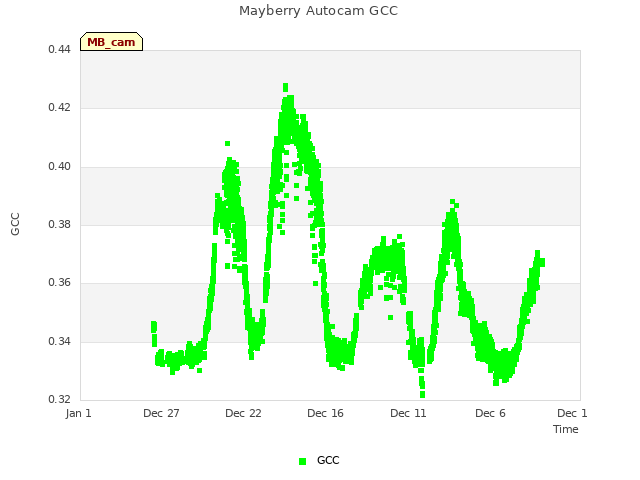

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

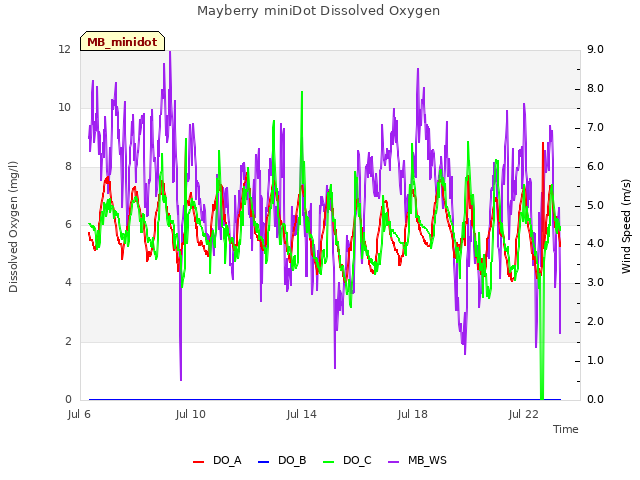

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

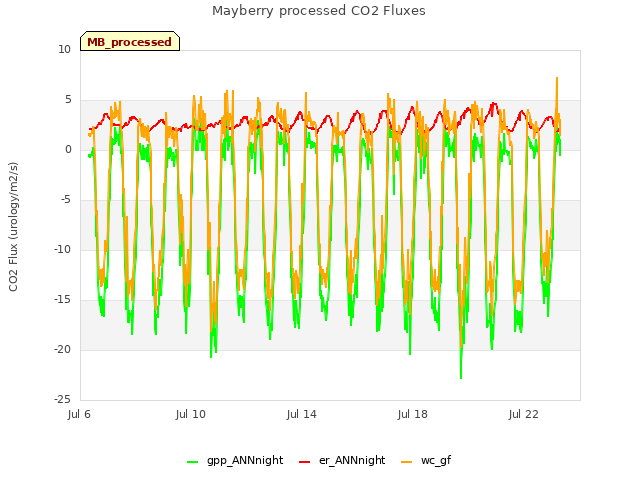

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
