Tonzi: 2015-07-20 13:30:00 (DOY 201)
Author: Joe Verfaillie
Others: Ana

Summary: Swapped tower 7500 not Floor, fixed zcam2 power, collected data, fixed fences, did our best to do field measurements, did not calibrate co2 profile system

Tonzi
2015-07-20

I arrived about 1:30pm with Ana. It was very hot and dry, but with a nice breeze. Thunderstorms were building over the Sierras. It doesnâ€™t look like it has rained here recently though.

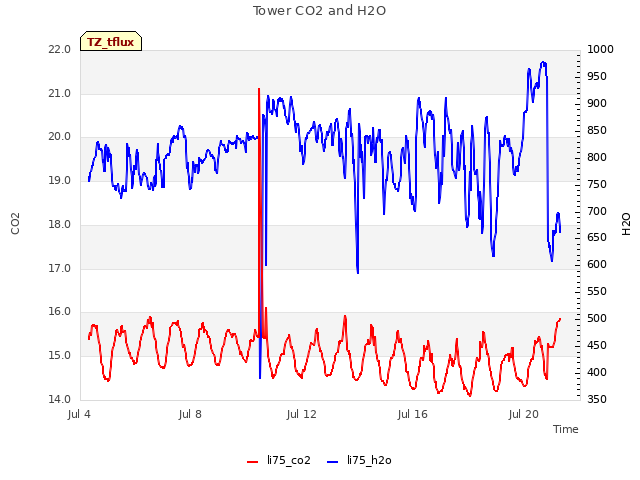

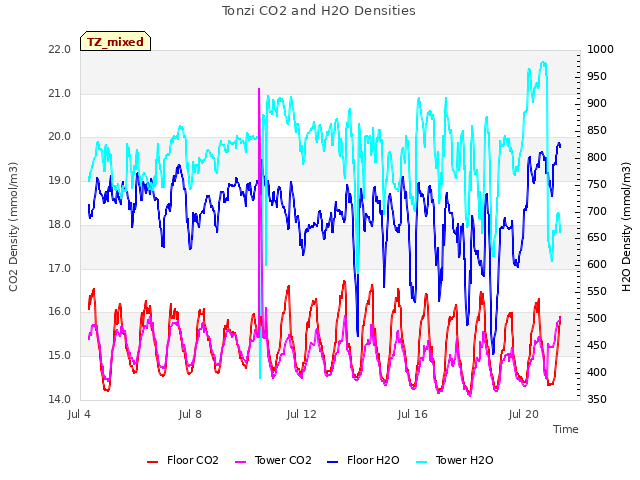

I swapped the 7500 on the Tower, sn 0035 came off and sn 0418 went on.

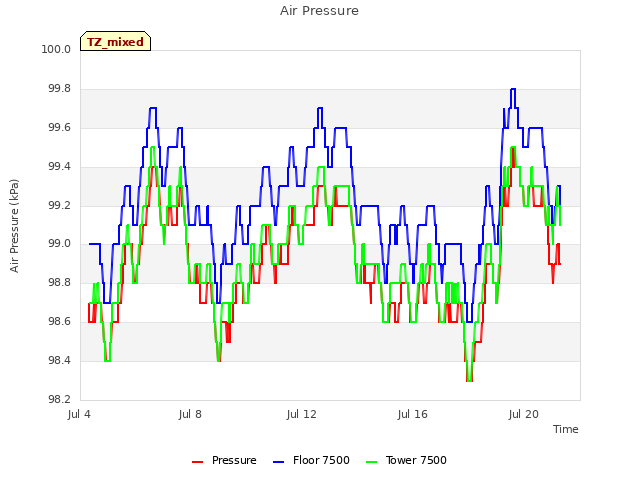

Before swap: 14.4mmol/m3 CO2, 952mmol/m3 H2O, 99.03kPa, 38.06C, 249diag
After swap: 15.4mmol/m3 CO2, 642mmol/m3 H2O, 99.3kPa, 37.0C, 248diag

I tried to swap the 7500 on the Floor site. The IRGA sn 42 that calibrated just fine in the lab did not start up properly â€“ the startup light would not go out and the data was bad. So I left sn 73 on the tower.

I cleaned the outside of the Tower phenocam window.

I serviced the zcams. Zcam1 still needs its window reaffixed. Zcam2 has not been running for a while. I found a break in its power cable. I was able to roughly splice the cable, but it needs to be replaced (four conductors).

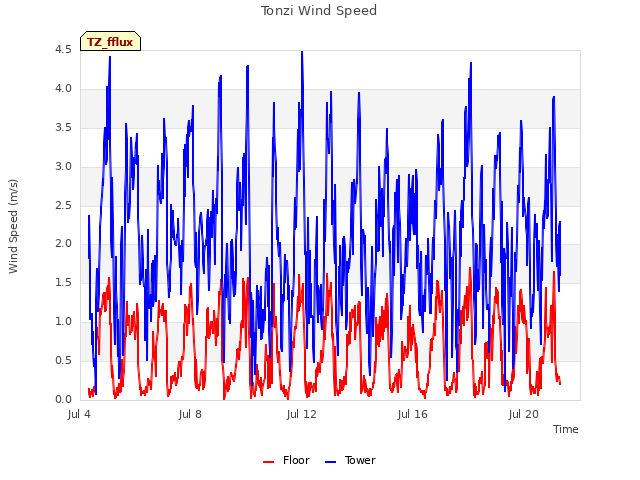

Ana collected data from both computers and swapped the card on the Floor CR1000. She also collected data from her wind profile and IRT sensors.

We did moisture point measurements but only one rep. Probe B had a gopher mound right next to it.

I took photos of the dendrometers that I could fine.

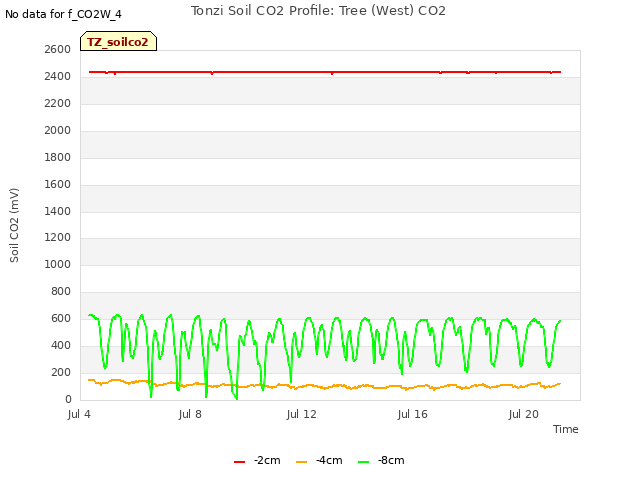

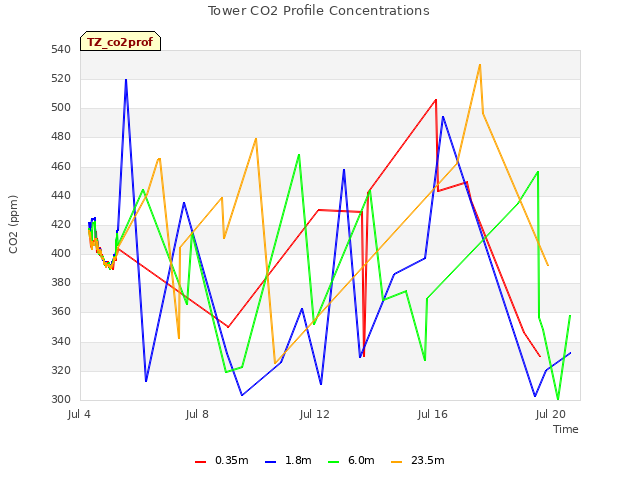

Did not calibrate co2 profile system.
Did not collect data from well auto logger.

Both the Floor fence and the Tower fence had broken wires that we fixed. The gate to the Tower was left open last time. Peter Franks was there on the 15th.

The tower computer crashed again. A few days of Phenocam images and Tram data were lost. I want to swap out that computer with one of the new compute sticks soon.

Field Data

No tank data

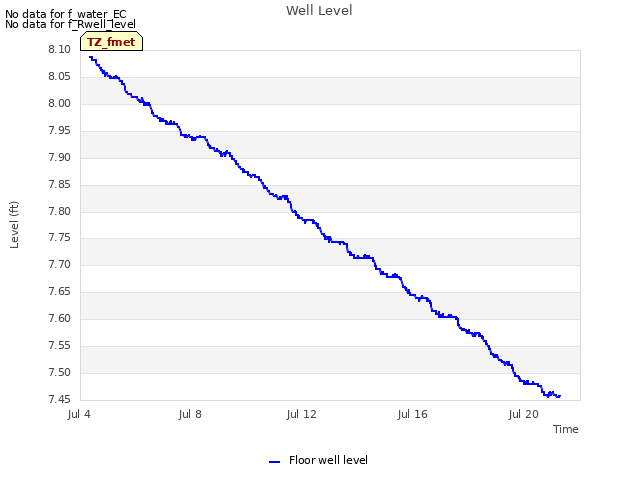

Well Depth

Date	Location	Depth (feet)
2015-07-20	TZ_floor	28
2015-07-20	TZ_road	36
2015-07-20	TZ_tower	35

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2015-07-20	201	0	nan	5.3	4.2	10.6	8.3	8	1.8	3.9	3.6	5	5.6	5	3.3	10.3	5.7	9.3	8.7	7.2	9.3	14.8	12.4	4.2	7.5	1.4	11.5	15.8	6.2	11.5	11.2	22.9	9.5	13.4	16.5	13.4	15.6	16.5	13.7	8.7	9	18.8	14.5	11.1	11	16.8	26.2	9.9	18.2	18.8	21.6
2015-07-20	201	Avg	0-15cm																																																	0
2015-07-20	201	Avg	15-30cm																																																	0
2015-07-20	201	Avg	30-45cm																																																	0
2015-07-20	201	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2015-07-20	201	0	nan	2.1	3	3.9	0.6	10	13	8.1	4.8	5.9	16.8	13.4	13.4	13.3	29.4	11.6	16.2
2015-07-20	201	1	nan	1.8	1.6	4.2	0.3	10	12.7	8.1	4.2	5.6	16.5	12.6	13.1	13.9	29.4	10.2	16.2
2015-07-20	201	Avg	0-15cm																	0
2015-07-20	201	Avg	15-30cm																	0
2015-07-20	201	Avg	30-45cm																	0
2015-07-20	201	Avg	45-60cm																	0
