Vaira: 2015-03-02 10:00:00 (DOY 61)
Author: Joe Verfaillie
Others: Siyan
Summary: Standard fieldwork, trees starting to leaf out, staked base of solar panels.
| Vaira 2015-03-02 I arrived with Siyan about 10:00am. It was cool and blustery with lots of clouds. The grass looks very green and vigorous. The water hole was full and there were puddles on the road. The trees have begun to leaf out. The grass outside the fence has all the tops grazed off. I collected data and added wooden stakes to the bottom of the main solar panels. I also moved the bottom of the Soil CO2 panels up on top of a boardwalk and nailed them to the boards. Grasses were already beginning to shade the bottom of the panels. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2015-03-02 | TZ_floor | 28.9 |
| 2015-03-02 | TZ_road | 38.3 |
| 2015-03-02 | TZ_tower | 32.5 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Floor_South
[1] => Floor_East
[2] => Floor_West
[3] => SoilCO2
[4] => Soil_Transect_4
[5] => Soil_Transect_3
[6] => Soil_Transect_2
[7] => Soil_Transect_1
[8] => SoilCO2_West_A
[9] => SoilCO2_West_B
[10] => SoilCO2_West_C
)
| Date | DOY | Rep | Depth | Floor_South |
Floor_East |
Floor_West |
SoilCO2 |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2015-03-02 | 61 | 0 | 0-15cm | 10.6 | 39.9 | 24.4 | 35.8 | 22.9 | 16.2 | 20.3 | 20.3 | 22.3 | 23.8 | 20 | |||
| 2015-03-02 | 61 | 0 | 15-30cm | 31.3 | 33.4 | 31.3 | 28.9 | 25.8 | 33.5 | 30.1 | 20 | 26.1 | 16.7 | 30.7 | |||
| 2015-03-02 | 61 | 0 | 30-45cm | 38.5 | 39.4 | 37.7 | 43 | 24.8 | 29.3 | 32.4 | 32.9 | 33.2 | 33.5 | 35.4 | |||
| 2015-03-02 | 61 | 0 | 45-60cm | 47.7 | 62 | 45.1 | 39.1 | 31.1 | 39.1 | 46.8 | 29.4 | 42.8 | 48.6 | 48.8 | |||
| 2015-03-02 | 61 | 1 | 0-15cm | 10.9 | 24.7 | 30.5 | 17.9 | 18.5 | 19.7 | 22 | 23.2 | 20.3 | |||||
| 2015-03-02 | 61 | 1 | 15-30cm | 31.3 | 31.6 | 29.5 | 30.1 | 29.5 | 18.8 | 26.5 | 15.8 | 30.7 | |||||
| 2015-03-02 | 61 | 1 | 30-45cm | 38.2 | 37.4 | 42.4 | 28.8 | 32.9 | 32.4 | 32.7 | 33.5 | 36.3 | |||||
| 2015-03-02 | 61 | 1 | 45-60cm | 48.3 | 45.7 | 36.5 | 39.4 | 47.4 | 29.1 | 43.4 | 49.1 | 48.8 | |||||
| 2015-03-02 | 61 | Avg | 0-15cm | 10.75 | 39.9 | 24.55 | 33.15 | 22.9 | 17.05 | 19.4 | 20 | 22.15 | 23.5 | 20.15 | 23.05 | 11 | 20 |
| 2015-03-02 | 61 | Avg | 15-30cm | 31.3 | 33.4 | 31.45 | 29.2 | 25.8 | 31.8 | 29.8 | 19.4 | 26.3 | 16.25 | 30.7 | 27.76 | 11 | 20 |
| 2015-03-02 | 61 | Avg | 30-45cm | 38.35 | 39.4 | 37.55 | 42.7 | 24.8 | 29.05 | 32.65 | 32.65 | 32.95 | 33.5 | 35.85 | 34.5 | 11 | 20 |
| 2015-03-02 | 61 | Avg | 45-60cm | 48 | 62 | 45.4 | 37.8 | 31.1 | 39.25 | 47.1 | 29.25 | 43.1 | 48.85 | 48.8 | 43.7 | 11 | 20 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
| Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|
| 2015-03-02 | 61 | 0 | 0-15cm | 11.8 | 16.8 | 14.1 | 6.8 | |||
| 2015-03-02 | 61 | 0 | 15-30cm | 26.5 | 24.6 | 15.9 | 17.9 | |||
| 2015-03-02 | 61 | 0 | 30-45cm | 29.6 | 18.1 | 19 | 26.5 | |||
| 2015-03-02 | 61 | 0 | 45-60cm | 35.4 | 25.4 | 15.6 | 27.9 | |||
| 2015-03-02 | 61 | 1 | 0-15cm | 7.7 | 17.3 | 13.8 | 7.1 | |||
| 2015-03-02 | 61 | 1 | 15-30cm | 27.1 | 24.3 | 15.8 | 18.5 | |||
| 2015-03-02 | 61 | 1 | 30-45cm | 27.4 | 11.7 | 18.7 | 25.4 | |||
| 2015-03-02 | 61 | 1 | 45-60cm | 38 | 25.4 | 16.5 | 27.6 | |||
| 2015-03-02 | 61 | Avg | 0-15cm | 9.75 | 17.05 | 13.95 | 6.95 | 11.93 | 4 | 8 |
| 2015-03-02 | 61 | Avg | 15-30cm | 26.8 | 24.45 | 15.85 | 18.2 | 21.33 | 4 | 8 |
| 2015-03-02 | 61 | Avg | 30-45cm | 28.5 | 14.9 | 18.85 | 25.95 | 22.05 | 4 | 8 |
| 2015-03-02 | 61 | Avg | 45-60cm | 36.7 | 25.4 | 16.05 | 27.75 | 26.48 | 4 | 8 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

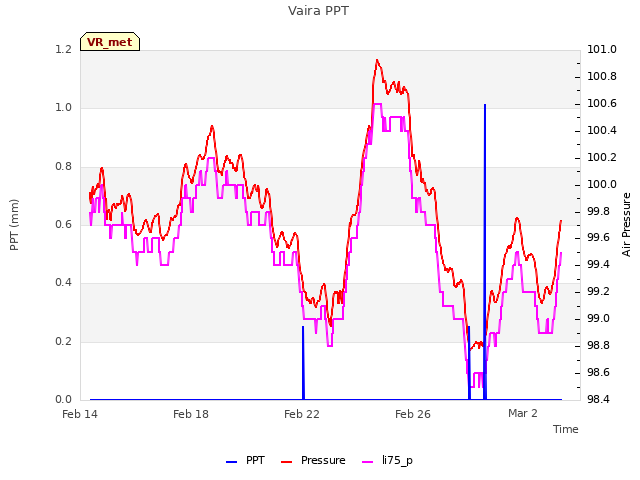

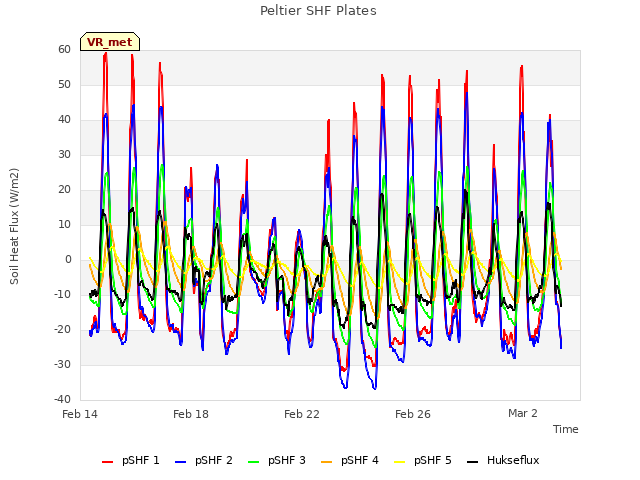

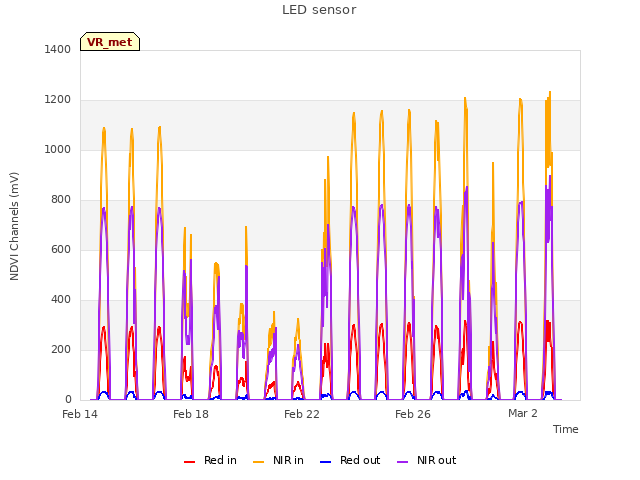

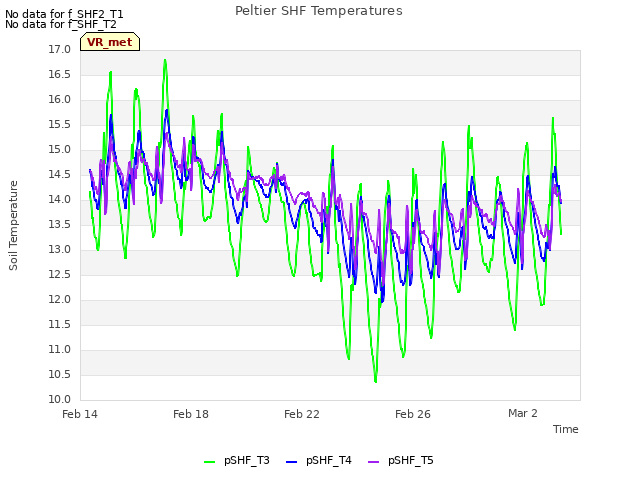

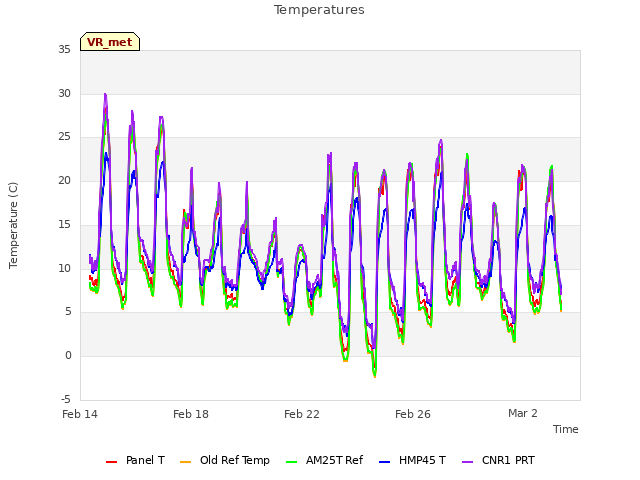

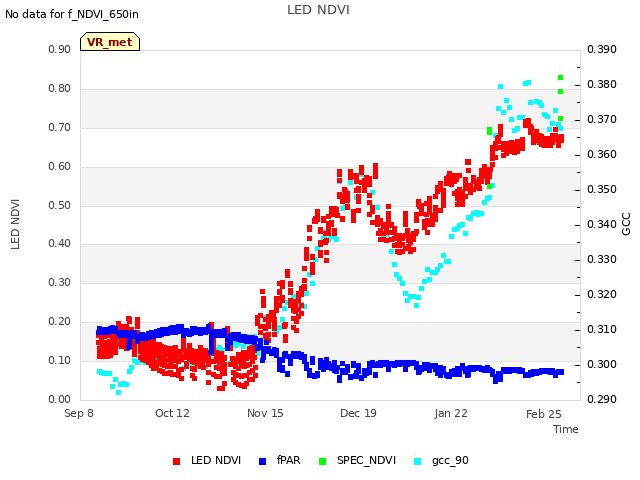

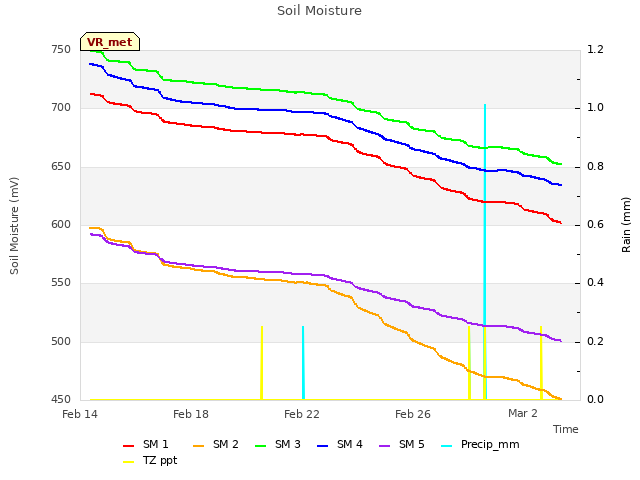

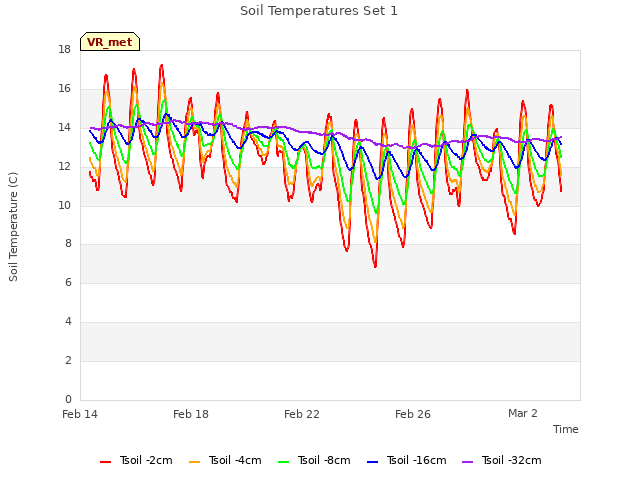

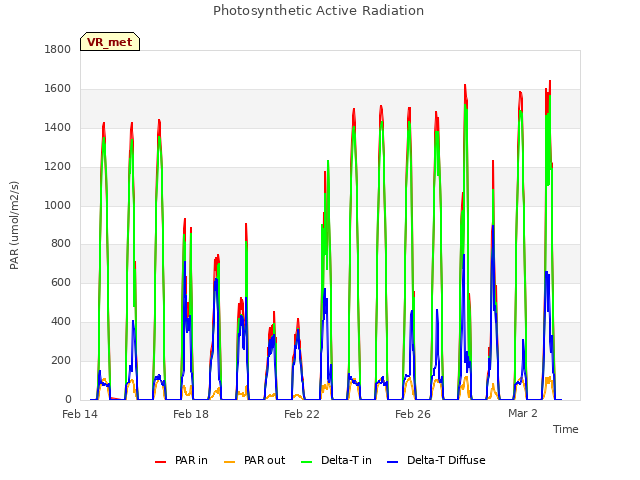

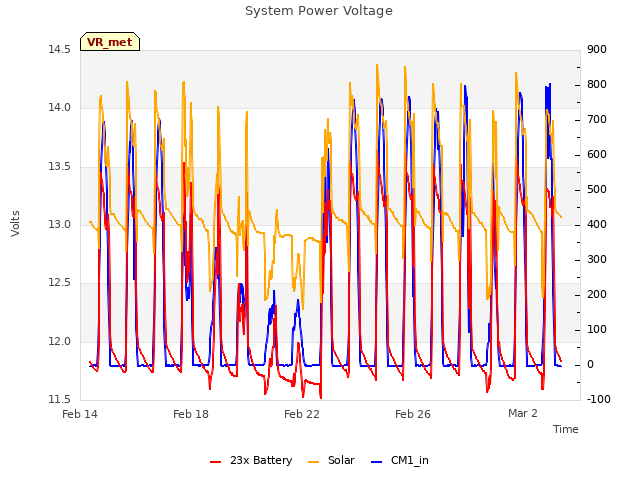

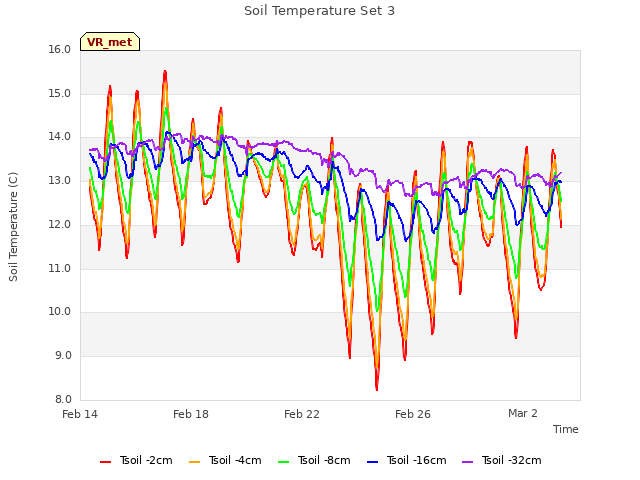

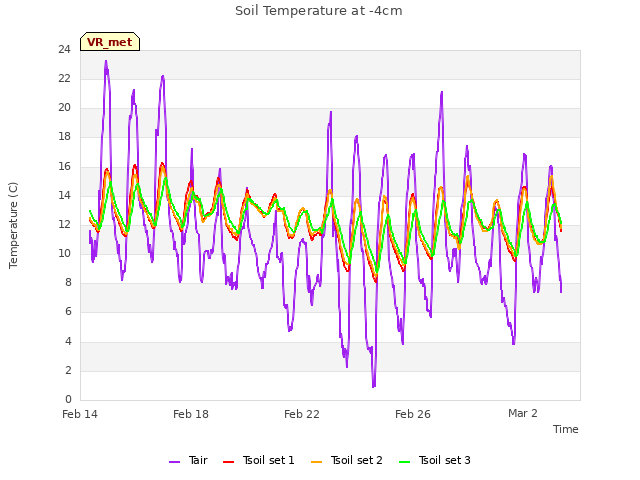

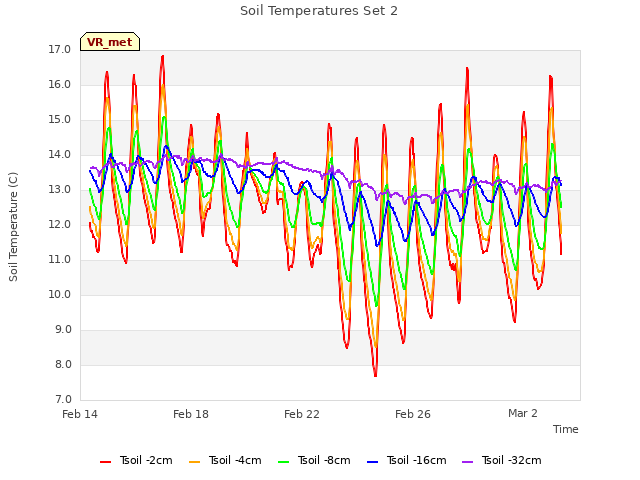

16 VR_met graphs found

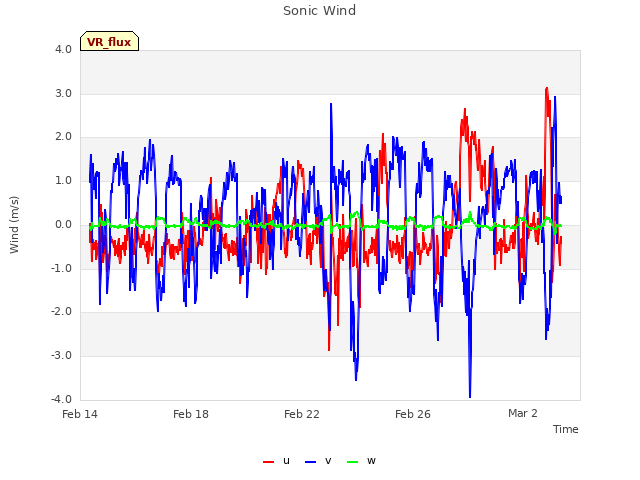

2 VR_flux graphs found

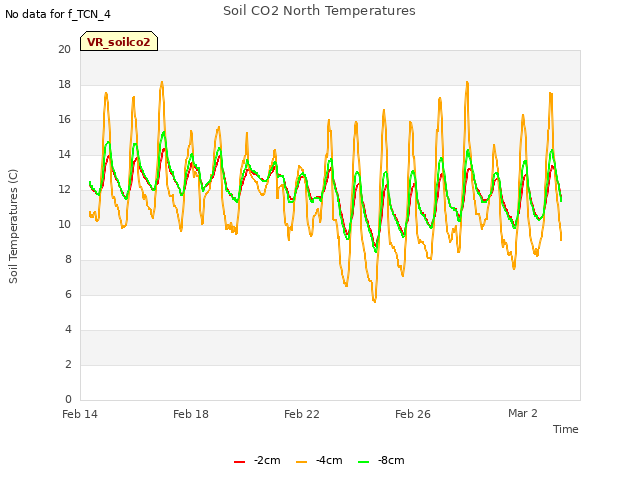

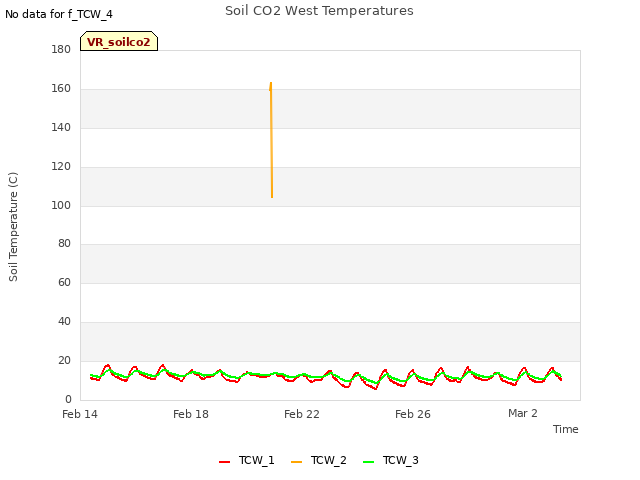

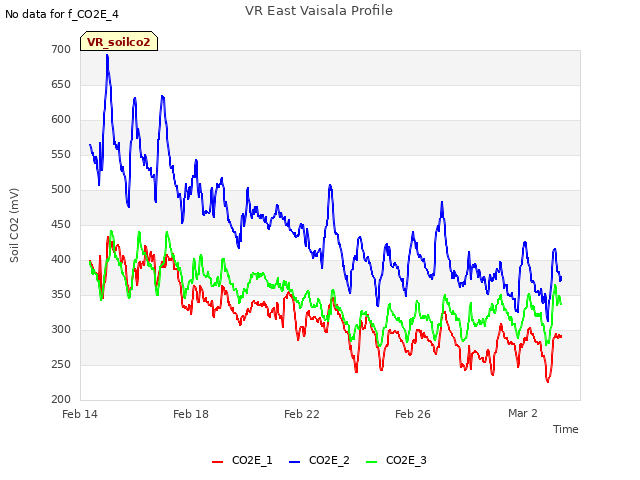

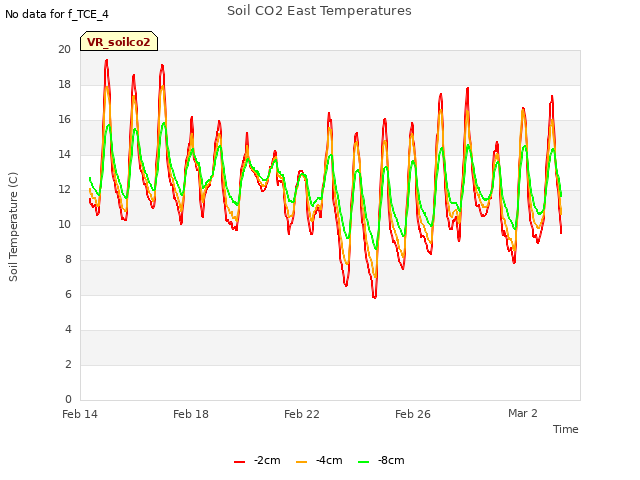

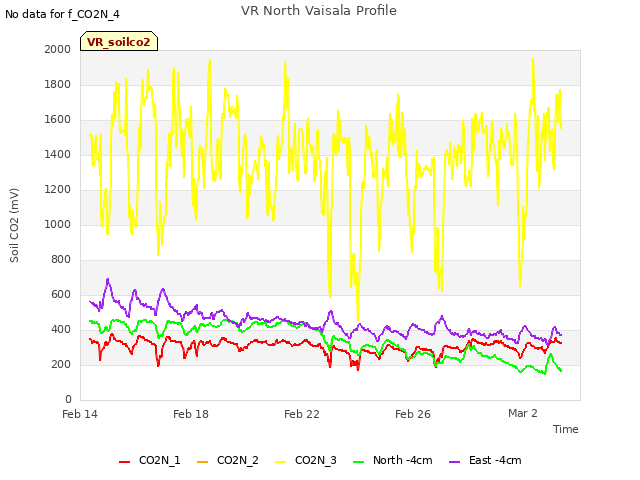

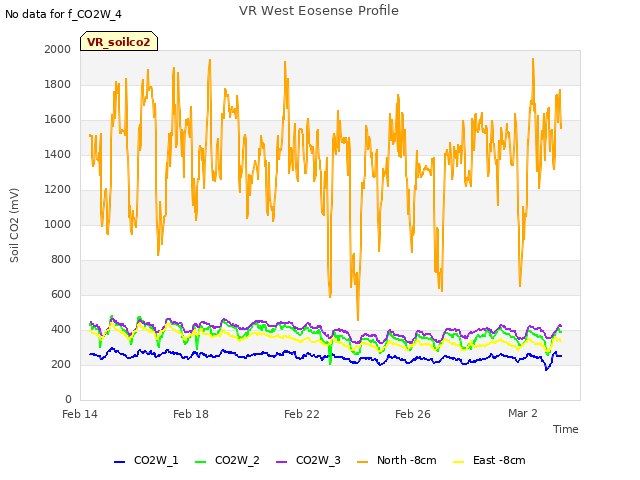

6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
