Field Notes

<--2009-10-06 09:30:00 | 2009-10-15 09:30:00-->
Other sites visited today: Twitchell Rice
Phenocam link: Searching...

Sherman Island: 2009-10-09 10:30:00 (DOY 282)
Author: Joe Verfaillie
Others:

Summary: Serial problems on computer. bug in LGR filter.

Sherman
10-9-2009
Arrived about 10:30 PDT – cool, sunny, breezy.

Could not get Loggernet to find com ports. Tried two different USB to serial adapters without luck. Maybe something I removed with the nLite installation is needed. Decided to leave computer in place to collect web cam images and replace with win2000 box next week.

Reinstalled computer. New hard drive with fresh install of XP pro SP3 and updates. Install done with nLite with many unneeded components removed. CD drive removed because mount is with original hard drive being recovered.

Added heavy foam feet under the pump to try to isolate its vibrations from the box a little more.

LGR stats: 10:36 1.936ppm, 25.29C, 132.33Torr, 17.633usec, 3655,0hr, 10Hz

After clearing a bug from the 40um filter pressure was back at 142.5Torr

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

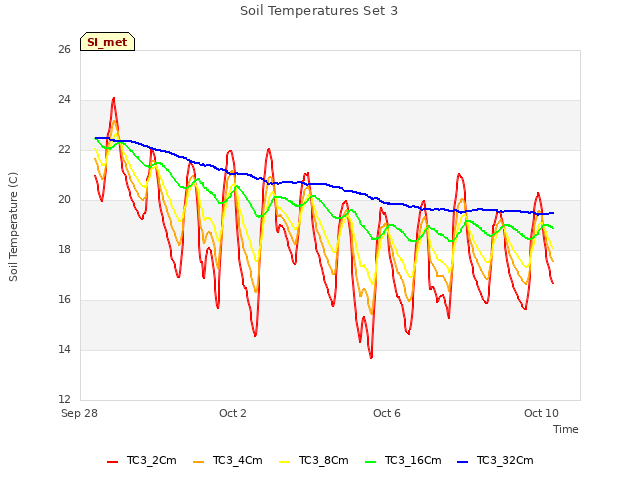

Explore the graph:Soil Temperatures Set 3 in a new window

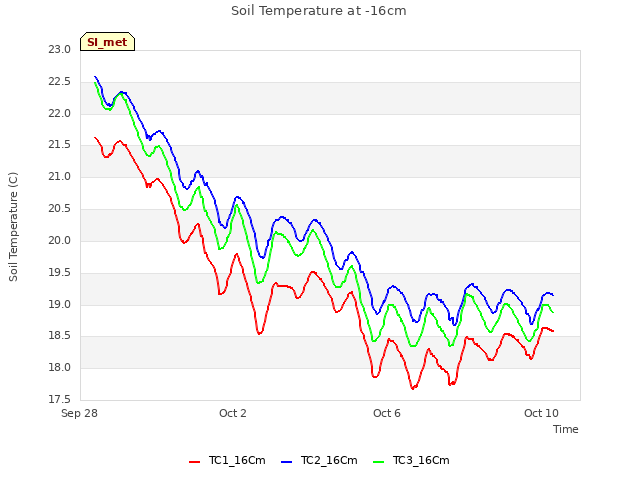

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

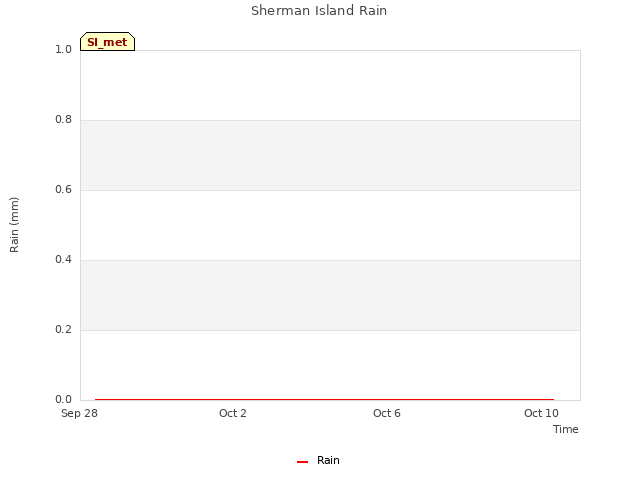

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

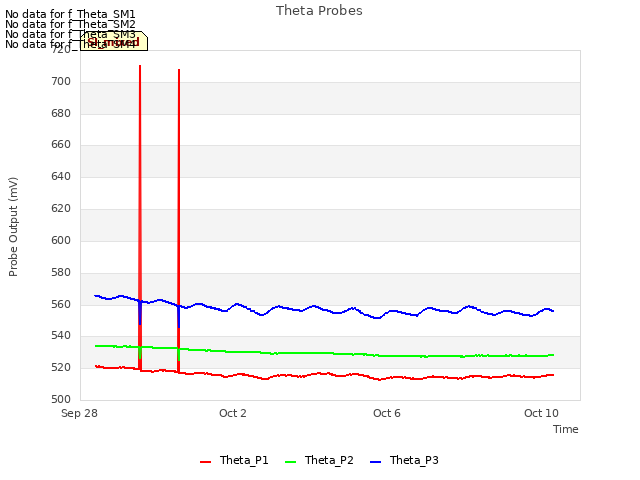

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
